Product Overview

Description

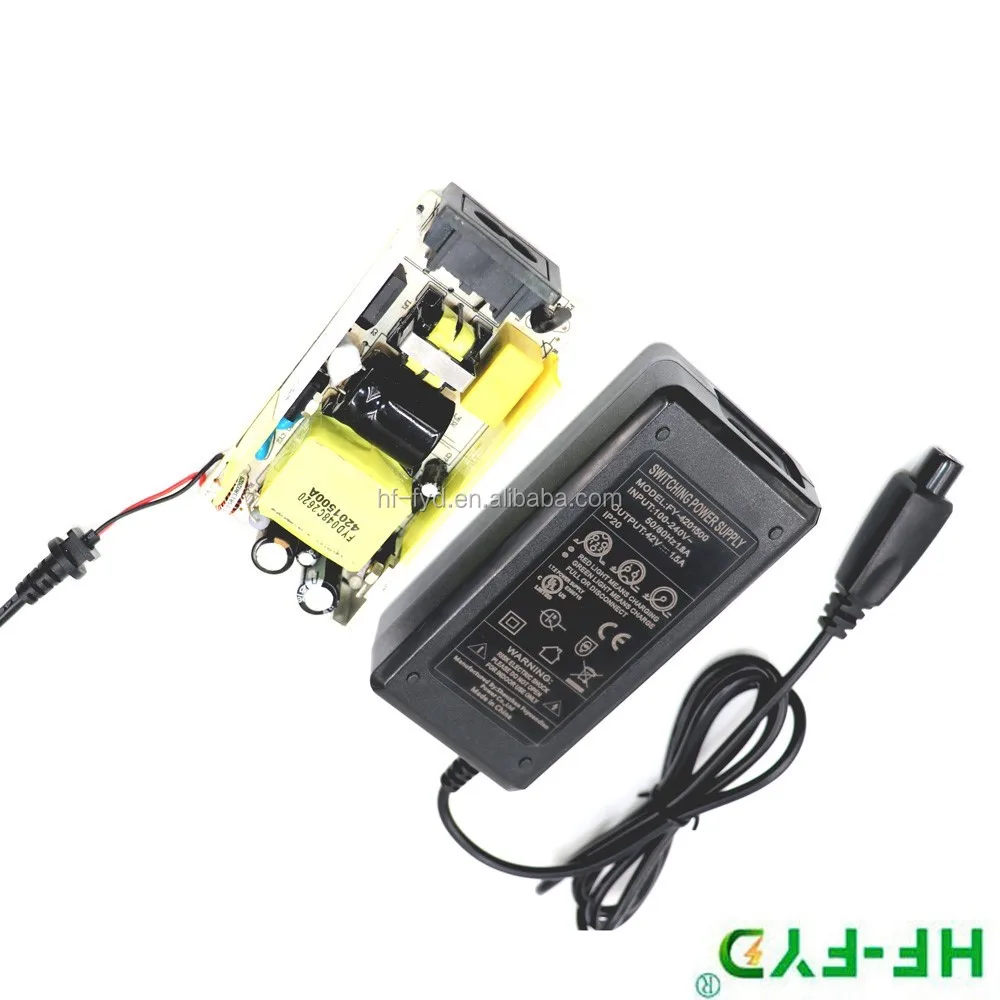

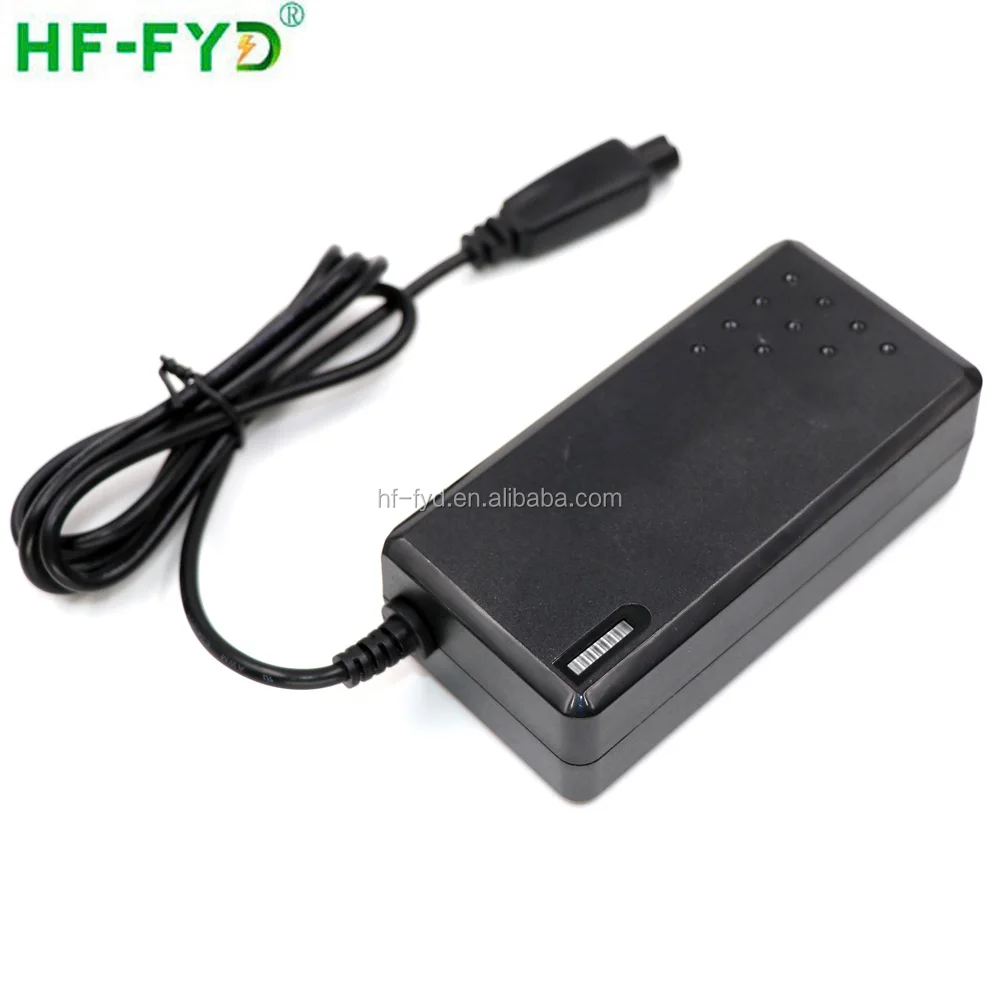

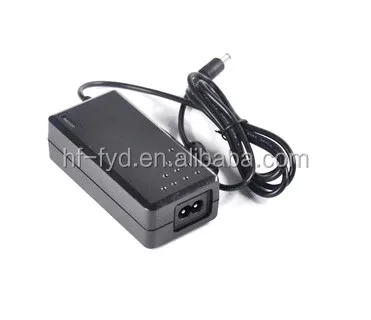

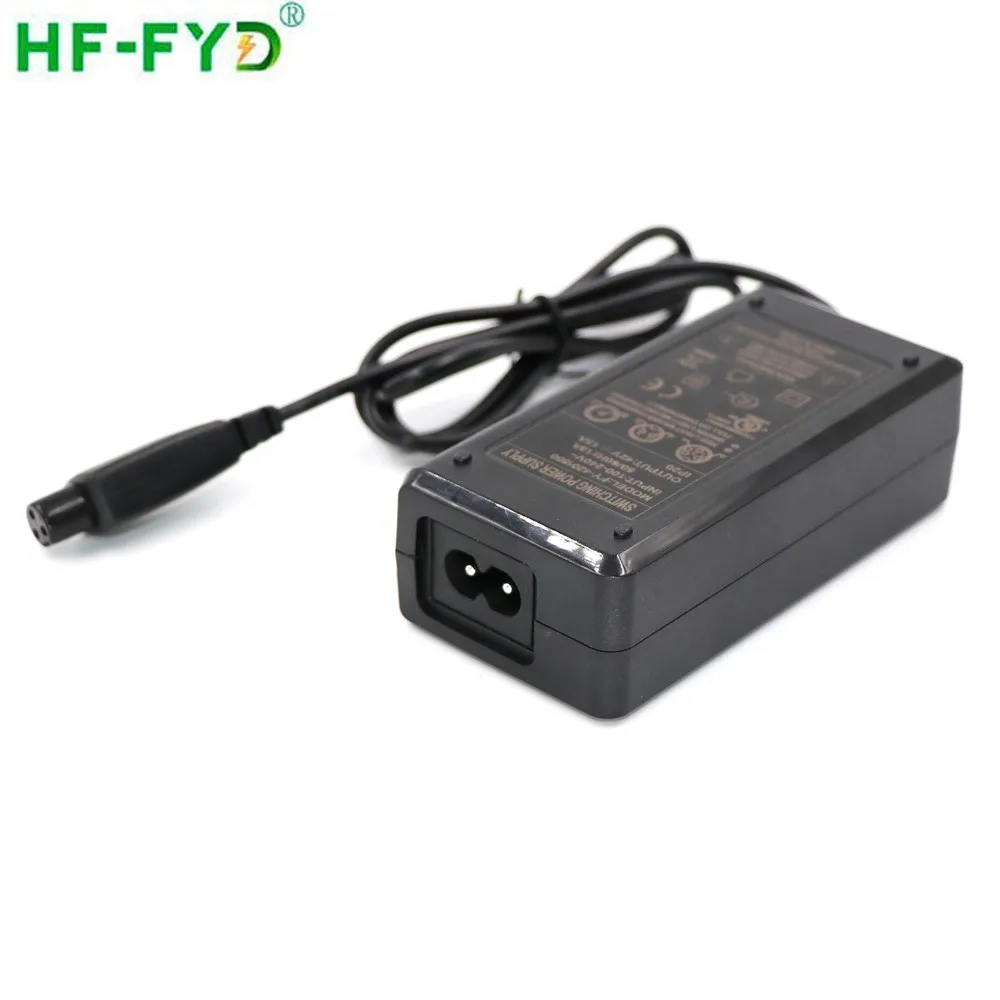

Lithium Battery Charger 42V 1.5A

Description

Output max power:63W

All range voltage input

High efficiency,low loss

European commission of energy

Built in EMC/EMI filter

You can chose the output voltage/current arbitrarily

Widely used in the electronic digital,communication,security,lighting,medical,etc.



Environmental and reliability

Operating temperature:0-40C

Operating humidity:10-90%RH

Storage temperature:-20-+80C

Storage humidity:5-90%RH

Leakage current:0.25mA max



Advantage
1 Soft-start can reduce the AC input impact efficiency
2 With short ciucuit and over load protection
3 Compact size, light weight
4 100% full-load burning test

5 2 years warranty







AC Input

AC Input Voltage.............100~240V AC 47~63 Hz

Inrush Current..............<30A(AC 240V  at 25°C)

input Current Limiting..............<2.5A(under min AC input and full load)

Efficiency..............>80%



DC Output



DC Voltage Regulation

Parameter	Line Regulation	load Regulation	Cross Regulation
V1:42V	±5.0%	±5.0%	N/A



DC Output Current

Parameter	Min Current	Rate Current	unit
V1:42V	0.1	1.5	A



Output Ripple & Noise.............  120mVp-p@ 25 degrees C

Output Dynamic Load Response



Dynamic Load	DC Voltage Regulation
50%~100%~50%	±10%



Overshoot at turn-on/ turn-off.............<10%



Protection Function

SCP...........<0.1 ohms

OCPlimits.........6A



Timing

Hold up time...........>5mS(100Vac/47Hz),>10mS(110/220Vacc/50/60Hz)

Start up time..........<3S(100Vac/47Hz),<2S(110/220Vac/50/60Hz)





Product Safety Requirement

Standards............Meet IEC60950-1standard requirement

Leakage Current.............not exceed 0.25mA at 220Vac/50Hz

Insulation Resistance...........≥50MΩ ,500VDC



100%Hi-pot  test
