Best Factory Price Pellet Wood Fired Hot Air Generator For Textile Factory

Share on (60746281624):


Price:$7,300.00 - $7,800.00

Quantity:


Product Overview

Description



Product Description


Biomass hot air generator is a best option to surface treatment, spraying, painting, electroplating and other surface treatment industry and various coating line; textile printing and dyeing, garment production and other processing, papermaking, packaging and other aspects need to bake; farming, livestock breeding insulation needs and other industrial hot air use, central air condition and heating spaces.





It is the most advanced hot-air supply system, it is operated with wood pellet (biomass pellet) providing pure hot air. The direct combustion, gasification combustion, dust collect by cyclone all these process are completed in a closed system, it is environmental protection efficient and energy- saving. Mainly used in industrial to support hot air and other heating system.





With the advantage of high acceptance by operators , environmental friendly ,low operating cost, simple operation and maintenance , saving 30 ~ 70% of fuel costs than the traditional fuels Oil/Gas/Electricity hot air generator.





Product Parameter

























































































































ITEM



GV-20-H



GV-30-H



GV-45-H



GV-60-H



GV-90-H



GV-120-H



GV-150-H



Rated Calorific Value



20*104kacl



30*104kacl



45*104kacl



60*104kacl



90*104kacl



120*104kacl



150*104kacl



Pressure



Atmospheric Pressure



The Thermal Efficiency



86%



Air Outlet



350*400mm



350*400mm



400*700mm



500*700mm



600*800mm



600*1000mm



800*1000mm



Air Inlet



300*350mm



350*400mm



350*450mm



400*500mm



450*500mm



500*550mm



500*550mm



Air  system



0.75kw



0.9kw



1.1kw



1.5kw



2.2kw



2.2kw



3.0 kw



I. D. Fan



1.5kw



2.2kw



3.0kw



4.0kw



5.5kw



5.5kw



7.5kw



Circulation Fan



4.0-5.5kw



5.5-7.5kw



7.5-11kw



11-15kw



15-18.5kw



18.5-22kw



22-30kw



Smoke crossing



160mm



220mm



270mm



320mm



375mm



375mm



375mm



Capacity



150kg



200kg



200kg



300kg



300kg



400kg



400kg



Running Time



24h*7



Weight



2230kg



2780kg



3150kg



3580kg



3930kg



4230kg



4700kg



















Product Detail

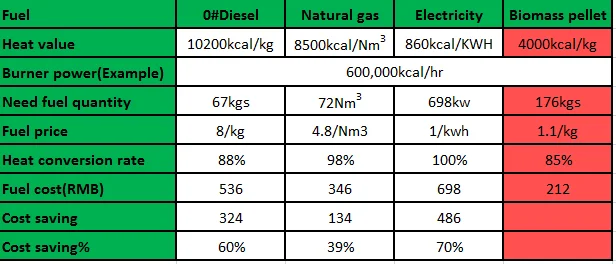

Economic Analysis


600,000kcal/hr hot air generator required for a variety of the economic benefits of energy in contrast.


The following is the cost comparison of various fuels: (RMB)

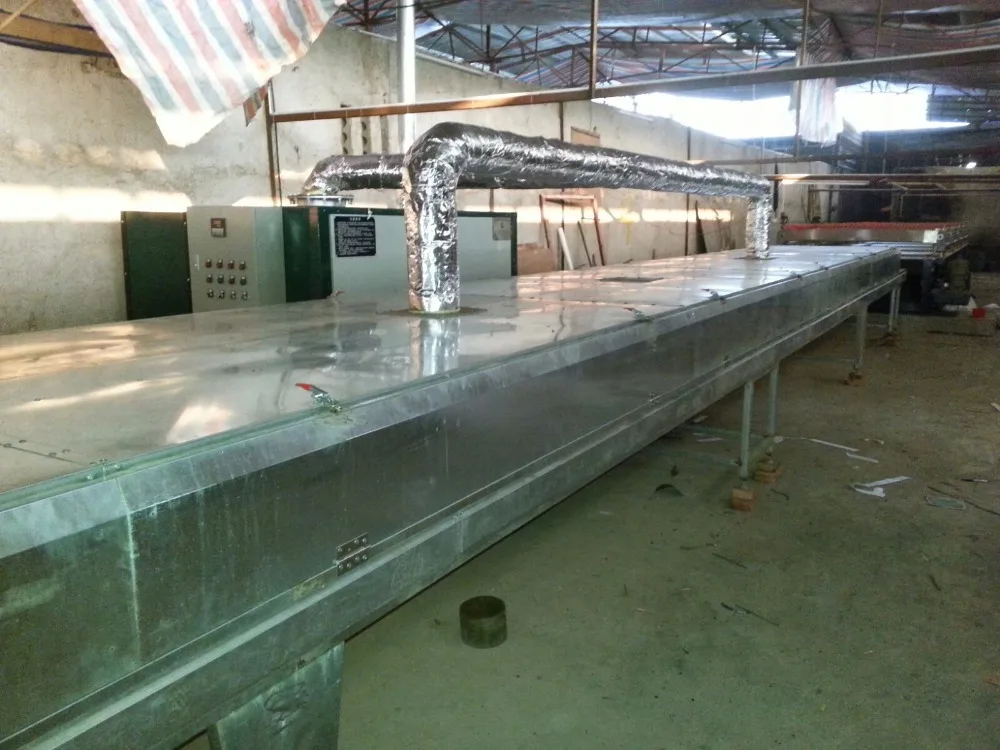

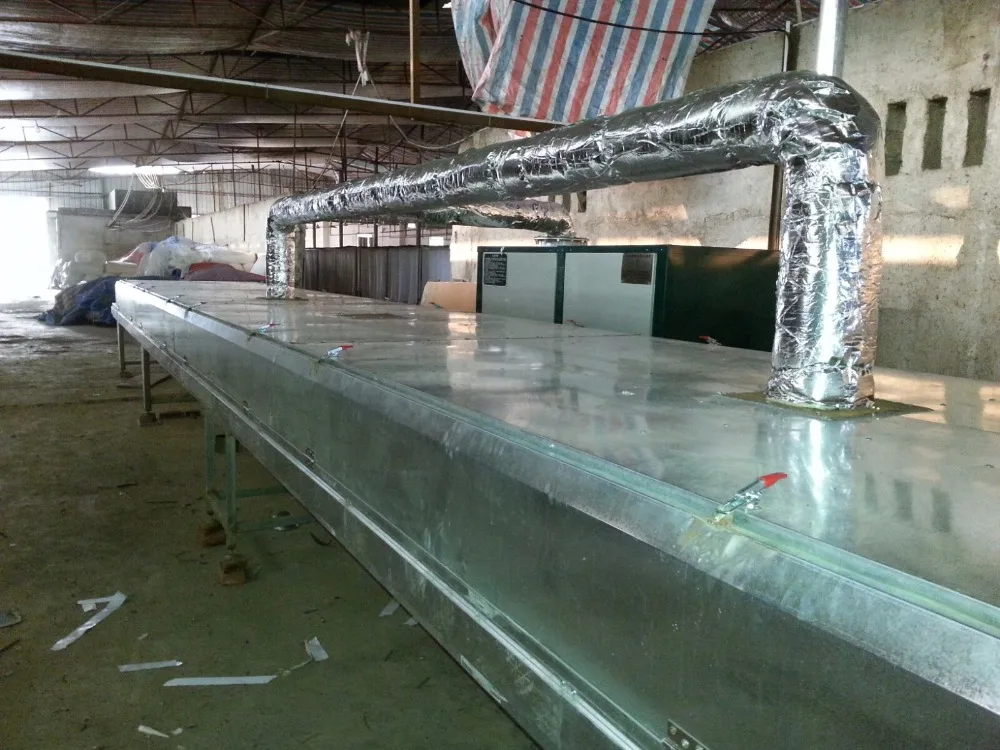

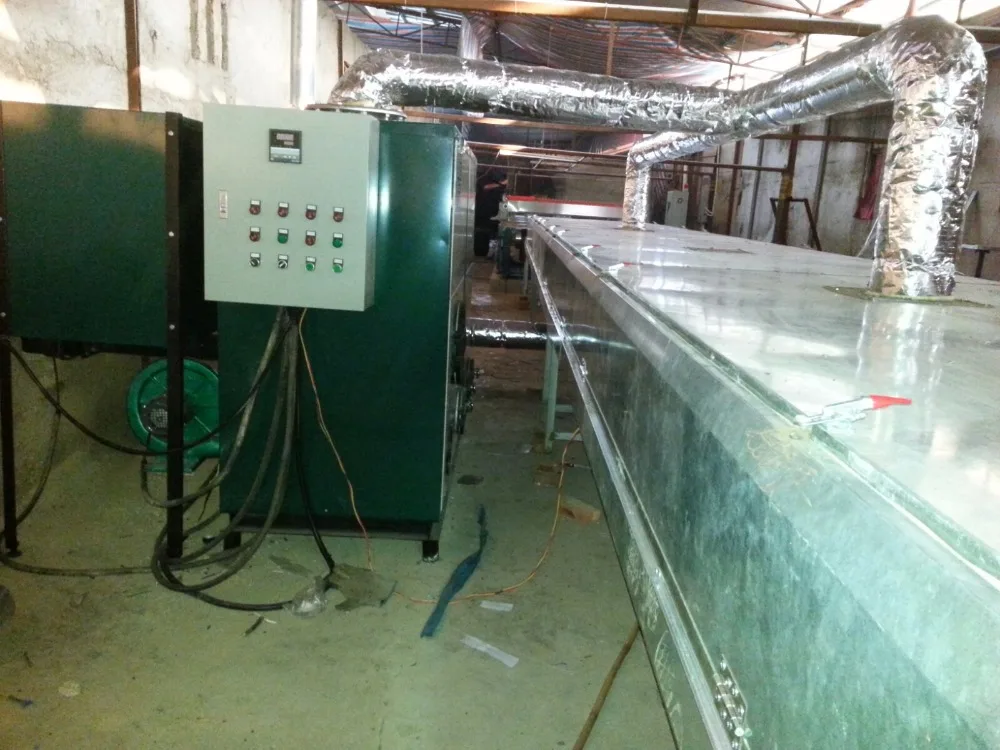

Cambodia Project For Textile

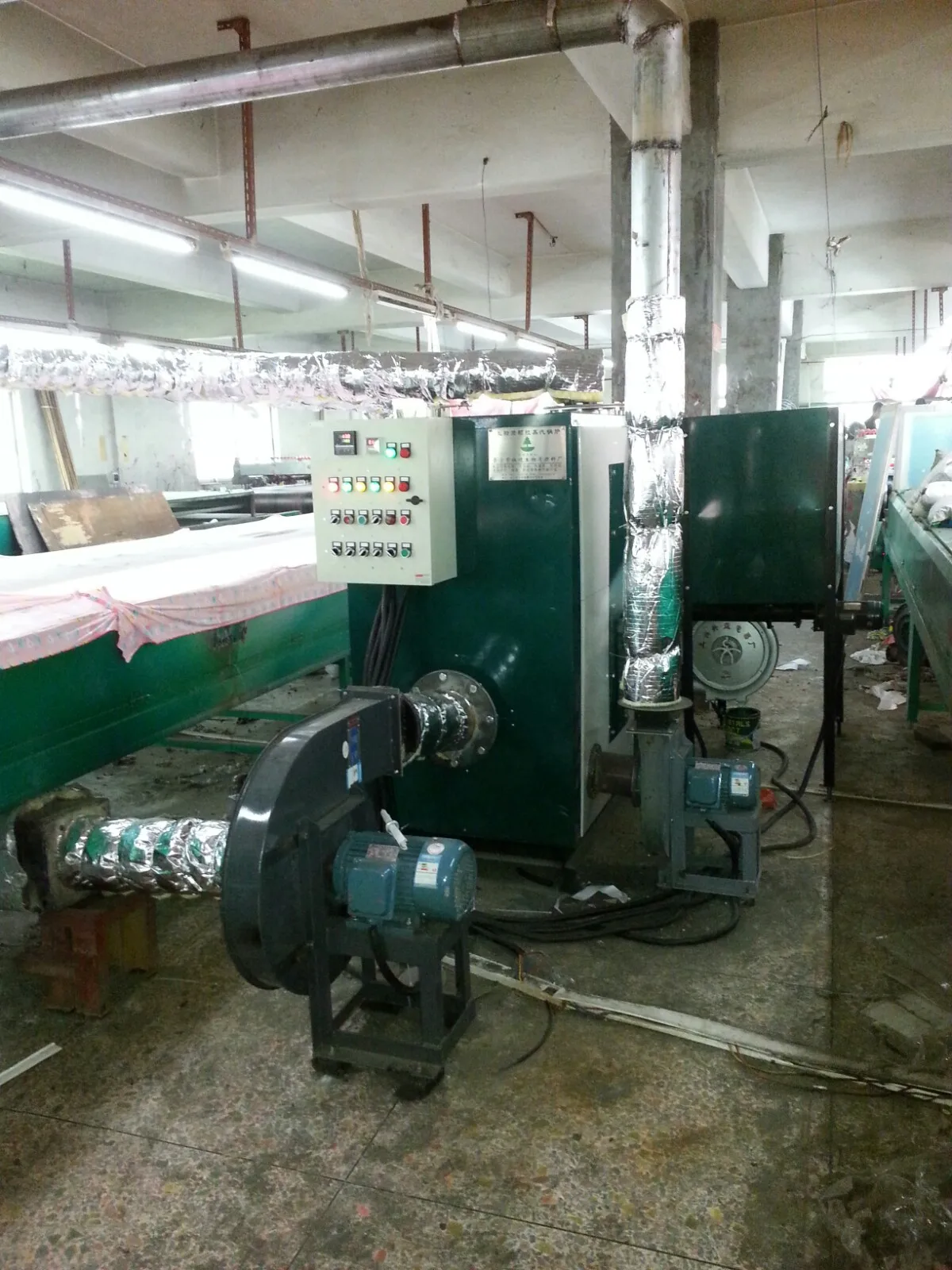

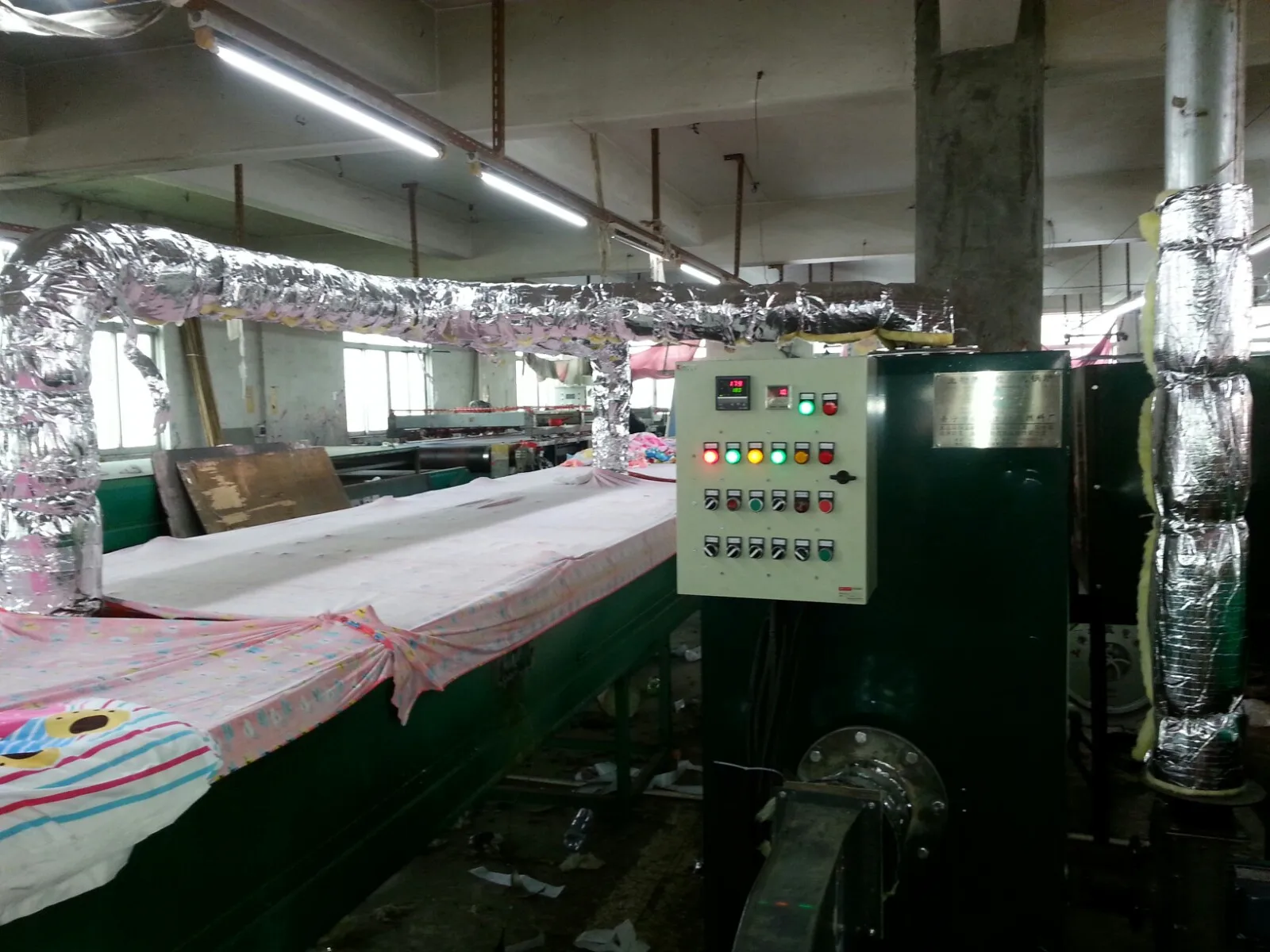

2013-12-28 (1).jpeg2013-12-28 (2).jpeg
