Best 4 Color Non Woven Bag Fabric Flexo Printing Machine for Sale

Product Overview

Description

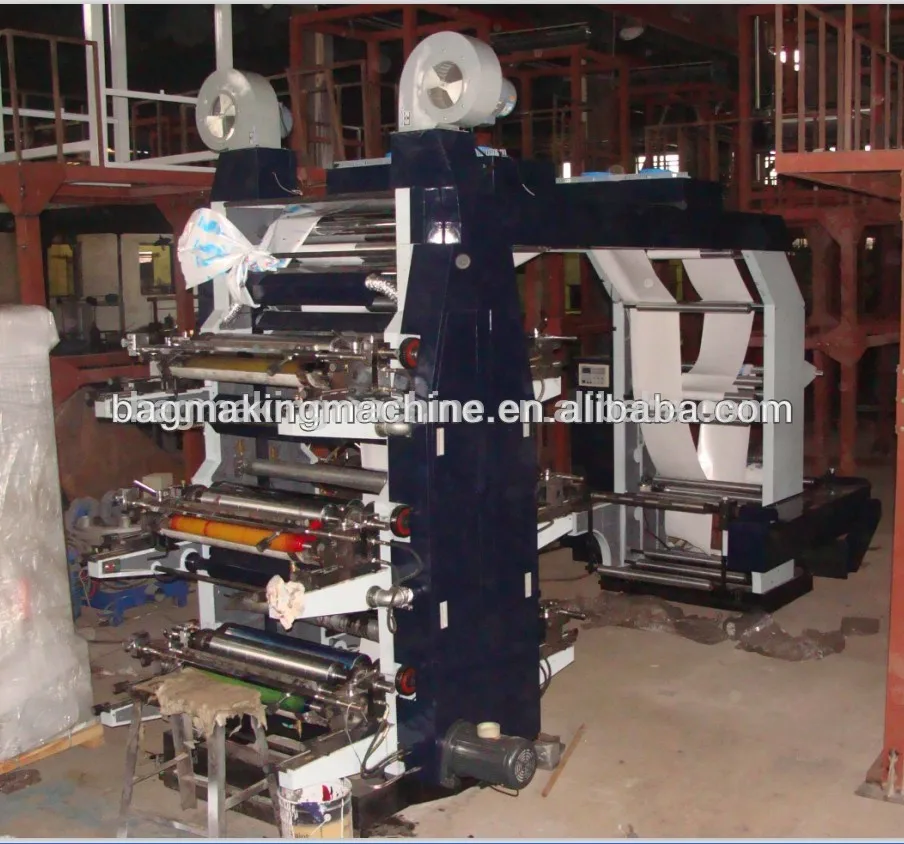

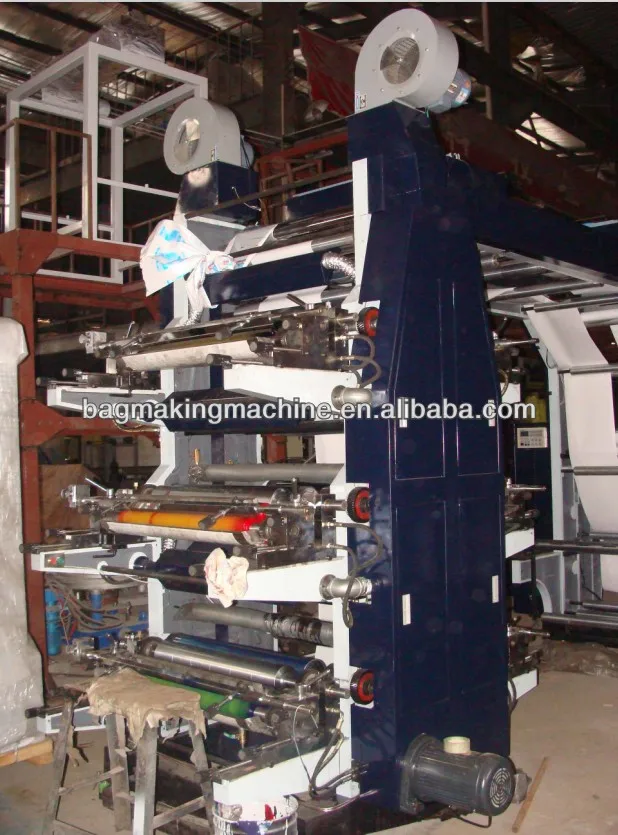

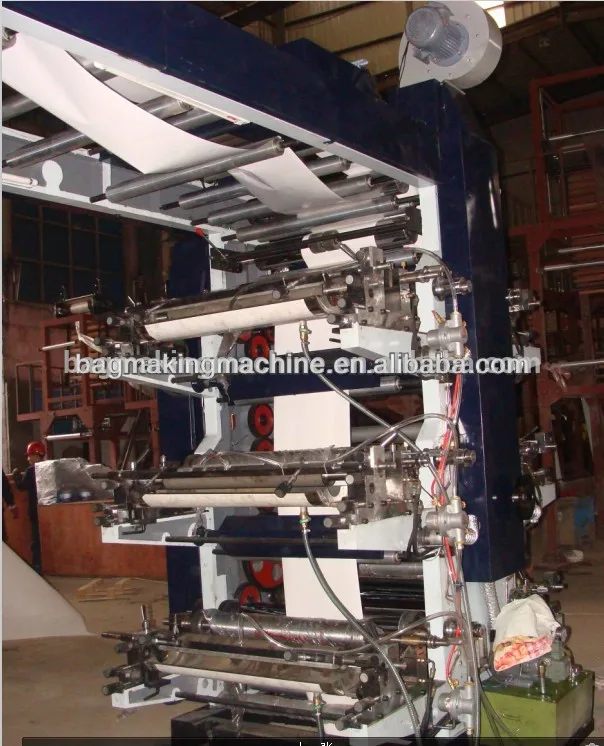

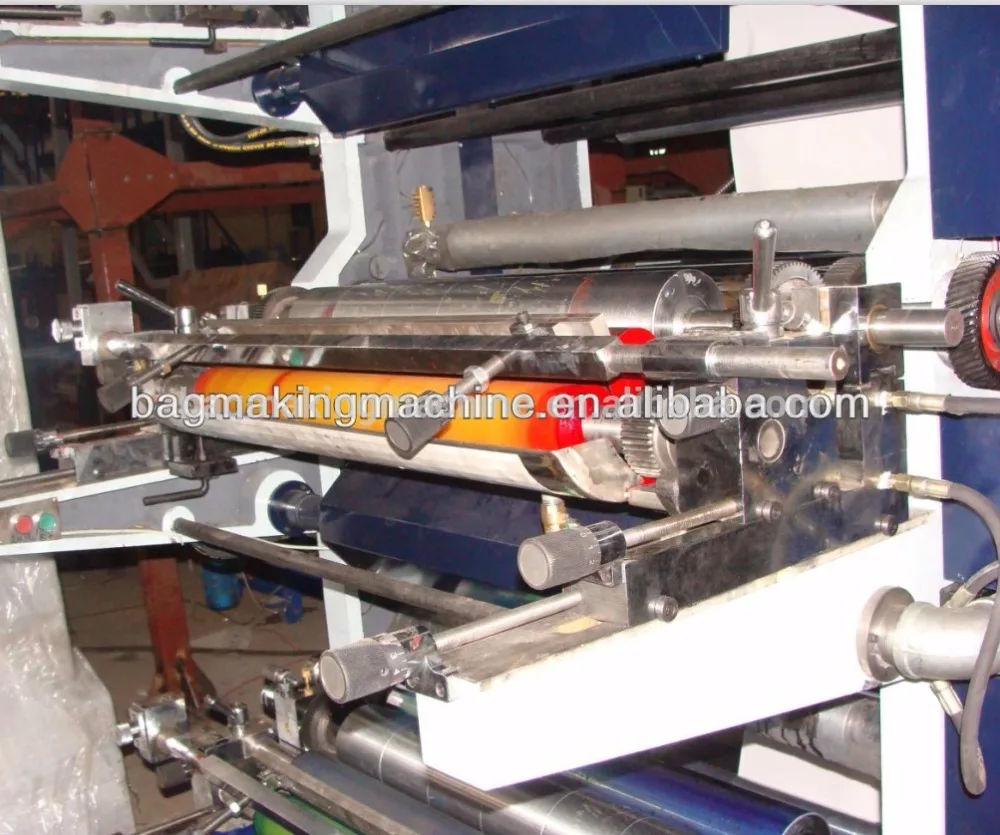

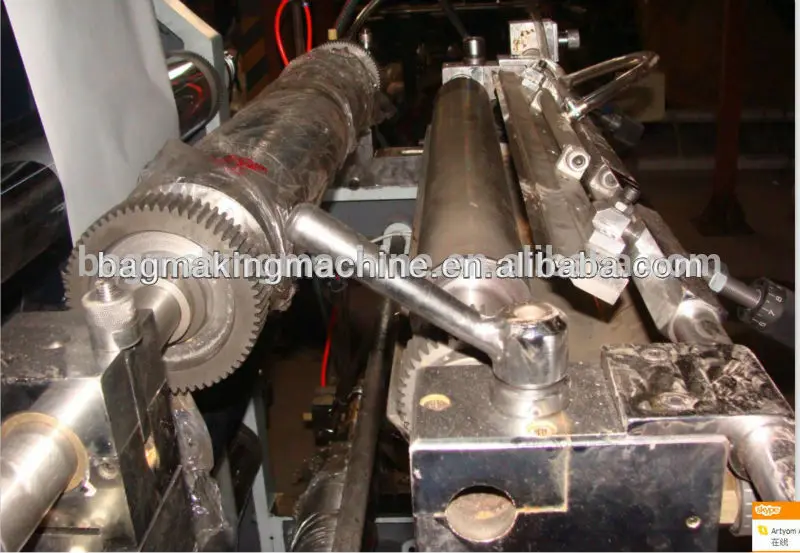

Best 4-Color Non Woven Bag Fabric Flexo Printing Machine for Sale

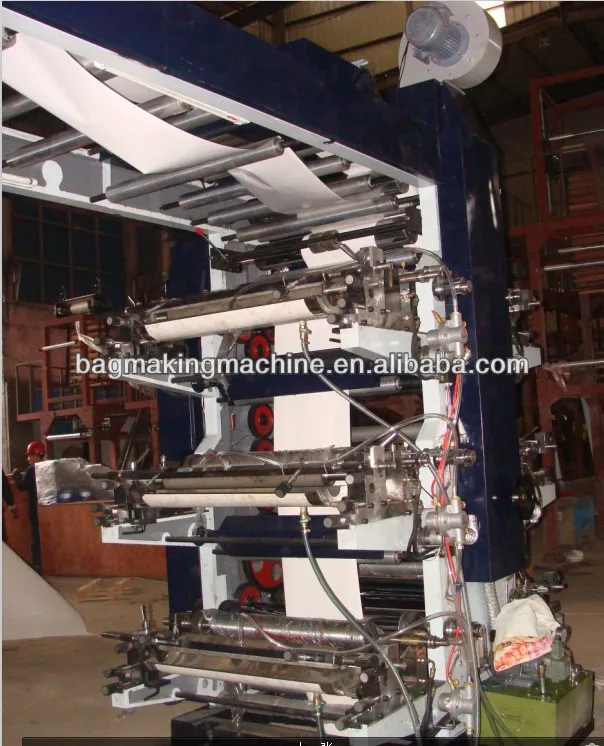

Flexo Printing Machine



Acceptable printing material:

LDPE : 28 ~ 100μm                            LLDPE : 30 ~ 100μm          HDPE : 25 ~ 100μm

PVC : 25 ~ 70μm                  CPP : 20 ~ 60μm              PP : 23 ~ 65μm

NY : 20 ~ 50μm                                   PETP : 16 ~ 60μm                        OPP : 18 ~ 70μm

BOPP : 17 ~ 60μm                              OPA: 20 ~ 60μm              Plating film : 30 ~ 80μm

Aluminum: 25 ~ 80μm        Cellophane: 30 ~ 150g/m²   Paper: 30 ~ 150g/m²    Wrapping paper: 30 ~ 150g/m²   Non-woven



Main Technical Variables:

Model of Machine	YT-4600	YT-4800	YT-41000
Max.Width of Printing Material	600mm	800mm	1000mm
Max.Printing With	560mm	760mm	960mm
Length Range of Printed Product	191-914mm	191-914mm	191-914mm
Max.Diameter of Roll Material	φ450mm	φ450mm	φ450mm
Printing Speed	550m/min	550m/min	550m/min
Thickness of plate(Including Two-sides Glue Paper)	2.38mm	2.38mm	2.38mm
Total Power	10.87kw	12.5kw	14.37kw
Weight of Machine	3000kg	3500kg	4000kg
Overall Dimensions	4200×1600×2400mm	4200×1800×2400mm	4200×2000×2400mm

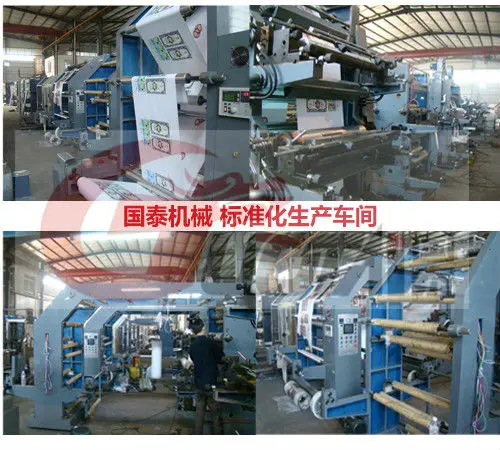

Machine workshop:





Product:



Our certification:
