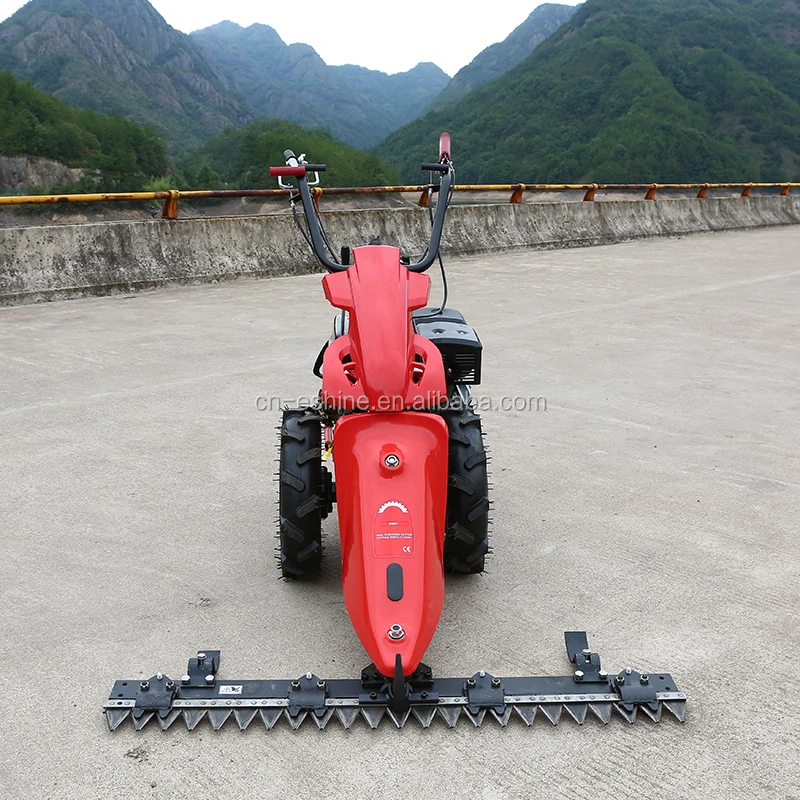

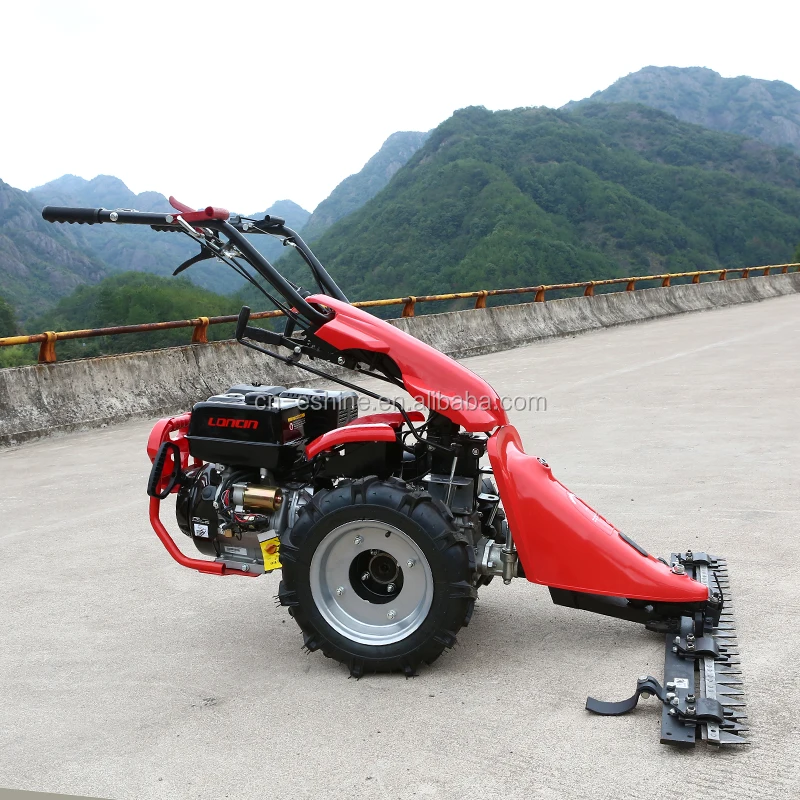

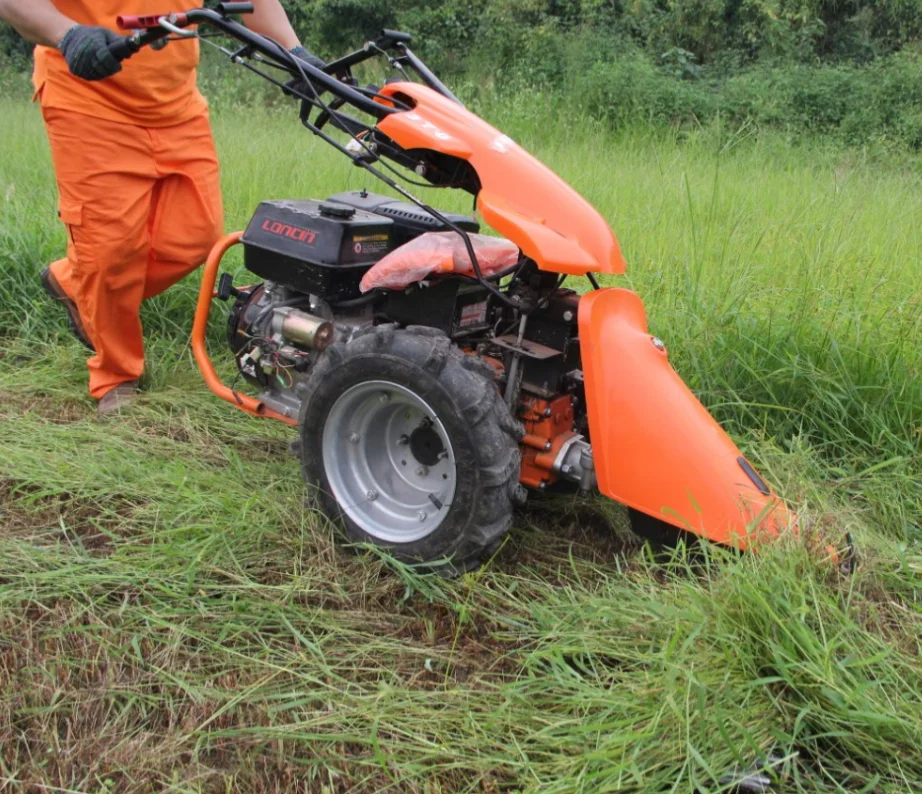

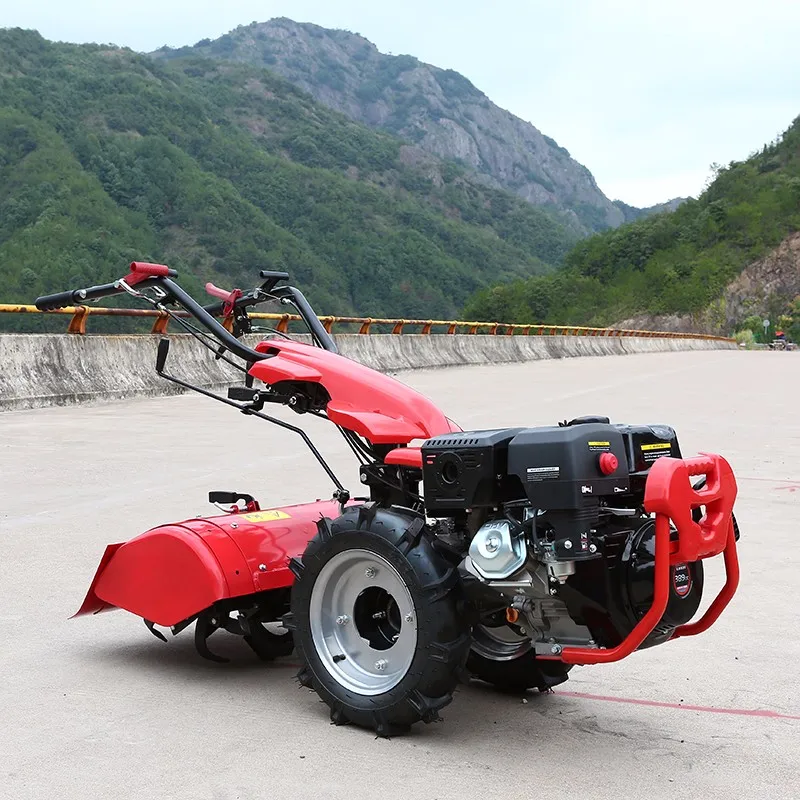

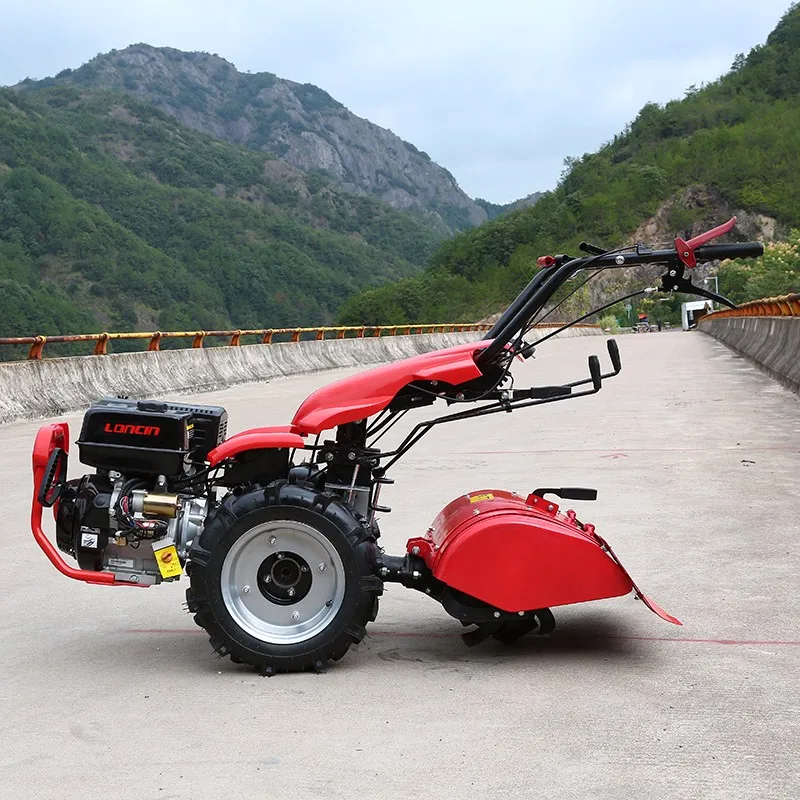

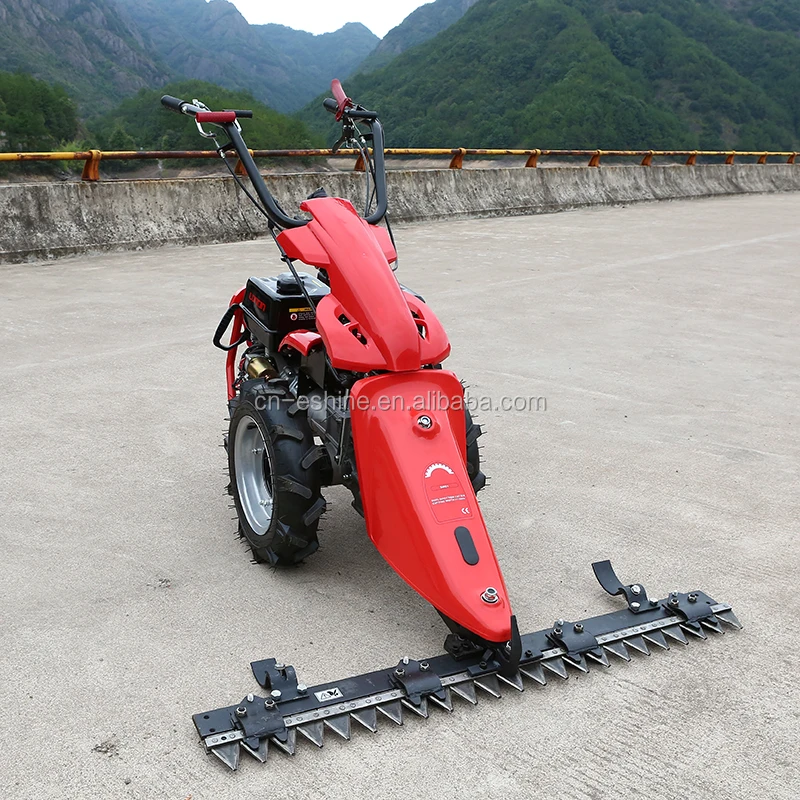

walk behind tractor two wheel tractor

Product Overview

Description





Engine option: Loncin G420FD

1.  Start method: Available in recoil start and key start


2.  Weight: 150kg


3.  Gears: 3 (2)forward, 2 reverse


4.  Handlebar: adjustable in height and sidewise in different positions.It can be orientated of 180°


5.  Working speed:forward: 1.18,2.76,12.67km/h reverse:1.24,2.91 km/h


6.  Wheel Size: 4.0×10.0


7.  Transmission: all gear drive and direct power transmission


8.  Lubricating system: oil bath lubrication


9.  Clutch type: Dry clutch


10.   P.T.O.: 990rpm at 3600rpm of the motor


11.  Gear ratio:Ⅰ264.2:1  Ⅱ 112.9:1  Ⅲ 24.5:1

This model tiller is the best either for a family with multi-task gardening on a large lot or a farmer in a hilly area and a greenhouse. It has a power-taking-out port (PTO) at its rear end, so it can adapt many power attachments to perform many jobs: plowing, cultivation,l awn mowing, brush cutting, harvesting, water pumping, spraying, snow sweeping, snow throwing, Snow Plowing, branch chipping and so on.

You can choose either gasoline or diesel engine with difference horse power(6.5HP-15HP).You can start the engine either manually or electricly.

The main transmission gearbox is fully sealed and well-lubricated. A differantial mechanism is inbedded in design.Therefore, you can make turns easily. It can be used to tow a trailer of 500 kg.

The handle bar can be set at any angular position to make your work conveniente.

Your cost of our product is about 40% less than its countpart made in Italy. We provide 18 months warranty on the main gearbox and clutch.



Main features;

• Differential Drive with Lockout


• A fast transport speed to ride your tiller to the garden (requires sulky)


• Easy-to-engage, shuttle-type reverse


• Anti-vibe handlebars that instantly adjust both vertically and side-to-side
