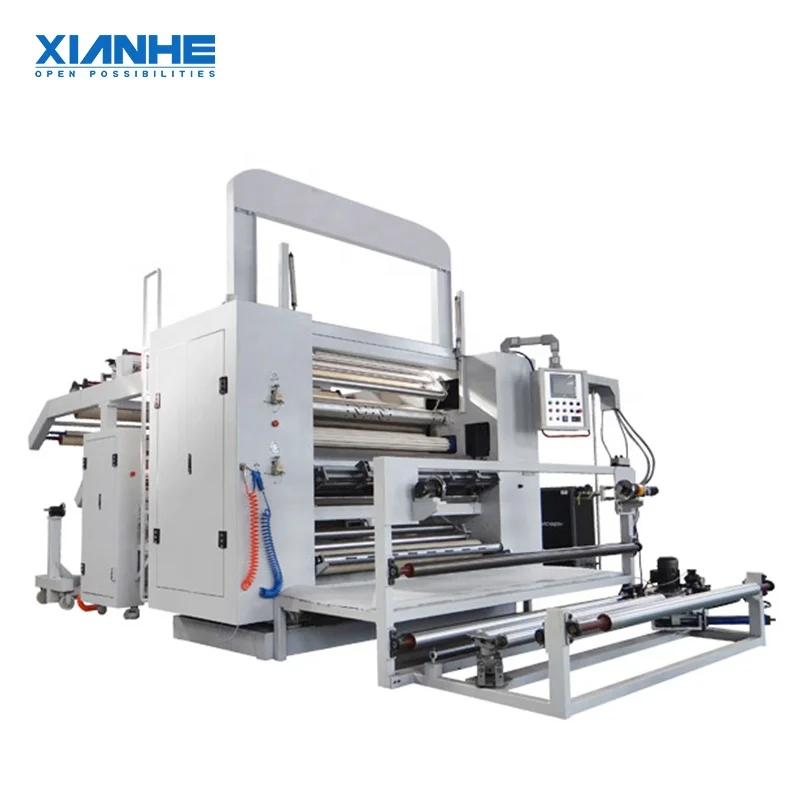

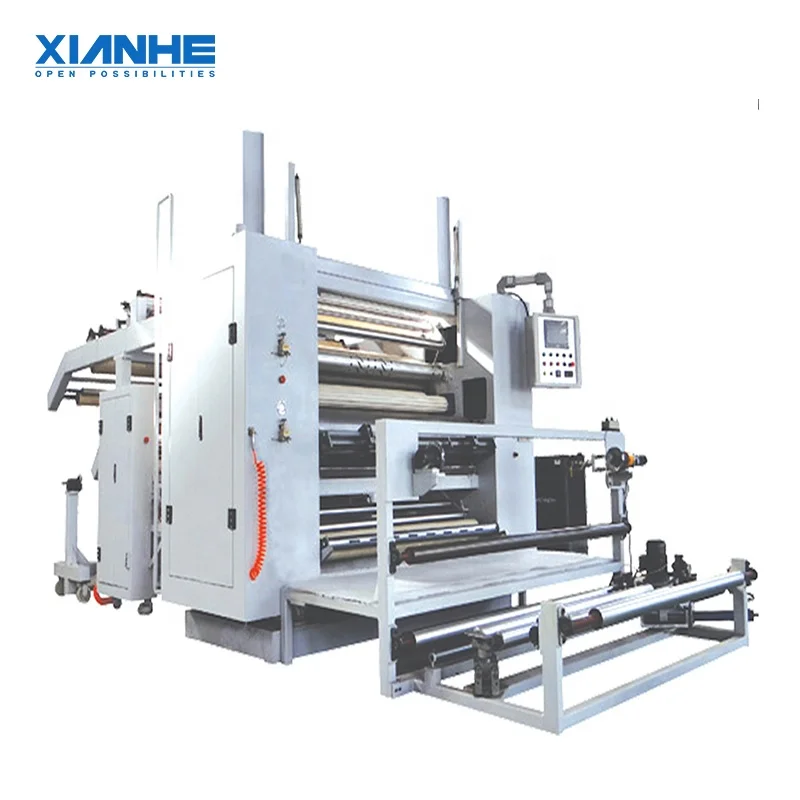

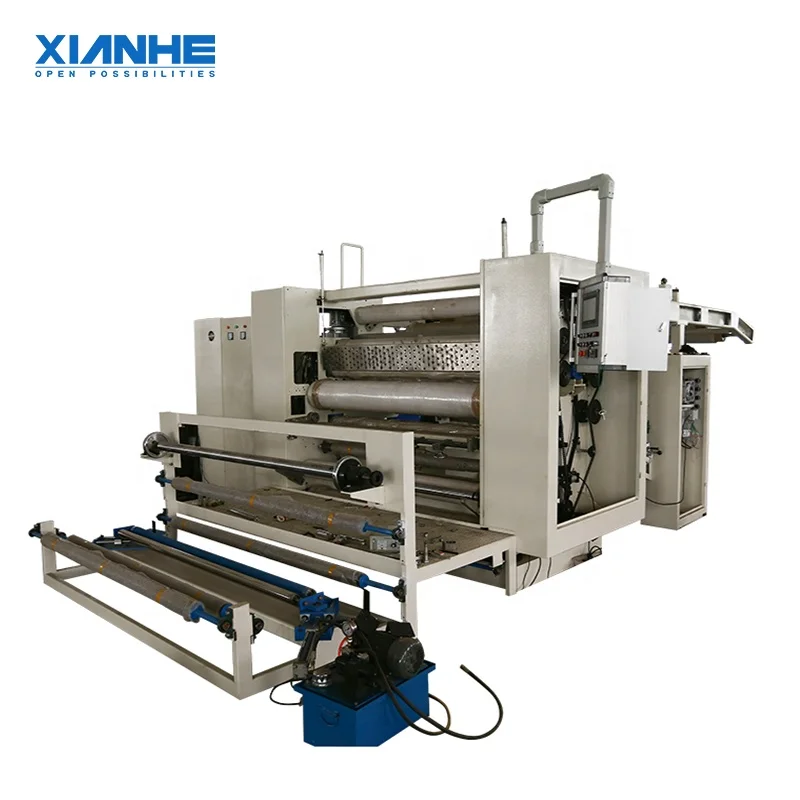

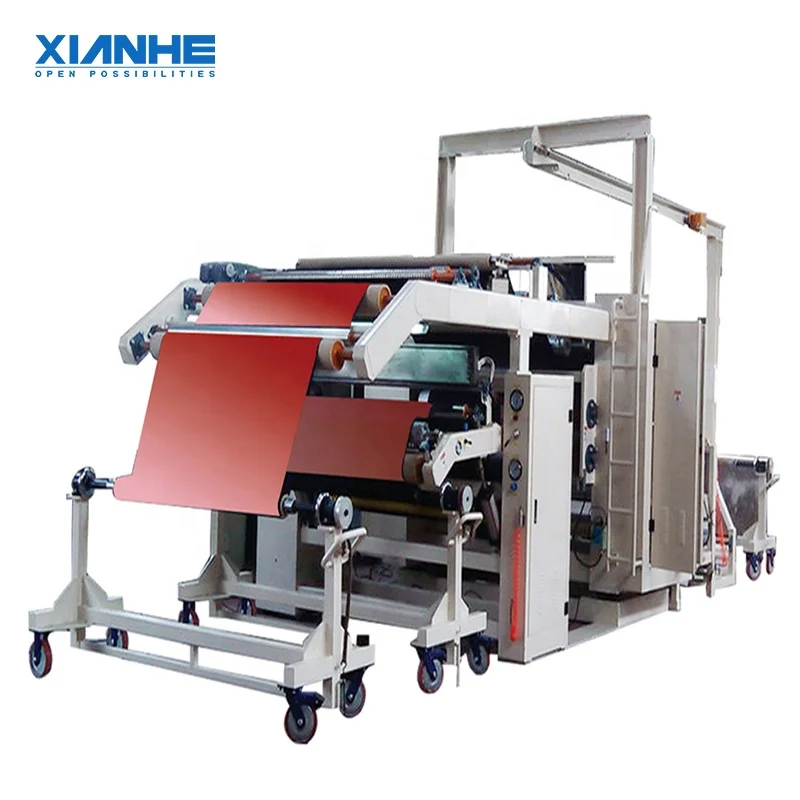

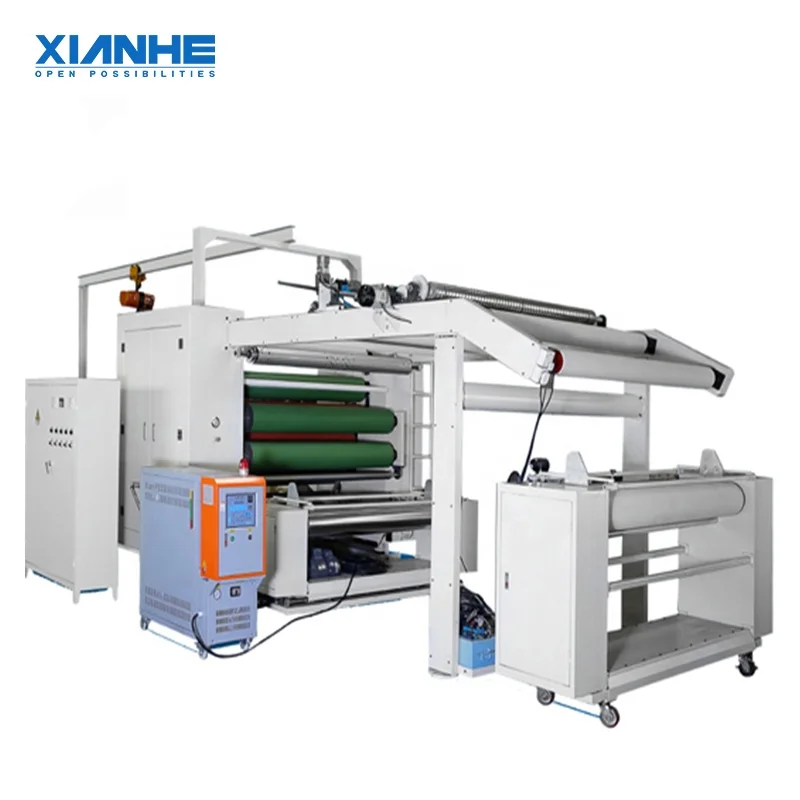

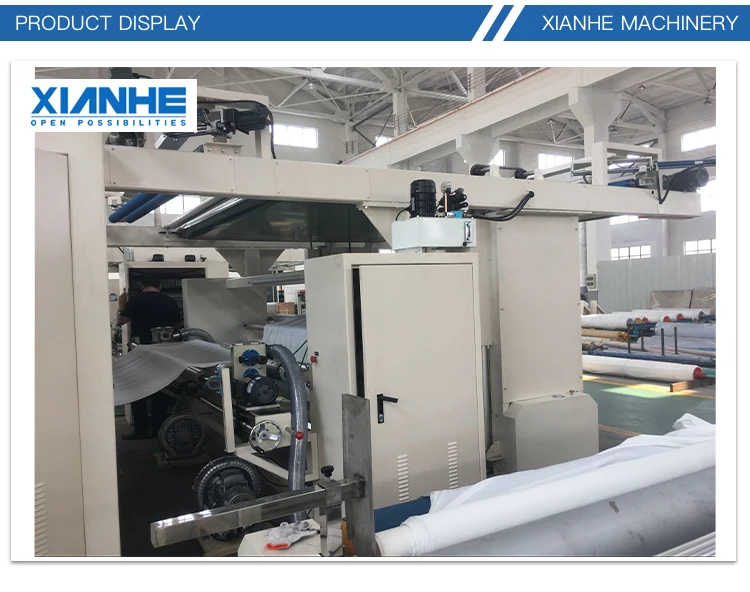

Fabric to Film Hot Melt Laminating Machine

 This machine is suitable for the lamination of apparel fabrics, industrial fabrics.
Feed device and edge position control mechanism use simple and fast design and have the features of power-saving, space-saving and nimble operation.

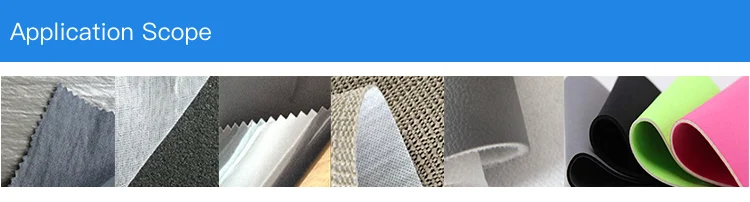

Suitable Laminating Materials:

Fabric with fabric:Like textiles, jersey, fleece, Nylon, Cotton, Non woven, Knitted Fabric,Velvet, Terry cloth, Suede,etc.

Fabric with films, such as PU film, TPU film, PE film, PVC film,etc.

Leather, Artificial Leather,Diving fabrics, Nonwoven products, Sponge,Foam, Plastics ,EVA+PVC

Widely used in:

woven, non-woven, knitted and home textile, garment functional clothing, sports textiles, textiles, medical, automotive, home furnishing, industrial, mattresses protector, footwear,etc.

Key Features:

• The hot melt adhesive is melted through Melter and applied directly to the first substrate either by engraved roller or full coating, thereafter, In case of bonding materials; the second substrate is laminated to the first and bonded layers are cooled by making contact with the water-cooling rollers.


• The oil-inside engraving roller supplied is of 250 mm diameter, which gives precise dot distribution and uniform glue application.


• Customized machine versions are also available according to client's requirements.


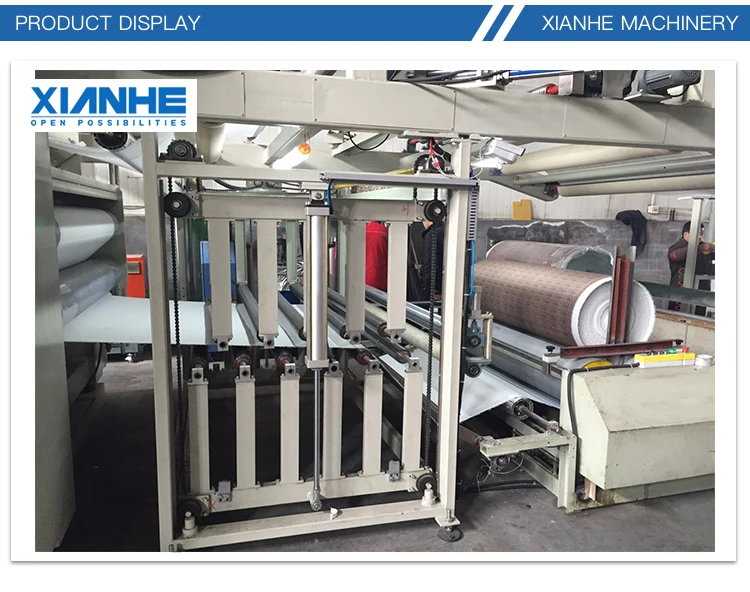

• 3 Sets of movable  A-frame trolley contactors for unwinding and rewinding, and equiped with pneumatic expanding shaft.


• Machine roller width (mm) 1150 1300 1500 1800 2000 2200 2400 2600


• Cloth fabric width (mm)     1050 1200 1400 1600 1800 2000 2200 2400


• Laminating process       Two layers: Fabric - Film , Fabric - Fabric


•                                       Three layers: Fabric - Film - Fabric


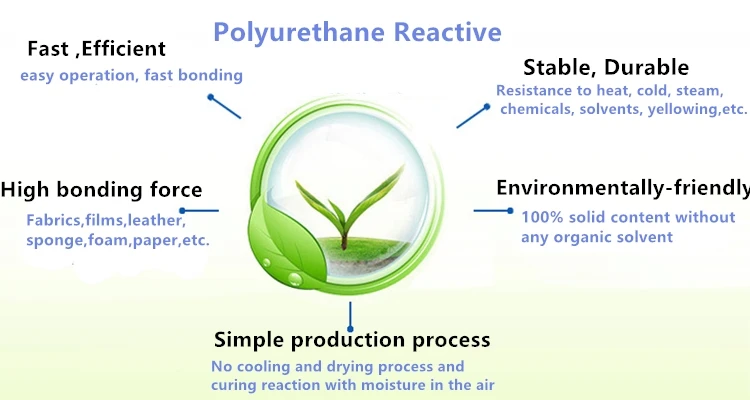

• Adhesive :Mositure reactive hot-melt adhesive or thermoplastic hot-melt adhesive

Machine main sepcification list:

• Trolley sets of unwinding / rewinding


• Operation platform


• Thin film unwinding unit


• Gluing unit


• Laminating unit


• Cooling unit


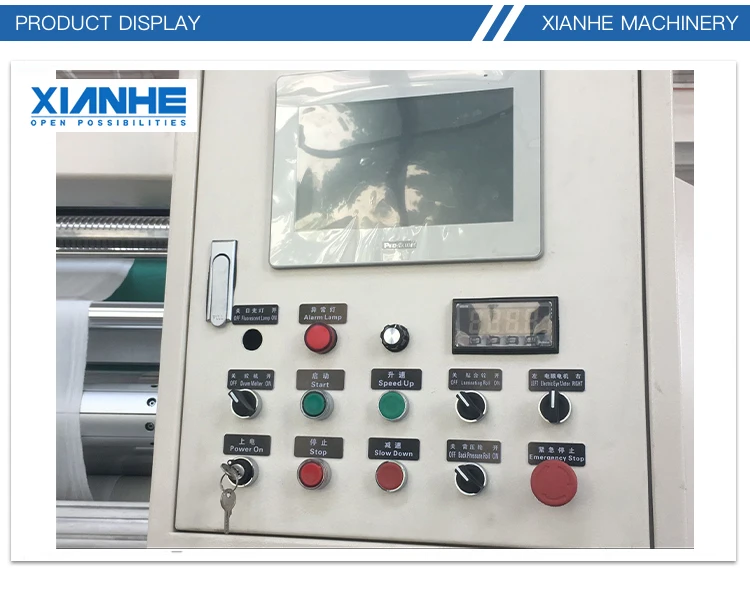

• Electric control box


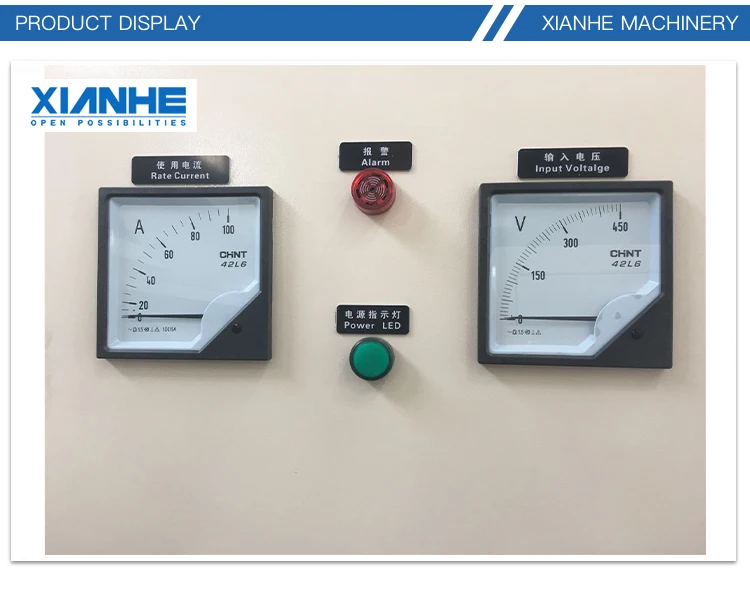

• Power distribution box


• Tension controller device


• Edge position control device


• Temp. control device


• AC inverter and motor


• Human machine interface


• PLC

Optional Part:

• Rewinding device / Unwinding device auto. Tension control system


• Oil Circulation Temp. Controller and Hot Melt Glue Melter


• Humidifier


• Accumulators for continuous operation during in process changing batches


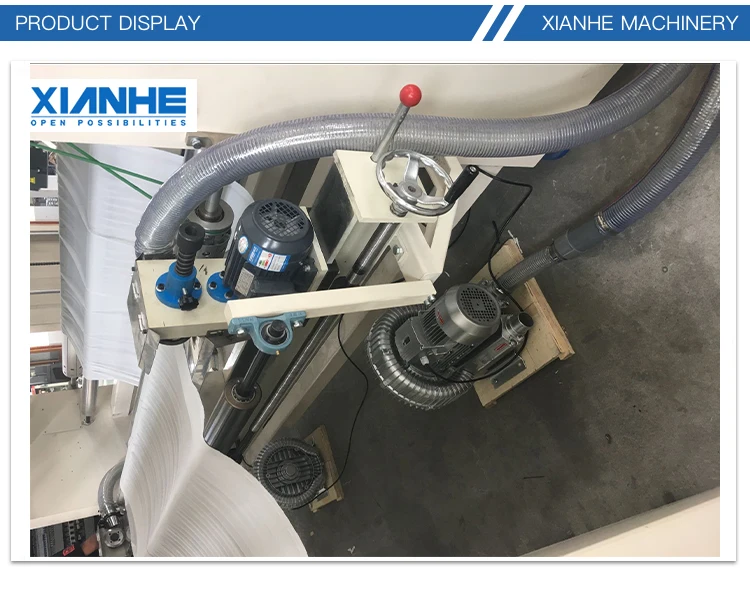

• Auto Edge Cutting unit with waste collection


• Domestic / Imported electric component parts


• Automatic hydraulic / pneumatic EPC (Edge Position Control System)

Inner Package: Protective Film, etc

External Package: Standard Exportd Container

• Machines well packed with protective film and loaded in export container;


• English version operation manual and technical data;


• One-Year-Period wear parts;


• Tool kit

1. 24 Hour Service Action


2. Free Installation Training


3. Spare Parts Replacement


4. Free Machine Knowledge Update


5. We according to customer needs,providing tailored services to design laminating equipment of satisfying requirements.
