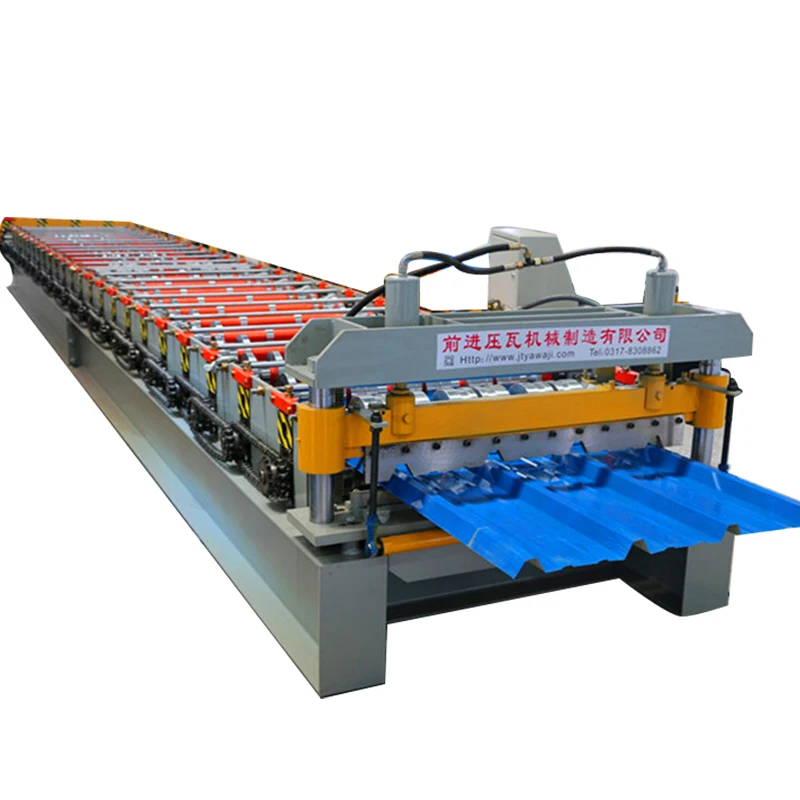

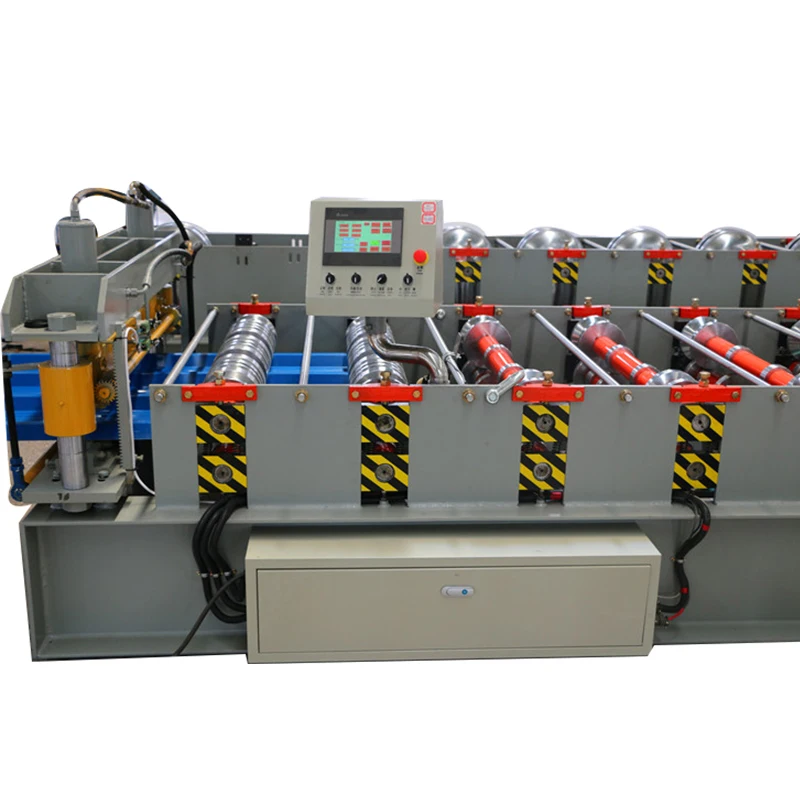

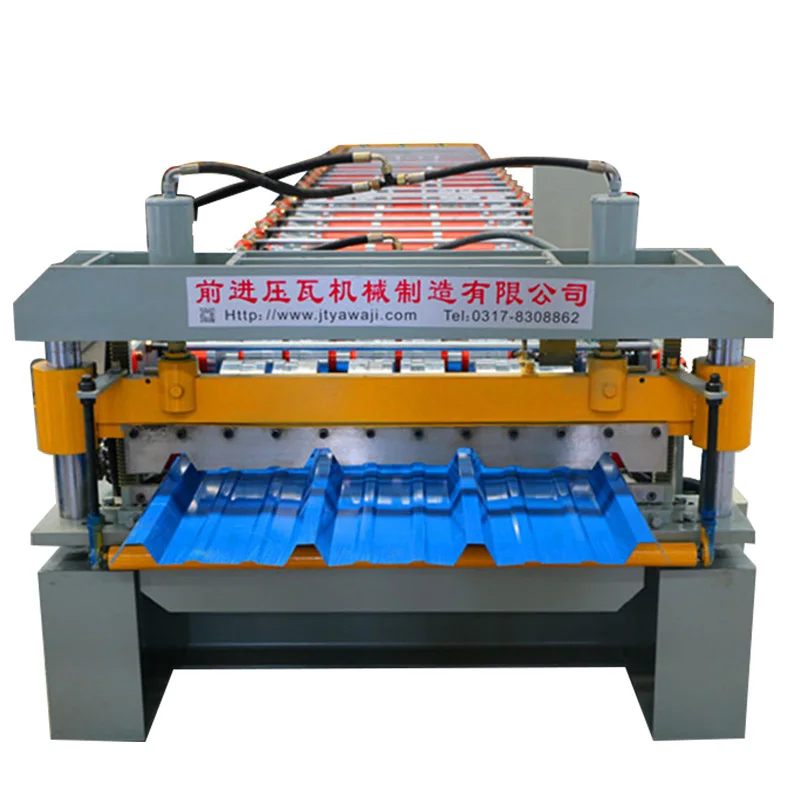

PBR Roof Pan Panel Roll Former, R Roof & Wall Panel Roll Forming Machine with Rib
Product Description
The finished product of PBR Roof Pan Panel Roll Former, R Roof & Wall Panel Roll Forming Machine with Rib is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.
Main Technical Specifications:
Name of Roll Forming Machine
PBR Roof Pan Panel Roll Former, R Roof & Wall Panel Roll Forming Machine with Rib

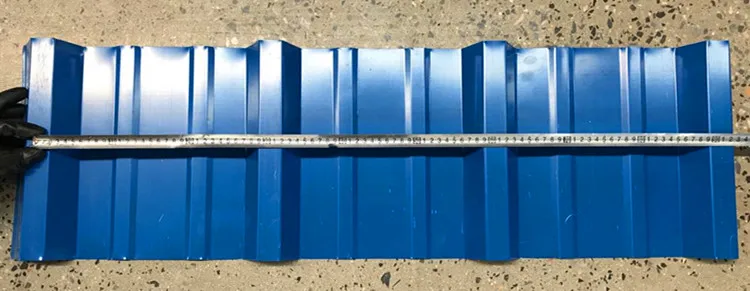

Profile Drawing or Sample Picture
1
Suitable raw material
PPGI/PPGL/GI/GL Steel Coils
2
Thickness of coil sheet
0.3-0.8mm
3
Feeding Coil width
1200mm
4
Effective width
915mm
5
Under frame
400H-beam
6

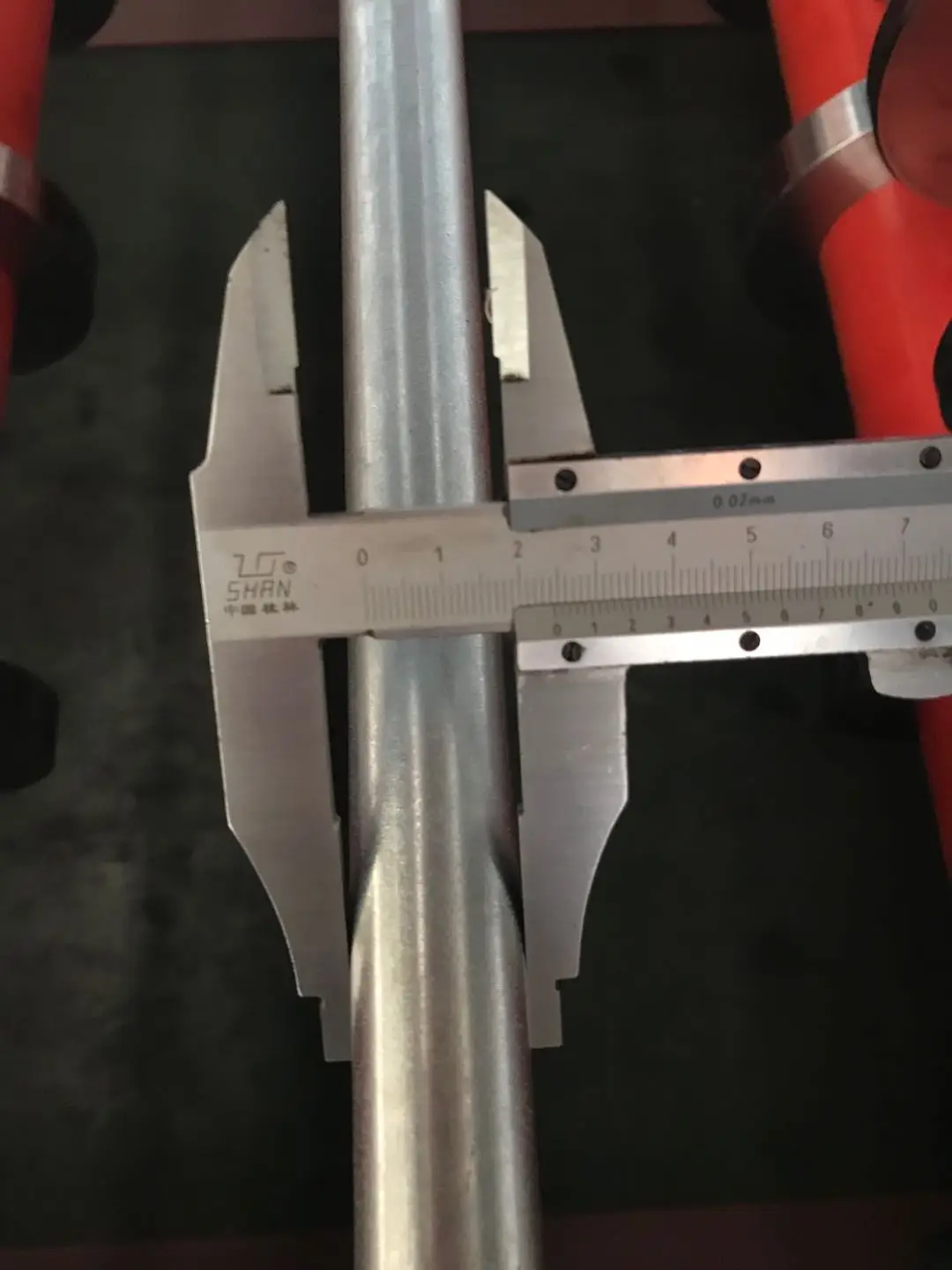

Diameter of Soild shaft
70mm, high grade 45# steel, finish turning, cylindrical grinding,with keyway
7
Roller
High grade 45# steel, processed by CNC lathe, Quenched and tempered treatment,
hard chrome coated 0.05-0.07mm
8
Thickness of middle plate
Guide pillar memorial archway
9
Forming stations
23
10
Drive type
By chain(1.0 inch) link bearing model 6210
11
Power of main motor
7.5kw with Cycloidal reducer, Lichao, Shanghai
12
Power of pump station
4kw, Lichao, Shanghai
13
Forming speed
About 15-20m/min
14
Hydraulic cutting
Controlled by PLC
15
PLC
DELTA, TAIWAN / Mitsubishi, Japan
16
Material of cutting blade
Cr12Mov, quenching 58-62℃
17

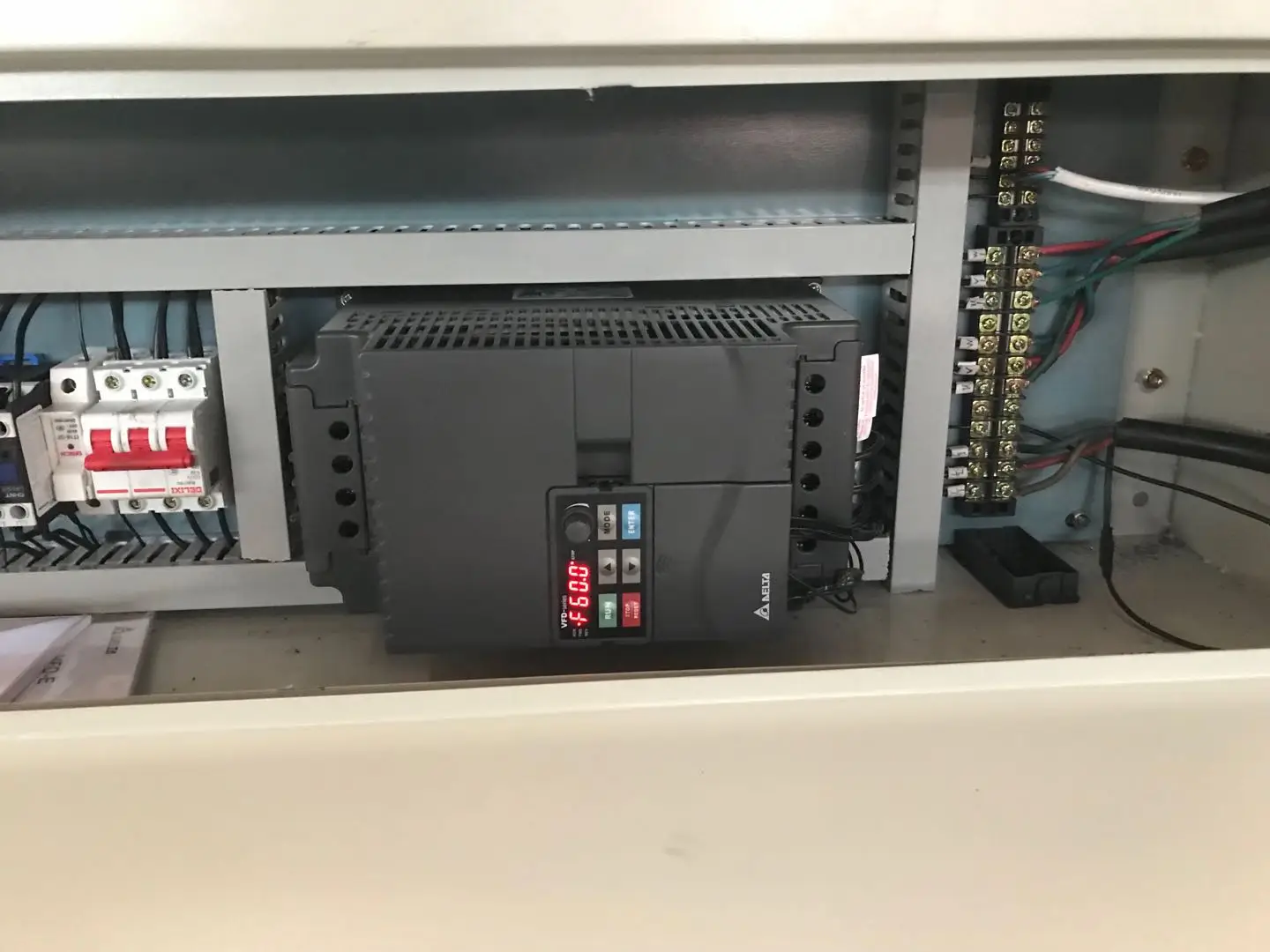

Frequency converter
It has the advantage of slowing down before cutting, to ensure the
length accuracy(±1mm, far better than industrial
standard ±3mm).
18
Switch
CHNT
19
Transducer
SAJ

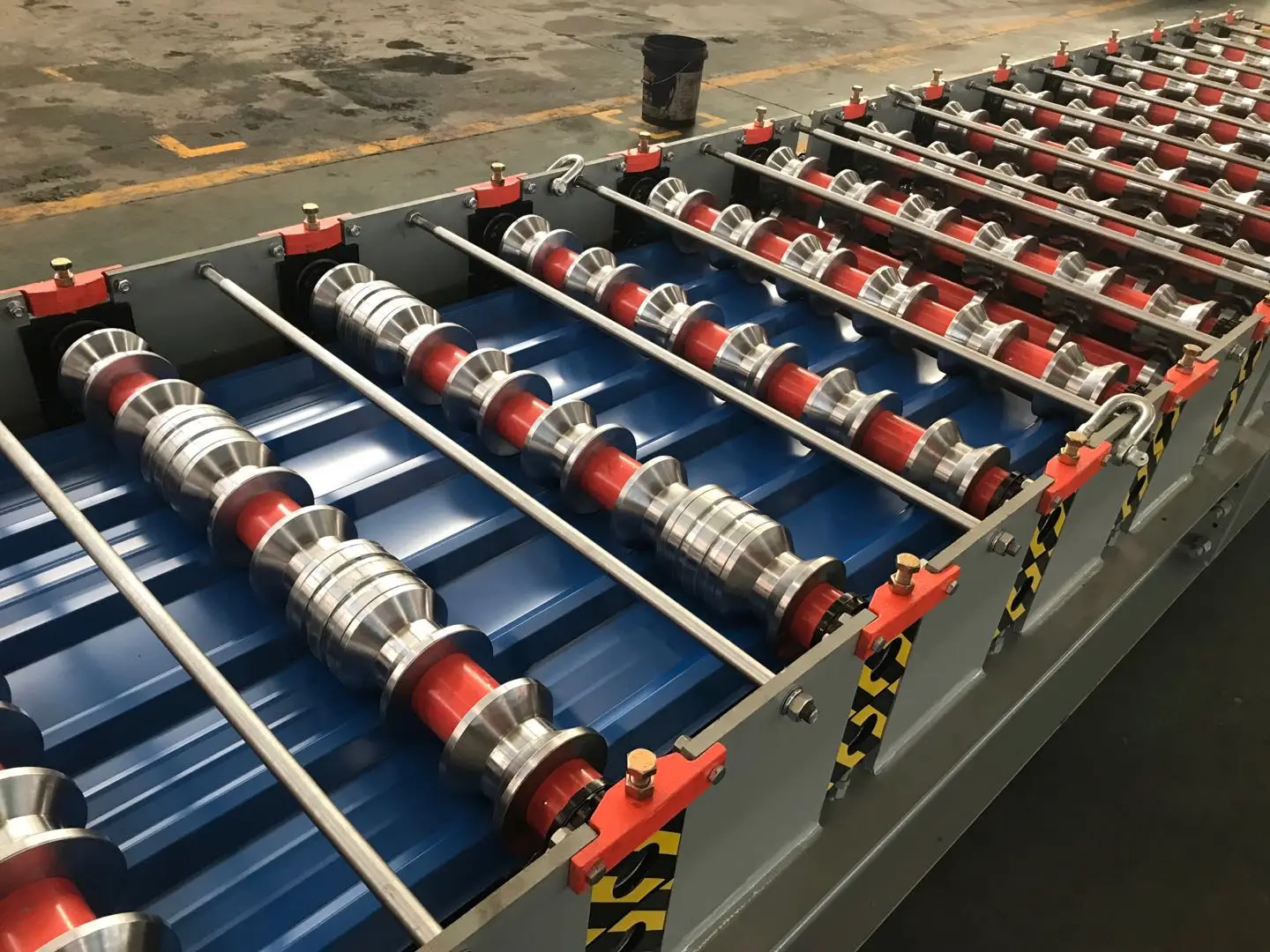

All rollers adopt high grade 45# forged steel, hardening and tempering, CNC lathe, overtime hard chrome plating

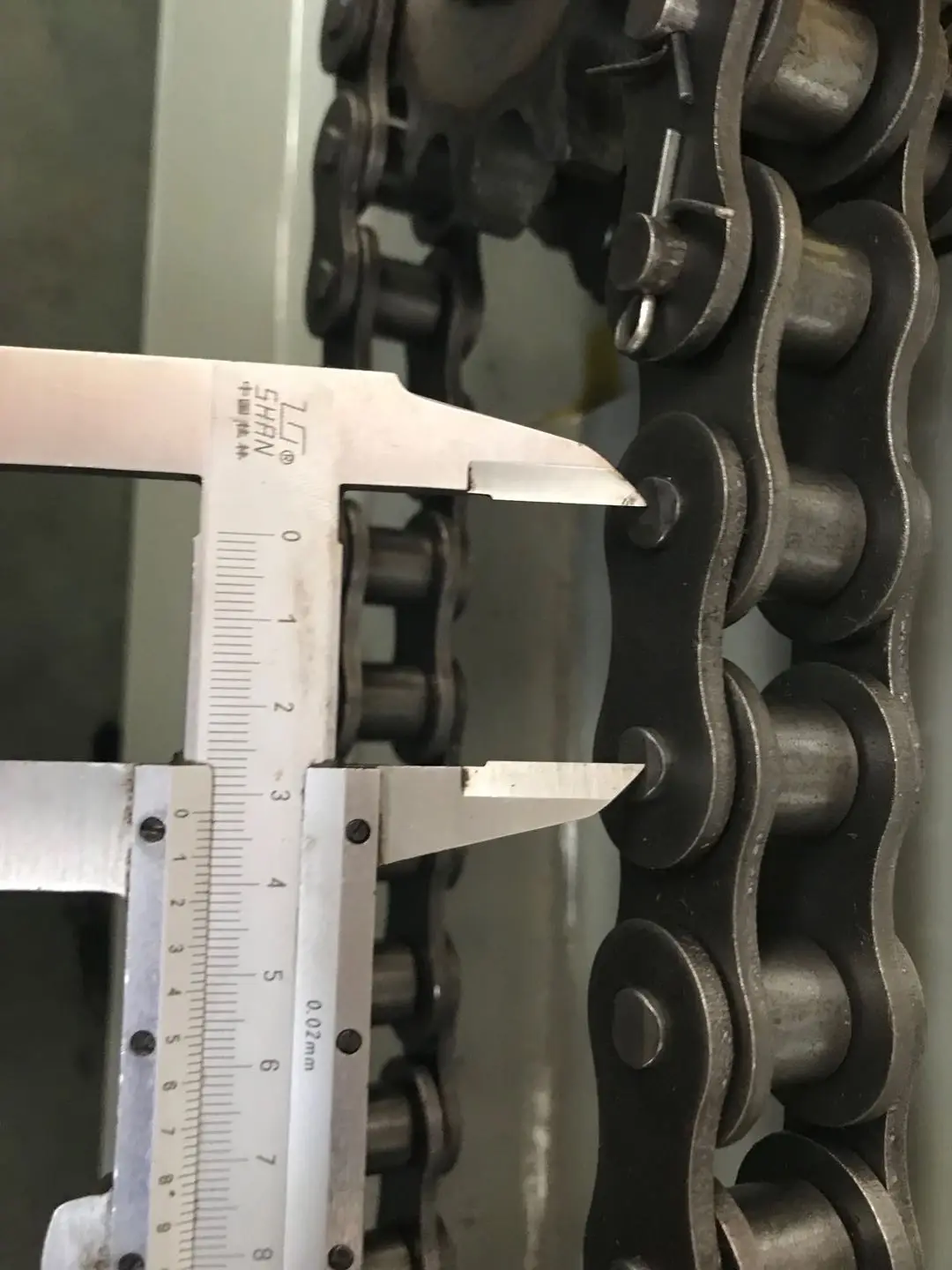

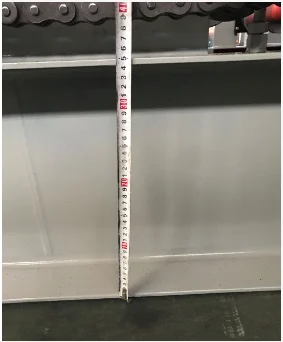

350H-beam 1.0/1.2 inch chain

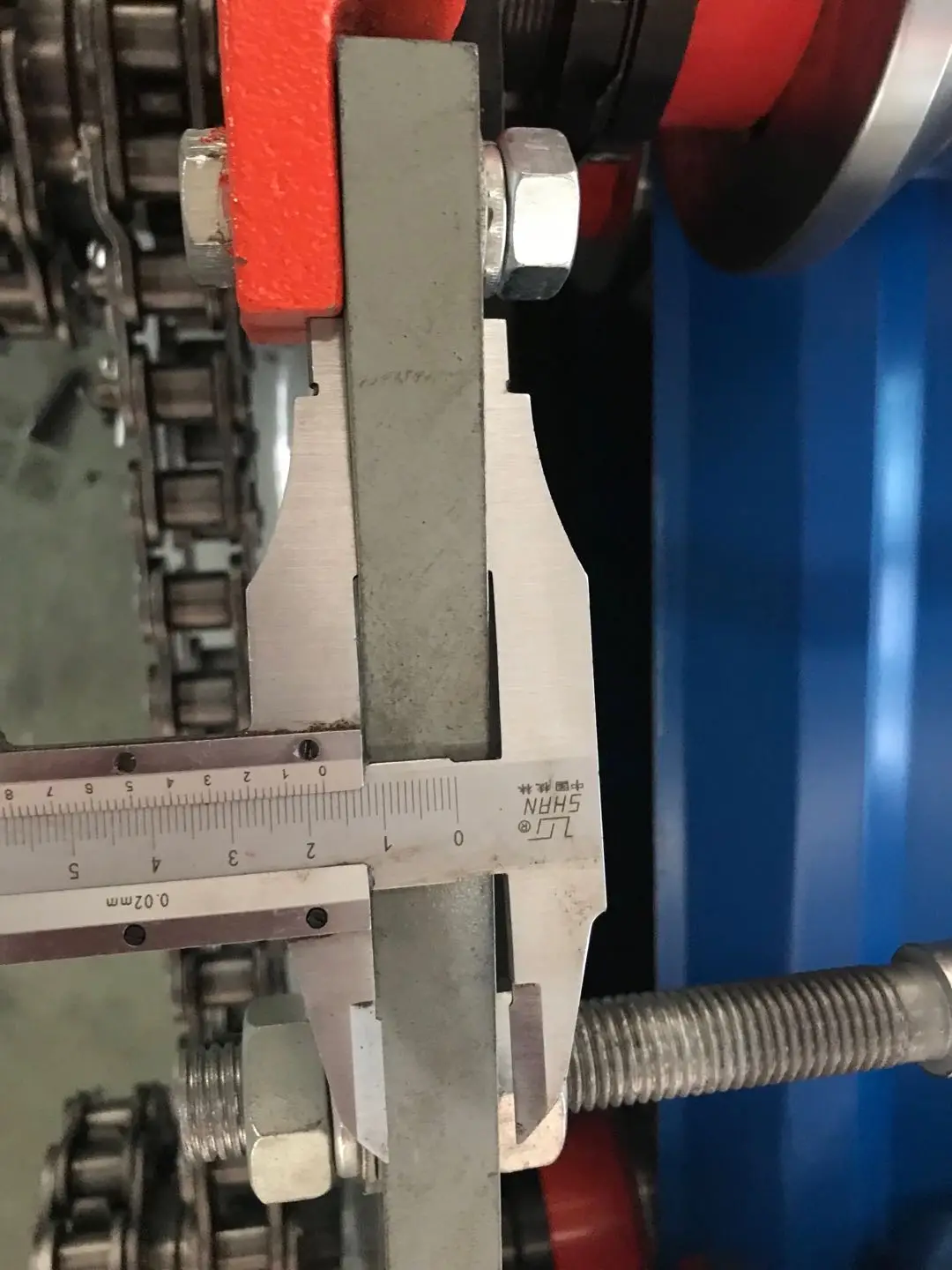

16mm/18mm wall plate 25mm galvanized steel bar

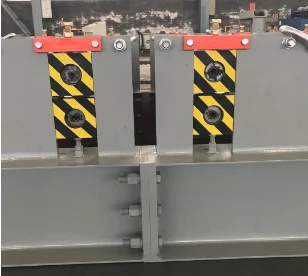

Machine can made it into 2 parts for easy loading Chinese, English, Spanish, Arabic, Portuguese...

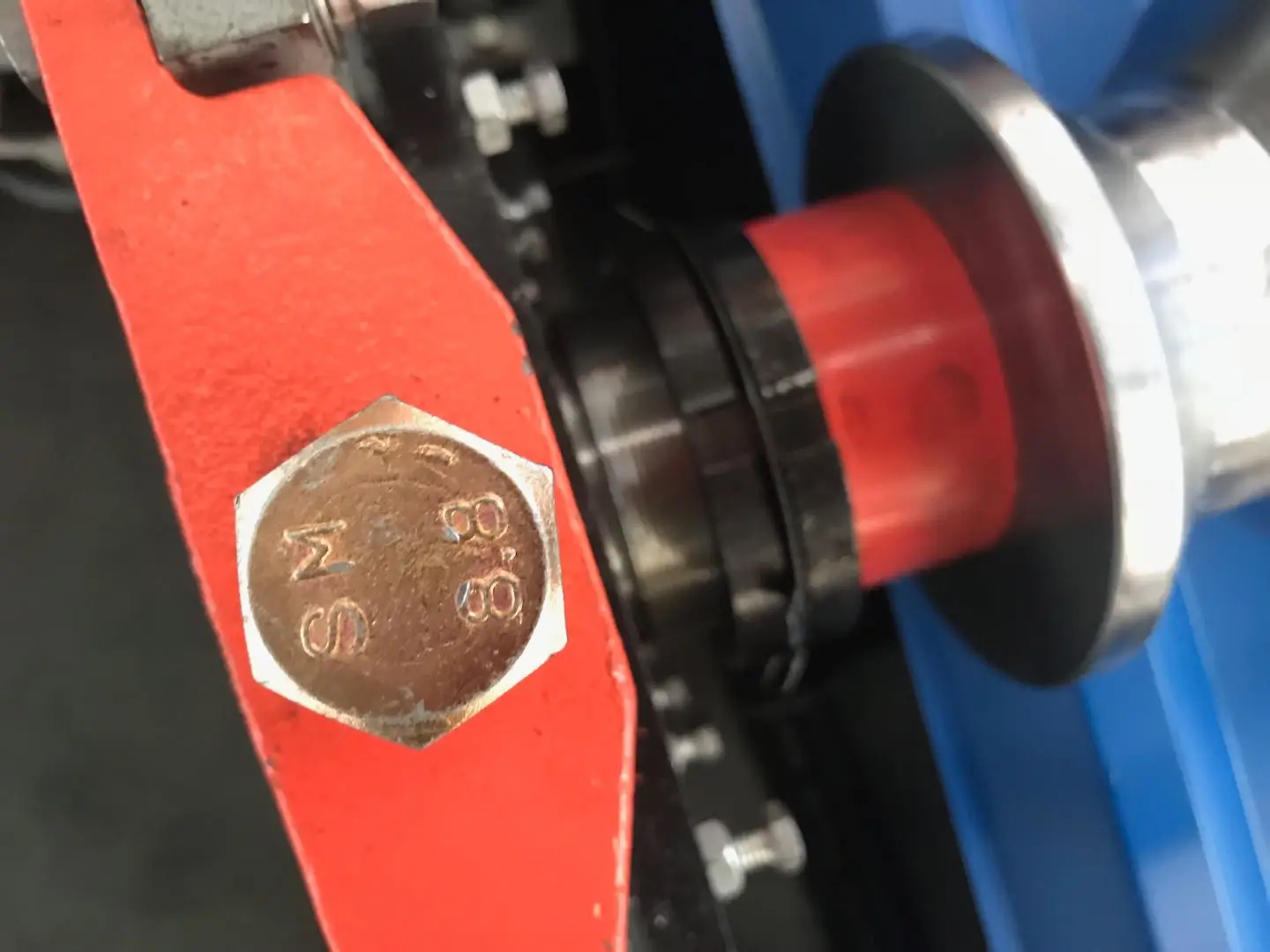

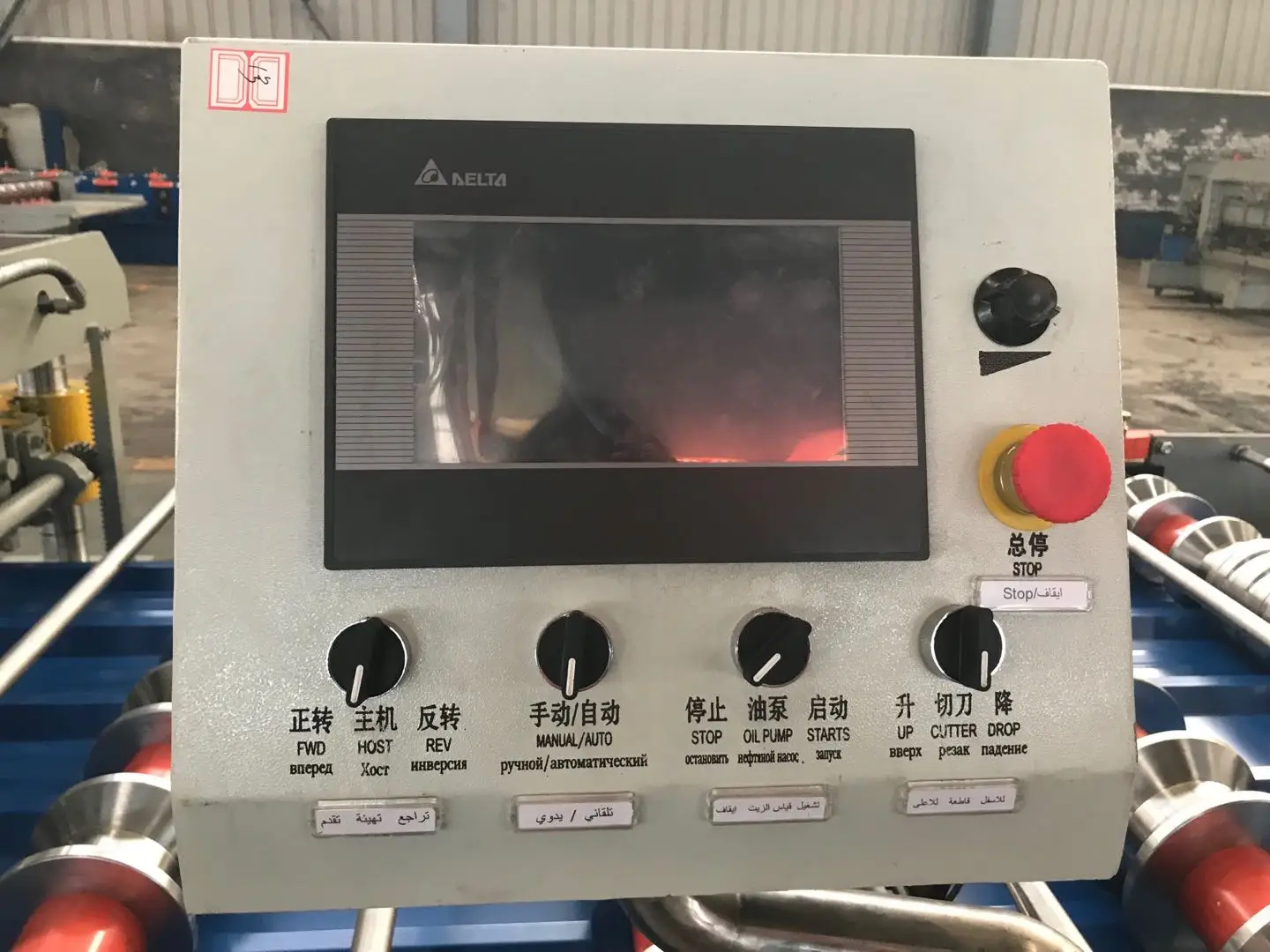

8.8 national standard scres&bolts DELTA, TAIWAN/SIEMENS, GERMAN/MITSUBISHI, JAPAN
Safety protective cover make more safer operation
Trade Shows
Certifications
Packaging & Shipping
Company Information
Hebei Forward Science & Technology Co.,Ltd
is the manufacturer specialized in cold bending roll forming equipment and automatic production line. The new company was establised due to the need of the rapid development of international trade. Main products are color steel roll forming machine, classical glazed tile forming machin, C/Z purlin machine for light steel structure building, floor deck forming machine, sandwich panel production line, fast guardrail roll forming line and various kinds full-automatic cold bending roll forming equipment.
We have approved certification of CE&ISO9001, THE CONCEPT “control every process and perfect all products” is curved in everyone’s mind. Each machine will be via load carrying test before leaving factory, problem machines will never be delivered to customer.
We have many years experience of export and know very well about the different requirements of customers from both in developing countries and developed countries, and provide a large number of customers with satisfactory design plan.Now our products have been exported to more than 50 countries and regions of the world and established a long-term cooperative relationship with clients.
We do firmly believe a true partnership never ends with the delivery of the goods and satisfactory after-sales service can make a great difference. We sincerely hope: you and i hand in hand, create the glorious future altogether!
FAQ
Q1. What's your payment terms and delivery time? A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support? A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world. We guarentee your machine running well in order to make your business running well.
Q3. Do you sell only standard machines? A3: No, customized service will be provided for all of our customers. Most of our machines are built according to customers specifications, using top brand components. Q4. What will you do if the machine is broken? A4: We provide 18 months free warranty and free technical support for the whole life of any machine. If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport? A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company? A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour). 2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
Q7. How to contact with you?
A7: Welcome to contact Wendy directly, My Mob / Wechat / Whatsapp number is : +86 18830710099
