RS485 air conditioner thermostat remote control

Product Overview

Description





                                                              Detail product information

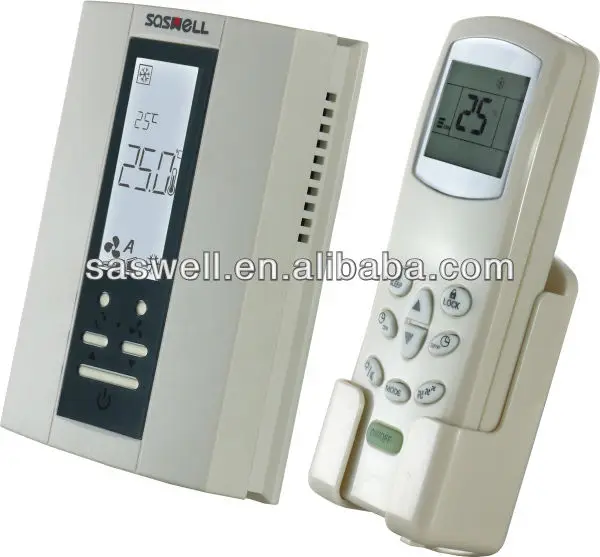

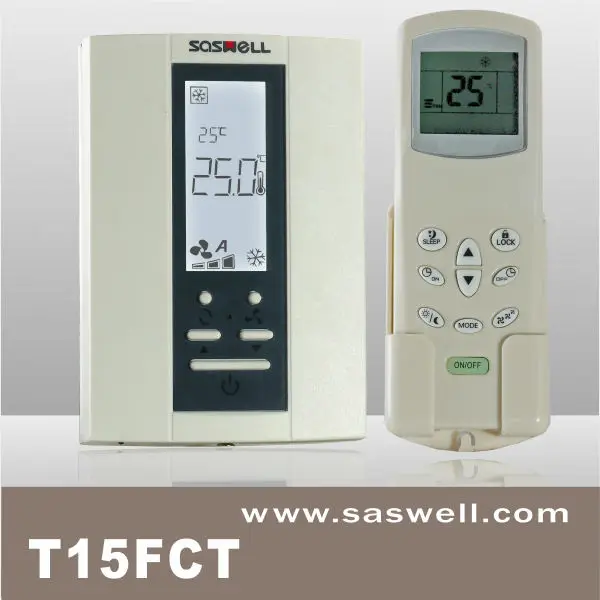

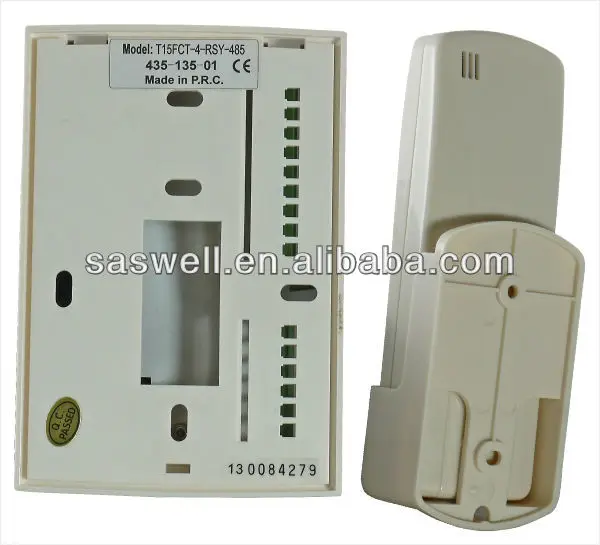

T15FCT-4-RSY-485 FAN COIL THERMOSTAT

Application: Cool/Heat, 3speed fan, Room Card, External Sensor, Remote controller

                        Installation and operation instructions





                                                      Feature

1.New vertical design, crosswise installation or vertical installation



2.Temperature adjustments are simple



3.Display shows both set points and room temperature simultaneously



4.Maintains the temperature to within 1 degree set point



5.Auto fan with adjustable 3-fan speed.



6.Optional temperature display of Celsius or Fahrenheit scale



7.Permanent user setting retention during power loss, no batteries are required



8.External sensor, Remote control

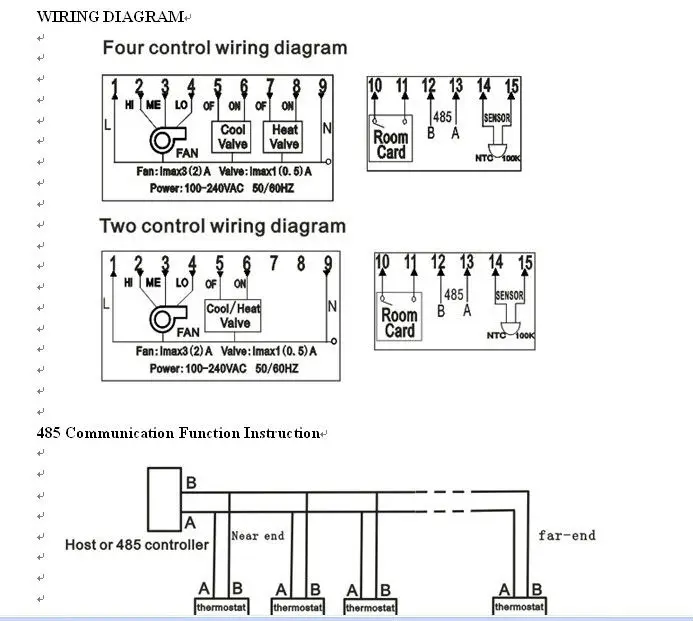

9.RS485 communication function



                                                                   Techincal  data



Electrical Rating…………………………….    …. …100~240VAC  50/60HZ

Fan Relay Amps inductive…………………….. …2A

Heat/Cool Relay Amps inductive…………………0.5A

Accuracy…………………………………………±0.5°C(1 °F)

Set point Temperature Range……………………..5°Cto 60°C

Dimensions…………………….. ….. ….. ….. …..120.9mm×82.9mm×28mm
