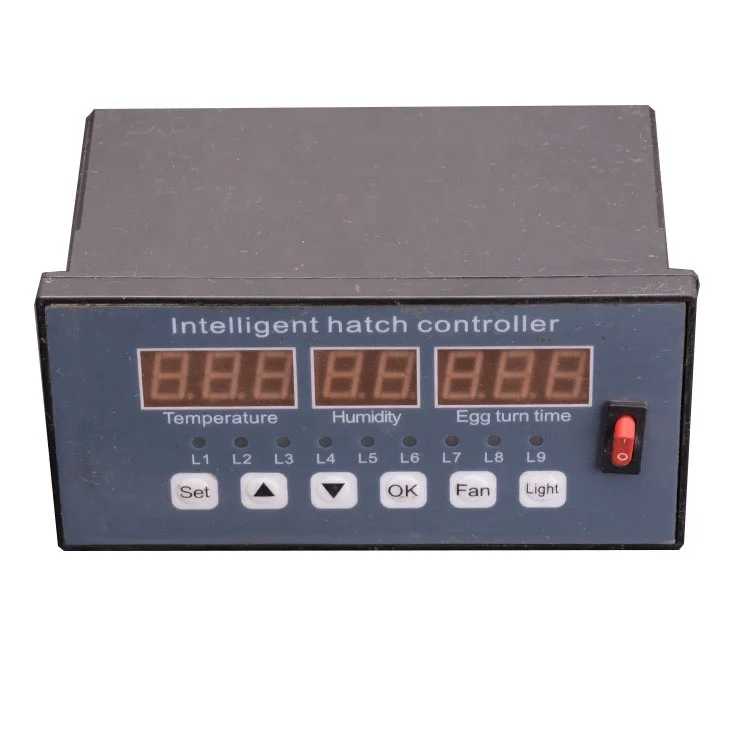

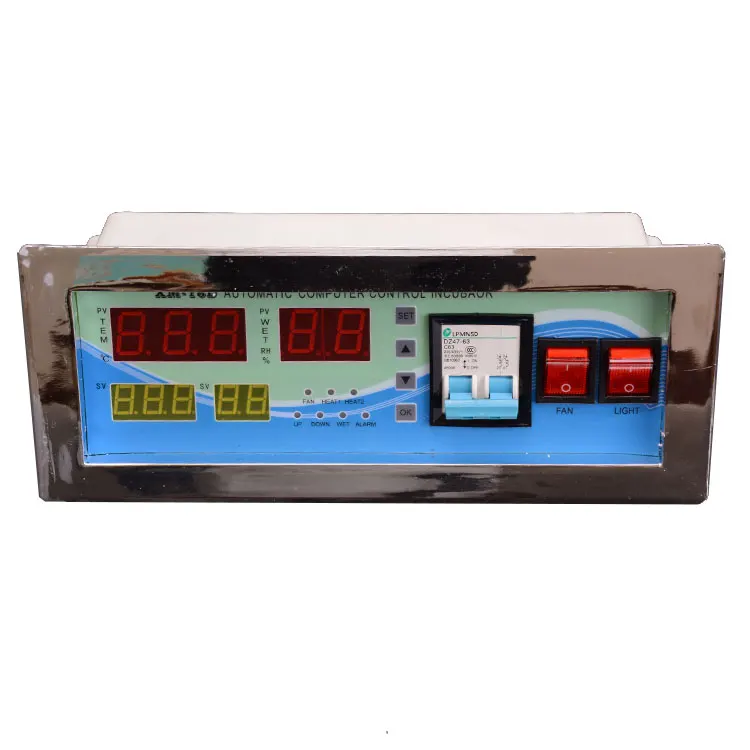

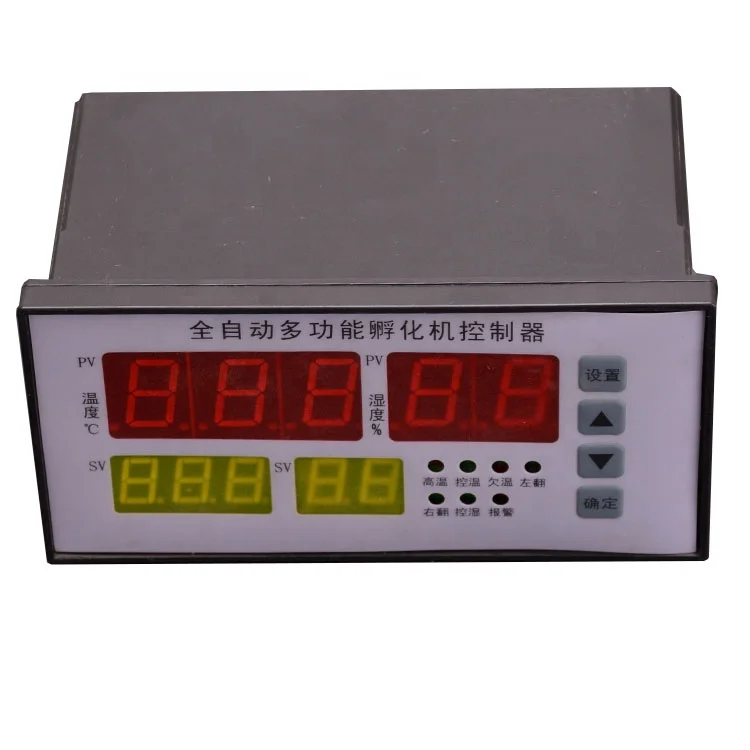

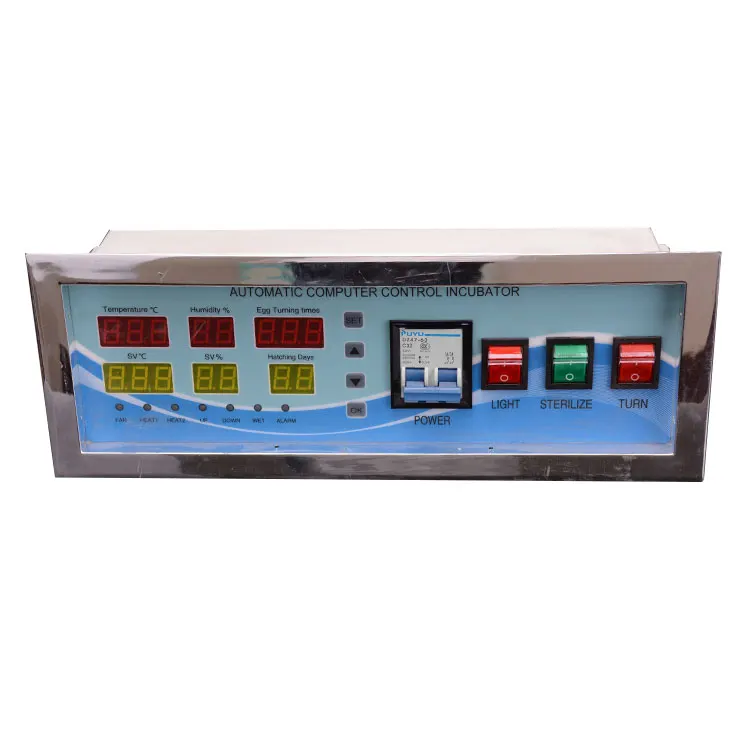

digital incubator temperature and humidity controller XM 18 XM 18D Controller

Product Overview

Description

digital incubator temperature and humidity controller XM-18 XM-18D Controller

 Main Technical Index:

1. Temperature Measuring Range: 0-99℃

2.Temperature Measurement Accuracy: ±0.1℃

3.Humidity Measurement Range: 0—99%RH

4.Humidity Accuracy: ±3%RH

5.Number of signal-output: 7, (over-temperature, temperature control, insufficient temperature, egg left-turning, egg right-turning, humidity control, alarm)

6.The maximum output load current: temperature control, insufficient temperature ≤ 8A/AC220V, over-temperature, egg left-turning, egg right-turning, humidity control, alarm ≤ 1A / AC22

7.Number of egg-turning: the maximum record is 999 times.

8.cycle of egg-turning: adjustment of 0 – 999 minutes (the factory default is 90 minutes)

9.egg-turning time: adjustment from 0 to 999 seconds (the factory default is 180 seconds)

10.ventilation cycle: from 0 to 999 minutes (the factory default is 120 minutes)

11.ventilation time: from 0 to 999 seconds (the factory default is 30 seconds)

12.Temperature measurement length: About 2 meters
Working Condition:

1.Working Voltage: AC 160V - 240V,50HZ

2.Relative Humidity: less than 85% RH

3.Environment Temperature: -10℃ - 60℃

Specifications:

    Digital displaying of temperature, humidity and turning frequency
   Full automatically temperature controlling
   Full automatically humidity controlling
   Full automatically eggs turning
   Full automatically alarming
   Full automatically cooling and ventilator
   Back emergency system

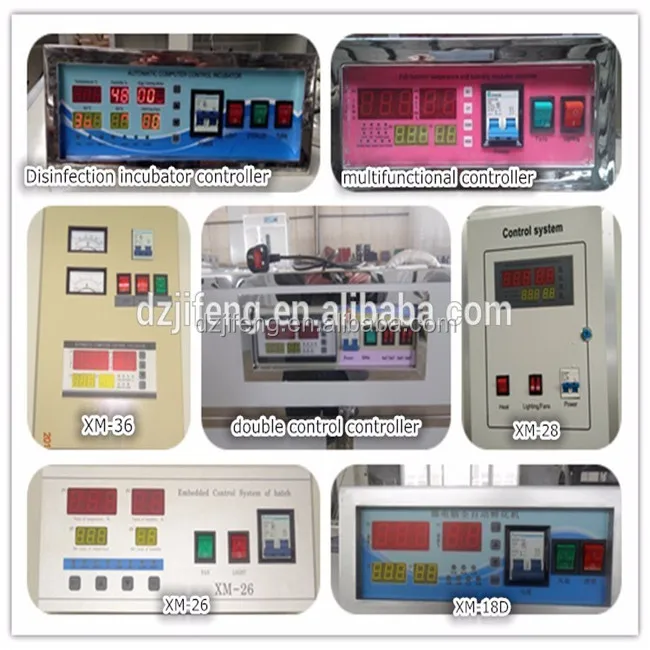

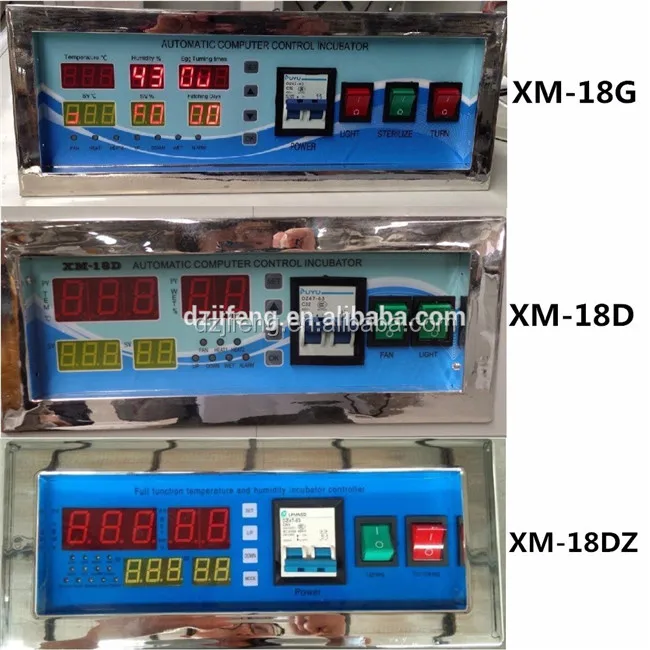

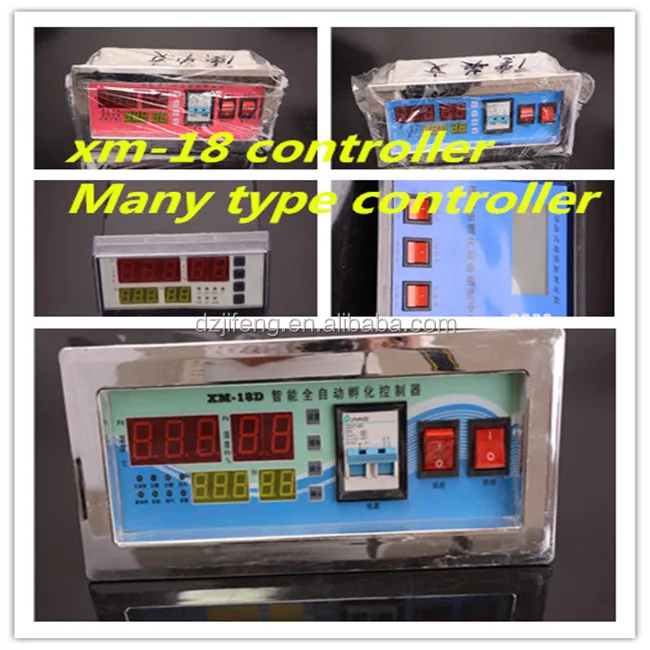

The type of controller xm-18
