Huanghe Whirlwind HSCD23 3.0 mm HTHP Mono Crystal Diamond

Product Overview

Description

What is HTHP Synthetic Mono Crystal Diamond?

     Mono Crystal Diamond is produced by high pressure, high temperature (HTHP) synthesis, has highly consistent predictable properties and behavior. It is characterized by its optical absorption spectrum and contains nitrogen in a disapperced situation form.

      Mono Plate Diamond range offers a wide choice of geometries, edge lengths and cross-sectional areas to give the synthetic diamond tool and die maker unprecedented options and the opportunity to used for cutting tools for non-ferrous and non-metallic material, dresser for wheel dressing ,a variety of special knives, burnishing tools, wear parts, and wire drawing dies.

Features of HTHP Mono-Crystal Synthetic Diamond:

1.yellow single crystal
2. better shape and lower cost
3. rules and irregular square shapes, high impact resistance

4.straight edge, high purity, high toughness and good thermal stability

Application of Monocrystal Plate Synthetic HTHP Diamond:

1. making tools for cutting and dressing hard materials.

2.all kind of cutting tools for non-ferrous and non-metallic materials.

3.all kinds of high quality cutting tool and dressers for wheel dressing.

4.all kinds of geological exploration drilling tools, engineering drilling tools.

5.a variety of special knives, burnishing tools, wear parts, and wire drawing dies.

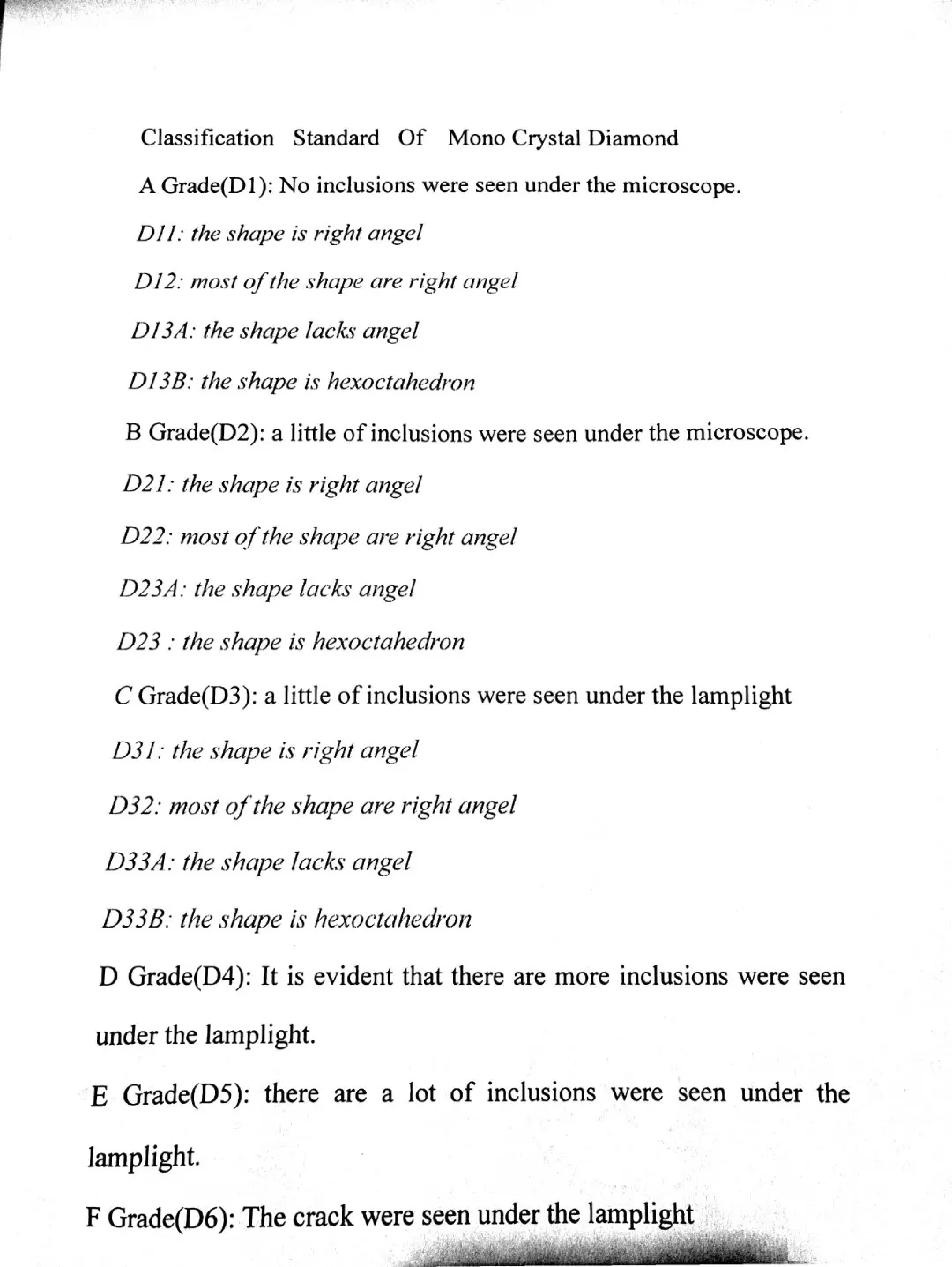

Classification Standard Of Mono Crystal Diamond

A Grade (D1): No inclusions were seen under the microscope.

D11: the shape is right angel

D12: most of the shape are right angel

D13A: the shape lacks angel

D13B: the shape is hexoctahedron

B Grade (D2): a little of inclusions were seen under the microscope.

D21: the shape is right angel

D22: most of the shape are right angel

D23A: the shape lacks angel

D23 : the shape is hexoctahedron

C Grade (D3): a little of inclusions were seen under the lamplight

D31: the shape is right angel

D32: most of the shape are right angel

D33A: the shape lacks angel

D33B: the shape is hexoctahedron

D Grade (D4): It is evident that there are more inclusions were seen under the lamplight.

E Grade (D5): there are a lot of inclusions were seen under the lamplight.

F Grade (D6): The crack were seen under the lamplight
