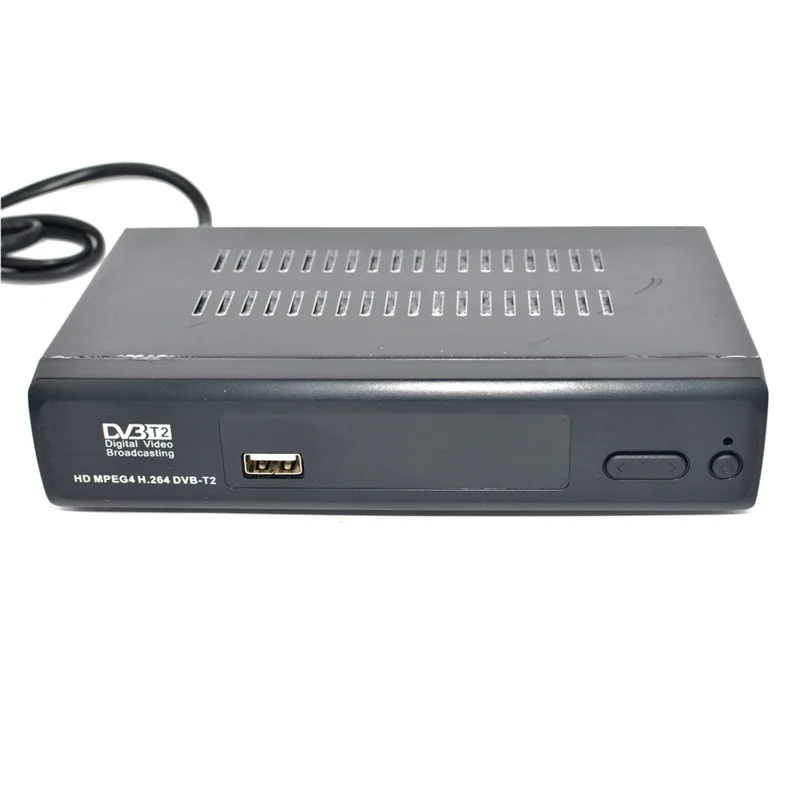

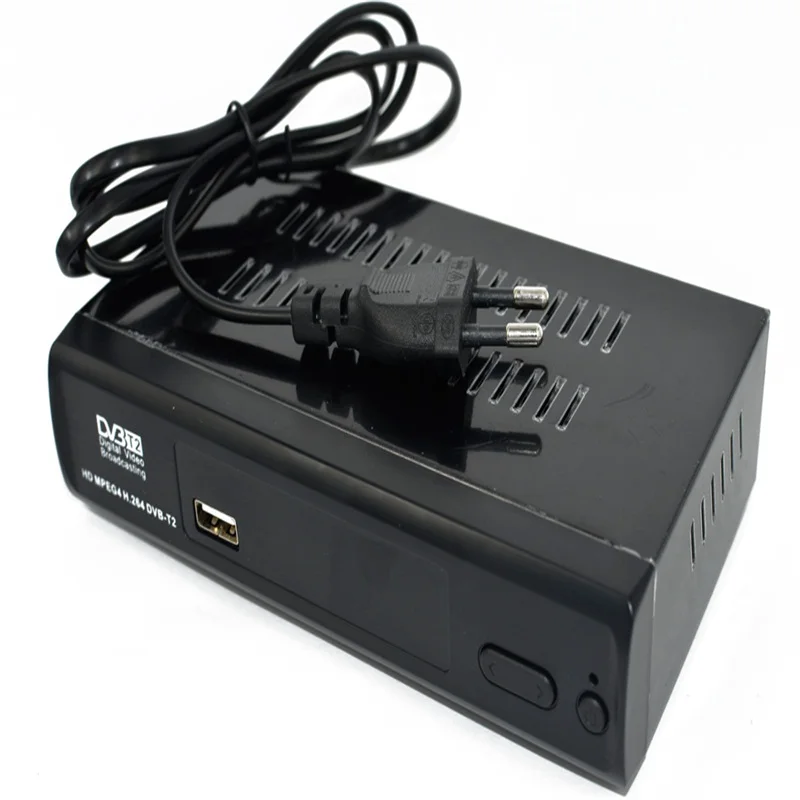

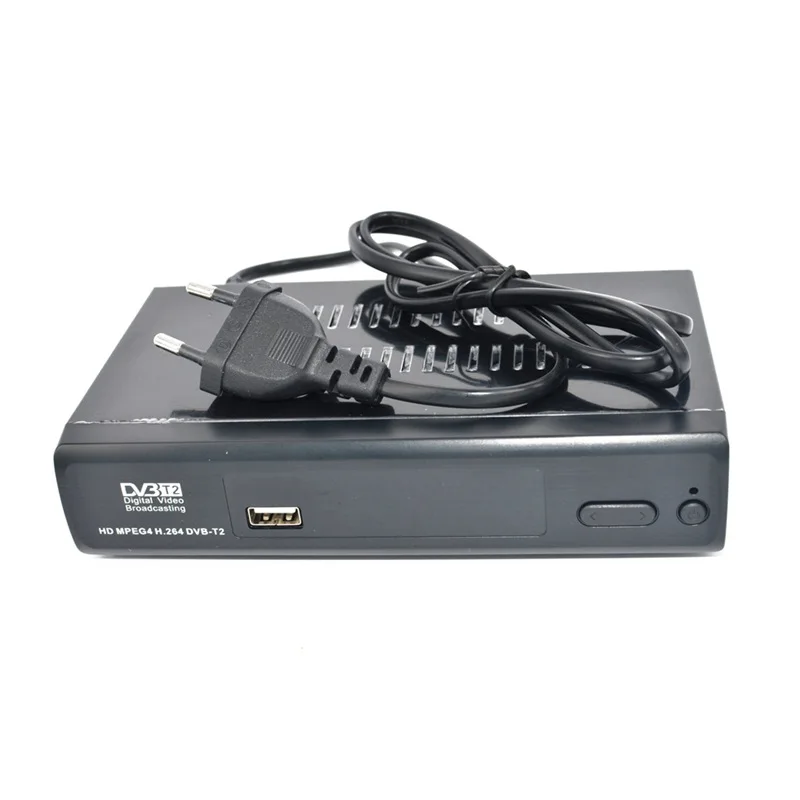

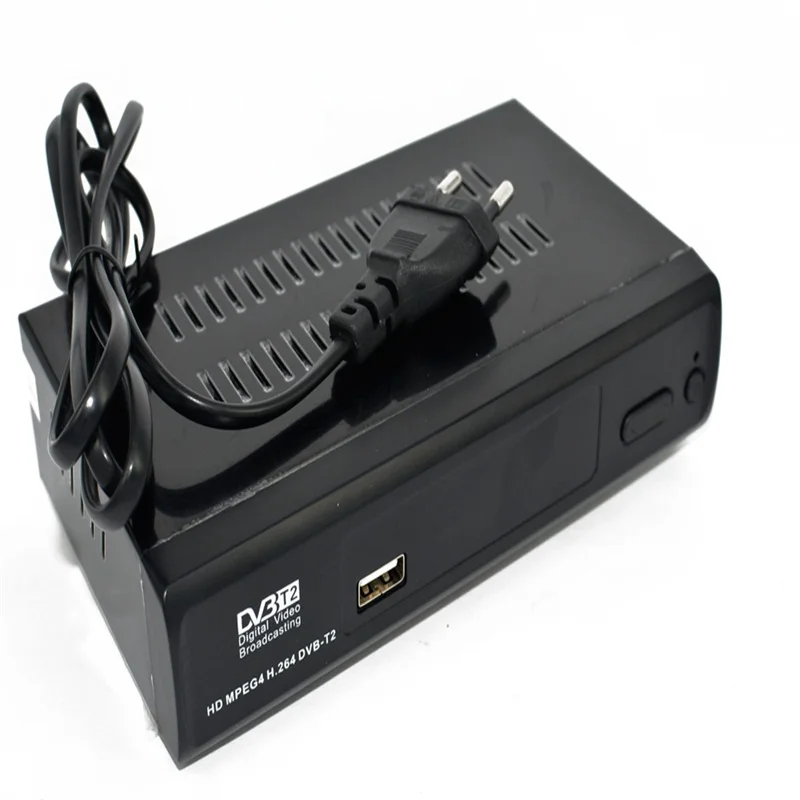

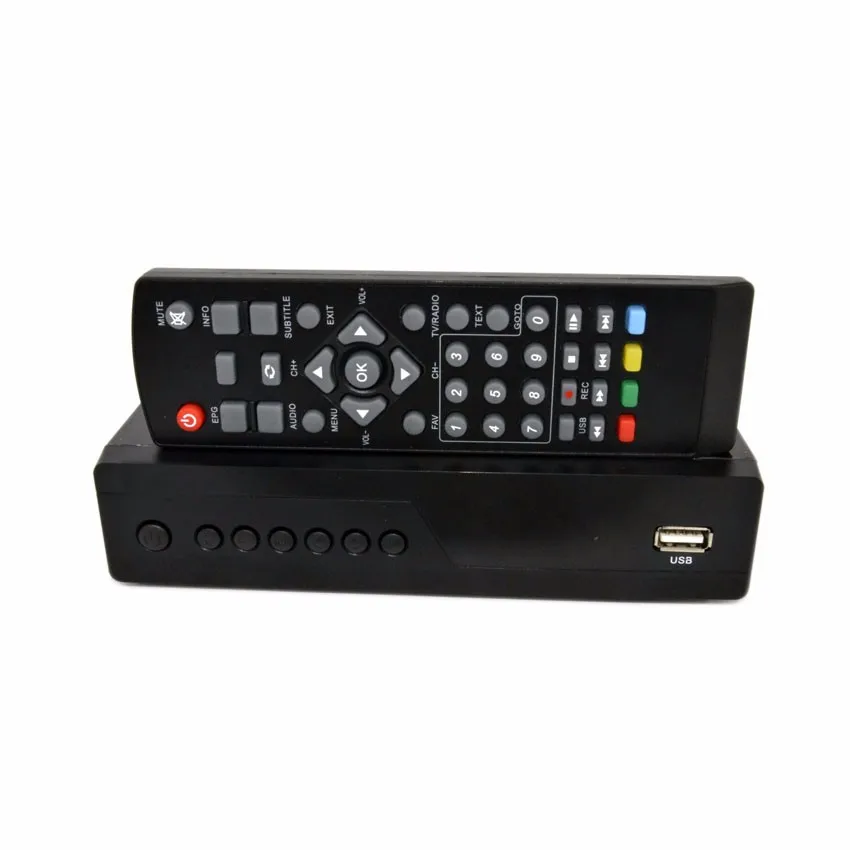

SYTA High Definition MPEG4 H.264 L4 MPEG 2 Terrestrial dvb t2 decodificador tdt colombia

Product Overview

Description





High Definition MPEG4 AVC H.264 L4 MPEG-2  Terrestrial dvb-t2 decodificador tdt colombia









 t2 russia/dvbt2



1.MLStandard DVB-T2/ High Definition MPEG4 AVC/H.264 HP@L4,MPEG-2 MP@HL

2.Automatic PAL/NTSC conversion

3.2000 channels TV and Radio programmable

4.The maximum speed of the traffic flow of at least 50 Mbit / sec

5.•Support 3D interface 8 different favorite groups selection

6.Fully support to 7 days Electronic Program Guide(EPG)

7.JPEG BMP GIF support,Flesh tone extension,Black/White extension

8.4/8/16-bit OSD with anti-flickering

9.Channel search in automatic, manual and network search

10.Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort)

11.Parental control for channels

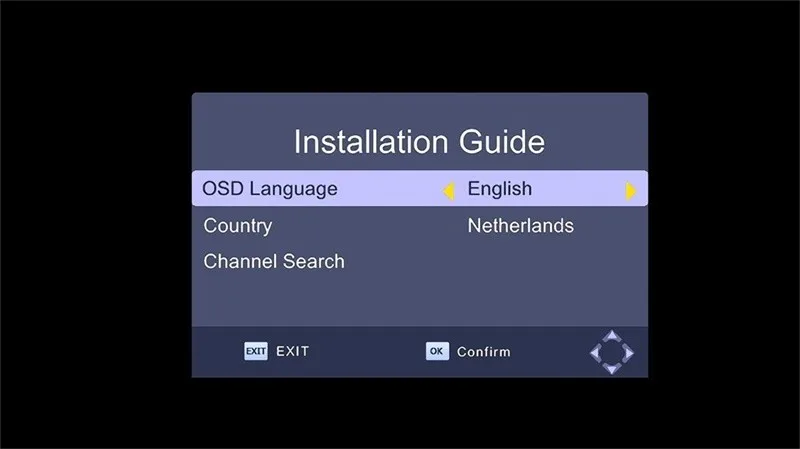

12.Plug and Play installation, with an ease to use Menu System

13.Software upgrades through USB/Cardreader

14.Time set by GMT offset automatic and manual,Summer Time support

15.5 event timers,off/Once/Daily/Weekly/Monthly Mode

16.Subtitle support

17.VBI insertion for Teletext,CC and WSS

18.Automatic save for last channel

19.Support Logic Channel Number(LCN)

20.Active Antenna Power supply control



Characteristics:



•


  CPU: MSTAR-MSD7T01 (128pinos) 34Kf MIPS @ 600 MHz.





•


  Memory: MSTAR-MSD7T01 implant DDR2 32X16Mbit Frequency1066





•


  Flash: 32 M bytes.





•


  Demodulator Type: MSTAR-MSD7T01 implant.





•


  Tuner: Rafael R836.





•


  Demodulation:





•


  Terrestrial Receiver DVB-T2 / T (EN_302755 V1.3.1 / EN 300744).





•


  RF input frequency: 48 ~ 866 MHz.





•


  Bandwidth: 6 MHz, 7 MHz, 8 MHz.





•


  Constellation: QPSK 16-QAM and QAM-QAM.





•


  FEC: 1/2, 3 / 5.2 / 3, 3/4, 4/5, 5/6.





•


  Guard interval: 1/128, 1/32, 1/16, 19/256, 1/8, 19/128, 1/4.





•


  FFT Mode: 2K / 8K / 32K.





•


  Entry level: -83--5dBm.





•


  Software Features:





•


  Fully comply with DVB-T / T2 and H.264, MPEG-4, MPEG-2 standard.





•


  The maximum speed of traffic flow at least 50 Mbit / sec.





•


  It supports 3D interface.





•


  Supports Sleep timer.





•


  Supports teletext / subtitle / muti-language.





•


  EPG function powerful and highly effective.





•


  Auto, 16: 9 pillar box, 16: 9 G Pan Scan, 4: 3 Letter Box, 4: 3 Pan Scan G, 4: 3, 16: 9 widescreen





•

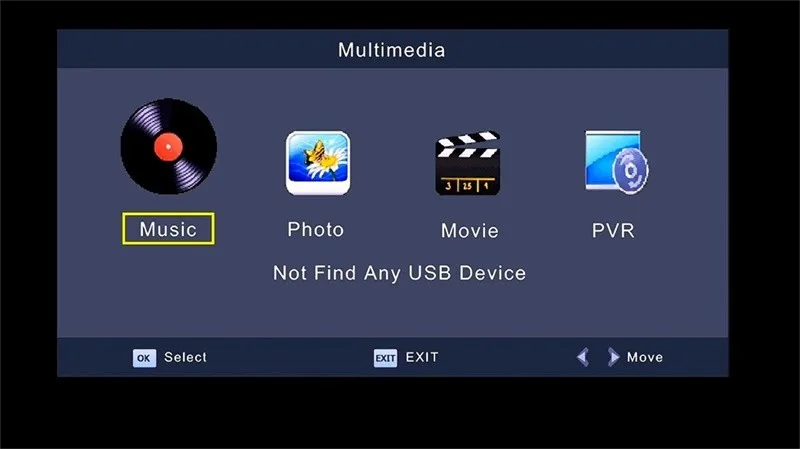

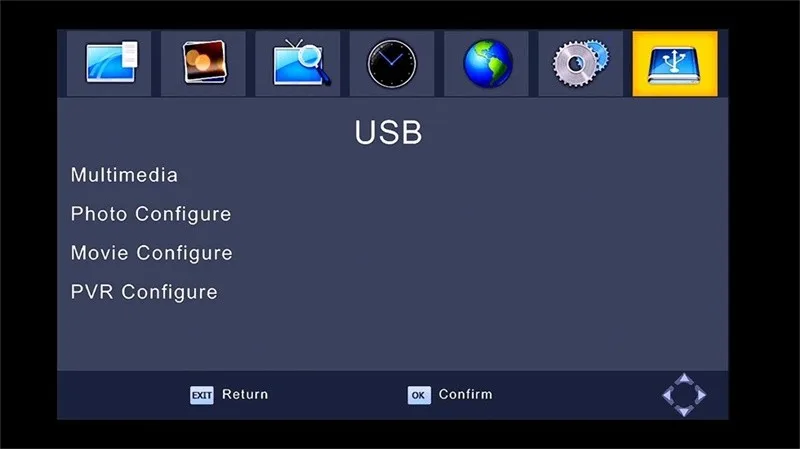

  USB 2.0 for PVR, Timeshift, software update and playback media files.





•


  Video output resolution: 480i / 576i / 480p / 576 p / 720p / 1080i / 1080p.





•


  Video decoder: Compatible with: MPEG-4 part10 / MPEG-2 ISO / IEC 13818.





•


  MPEG-4 Simple / Main / Advanced Profile @ LEVEL3 (10 Mbps).





•


  MPEG-2 main profile # Main level (15 Mbps).





•


  H.264 MP # L3 (10 Mbps). H.264 HP L4.1 (25 Mbps).





•


  Audio decoder: MPEG-1, MPEG-2 (Layer I / II), MP3, AC-3 (Dolby Digital), LC-AAC, WMA





•


  E-AC-3 (Dolby Digital Plus) HE-AAC decoding 5.1 multi-chhannel decoding.





•


  MediaCodec: AVI. MPG ,. DAT ,. VOB ,. Div ,. MOV ,. MKV ,. JPEG ,. TS etc.





•


  Audio: WMA, MP3, AAC (WMA, m4a.).





•


  Photo Codec: JPEG, BMP, PNG.





•


  License: Optional DTS, Dolby Digital, Dolby Digital Plus, RM / RMVB, DivX license.
















 dvb t2/dvb-t2/tv box/dvb t2 android/dvb-t2 android/dvb t2 receiver/t2/dvb/tv tuner dvb t2/set top box/dvb t/dvb-t2 receiver/dvb/ d

igital receiver free dish











1.  How do I purchase your goods?

Exploter: You just tell us details what you need,We will advise the right item to  you .


2.  Can you offer OEM & ODM products?

Exploter: Yes. We have own Research and Development center,We can offer Customized products for you.


3.  How long is the lead time?

 Exploter: Our productivity is 20,000pcs, Usually delivery time is one week after sample is approved.

4.  How can I get a sample from you ?

Exploter: After getting your payment, We will send sample to you  by DHL.EMS,FedEx,UPST,EMS or AirMail


5.  What’s the warranty?

Exploter: 1 year warranty .if you find problem when you get it ,We accept it’s returned for a replacement in 7days.

If it’s defective when you use it, We offer 1 year warranty ,You can send it back for repair or we send parts to you for repair.
