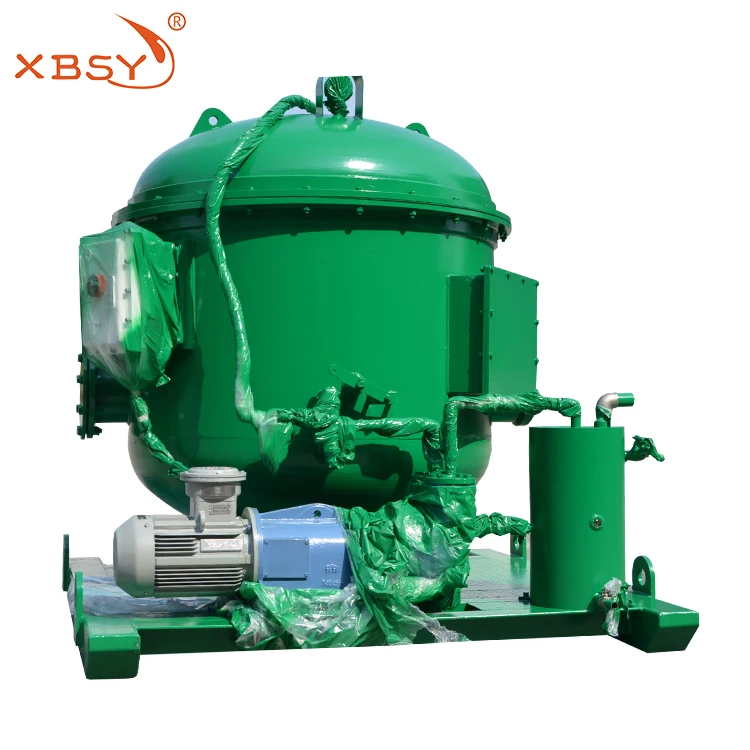

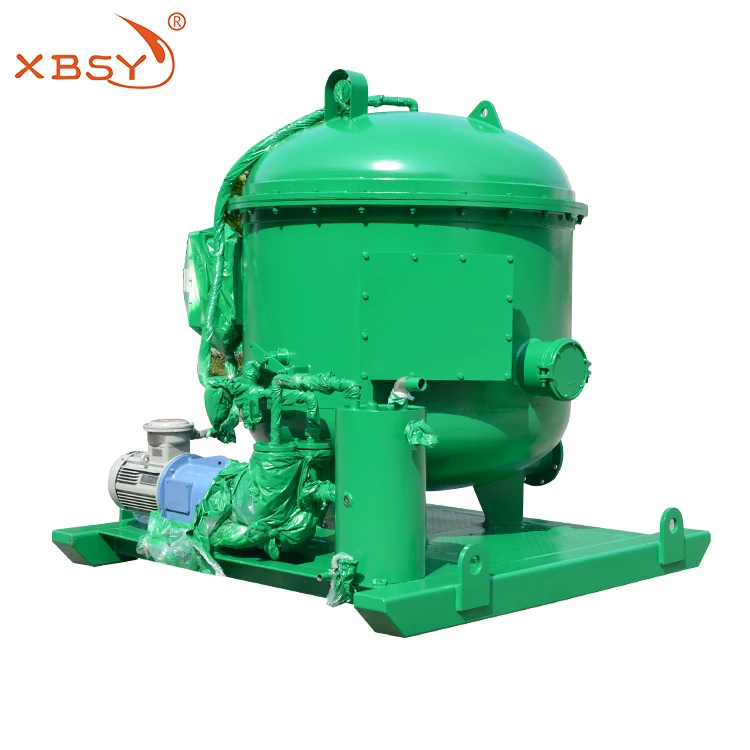

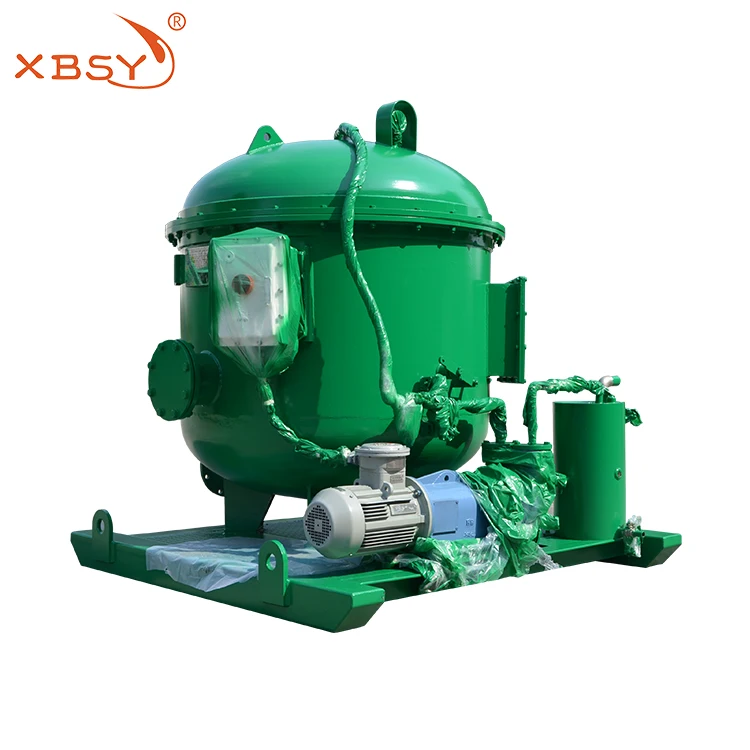

XBSY Vacuum Degassing System

Product Overview

Description

XBSY Vacuum Degassing System

Product Specification:

1. Survey

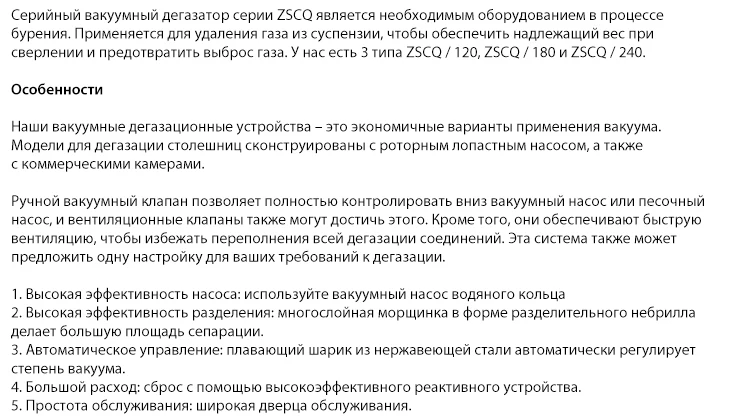

Today, ZSCQ serial jet flow vacuum degasser is a necessary equipment in the drilling process. It is mainly used to remove gas from slurry to ensure appropriate weight when drilling down and prevent blowout. We have 3 types of ZSCQ/120,ZSCQ/180 and ZSCQ/240.

2. Features

1) High efficiency of pumping

Use water ring vacuum pump.

2) High efficiency of separation

Multilayer wrinkle shaped separation umbrella makes big separation area.

3) Automatical control

Stainless steel floating ball automatically adjusts the vacuum degree.

4) Big flow rate

Discharge by high efficiency jet device.

5) Easy maintenance

Wide maintenance door.

"

"



Type		ZSCQ/120	ZSCQ/180	ZSCQ/240
Flow rate(m3/h)		120	180	240
Leaf area(m3/h)		27720	63000	92041
Vacuum rating(Mpa)		0.02-0.04	0.02-0.04	0.03-0.05
Separation efficiency(%)		≥85	≥92	≥95
Dimension: L*W*H(mm)		2163*1138*1512	2373*1380*1577	2653*2000*2050
Weight(kg)		950	1200	1900
Centrifugal pump	Capacity(m3/h)	150	180	200
	Head(m)	22-30	28-33	30-35
	Speed(rpm)	1470	1480	1480
	Motor power(kw)	22-30	30-37	45-55
Vacuum pump	Speed(rpm)	2880	2890	1450
	Motor power(kw)	3	4	5.5
