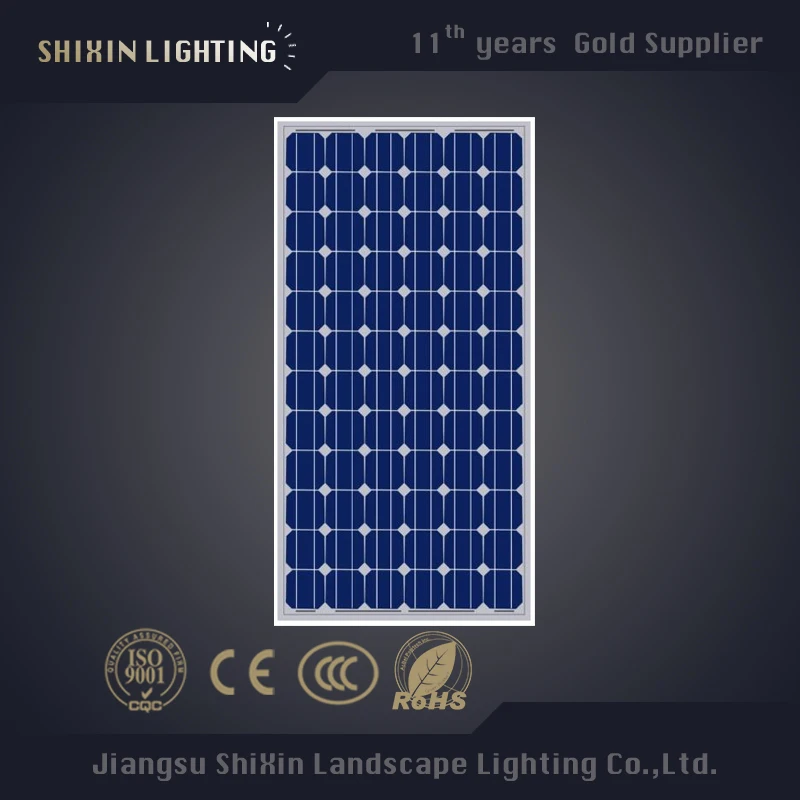

Wholesale High Efficiency flexible 12v 120w silicon slice solar panel
- Category: >>>
- Supplier: Jiangsu Shixin Landscape Lighting Co. Ltd. [Jiangsu China]Jiangsu Ltd.
Share on (60746587444):
Product Overview
Description
Product Description

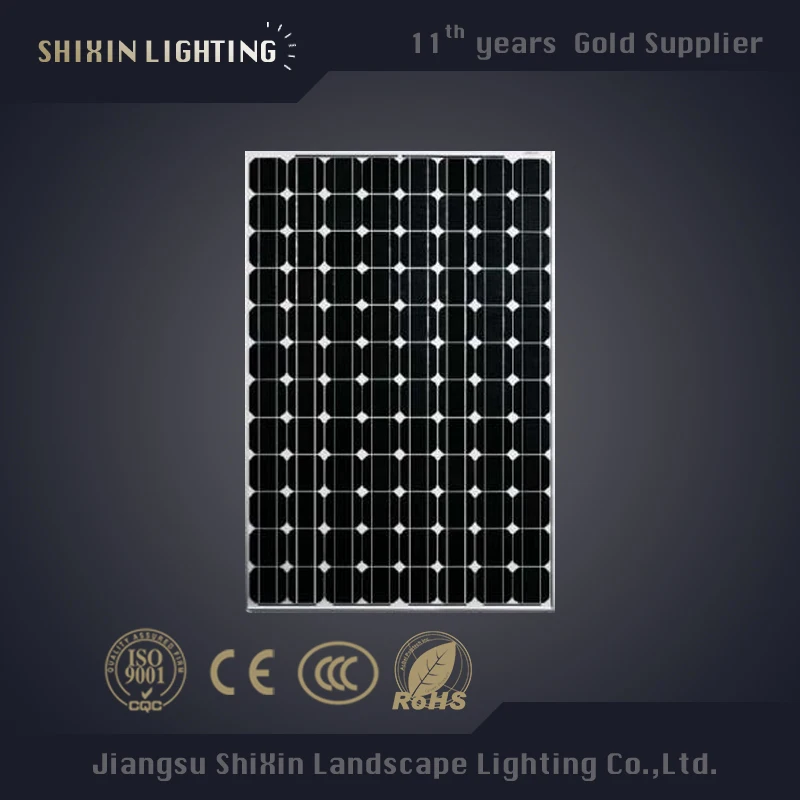

| MONO-CRYSTALLINE SOLAR PANEL | ||||||||
| 10-315 Technical Parameters | ||||||||
| Power(W) | 10W | 65W | 110W | 150W | 200W | 245W | 295W | 315W |
| The maximum power(W) | 10 | 65 | 110 | 150 | 200 | 245 | 295 | 315 |
| The maximum voltage(V) | 17.5 | 18 | 18 | 18 | 37.3 | 30.4 | 36.5 | 36.8 |
| The maximum Current(A) | 0.57 | 3.61 | 6.11 | 8.33 | 5.42 | 8.06 | 8.1 | 8.56 |
| The open circuit voltage(V) | 21.6 | 22.6 | 21.6 | 22.6 | 45.5 | 37.2 | 45.4 | 45.8 |
| Short circuit current(A) | 0.61 | 3.79 | 6.7 | 8.73 | 5.85 | 8.62 | 8.73 | 9.04 |
| The maximum system voltage | UL1703:600VCD&IEC61215/IEC61730:1000VDC | |||||||
| Working temperature | -40~+85 | |||||||
| Mechanical strength | 5400Pa | |||||||
| Weight(KGS) | 1.05 | 5.06 | 8.4 | 10.05 | 15 | 18.5 | 22 | 22 |

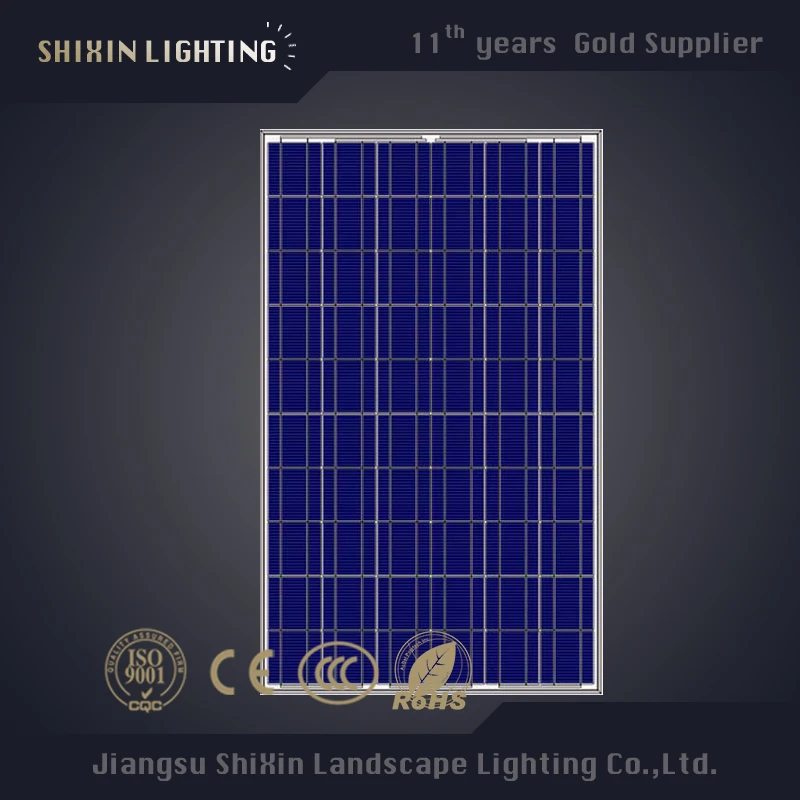

| POLY-CRYSTALLINE SOLAR PANEL | ||||||||
| 10-310Technical Parameters | ||||||||
| Power(W) | 10W | 60W | 100W | 130W | 150W | 230W | 245W | 310W |
| The maximum power(W) | 10 | 60 | 100 | 130 | 150 | 230 | 245 | 310 |
| The maximum voltage(V) | 17.5 | 18 | 18 | 18 | 18 | 30.1 | 30.4 | 36.3 |
| The maximum Current(A) | 0.57 | 3.33 | 5.55 | 7.22 | 8.33 | 7.69 | 8.07 | 8.55 |
| The open circuit voltage(V) | 21.6 | 22.6 | 22.6 | 21.6 | 22.6 | 37.2 | 37.5 | 45.2 |
| Short circuit current(A) | 0.61 | 3.49 | 5.82 | 7.92 | 8.73 | 8.58 | 8.89 | 9.07 |
| The maximum system voltage | UL1703:600VCD&IEC61215/IEC61730:1000VDC | |||||||
| Working temperature | -40~+85 | |||||||
| Mechanical strength | 5400Pa | |||||||
| Weight(KGS) | 2.1 | 5.06 | 6.6 | 10.5 | 10.5 | 18.5 | 18.5 | 22 |

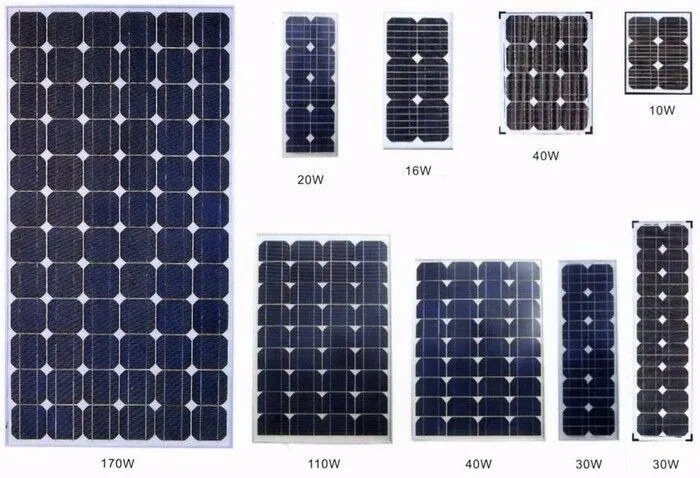

Detailed Images
Aluminum frame
Anodized aluminum alloy, through the smoke and desalination test to ensure that the component life of more than 25 years
Glass
Low iron tempered glass
Translucency of normal luminance is increased by 2%
Module efficiency is increased by 2%
Self-cleaning function
Service life is as long as 25 years (30 years optional)
Solar Cell
High Efficiency PV Cells
Appearance Consistency
Color sorting ensure consistent appearance on each module
Anti-PID
Junction box
Conventional standalone edition and engineering custom edition
Quality diode ensures module running safety
IP65 protection level
Heat dissipation
Long service life

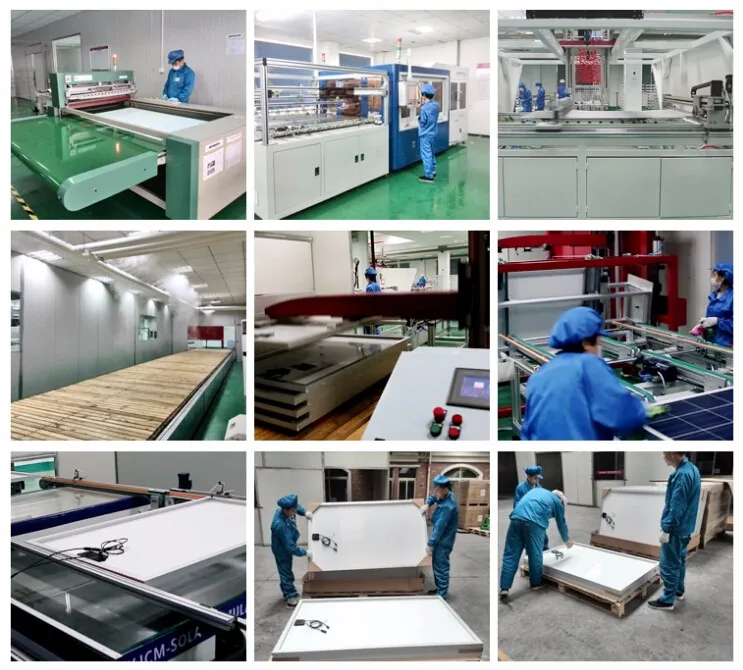

Work Process

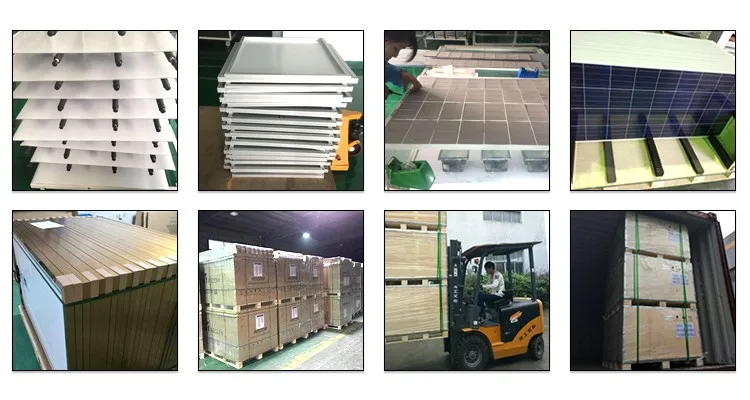

Packing & Delivery
Related Products
Company Profile
Jiangsu Shixin Landscape Lighting Co.,Ltd.(formerly known as Yangzhou Shixin Landscape Lighting Co.,Ltd.), located in China's historical and cultural city-the northern suburbs of Yangzhou City Tianshan Industrial Park. East of Beijing-Shanghai high-speed, the south-Shanghai-Nanjing high-speed, close to Runyang Bridge, Ningqi railway. Convenient transportation, is a design, development, manufacture, installation and integration services in the outdoor lighting business.
Companies registered capital of 108.88 million yuan, more than 300 employees, of which more than 50 professional and technical personnel, market development staff more than 50 people. Plant area of 28000 square meters, production equipment. With a large CNC bending machine, 2000 tons of aluminum die-casting machine, hycraulic stretching machine, dual-position powder electrostatic spraying lines, LED placement machine, reflow soldering machine, solar module laminator, solar module slicer, tester, luminous flux Testing equipment, automatic cutting, submerged arc welding, gas welding, cars, planing, drilling, bending, and so on more than 100 Taiwan equipment.
