Siontruk 35M3 TIPPER SEMI TRAILER dump truck trailer

Product Overview

Description

1.Production Description

Main specifications of Siontruk 35M3 TIPPER SEMI TRAILER dump truck trailer



Siontruk 35M3 TIPPER SEMI TRAILER dump truck trailer
DIMENSIONS
Tare weight		15500kg		Payload		40000kg
Overall length	9968		Overall width	2534mm	Overall height		3566mm
Chassis	Heavy duty and extra durability designed I beam;opting for high tensile steel Q345,welded by automatic submerged-Aac processes. 500mm Height I beam. Top plate 18mm, bottom plate 20mm. middle plate 10mm.
Axle	3 Axles, 13 ton X 3.
Suspension	Mechanical suspension
Leaf spring	Leaf spring 12 pcs
Floor	8mm plate. side wall 6 mm, front wall: 8mm.
Tire	12R22.5 tubless tire, 12 pcs.  Optional is 11R22.5 tubless tire.
Wheel rim	9.0R22.5 rim, 12 pcs; Optional is 8.25R22.5 rim.
Kingpin	3.5’’ bolt-in king pin, Optional is 2’’
Landing gear	Fuwa  two-speed, manual operating, heavy duty landing gear.
Cylinder	HYVA 214-7130
Vehicular applications	Wheet, Potatoes, Soil, Sand, Pebble and mineral transport
Drawing	Including
Braking system	WA WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks, with em emergency brake and parking brake.
Electrical system	Pr  Professional 24V electrical circuit system.
Painting	Complete chassis sand blasting to clean rust ,1coat of anti corrosive prime, 2coats of final paint

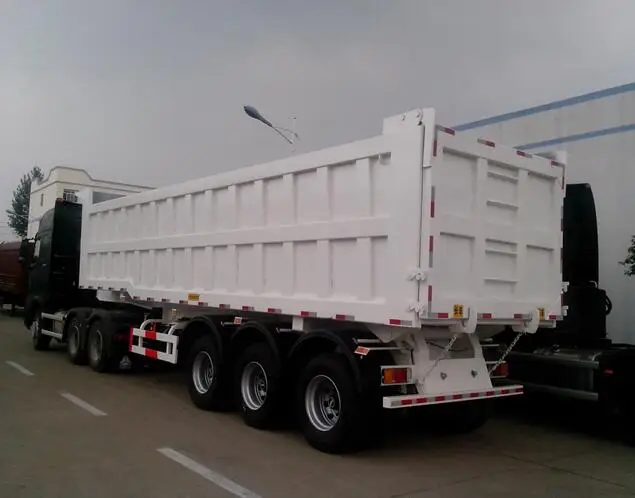

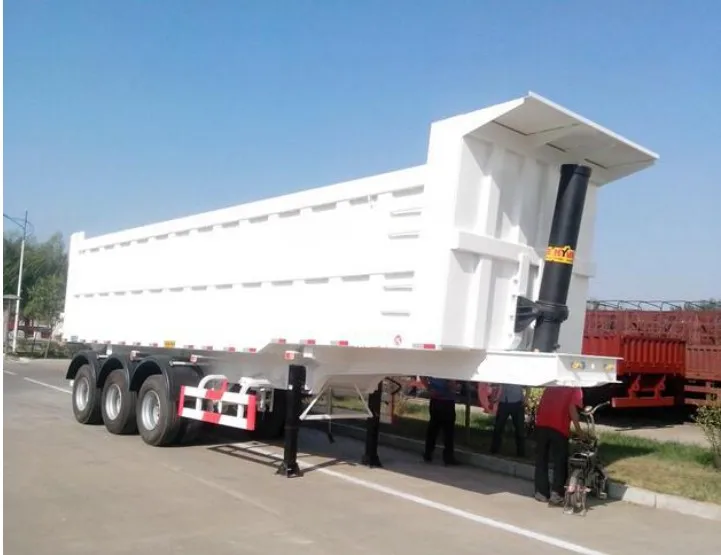

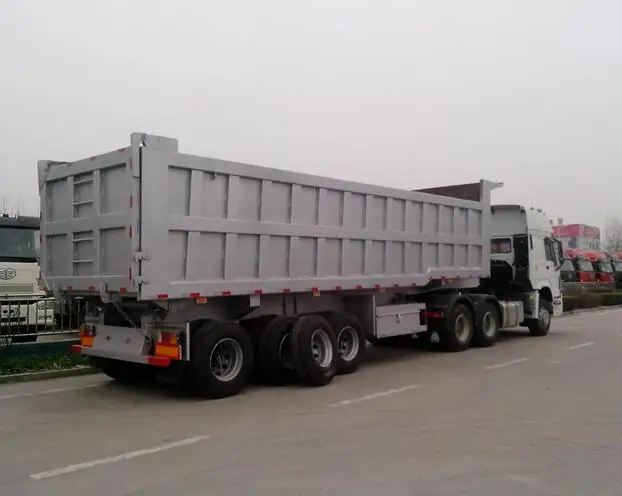

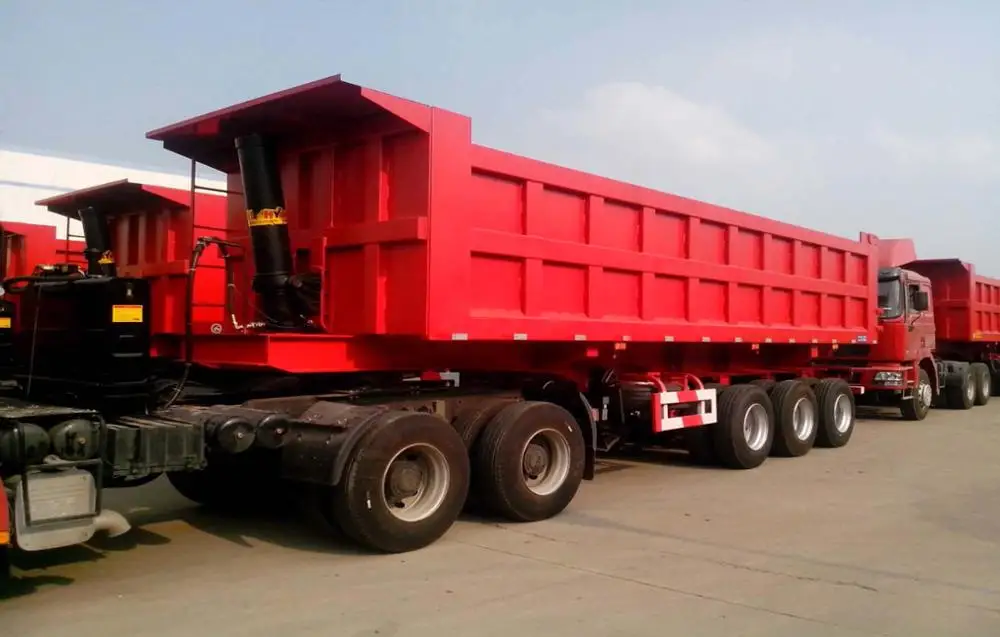

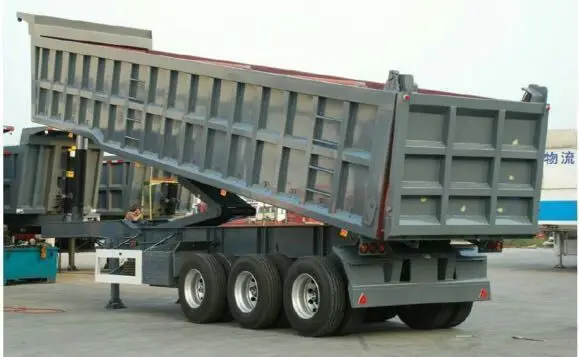

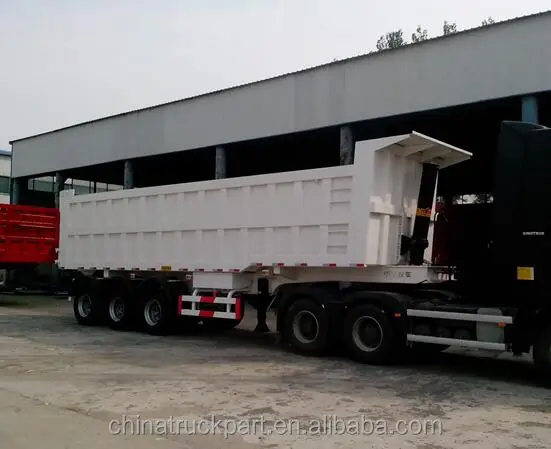

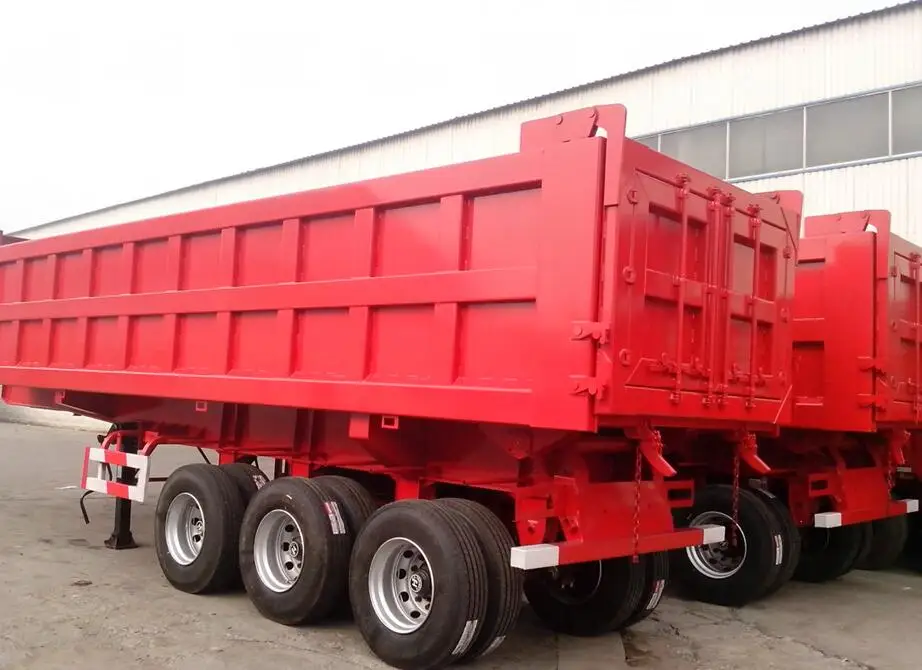

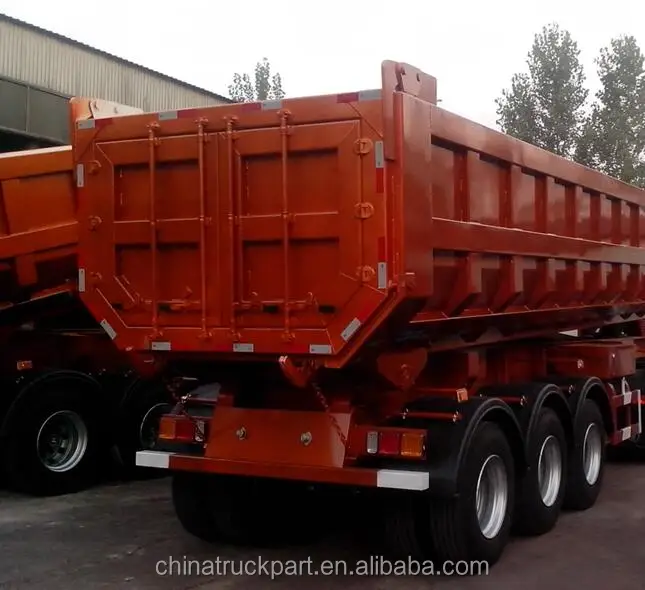

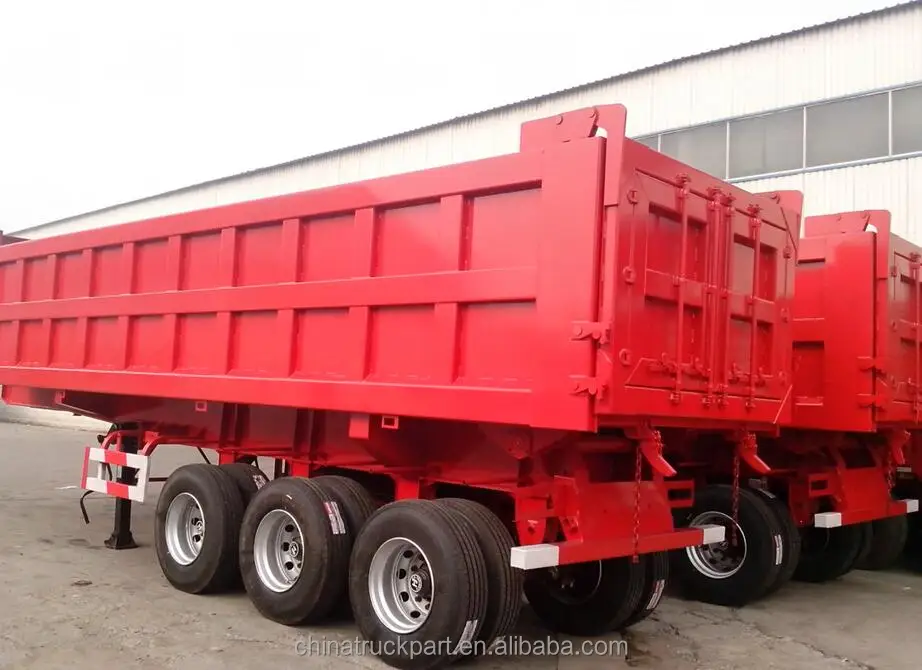

Photos of Siontruk 35M3 TIPPER SEMI TRAILER dump truck trailer

2.Packing & Shipping

Making wax before loading on ship, trucks will be transported by RORO ship, bulk Ship, container or frame.





3.Our services

Our service is aim to continually improve customers’ satisfaction.



ü We can offer you the high quality trucks and spare parts at reasonable price.

ü We own strong teams in technology that could help you solve problem quickly.

ü We can do the designs according to your special requirement and ideas.

ü We also supply spare parts (original, OEM, and replacement) for all types of trucks

ü We cooperate with efficient logistics which ensure the goods reach you timely and safely.

ü We are rich experienced team and could provide good after-sales service.



4. Company Information

We Jinan Hainuoer Trading CO., LTD established in 1990 which engages in SINOTRUK trucks and spare parts for more than 25 years. We are authorized distributor by SINOTRUK factory exporting dump truck, tractor truck, cargo truck, concrete mixer truck, tank truck, garbage truck, semi-trailer, excavator, truck crane and other heavy duty equipments. Meanwhile, we are the Spare Parts Center of our SINOTRUK factory that is responsible for providing original truck spare parts for all SINOTRUK 4S shopsin domestic and foreign markets.



After long time development, our yearly sales volume reaches eighty million. We have successfully exported trucks and spare parts to Nigeria, Angola, Ghana, Libya, Cameroon, the Guinea, Congo, Mali, Tanzania, Ethiopia, Algeria, Sudanand other African countries; Peru, Chile, Venezuela, Colombia, brazil and Argentina in south America; Ukraine, Russia, Tajikistan, Kazakhstan, Thailand, Philippines, Malaysia, Indonesia, Pakistan, Brunei, Bangladesh etc. that almost fifty countries.



We own strong teams in technical and sales field, so that we could deal with all kinds of truck problems with shortest time for our client.



Hope to establish good and long-term business relationship with you.



5. Factory Production Line





6.FAQ

Q1:Why do you choose us?

A1: We are official authorized by CNHTC to export SINOTRUK trucks,and we are willing to provide the High Quality, Reasonable Price, and Perfect Service.

Q2: How about the quality of your truck?

A2: Our trucks have passed the ISO, CCC, SGS, BV, SONCAP and CONTECNA qualification certification, quality is 100% guaranteed.

Q3: How about your company's service?

A3: Our company is constantly improving the service quality to provide excellent service for customers according to the “client first” principle.We always do our best to solve all the problems and put our customer's interests in the first place.

Q4: Is there any advantages of your price?

A4: We have been doing trucks and truck parts for more than 25 years,we can provide guarantees for reasonable price and good quality.
