110v to 220v ei single phase transformer 5VA
110v to 220v ei single phase transformer 5VA

110v to 220v ei single phase transformer 5VA

Share on (60746639226):


Price:

Quantity:


Product Overview

Description





Product Description


Description:

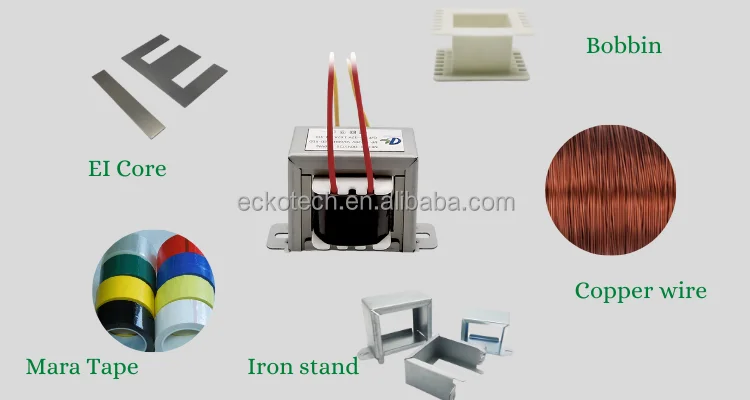

1.High Quality Silicon Steel Sheets:
Increase iron resistivity and magnetic conductivity, reduce conductivity

2. UL approval leads

3. 100% ENAMEL COPPER WIRE

4. Flame retardant bobbin
Insulation and leakage protection

5. Flame retardant mara tape


Technical specifications:
Frequency: 50-60Hz
Input voltage: AC100V/110/115V/120V/220V/230V/240V/380V+-10%
Output voltage: AC12/24V+-2%
Power: Ranging From 1VA to100VA
According to: EN61558
HI-POT test: 3750VAC RMSInsulation Class: B(130°C)Ambient
Temp.(ta)：40°C
Protection：IP00


*The parameter is only for reference as typical data, customized are welcomed.



Model
Specification
A
B
C
D
E
I
J
Power
EKN28
EI-28X12
30
41
27
51
26
7
3
1.0W
EI-28X15
30
41
27
51
28.6
7
3
1.5W
EI-28X18
30
41
27
51
31.5
7
3
2.0W
EKN35
EI-35X10
37
49
31
59
27.4
6.4
4
1.0W
EI-35X15
37
49
31
59
31.4
7
4
2.0W
EKN41
EI-41X20
43
55
35
65.3
37.8
6.3
4
6.0W
EI-41X26
50
55
35
67
45.7
6.3
4
10.0W
EKN48
EI-48X20
50
63
43
75
38.3
8
4
10.0W
EI-48X30
59
63
43
75
50
8
4
18.0W
EKN57
EI-57X25
59
74
50
84
48
7.3
4
20.0W
EI-57X30
59
76
51
91
50.8
10
6
28.0W
EI-57X35
68
76
51
91
56.8
10
4
36.0W
EKN66
EI-66X30
68
84
59
98
56.6
10
4
36.0W
EI-66X35
68
84
59
98
59.8
10
4
50.0W
EI-66X44
68
84
59.3
108
68.7
12
5
70.0W
EKN76
EI-76X32
78
95
67
108
64
8
4
52.0W
EI-76X38
78
95
67
108
65.6
9
5
70.0W
EI-76X45
78
93
67
106
75.2
9
5
90.0W


Details Images




Advantage:


1. high competitive price,wide application.

2. Simple structure，long life.

3. Complete isolation，more safety.



Customized

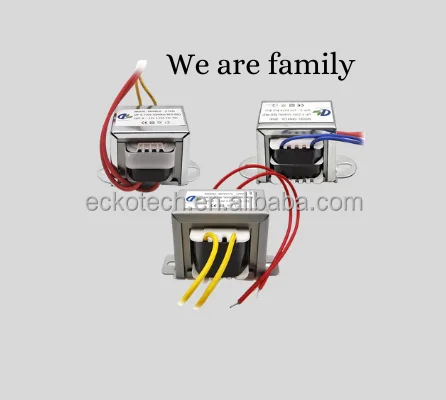

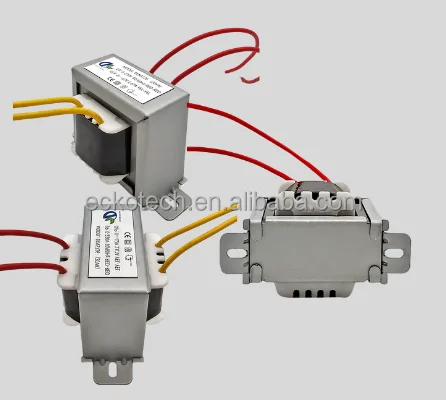

According to your requirement, we make make it in different type and have different bobbin like the photo you see.






Applications:



 Small charger, mahjong machine, beauty salon equipment, instrument equipment;

   Stage lighting equipment, lighting control circuit, automatic equipment control circuit, mechanical control circuit.

Audio system, Public broadcasting,
Security Monitoring




Exhibition
