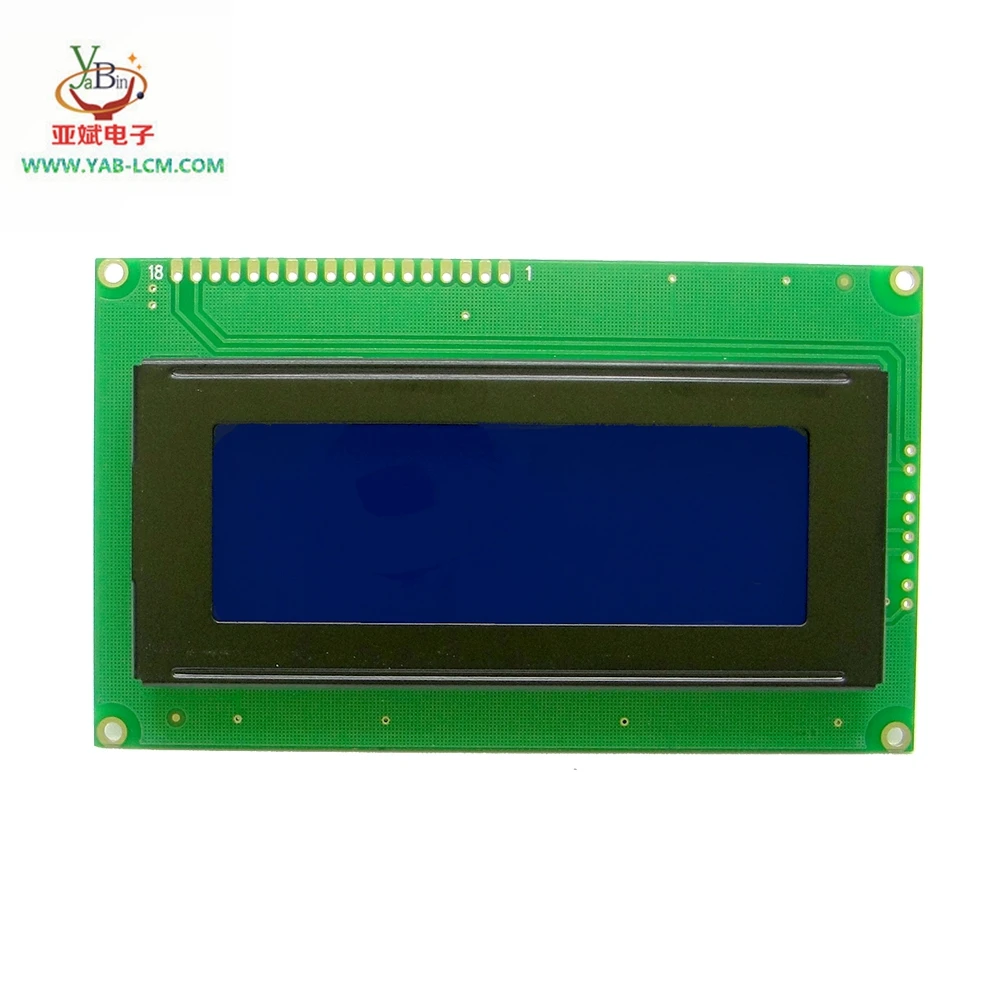

12832 Monochrome Lcd Micro Display Screen
- Category: >>>
- Supplier: Shenzhen Yabin Electronics Co. Ltd.
Share on (60746641712):
Product Overview
Description
12832 monochrome lcd micro display screen
Product Description
1. FUNCTIONS & FEATURES
| Product parameters | |
| Dot Matrix | 128×32 Dots |
| LCD Mode | STN |
| Controller IC | KS0108 or Equivalent |
| Driving Method | 1/32 Duty; 1/7 Bias |
| Viewing Angie | 12 O’clock direction |
| Interface | 6800 serial 8-Bit MPU |
| Backlight | LED |
| Operating Temperature Range | -20 to +70℃ |
| Storage Temperature Range | -30 to +80℃ |
| Module Size | 110.0L×65.0W×14.5（max）H mm |
| View Area | 76.0×25.0 mm |
| Effective Area | 72.91×18.19 mm |
| Dot Size | 0.52×0.52 mm |
| Dot Pitch | 0.57×0.57mm |

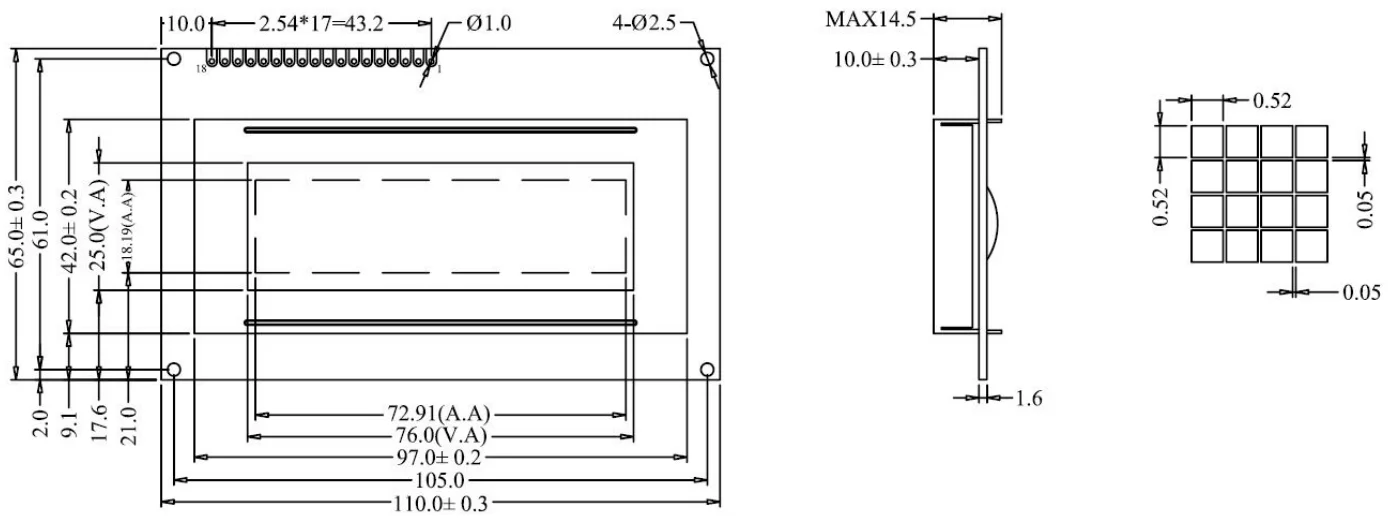

2.EXTERNAL DIMENSIONS

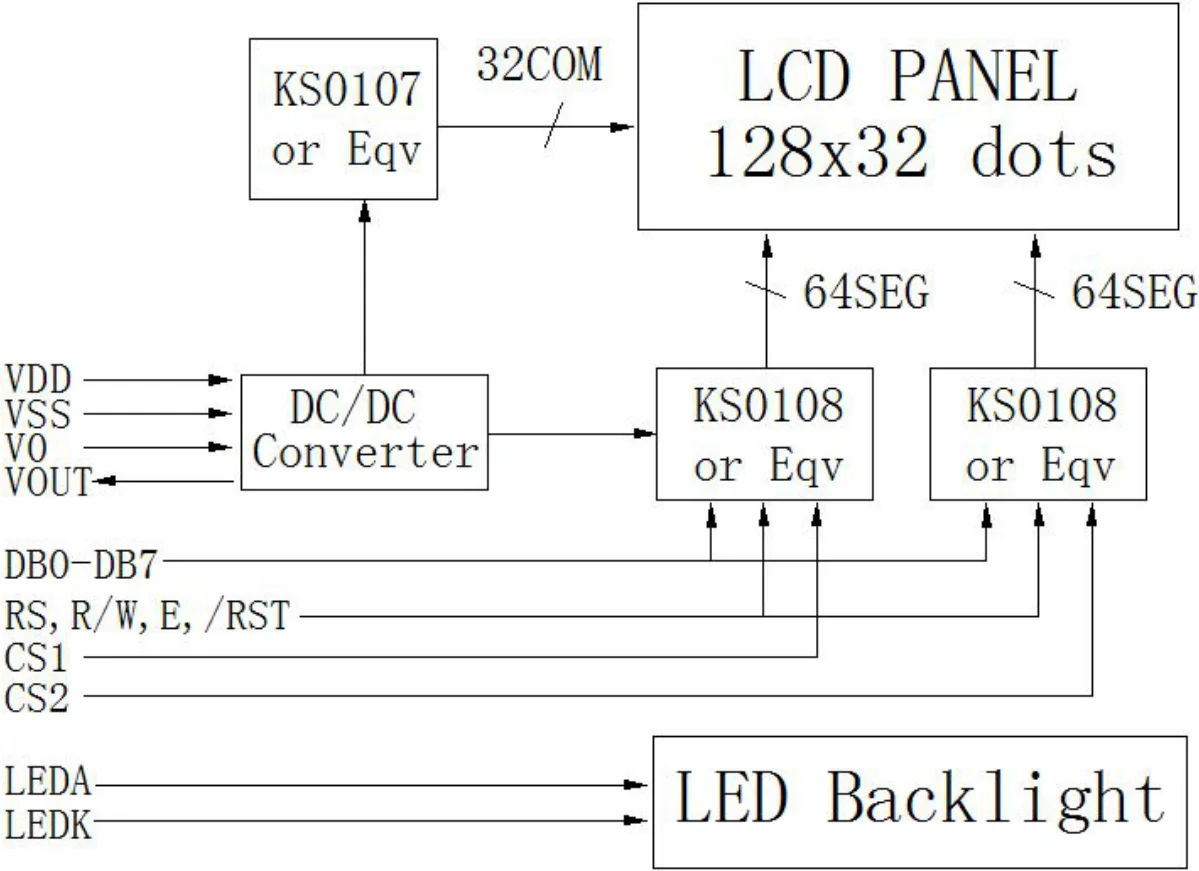

3.BLOCK DIAGRAM

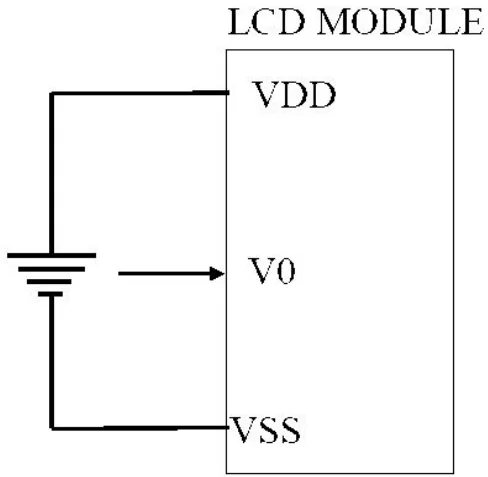

4. POWER SUPPLY

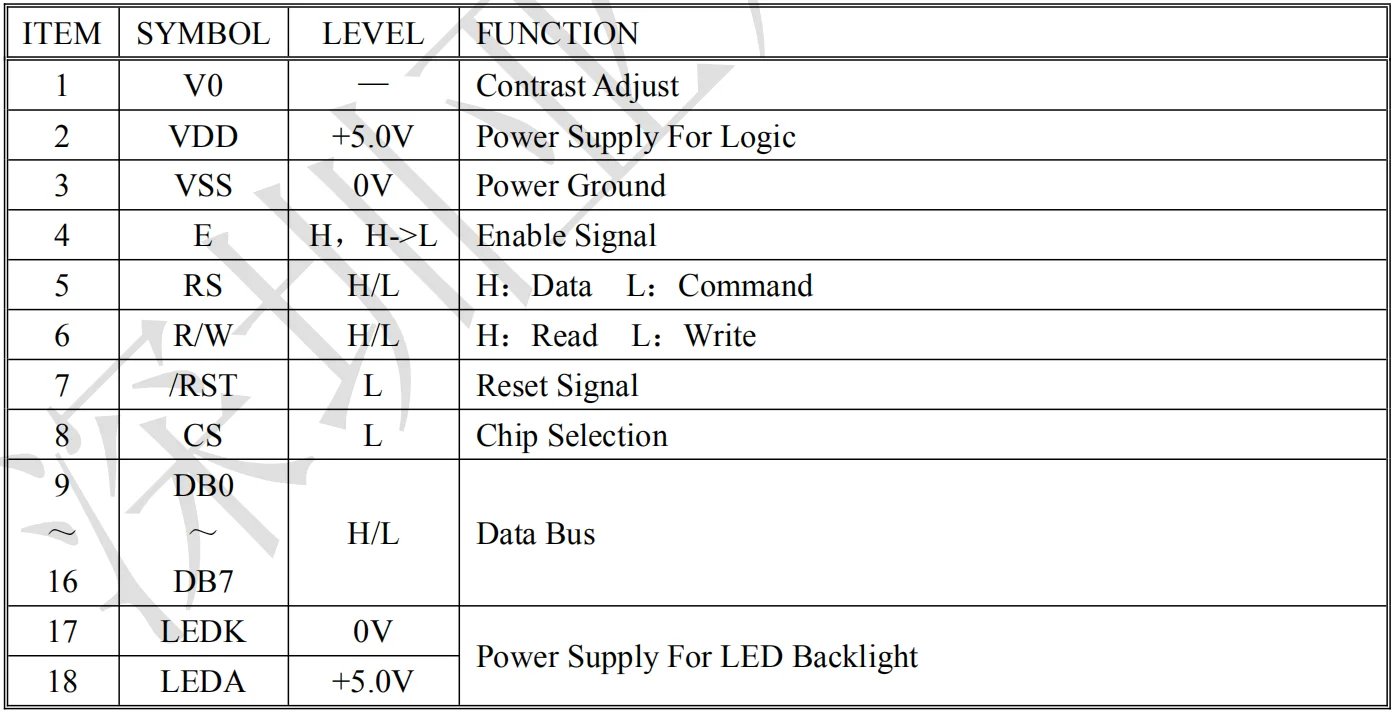

5. PIN DESCRIPTION

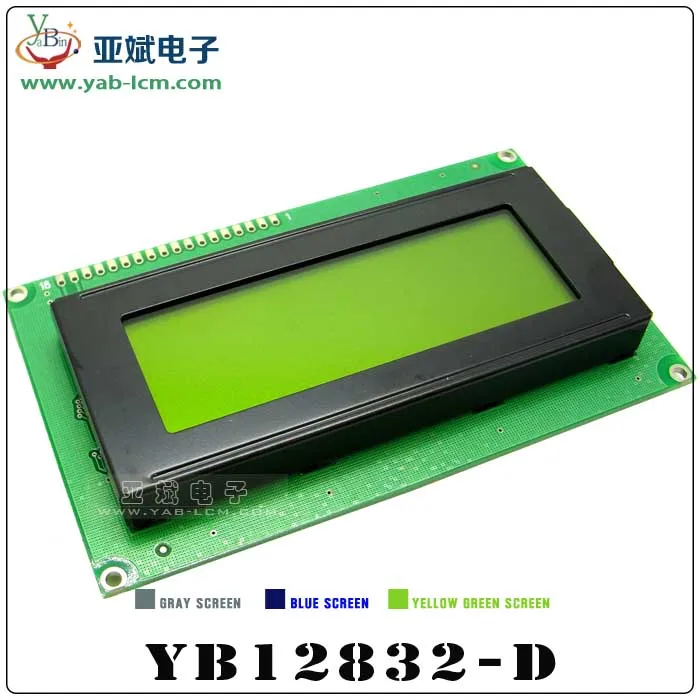

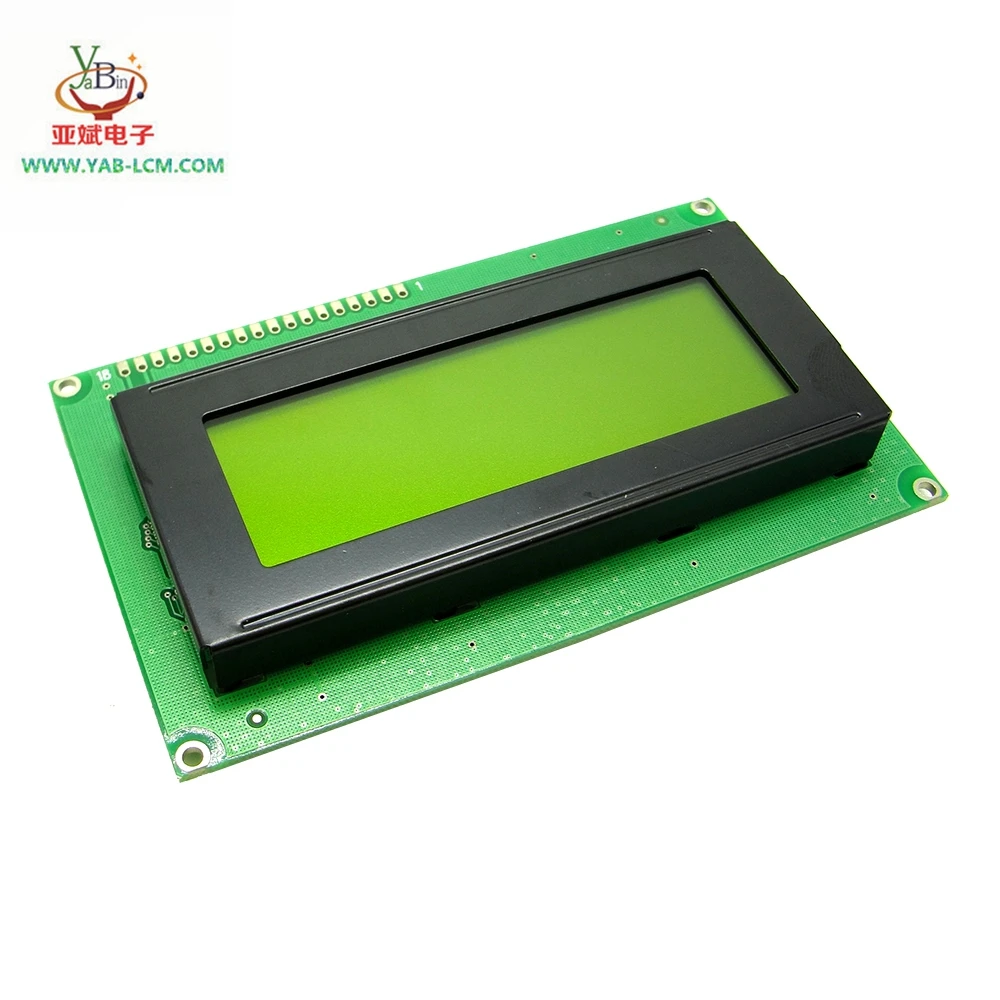

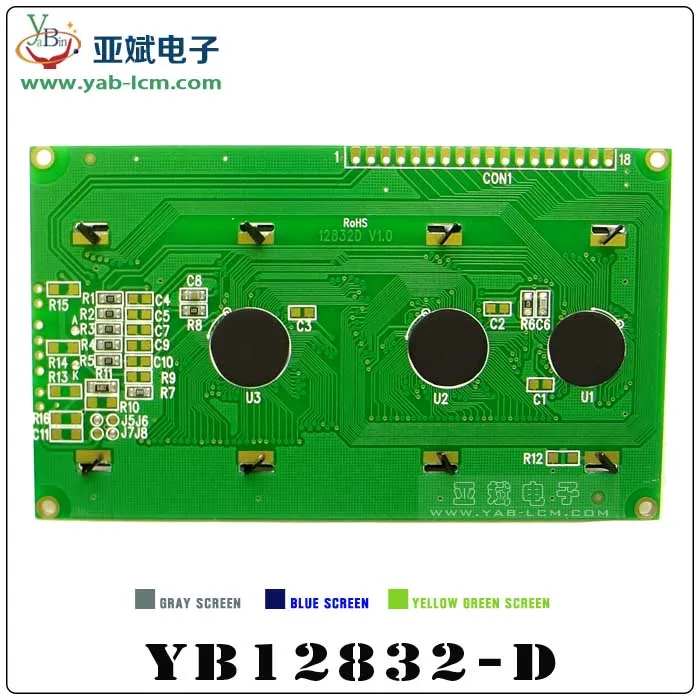

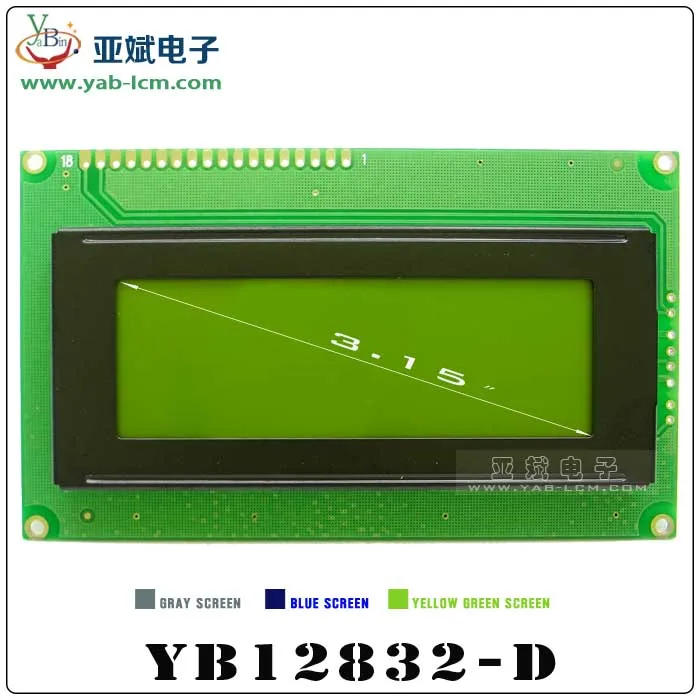

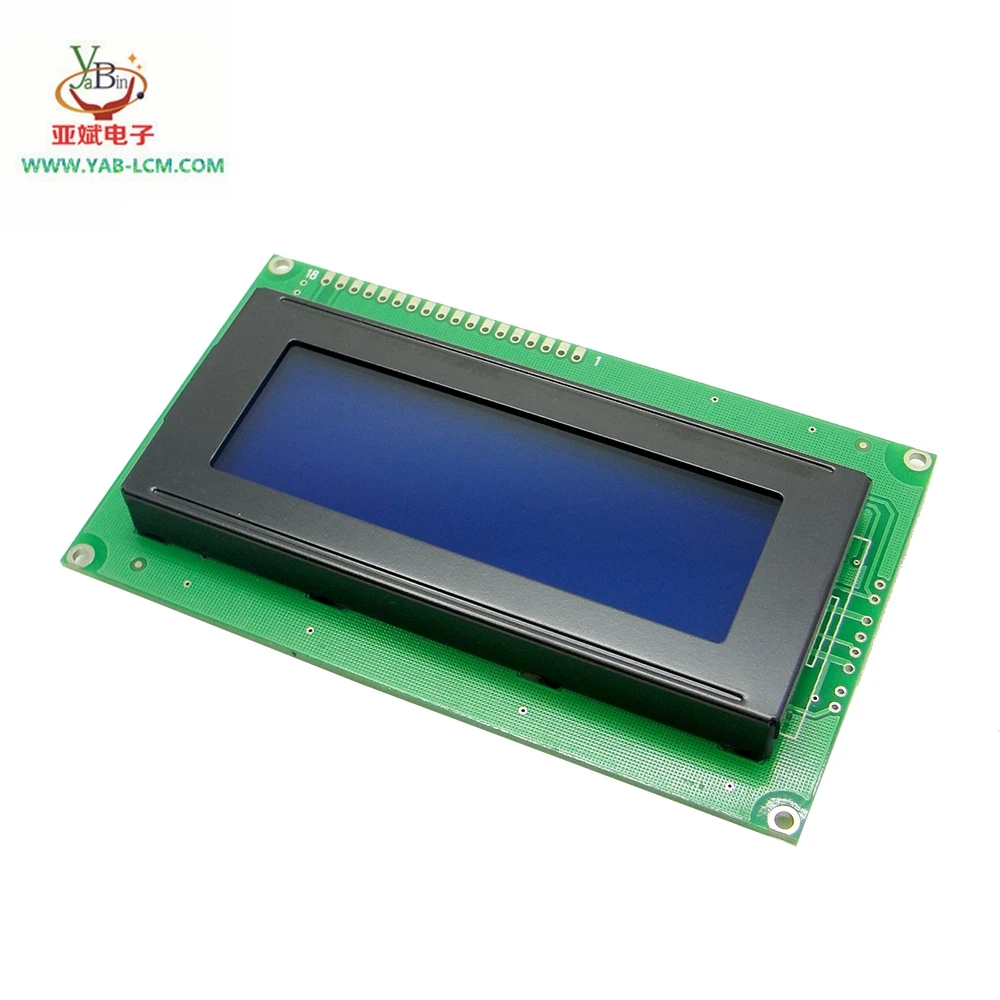

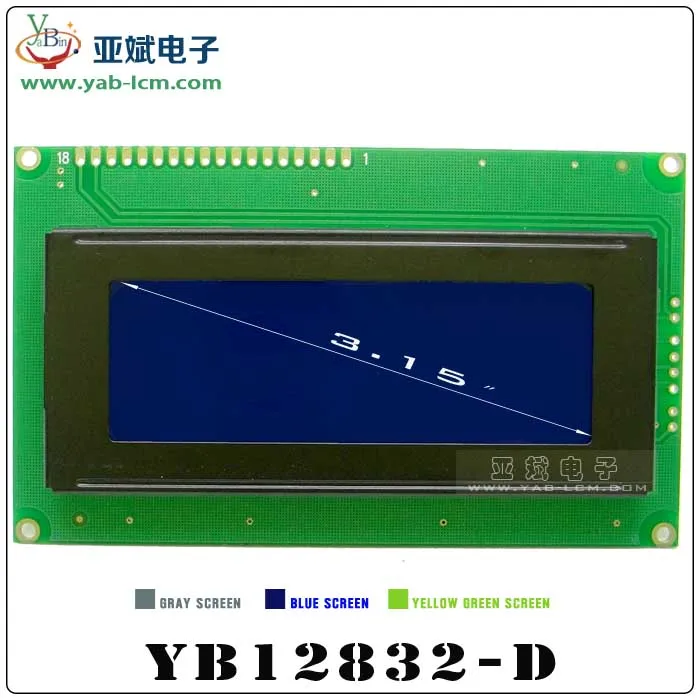

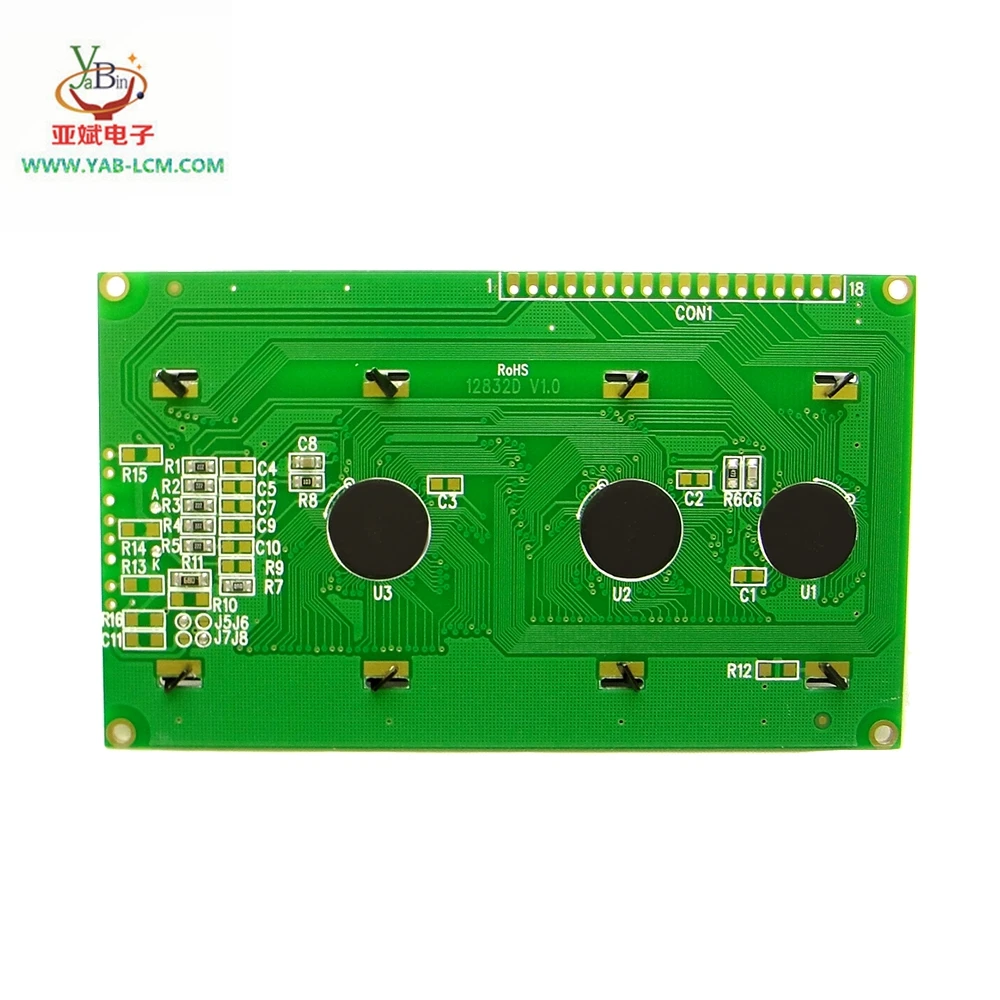

6.PRODUCT PICTURE
