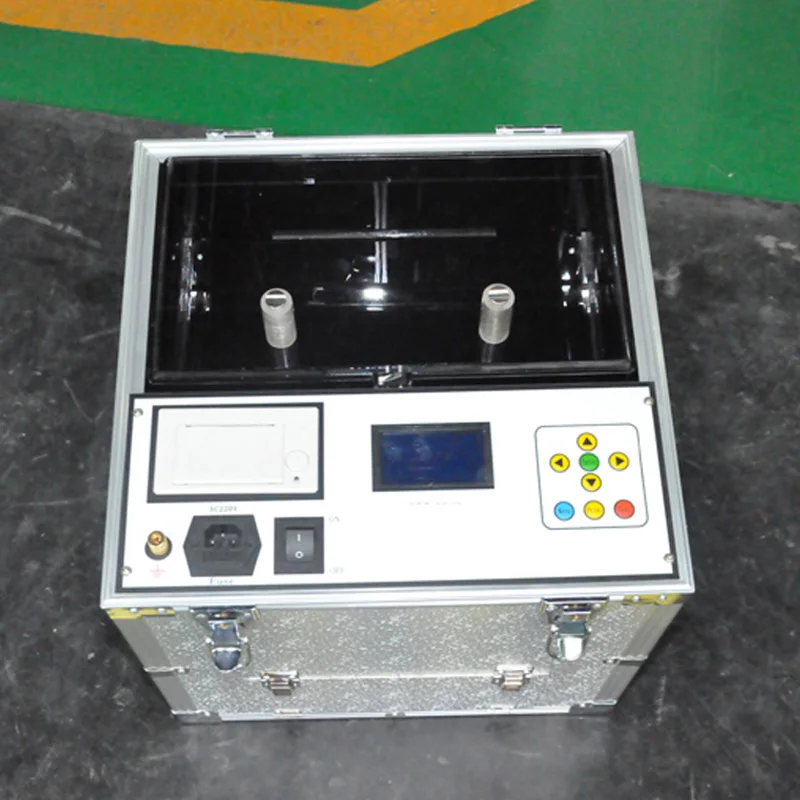

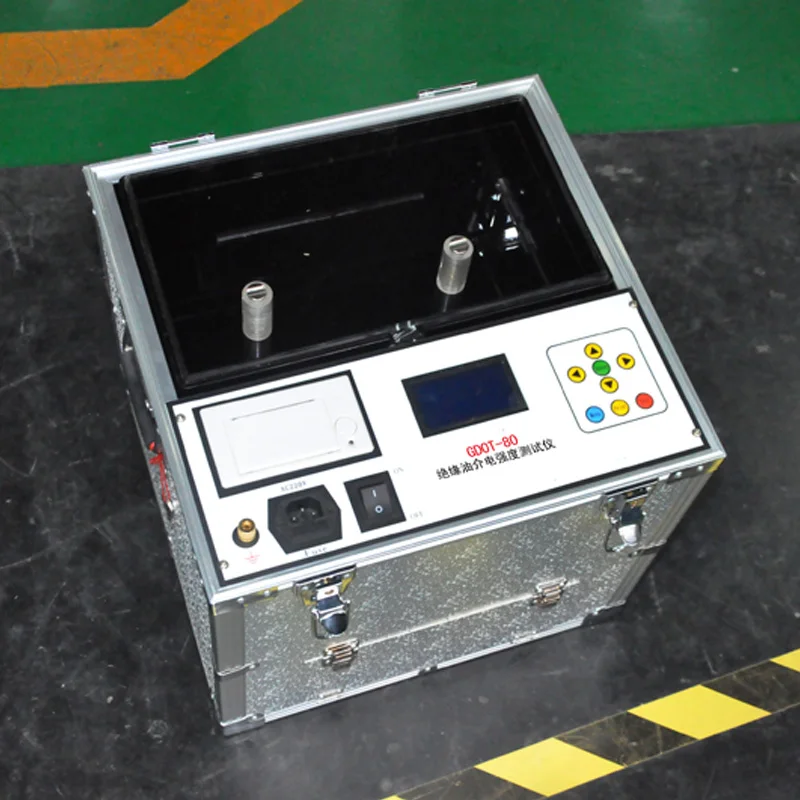

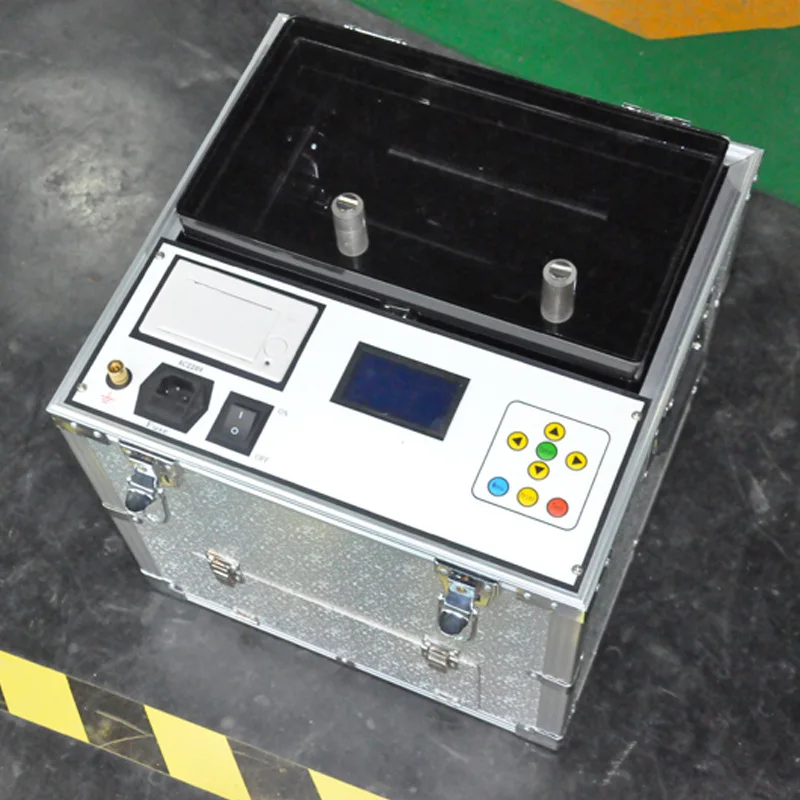

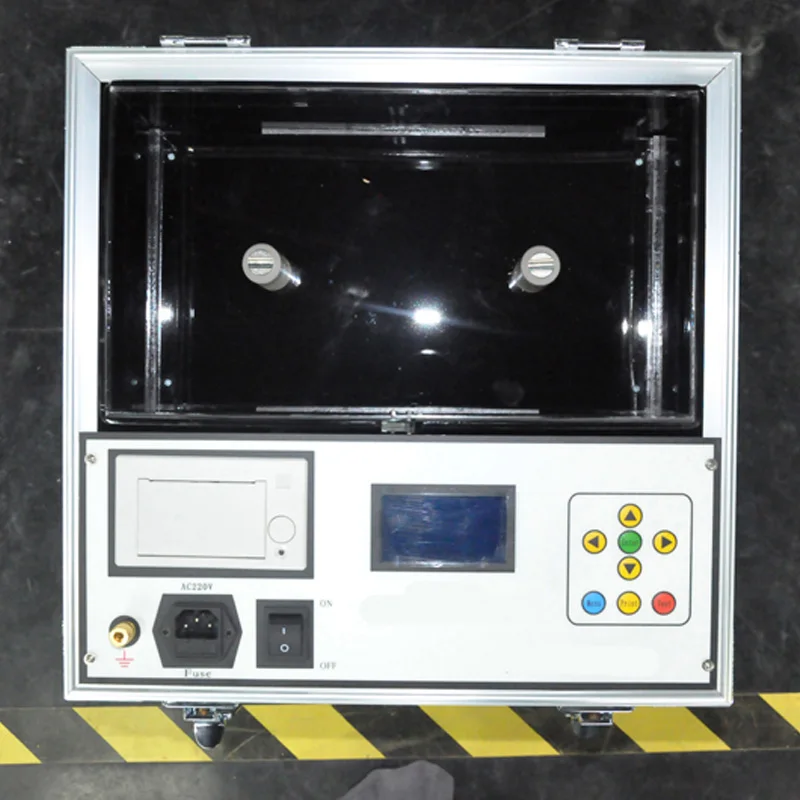

HVHIPOT GDOT 80 Insulation Oil BDV Tester (80kV)
- Category: >>>
- Supplier: HV Hipot Electric Co. Ltd.
Share on (60746659453):
Product Overview
Description
Product Description
GDOT-80 Insulation Oil Breaker Tester is adopted industrial single plate integrated circuit, new-style I/O jack, with unique inspection and anti-interference technology to greatly improve its reliability and functionality.
Features
- Easy operation, high automation. (only press button once and all work done automatically)
- Menu management, data input simple and convenient.
- Store 99 data of oil sampling tests for review and print. The test data can be saved even the power is off.
- The clock is still on after power off. (The internal time of the system just for test reference, not for standard time)
- Strong anti-interference, high precision testing.
- Small measurement, light weight, convenient for outdoor operation.
- The software can be upgraded through RS232 terminal.(Optional)
Specifications
Power supply | AC220V±10%, 50Hz |
Output voltage | 80kV |
Capacity | 1.6kVA |
Speed of voltage increase | about 2kV/s |
Voltage inspection accuracy | 1% |
Breakdown sensitivity | <0.1kV |
Waveform distortion | ≤1% |
Breakdown response time | ≤10ms |
Breakdown current (AC) | 3-5mA |
Operation environment | Temperature: 0℃-40℃ |
Humidity: Max. relative humidity 85% | |
Storage environment | Temperature: -20℃-60℃ |
Humidity:Max. relative humidity 75% | |
Altitude | <1500m (if over 1500m, it can be customized) |
Dimension | 420mm*400mm*380mm |
Weight | 45kg(N.W.) |
