Customizable Heavy Size hydraulic pressure bale cutter /rubber cutting machine
- Category: Rubber Bale Cutters >>>
- Supplier: Qingdao Toplit Industry Co. Ltd.
Share on (60746659992):
Product Overview
Description
Customizable Heavy Size hydraulic pressure bale cutter /rubber cutting machine
Whatsapp:0086 13963993703
Product Description
Main technical spec.;
1. type | |
2. blade width | 1500mm |
3. piston stroke | 1100 |
4. hydraulic system | 550KN |
5. Chamber max. pressure | |
6. time take by piston stroke | 25 - 35S |
7. oil pump working pressure | 5.5MPA |
8. max. working pressure | 16MPA |
9. motor type | Y160L-4, 15KW |
10. overall size(L*W*H) | |
11. machine weight | Around 4.6 tons |
And the biggest bale cutter which we have produced is 150tons with 2000mm blade.We are
in a positon to design and produce non-standard equipments according to your requirments.
Features:
1).This bale cutter mainly consists of rubber knife, frame, cylinder, base, auxiliary table, hydraulic system, and electric system.
2). The lead is casted on the base under the rubber knife for protecting the edge of the rubber knife.
3).When cutting the raw rubber, put the raw rubber under the rubber knife, then press the start button, the knife can cut the rubber.
4).Two limit switches are installed on the frame to control the reversal valve to change the movement direction of the rubber knife, at the same time it protects the cover of the cylinder
5). The bale cutter is mainly used to cut natural rubber, synthetic rubber, and plastics materials
Packaging & Shipping
Delivery time: 25days
Packing: suitable for long distance
Guarantee time: one year
Company Information
Contact email: kim at qdtoplit dot com
Whatsapp /wechat/mobile: 0086 13963993703
Skype: toplitkim

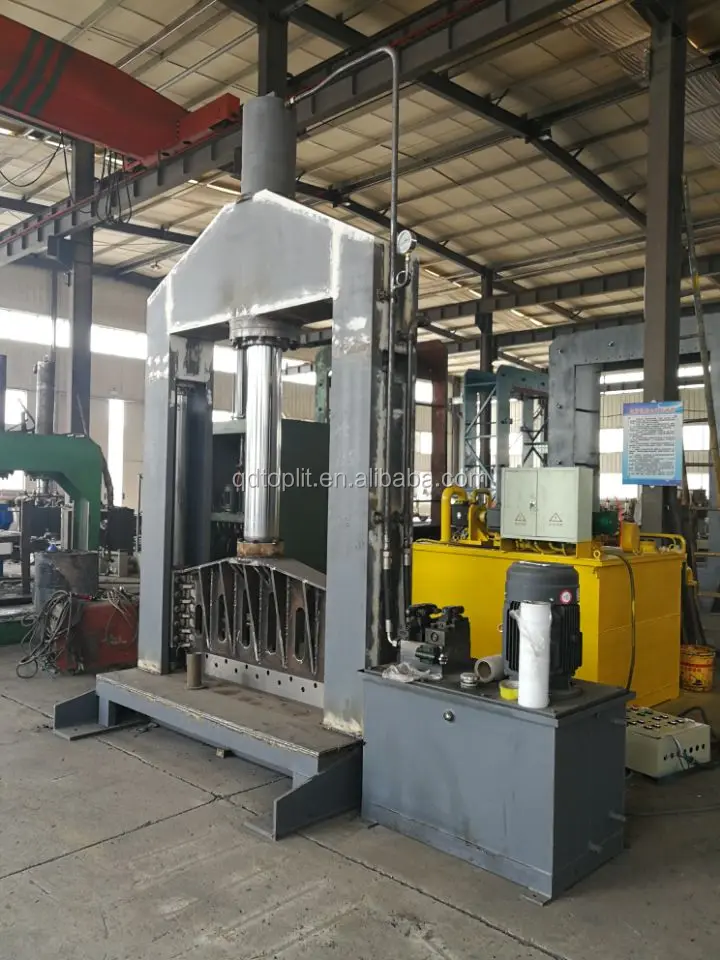

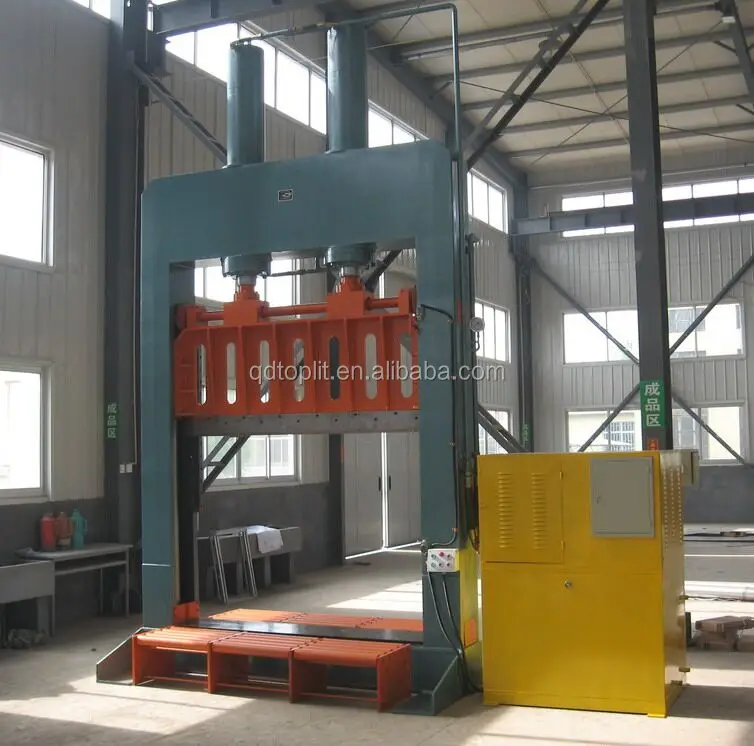

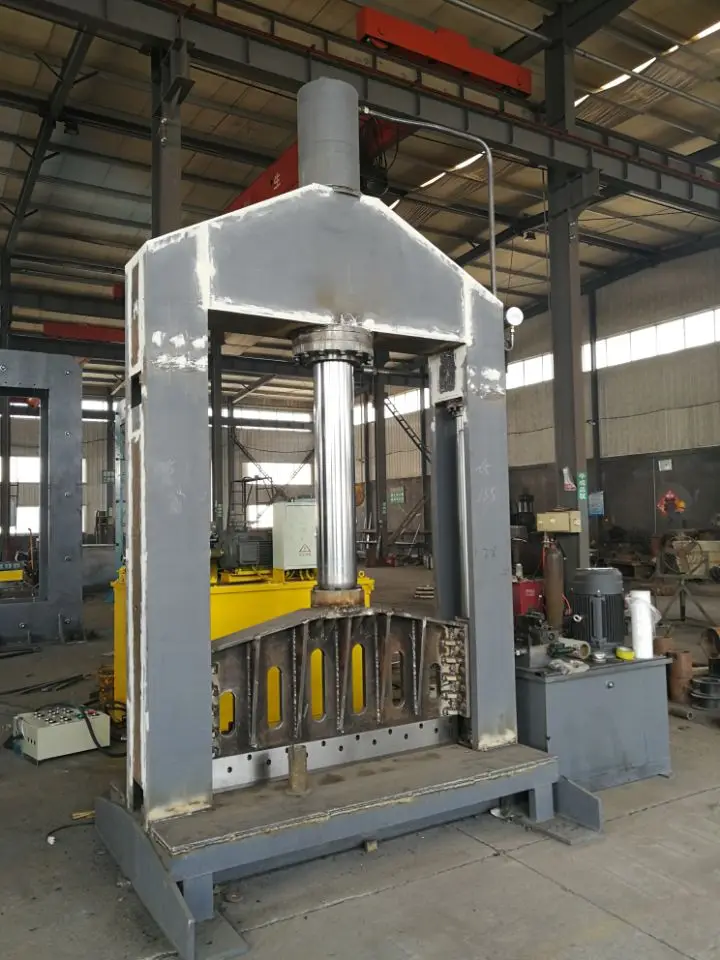

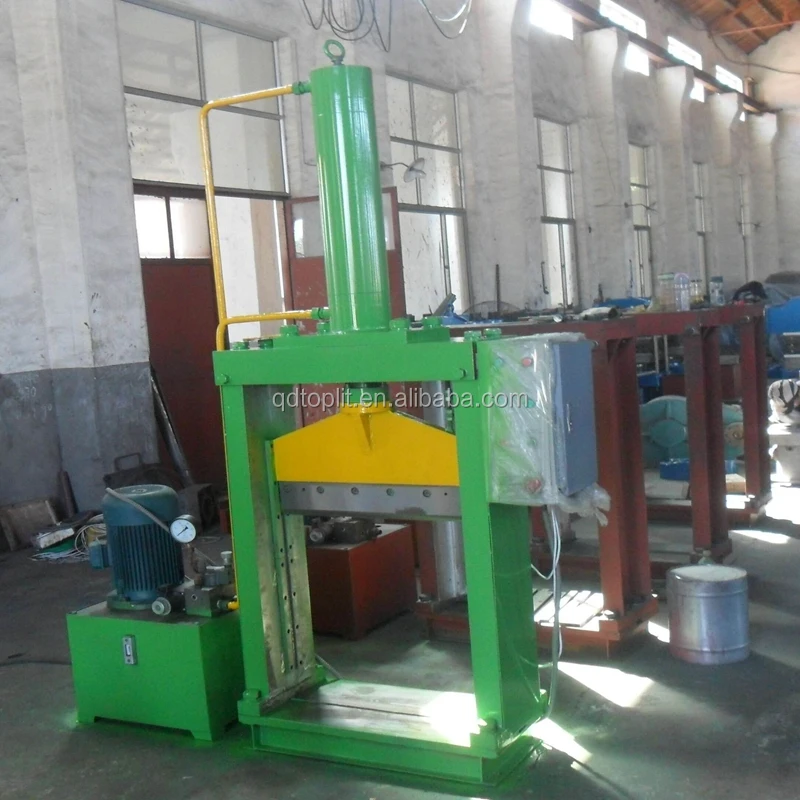

Reference photo:
