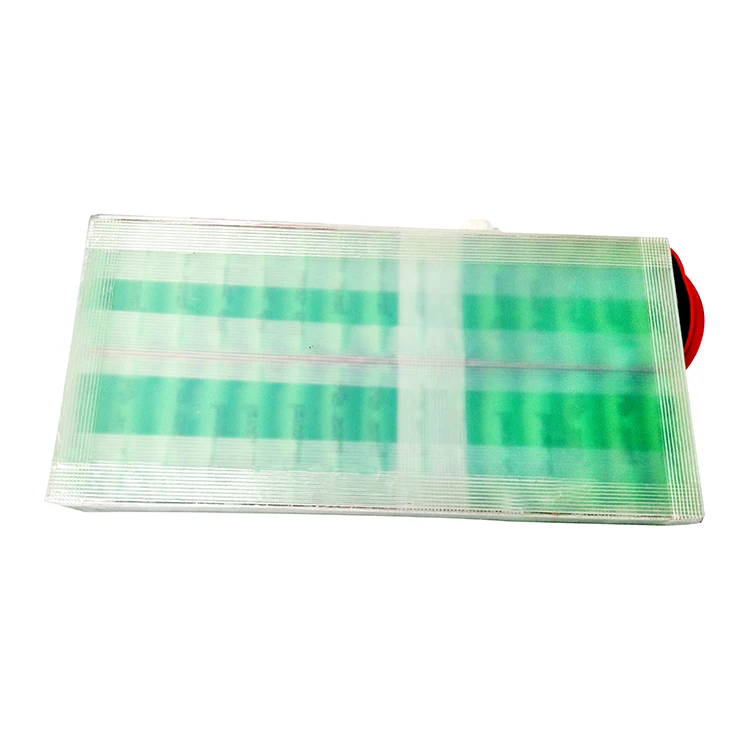

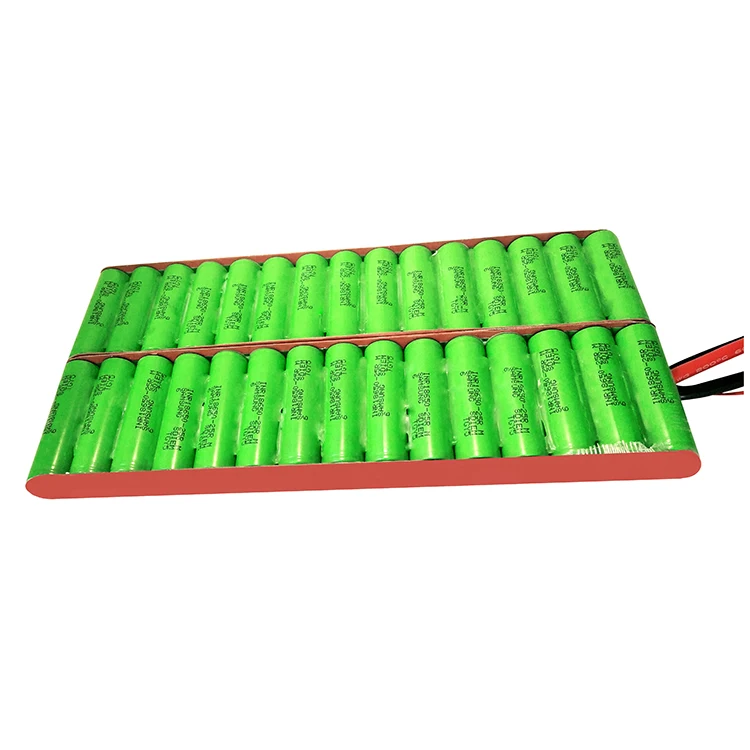

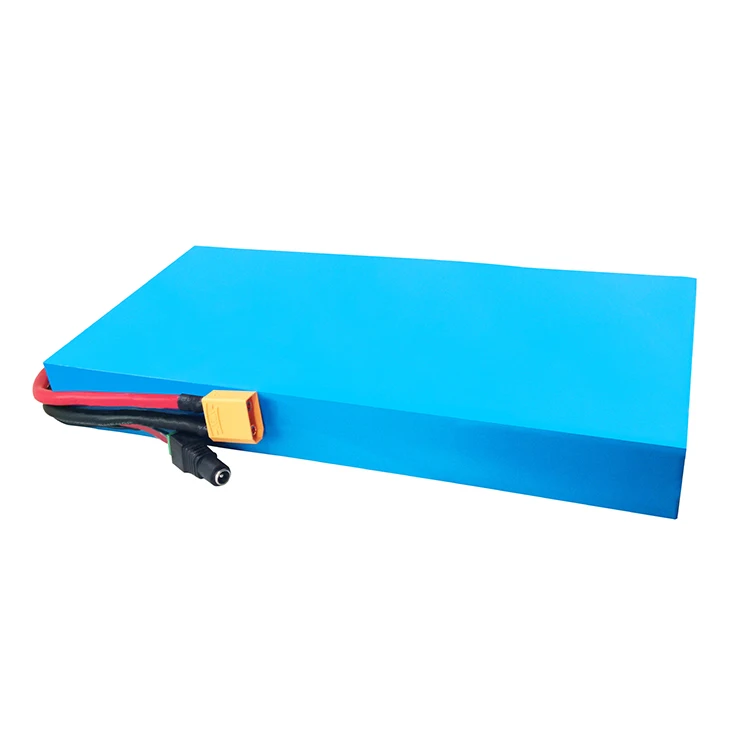

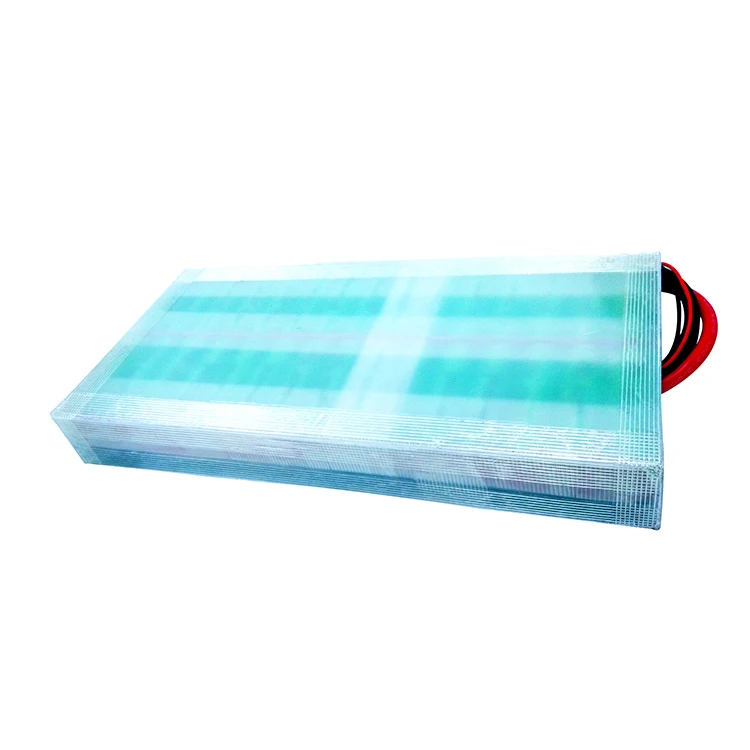

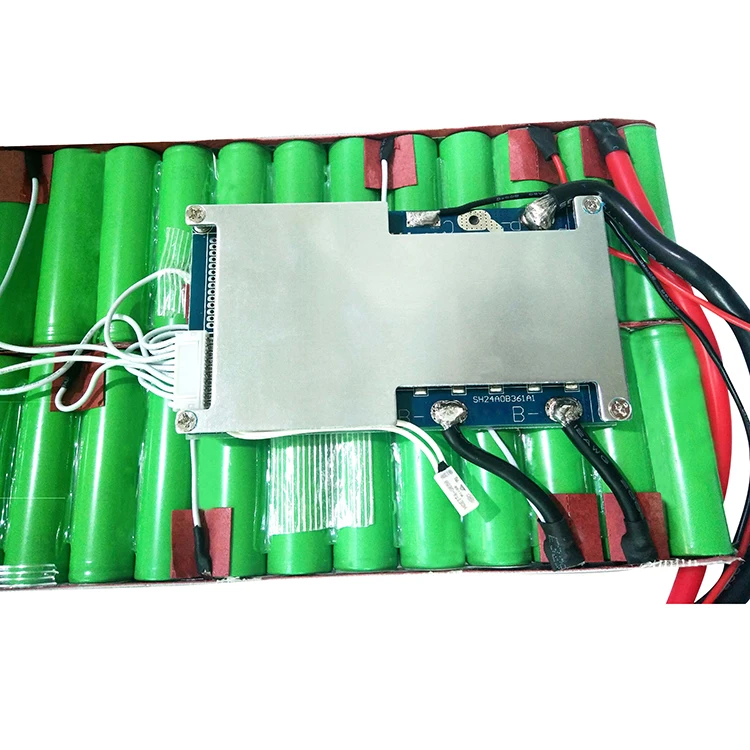

Customized 10S3P 36V 7.5Ah Rechargeable Lithium Battery Pack for Scooter Electric Bike Battery Power Supply Li ion Battery

Item

Rating

Note

Cell

Type

Li-ion Battery

Cell Model

18650-2500mAh

Nominal Capacity

2500mAh

Discharge: 0.2C

Cut-off Voltage: 2.5V

Minimum Capacity

2450mAh

Discharge: 0.2C

Cut-off Voltage: 2.5V

Nominal Voltage

3.7V

Internal Impedance

≤60mΩ

Dimension

Max. 18.5*65mm

Weight

Approx. 45g

Battery Pack

Pack Method

10S3P

Nominal Capacity

7.5Ah

Discharge: 0.2C

Cut-off Voltage: 25V

Minimum Capacity

7.35Ah

Discharge: 0.2C

Cut-off Voltage: 25V

Nominal Voltage

36V

Charge Voltage

42V

Discharge Cut-off Voltage

25V

Charge Method

CC/CV

Standard Charge Current

1.5A

0.2C

Max. Charge Current

10A

Standard Discharge Current

1.5A

0.2C

Max. Continues Discharge Current

50A

Cycle Life

300 times

80%

Internal Impedance

100mΩ

Dimension

L350*W115*T70mm

Output Wire

3135 8#

145-155mm

Output Connector

/

/

Weight

Approx. 1.8kg

Working Temperature Range

Charge: -20°C--50°C

Discharge: -10°C--50°C

Storage Temperature

-10°C--45°C

Pack Method

10S6P

13S3P

2S1P

3S1P

Nominal capacity

20.4Ah

10.2Ah

3000mAh

2.6Ah

Nominal voltage

37V

48.1V

7.4V

11.1V

Charging voltage

42V±0.05V

54..6V

8.4V±0.05V

12.6±0.05V

Charging current

10A(0.5C)

2.04Ah

0.6A(0.2C)

1.3A(0.5C)

Max. Charge Current

20A(1C)

40A

1.5A(0.5C)

2.6A(1C)

Charge Method

CC/CV

CC/CV

CC/CV

CC/CV

Discharge cutoff  voltage

31.2V

32.5V

2.4V

7.2V

Cycle Life

≥500

≥500

≥500

≥500

Warranty

12

12

12

12
