Manual Hydraulic Pipe Bender 3.5 Inches Capacity Mandrel Rebar Bender
- Category: >>>
- Supplier: Nanjing Blma Machinery Co. Ltd.
Share on (60746789782):
Product Overview
Description
Products Description
Specifications
* Bending part automatic
* Equipped with hydraulic system--economical way
* Stable performance
* Easy operation
* Cost-effictive machine
* Equipped with hydraulic system--economical way
* Stable performance
* Easy operation
* Cost-effictive machine
Main features
1. Operate by NC control unit, imported electric and hydraulic elements.
2. English showing and conversational operation.
3. It can adjust speed in each bend and the bending precision is high.
4. 16 groups of bending information can be stored. Multiple angles can be finished once.
5. The foot switches with functions of automatic start, emergency stop and resuming.The safety is high.

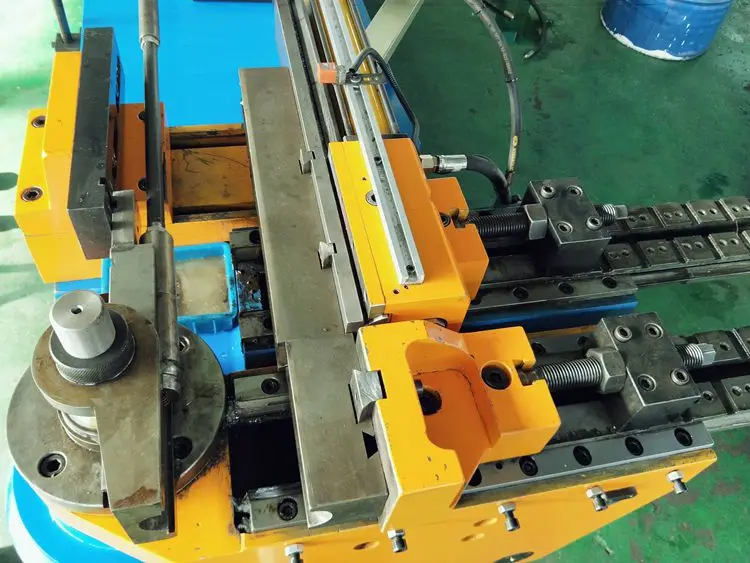

6. Delicate design of the bending head makes the bending space large.
7. Suitable Materials: Steel pipe, stainless steel pipe, copper pipe, aluminum pipe and others.
2. English showing and conversational operation.
3. It can adjust speed in each bend and the bending precision is high.
4. 16 groups of bending information can be stored. Multiple angles can be finished once.
5. The foot switches with functions of automatic start, emergency stop and resuming.The safety is high.
6. Delicate design of the bending head makes the bending space large.
7. Suitable Materials: Steel pipe, stainless steel pipe, copper pipe, aluminum pipe and others.
Max bending capacity | Ø89mmx8mm |
Max bending radius | R450mm |
Min bending radius | According to pipe diameter |
Max bending degree | 190° |
Max effective distance of mandrel | 3500mm |
Control system | NC control |
Max elbow bend pipe | 16 |
Max storable sections | 16x16 |
Motor power | 11Kw |
Max hydraulic pressure | 14Mpa |
Oil tank capability | 260L |
Measurement | 455x130x130cm |
Weight | 3500kg |

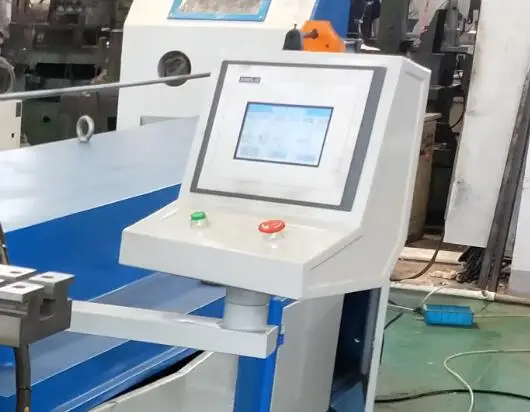

PLC Controller
Easy operating and working fast
Electrics
Schneider, France brand
Mortor
Yuanbang, Taiwan brand. Bending is drived by hydraulic motor, which can keeps high efficiency and accurate bending angle.
Clamping Hydraulic Oil Tube
Kejia, China famous brand.
Water Cooling System
Details Images
Bending sample
Recommend Products
Our services
Pre-service
1.We will help you confirm the model of our machine according to your offered pipe information.
2.You are very welcome to see our machine how to work in the factory before you place an order
with us.
with us.
Aftersales-service:
1. Our machine is easy to use. Operation manual and teaching video will be sent out with machine.
We also offer free training in our factory, the following is our training contents:
Detailed function of our machine, 1 hour;
NC control using, 0.5 hour;
Tooling installation and adjustment, 0.5-1 hours;
Maintenance and repair, 0.5-1 hours;
Real operation according client products, 1-2 hours.
During the training period,we offer free pick-up,hotel and food.
2. We guarantee machine quality for 13 months, during this period, if spare parts of the machine are not man-made damage, we can send the component to the customer by DHL, TNT freely. We also offer free training in our factory, the following is our training contents:
Detailed function of our machine, 1 hour;
NC control using, 0.5 hour;
Tooling installation and adjustment, 0.5-1 hours;
Maintenance and repair, 0.5-1 hours;
Real operation according client products, 1-2 hours.
During the training period,we offer free pick-up,hotel and food.
3.Our factory provide the service for the customer forever, if the customer need operation help,we
provide 24 hours on-line reply service.
provide 24 hours on-line reply service.
Company Profile
FAQ
1. How to choose the Pipe Bending Machine?
You have to inform us following details:
- Max. outside diameter
- Wall thickness range
- Bending radius (CLR)
- The pipe material
- The drawings if possible
2.Do you provide any training to make sure our user can operate the machine very well?
1)We will provide detailed video and instruction book for this machine;
2)We also offer training in our factory to all the clients,and we will arrange everything for you during these days in our city, to make sure every client will be the expert in using our machine!
3. How long warranty can you provide?
Our machine warranty is one year,and we use all the stable compoenents with long working life!
And we can also send our technician to do the after-sale service in client's factory!
4.What kind of solution you can offer to make sure your pipe bending machine can do our job?
1)We will help you confirm the model of our machine according to your offered pipe information.
2)Before you start the order for this big value machine,you can offer your workpiece drawing to us.
We can design the tooling to make your products in our workshop,after you are sure that the workpiece is good,then we can confirm the order finally.
3)You can visit us to check how to bend your product before you start the order.During this period, you can also learn how to use this machine well!
You have to inform us following details:
- Max. outside diameter
- Wall thickness range
- Bending radius (CLR)
- The pipe material
- The drawings if possible
2.Do you provide any training to make sure our user can operate the machine very well?
1)We will provide detailed video and instruction book for this machine;
2)We also offer training in our factory to all the clients,and we will arrange everything for you during these days in our city, to make sure every client will be the expert in using our machine!
3. How long warranty can you provide?
Our machine warranty is one year,and we use all the stable compoenents with long working life!
And we can also send our technician to do the after-sale service in client's factory!
4.What kind of solution you can offer to make sure your pipe bending machine can do our job?
1)We will help you confirm the model of our machine according to your offered pipe information.
2)Before you start the order for this big value machine,you can offer your workpiece drawing to us.
We can design the tooling to make your products in our workshop,after you are sure that the workpiece is good,then we can confirm the order finally.
3)You can visit us to check how to bend your product before you start the order.During this period, you can also learn how to use this machine well!
