It is suitable for printing toys,stationeries,decorations,electronics,plastics,lighters,metal,semi-products,ceramic,porcelians,glass,led lamp and others
Advantages:
This kind machine adopts no base design,small and high speed,you can install more sets of machine to form multicolor production line in smaller workshop,this can reduce factory’s invest in equipment
Technical Parameter:
1) Printing colors: 2 colors 2) Steel plate size: 100*215mm 3) Close ink cup diameter: 90mm 4) Max.printing area: 80*80 mm 5) Max.printing speed: 1200PCS/Hr 6) Power: 220V 50-60MHZ 7) Air pressure: 5-7bar 8) Machine dimension: 560*400*600mm 9) Net weight: 60kg
Features:
1) SCM IC complile action program,kinds of printing model option 2) Auto 4-digit counter built-in.Airframe adopts coin alloy,and metal coating surface 3) Worktable,silicon pad,ink tray,ink blade,air pressure,distance of ink blade front/back,sucking ink with pressure of silicon pad both can be adjusted independently 4) Scrapper stroke can be adjusted, Each adjustable location has scale logo 5) Leveling ink by sliding automatically on front /back,this can avoid printing ink partial solidification 6) All cylinders speed have an independent regulator intortum 7) It with function of forbiding the silicon pad fallen when there is not air pressure enter into machine 8) Shuttle table moving left/right to automatic registration color,loading/unloading more convenient 9) There installed handle on middle of machine for making machine up to clean more convenient 10) Footswitch with panel double control together,also you can choose one of them 11) It also can as single color pad printing machine using 12) Every adjustment station has graduation marked
Details Images

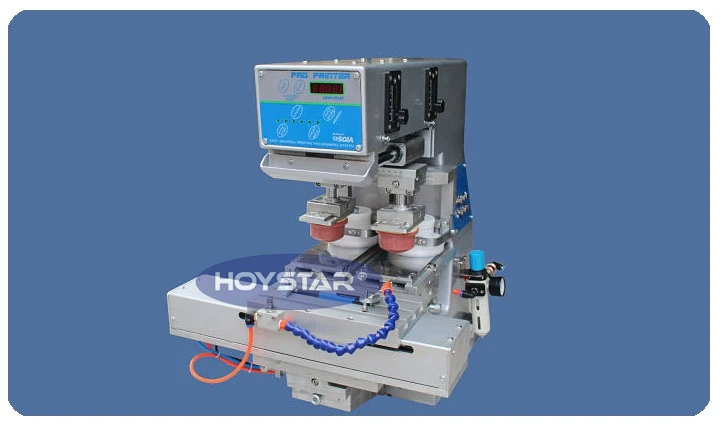

It's 2 color desktop sealed ink cup pad printing machine

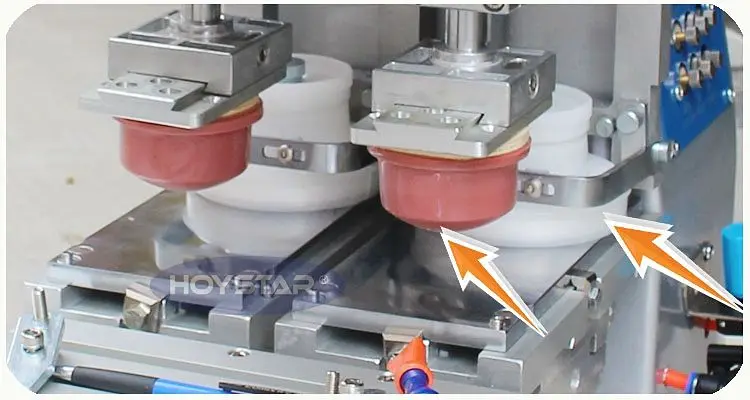

(Machine come equipped with 2 pcs of sealed ink cup,2 pcs of silicon pad)

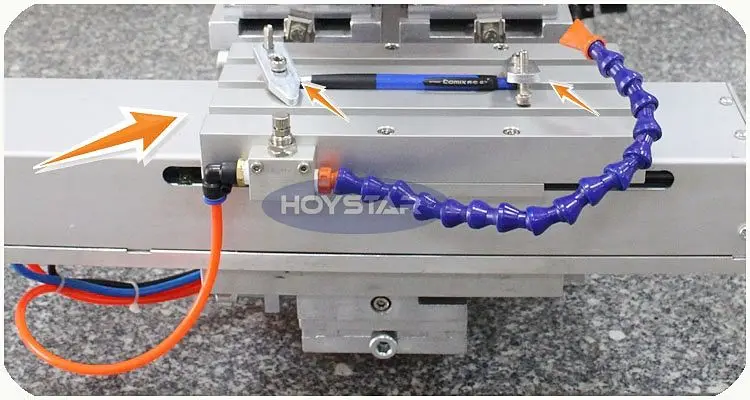

Worktable (If you need,you also can make a fixture on it to hold the product)
