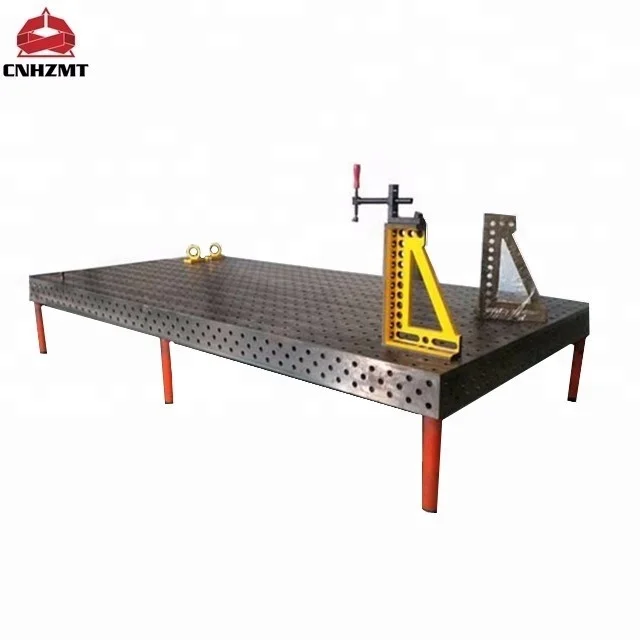

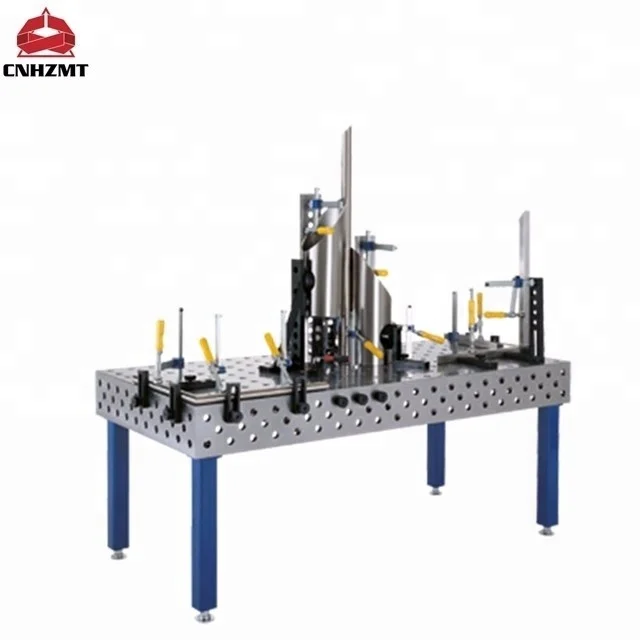

D28 Series Cast Iron Lapping Plate with Jigs and Fixtures

Detail Advantage of  D28 Series Cast Iron Lapping Plate with Jigs and Fixtures:

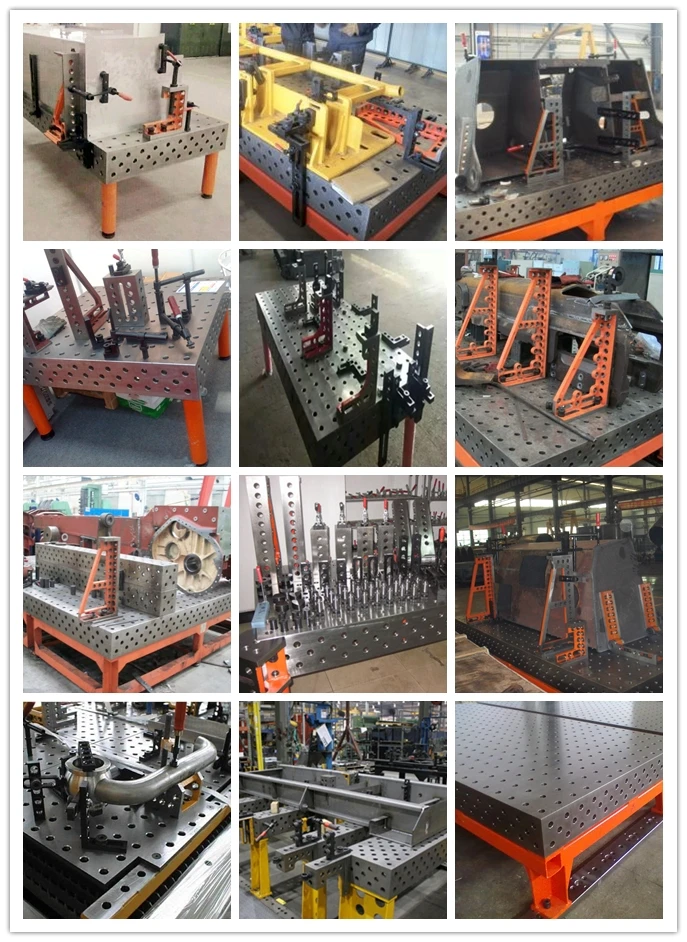

On the basis of various forms of workbench, equipped with a variety of shapes /specifications of the standard module structure, with its unique patented product positioning connection between pin connection, tied to workpiece on the workbench which need welding and assembly with compensation in the form of a variety of special manual clamping,apparatus clamping According to the need, also can equipped with hydraulic pneumatic chain type, and other forms of clamping.

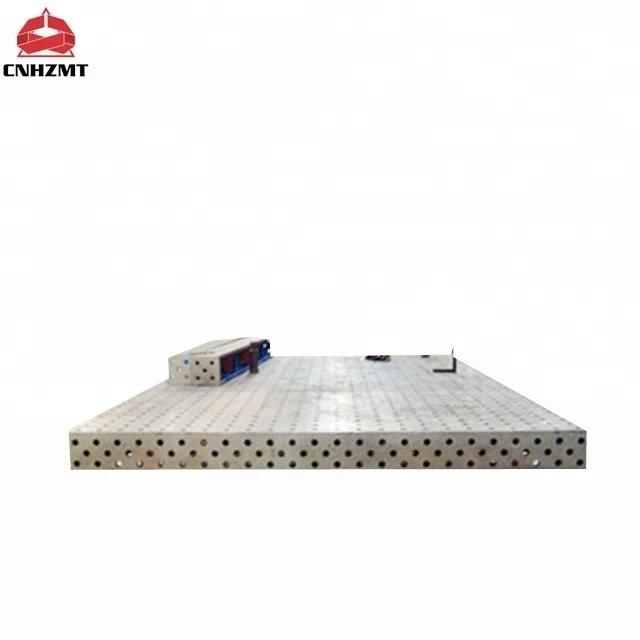

1.Worktable surface

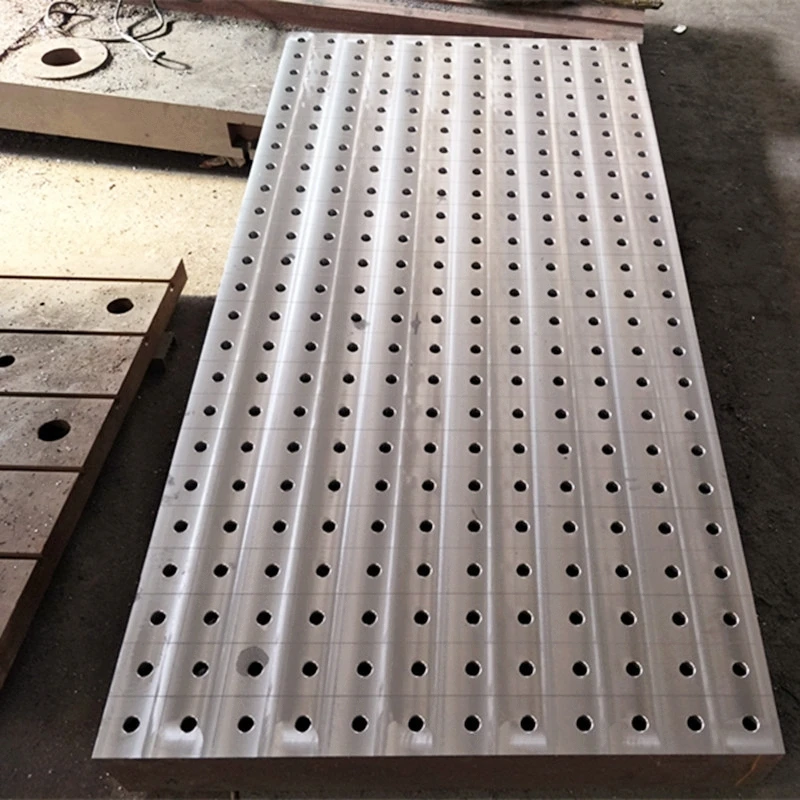

The workbench's five working face all has grid marked hole for 100 x100 mm (D28 series) or 50 x50mm (D16 series). Five parallel to the plane, the vertical precision, tolerance of hole and the hole position precision is very high,Ensure that the positioning on the table and the combination between the table and other modules fits sufficient accuracy requirements.Basis size from 1000*1000 to 4000*2000mm, special size can be customized .

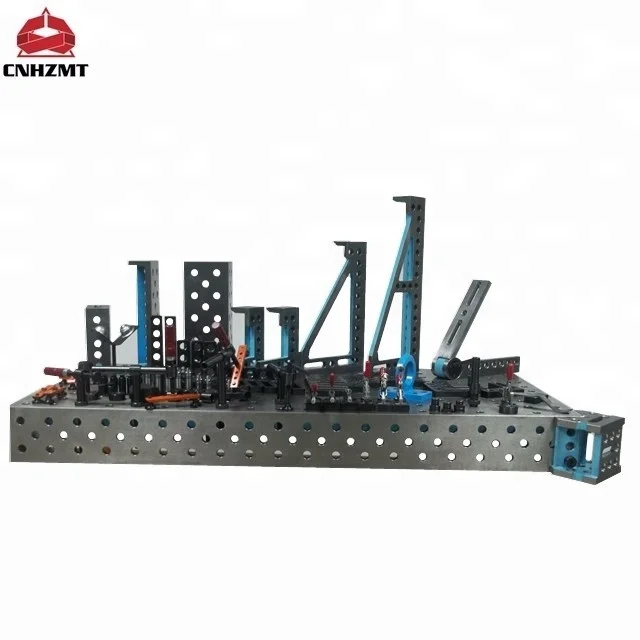

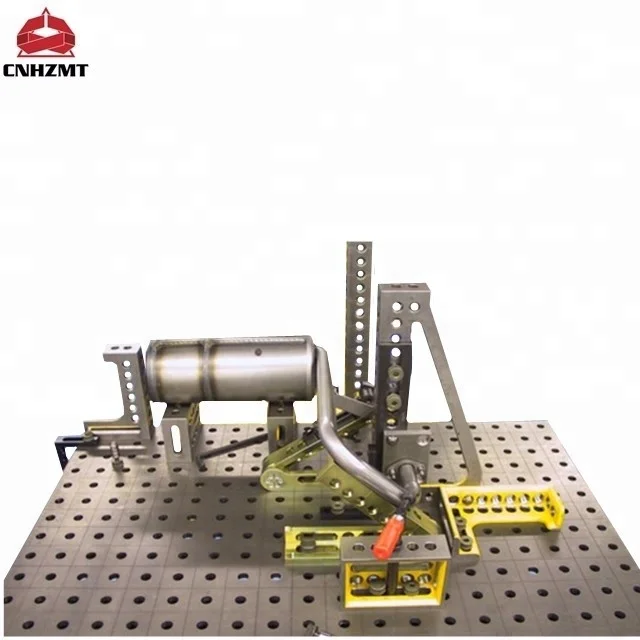

2.Module Block

Standard modules have positioning and clamping right angle blocks, l-type positioning block, u-shaped positioning block, general block, general clamping and positioning of angle block (can adjust0 to  225 degrees), v-shaped blocks and v-shaped Angle block on all modules,  standard hole (28 or Φ Φ 16) are drilled every 50 or 25 mm , and can realize rapid positioning and clamping of workpiece.
