RY series thermal pump chemical centrifugal pump / High quality clean and safe centrifugal hot oil pump

Introduction:

With scientific construction and fine performance,RY series thermal pump chemical centrifugal/thermal oil pump is used in transporting high temperature liquid without solid particles. working temperature is depended on the material of the parts. ( the material consists of three kinds: HT200,ZG230-+450, 1Cr18Ni9Ti, OCr19Ni12o2Ti,SS304,SS316).

Performance scope:

1.Capacity: 50m3/h;

2.Head: 80m;

3.Motor power:22kw ;

4.Temperature:-20-350degree ;

5.Speed: 1450-3500rpm;

Application:

1, petroleum and chemical industry;

2, the oil industry;
3, synthetic fiber industry;
4, textile printing and dyeing industry;
5, plastic and rubber industry;
6, papermaking industry;
7, wood industry;
8, building industry;

Structure

RY cast steel material air-cooled hot oil centrifugal pump:

Construction

(1) Work Principle

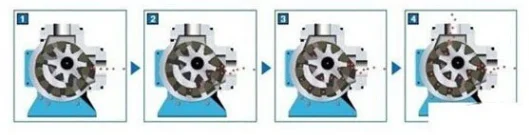

Driving gear (outside rotor) with internal tooth drives the internal rotor and turns in same direction in the full closed pump body. The pump casing and crescent of the front cover separate the inlet from the outlet. When it turns, negative pressure formed at the suction port, the liquid inhaled and being take to the outlet by rotor, then the liquid is expelled from the discharge port as the gears mesh, The transportation of liquid finished.

(2)Structure Feature

The pumps are mainly composed of internal rotor, outside rotor, shaft, pump casing, front cover, seal, bearing, etc.

The pump seal adopts packing seal or mechanical seal, when the delivered medium is high temperature, high viscosity or strong corrosion, packing seal should be adopted.

When the delivered medium is easy crystalline we can design the heat preservation jacket in pump casing and front cover in order to melt the medium with steam working.

The pump set is composed of the pump, motor and base plate. The drive way is belt wheel driving or coupling driving.

The direction of rotation is clockwise from coupling end.

Pre-sale Service
1. We have full stock, and can deliver within short time.Many styles for your choices.
2.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
3.All of our products are produce by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
After-sale  Service
1. We are very glad that customer give us some suggestion for price and products.
2. If any question, please contact with us freely by E-mail or Telephone.
