steel rule die blades H60L hard

Product Overview

Description



♣ Raw Material

Imported steel as material, which will offer the rules higher precision, helping end-users reduce the adjusting time for machine, also can reduce the machine's wear.





♣ Size and Packing (meter lengths or coils)

size	meter lengths	coils
0.71×23.30×1000mm, 2pt	100pcs/box	100m/coil
0.71×23.60×1000mm, 2pt	100pcs/box	100m/coil
0.71×23.80×1000mm, 2pt	100pcs/box	100m/coil
1.05×23.80×1000mm, 3pt	70pcs/box	70m/coil
1.42×23.80×1000mm, 4pt	50pcs/box	unavailable









♣ Body Hardness

 HRC 34~36 (soft)

 HRC 37~39 (medium hard)--Standard Hardness

 HRC 40~45 (hard)





♣ Edge Hardness

 HRC 58-60









♣ Edge Hardening Method

 "High Frequency Induction " under the ALO 192 machine from Sweden. This is the most advanced technology in the world, much better than other methods like fire hardening, laser hardening, making the rule much more durable, meeting with the middle and large cutting runs.





Not every factory can import and obtain this perfect machine

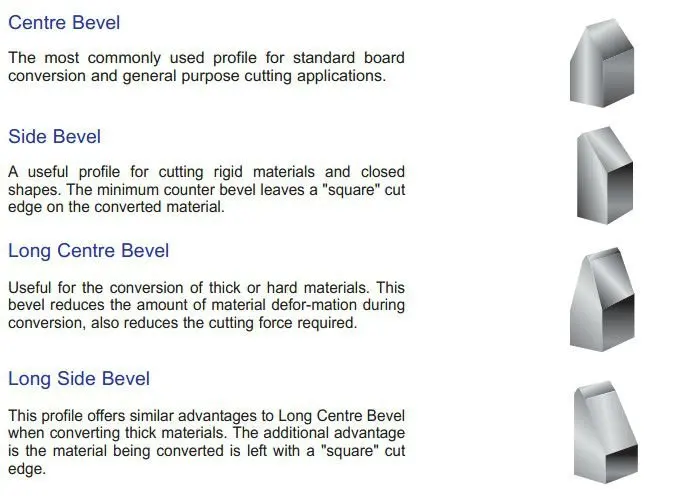

 ♣ Cutting Bevel Form

 In order to meet with the various cutting applications, we offer the complete bevel range.







♣ Edge Type



   Shaved by German broaching

Shaved edge is the standard edge, which offers a very high degree of accurancy and edge straightness, as well as excellent bending properties.





   Ground by German grinder

Ground edge offers a sharper edge, which means need less cutting pressure. For material like plastics, rubber, laminates, the grouned cutting edge has proven the best.

The high sharpness and low friction reduce formation of dust and angel hairs.





♣ SANLI is regarded as the best rules making factory in the whole of China, quite famous with the really high quality and high cost performance. SANLI rules have been exported to U.S.A. Brazil, Guatemala, Turkey, Mauritius, Egypt, Japan, India, Thailand, Indonesia... and so many countries. No one feel unsatisfied after using it, you will also enjoy it.





SANLI cutting rule will help you make a perfect cutting dies.





 Welcome to your inquiry.
