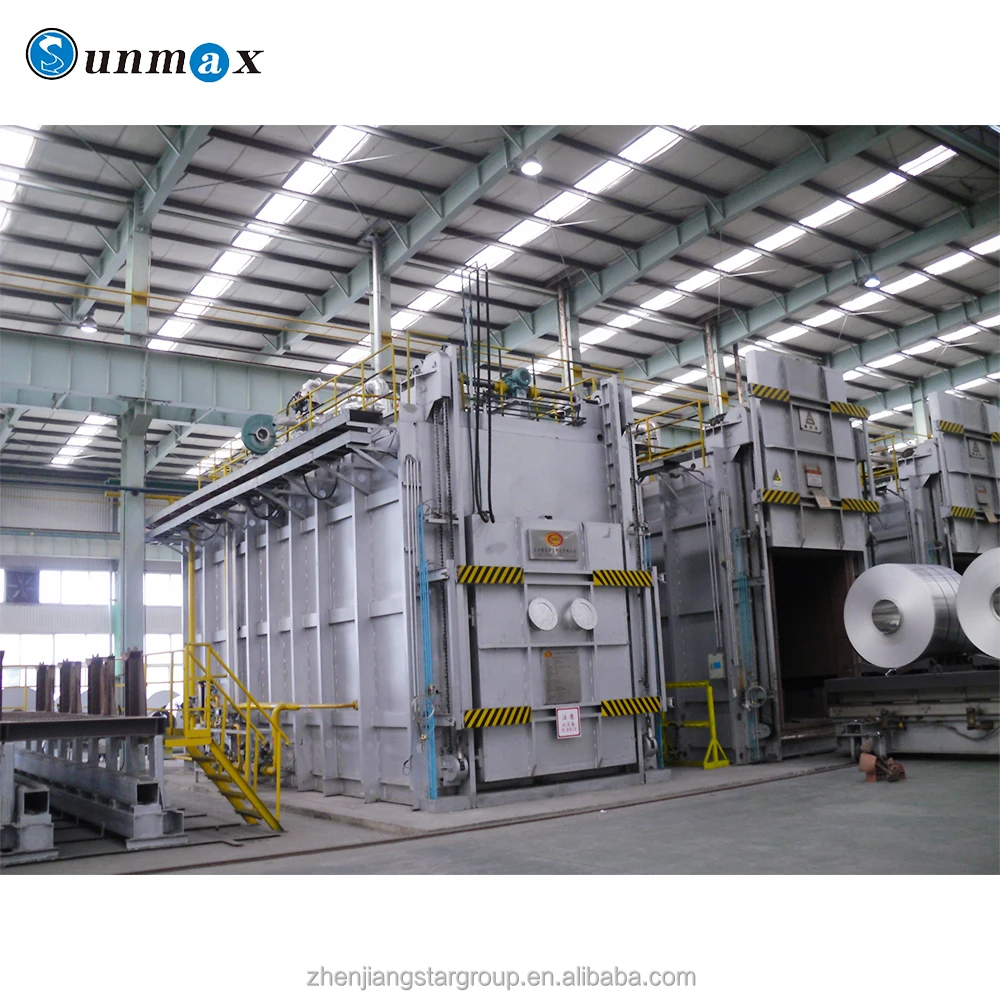

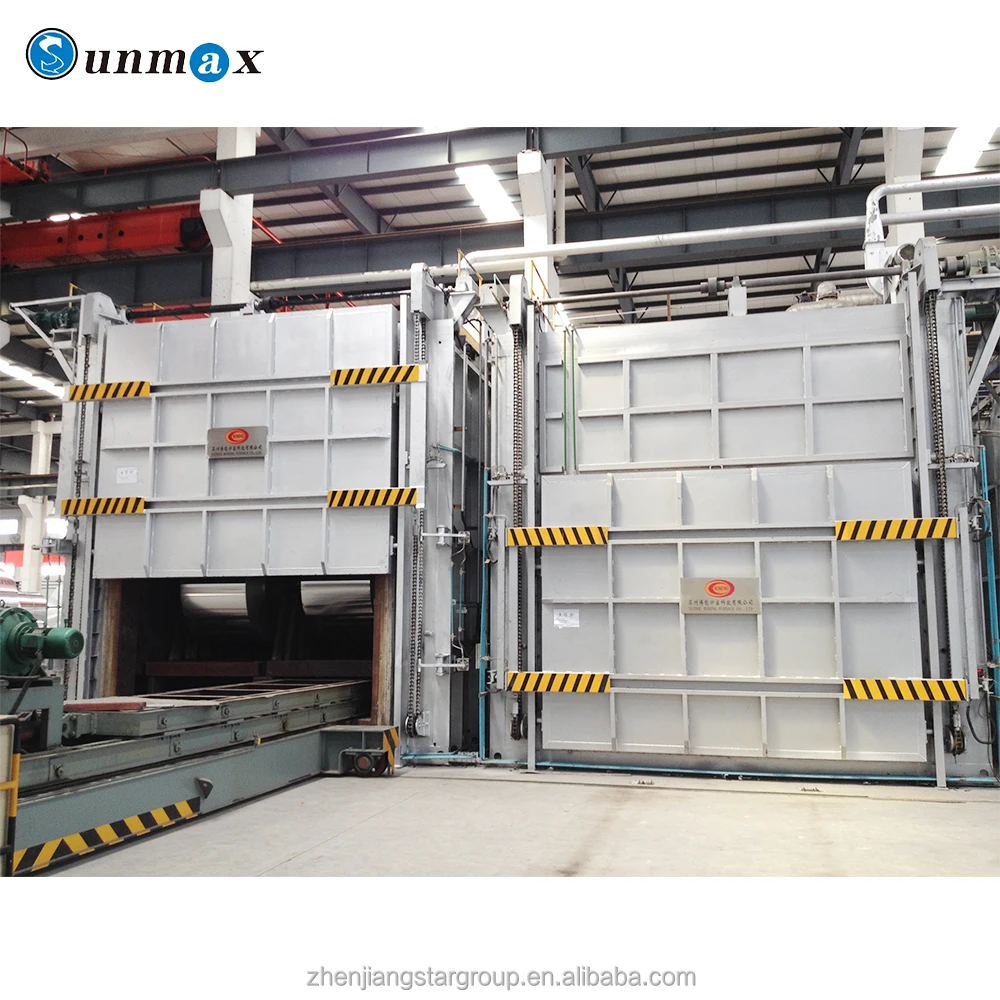

Aluminum Roll/Aluminum Foil Annealing Furnace Industrial Furnace Electric Furnace

Product Overview

Description

1.Furnace form: Forced hot air circulation resistance heating furnace
2.loading capacity:50T
3.The maximum temperature of the stove:620 centigrade
4.Metal annealing temperature:150 C ~ 480 C
5.power parameters:380V + 10%50Hz
6.Heater installation power:540kw
7.Heating zone number:3 zone
8.Temperature Control Mode: Timing Control and Temperature Proportional Control and Constant Temperature
9.Furnace temperature difference: is not more than 3 DEG C (when the blower is on)
10.metal temperature difference at the end of heat preservation: less than 3 DEG C
11.loading and unloading methods: one three dimensional composite material (vertical lift)
12.cooling water consumption: 6t/h;
13.compressed air consumption: instantaneous 5 m3/min
14.Furnace size:10605 x 4340 x 7680mm (L x W * H)
15.fan parameters: axial flow fan with low pressure and large air volume
Wind pressure:50mmH2O
Wind volume:145000 m3/h
16.Heater: bayonet type, installed on both sides of the furnace body;
