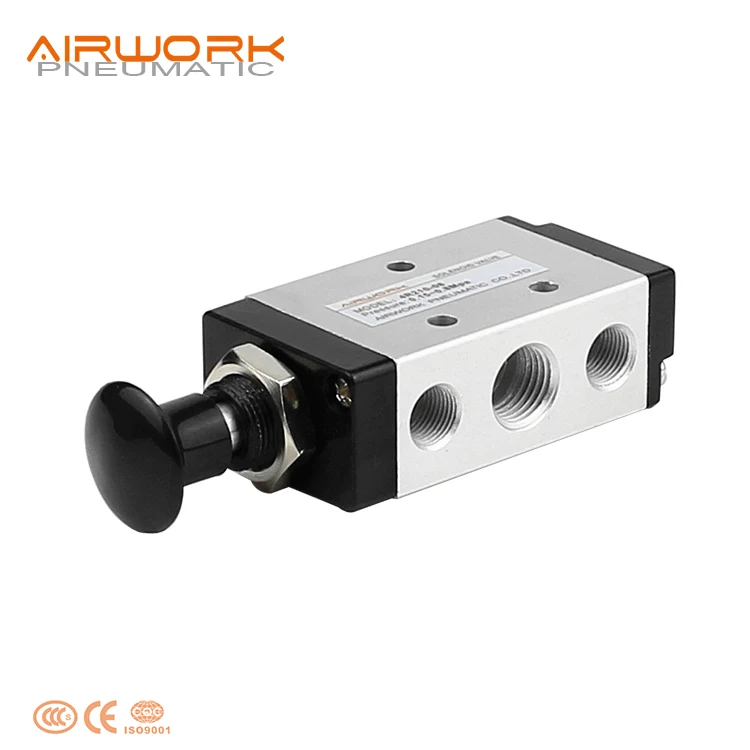

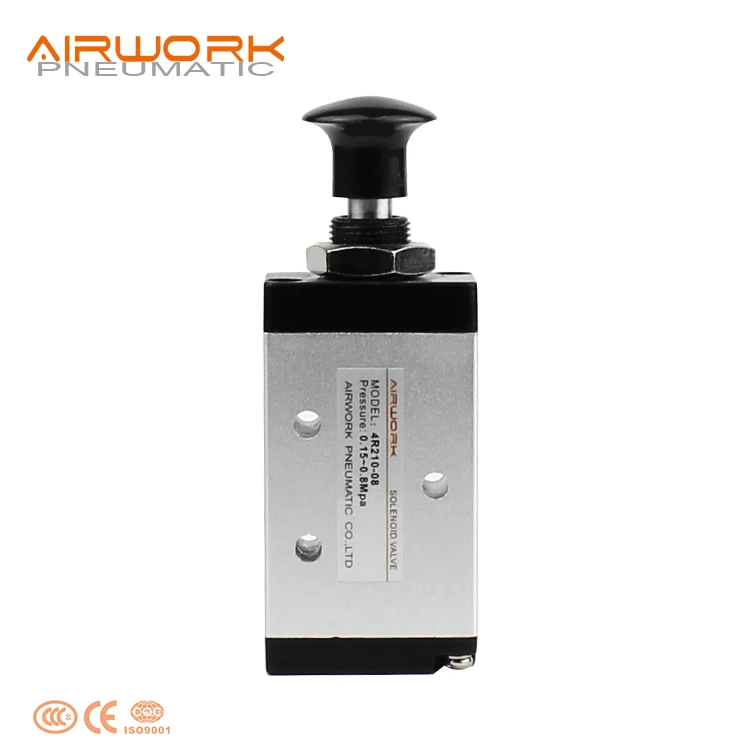

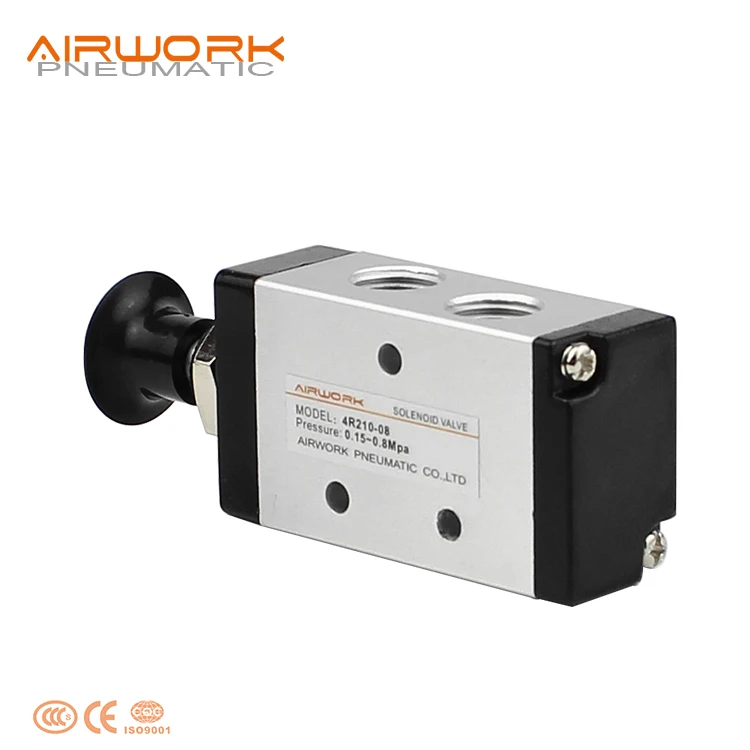

4R 3R 5 2 3/2 way button pneumatic hand lever switch valve
- Category: >>>
- Supplier: Zhejiang Jinzhi Pneumatic Technology Co. Ltd.
Share on (60746963717):
Product Overview
Description
4R 3R 5 2 3/2 way button pneumatic hand lever switch valve
Product Description

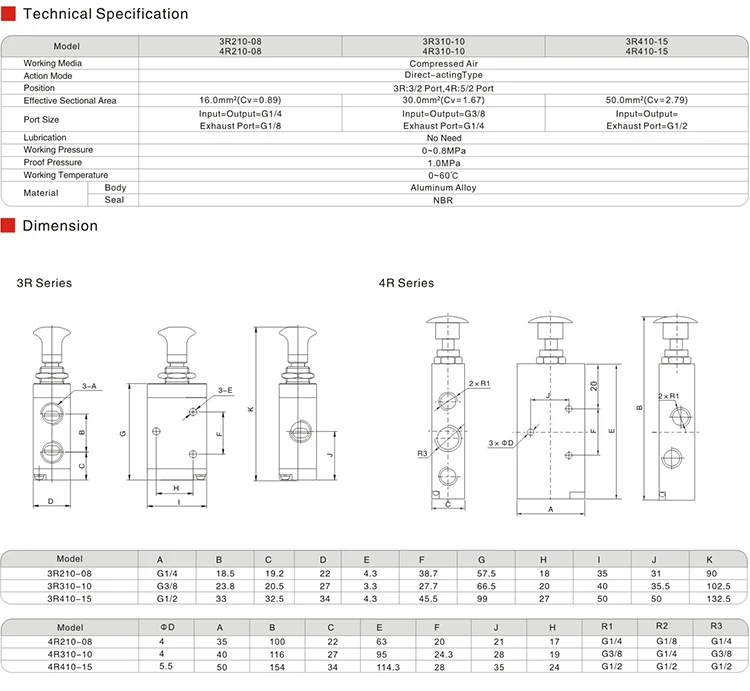

| Model | 3R210-08 4R210-08 | 3R310-10 4R310-10 | 3R410-15 4R410-15 |
| Working Medium | Air | ||
| Action Mode | Direct-acting Type | ||
| Position | 3H: 3/2Port, 4H: 5/2Port | ||
| Effective Sectional Area | 16.0mm2(CV=0.89) | 30.0MM2(CV=1.67) | 50.0mm2(CV=2.79) |
| Port Size | Input=Putput=G1/4 Exhaust Port=G1/8 | Input=Putput=G3/8 Exhaust Port=G1/4 | Input=Putput=Exhaust Port=G1/2 |
| Lubrication | No need | ||
| Working Pressure | 0~0.8MPa | ||
| Proof Pressure | 1.0MPa | ||
| Working Temperature | 0~60℃ | ||
| Body Material | Aluminum Alloy | ||
| Seal Material | NBR | ||
Send inquiry now!
Company Information
Production Flow
Packaging & Shipping
Payment
FAQ
Q1. Are you manufacturer or trading company?
A1. We are the manufacturer mainly producing fitting, cylinder,tube with good quality.
Q2. What’s the delivery time ?
A2. Normal model 1-3days,because we have ability to do the stock.For big order,it takes about 10-15days.
Q3. What is the standard of package?
A3. Export standard package or special package according to customer requirement.
Q4. what kind of product quality your factory offer?
A4. We are the suppliers of the top three pneumatic company.We offer top quality to help client to get more market.
Q5. Do you accept OEM business?
A5. We do OEM .
Q6. Which market do you already sell?
A6. We already ship to Middle East, Asia, South America , Afria etc.
