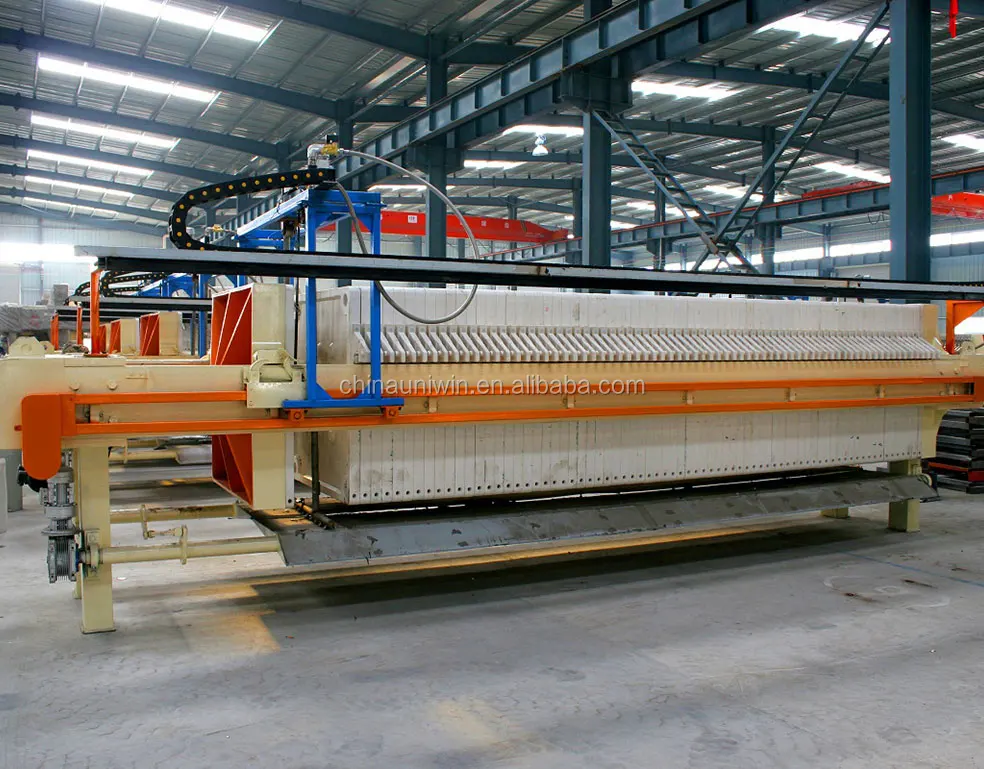

China famous wastewater dewatering hydraulic chamber filter press

Product Overview

Description

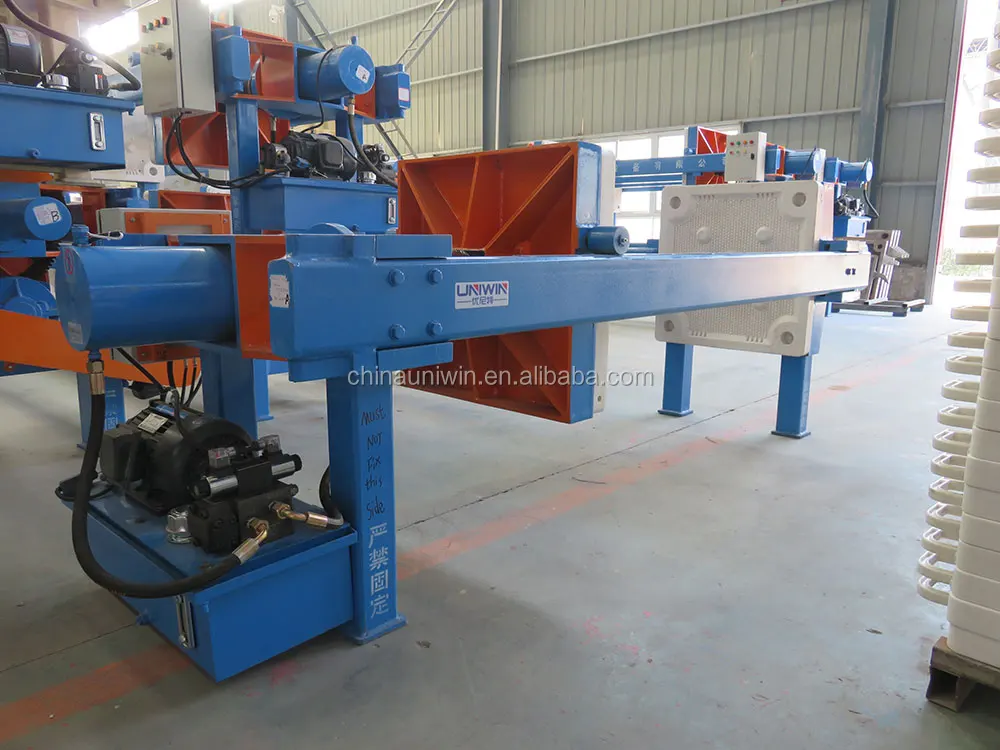

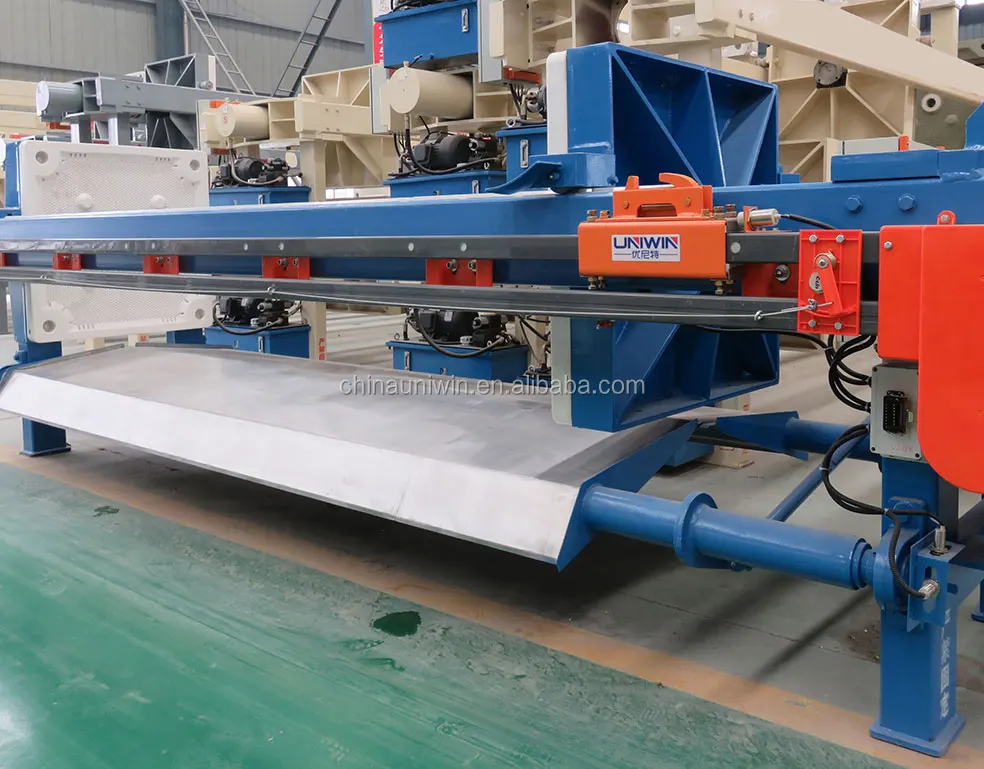

China famous wastewater dewatering hydraulic chamber filter press



 Filter press is a kind of Solid-liquid separation dewatering treatment equipment, it is separating the solid and the slurry/sludge/fluids by using pressure driven by feed pumps and widely used in wastewater treatment plant, chemical industry, pharmaceutical industry, metallurgy industry, dyes industry, mining industry, paper making, food factories, brewing, ceramics, and environmental protection industries, etc.





Filter Process of Chamber Filter Press

The process of one batch filtration: Filter Plates Pressing---Feeding material---Filtering---Discharging Cake---Washing Filter Cloth.

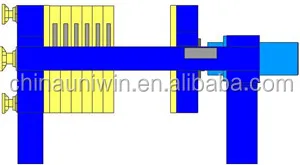

	Closing: Closing of the filter plates to form a sealed filtering chamber.

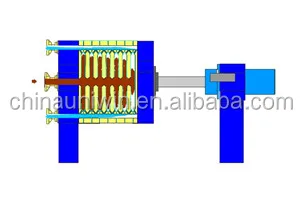

	Feeding Sludge (or slurry) will be feeded into the chamber by slurry pump until all chamber is full of filter

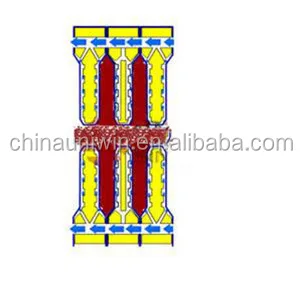

	Filtering Liquid is filtered and slolids are block by filter cloth.

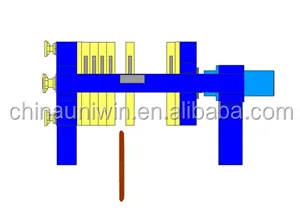

	Cake Discharging Open filter plates to discharge the filter cake.







TYPE	Filter area (m2)	Plate size (mm)	Cake thickness (mm)	Filter chamber voiume (L)	Number plate (pcs)	Filtretion pressure (mpa)
XZ30/870-30U	30	870×870	30	460	23	0.6
XMZ40/870-30U	40	870×870	30	595	30	0.6
XMZ50/870-30U	50	870×870	30	748	38	0.6
XMZ60/870-30U	60	870×870	30	902	46	0.6
XMZ70/870-30U	70	870×870	30	1056	54	0.6
XMZ80/870-30U	80	870×870	30	1210	62	0.6
XMZ50/1000-30U	50	1000×1000	30	752	28	0.6
XMZ60/1000-30U	60	1000×1000	30	940	34	0.6
XMZ70/1000-30U	70	1000×1000	30	1063	40	0.6
XMZ80/1000-30U	80	1000×1000	30	1219	46	0.6
XMZ100/1000-30U	100	1000×1000	30	1505	57	0.6
XMZ120/1000-30U	120	1000×1000	30	1816	69	0.6



Technical Advantage of chamber filter press

1. The material of UNIWIN filter frame is Q345B, which tensile strength is 1.4 times of Q235, it makes uniwin filter press operation more safe and stable.

2. All the spare parts that need painted adopt sand blasting with high speed centrifugal ball to remove rust.
3. Easy operation: PLC control and the plate can be pulled automatically, no need workers operate it
4. UNIWIN Slurry Filter Press equipped with the safety devices to ensure safe operation.

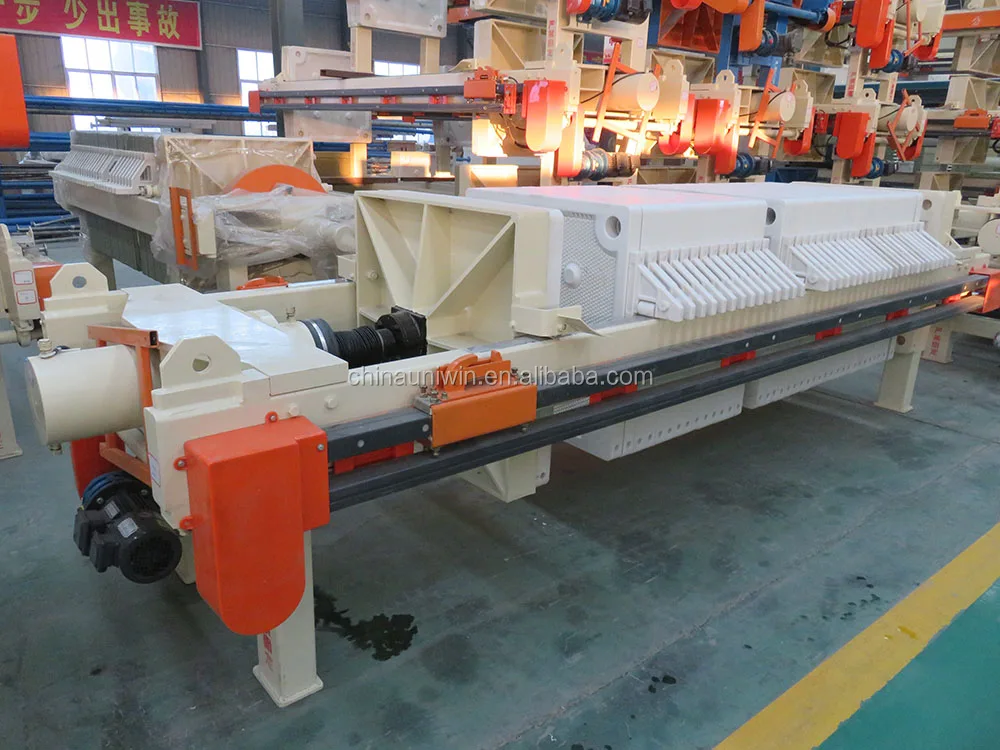

Filter press details Show

• Reinforced Frame of filter press
  Frame material is Q345B, stronger frame guarantee the machine life time longer and more stable when operating.

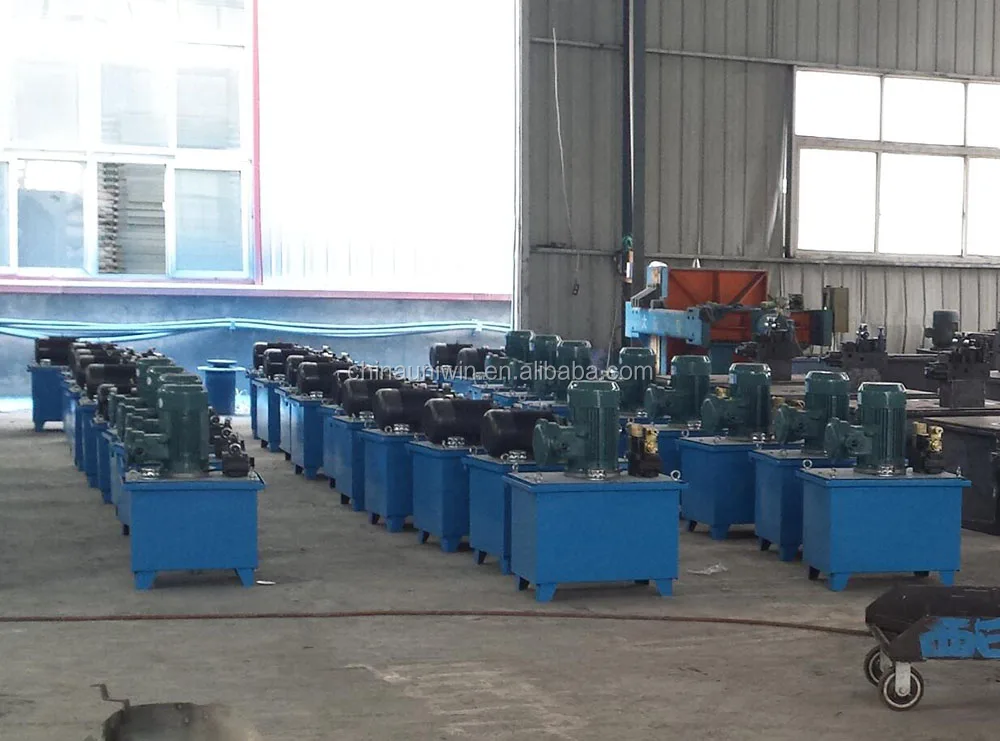

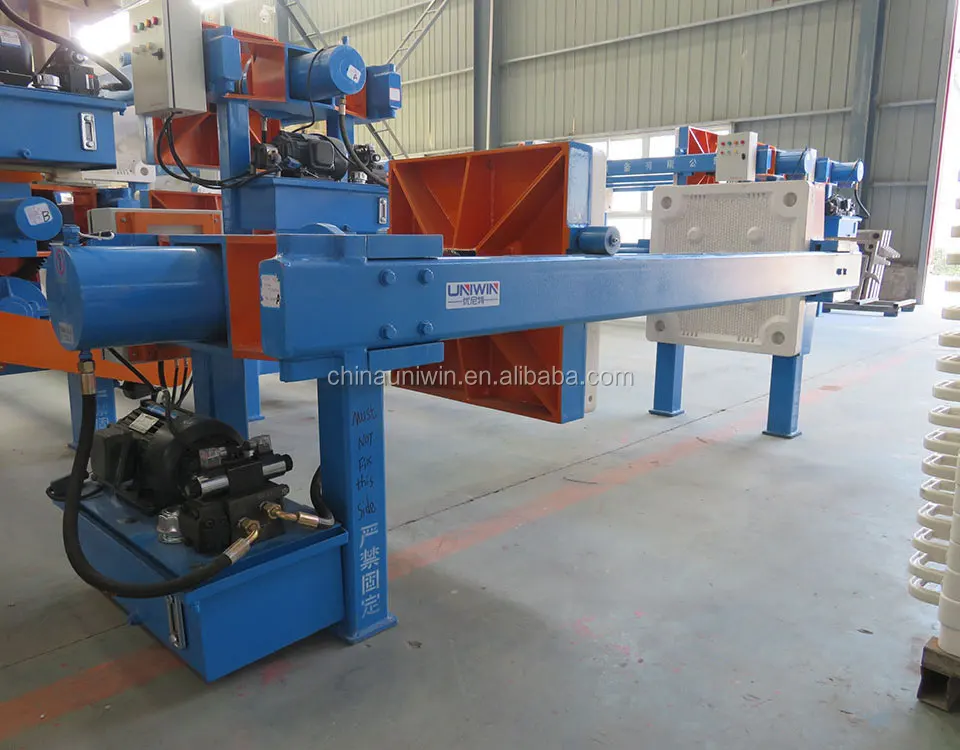

• Hydraulic Station
  It provides the pressure for filter press can save much labor, and we are using China famous pump and hydraulic valve.

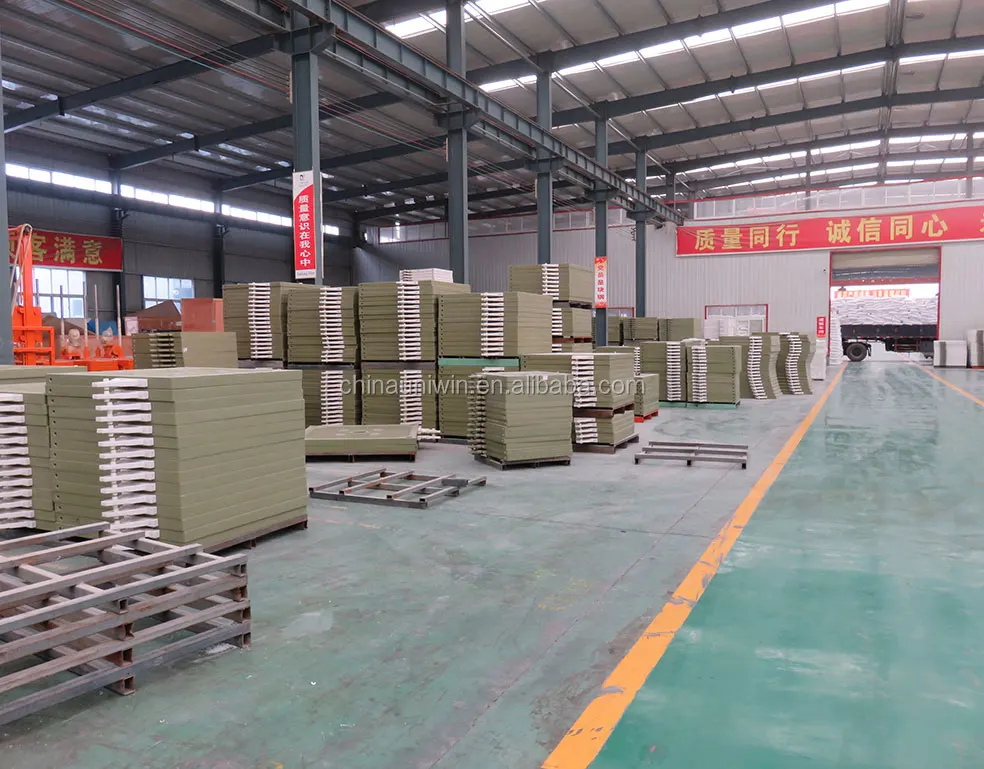

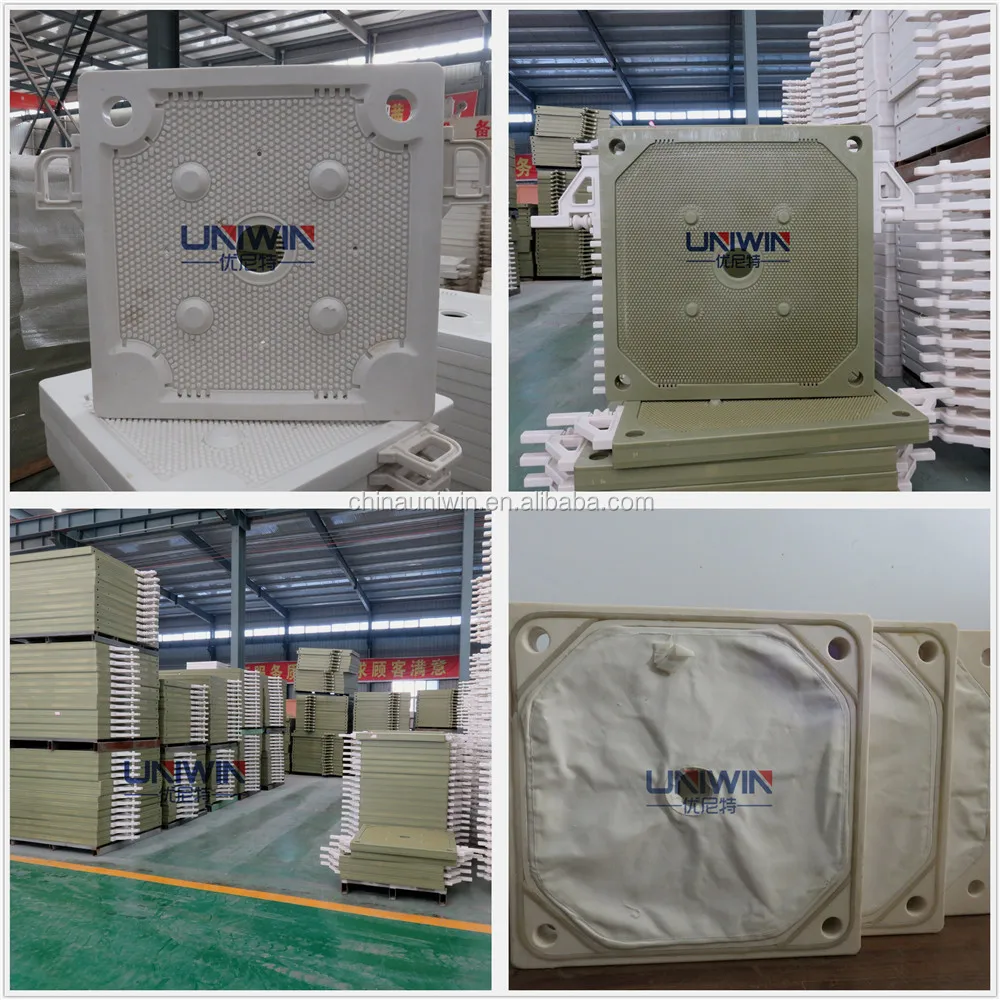

• Filter Plates
  Using high quality polypropylene, ensuring filter plates has the good characteristics of anti-corrosion and strong acid and strong alkali resistance.

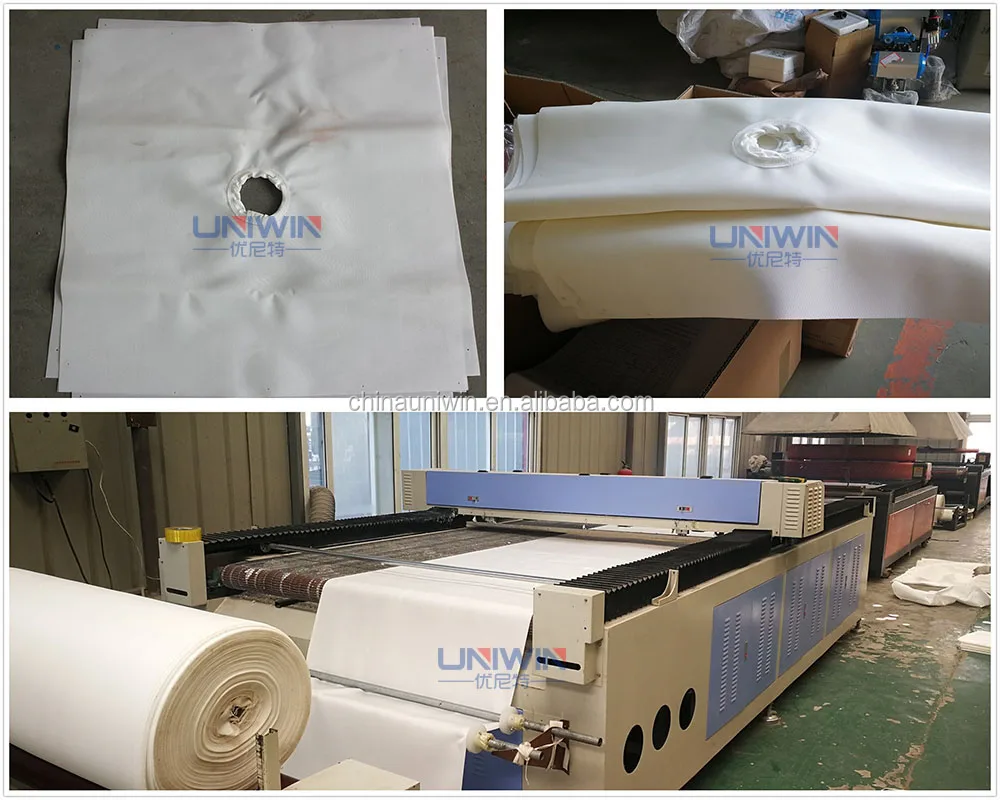

• Filter cloth:

we are using high quality polypropylene strong acid and strong alkali resistance or high quality polyester acid. We also can customized the filter cloth size as you required.

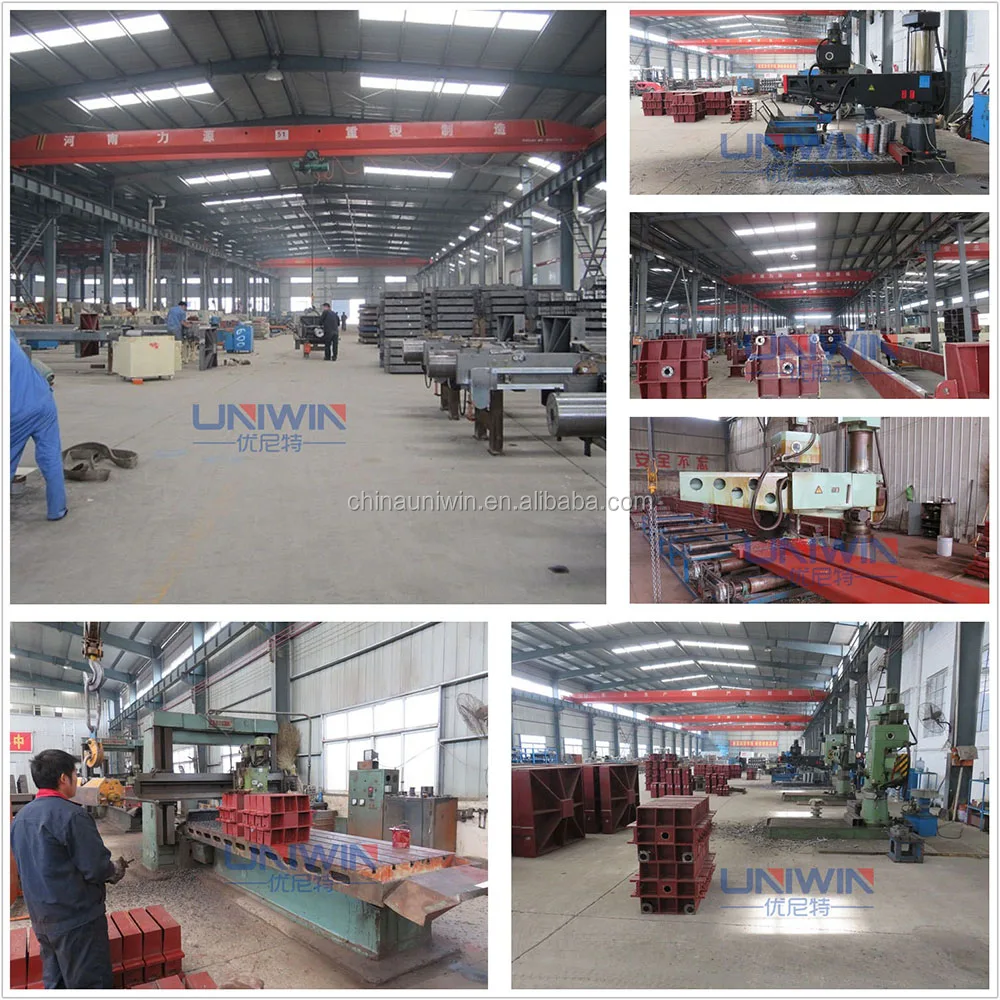

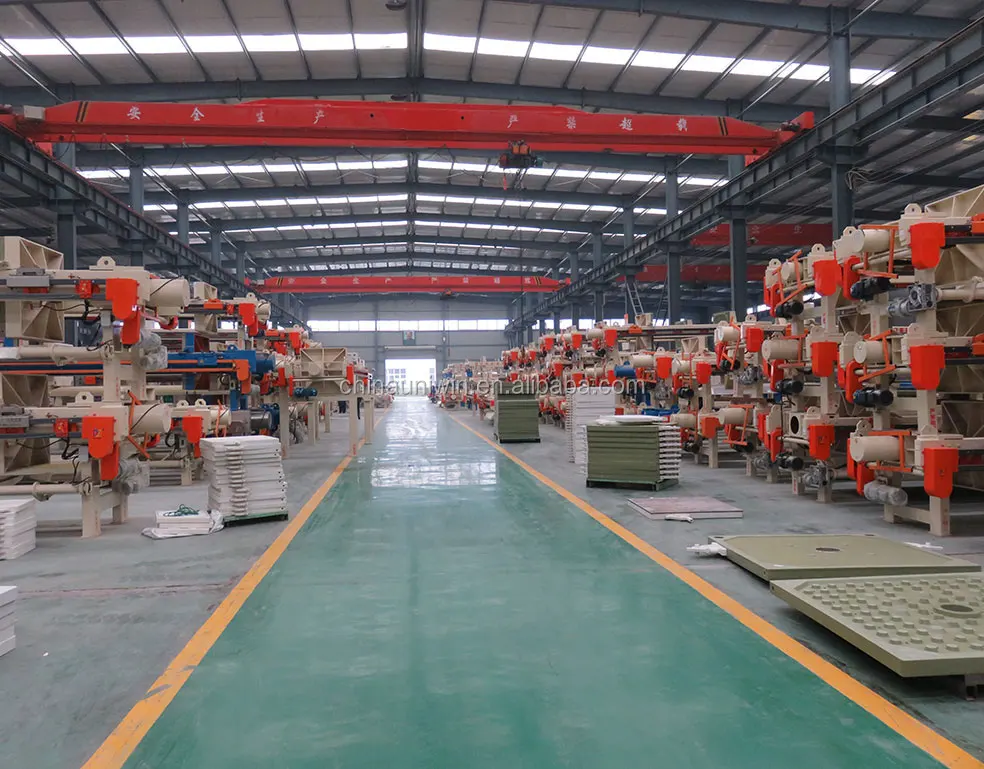

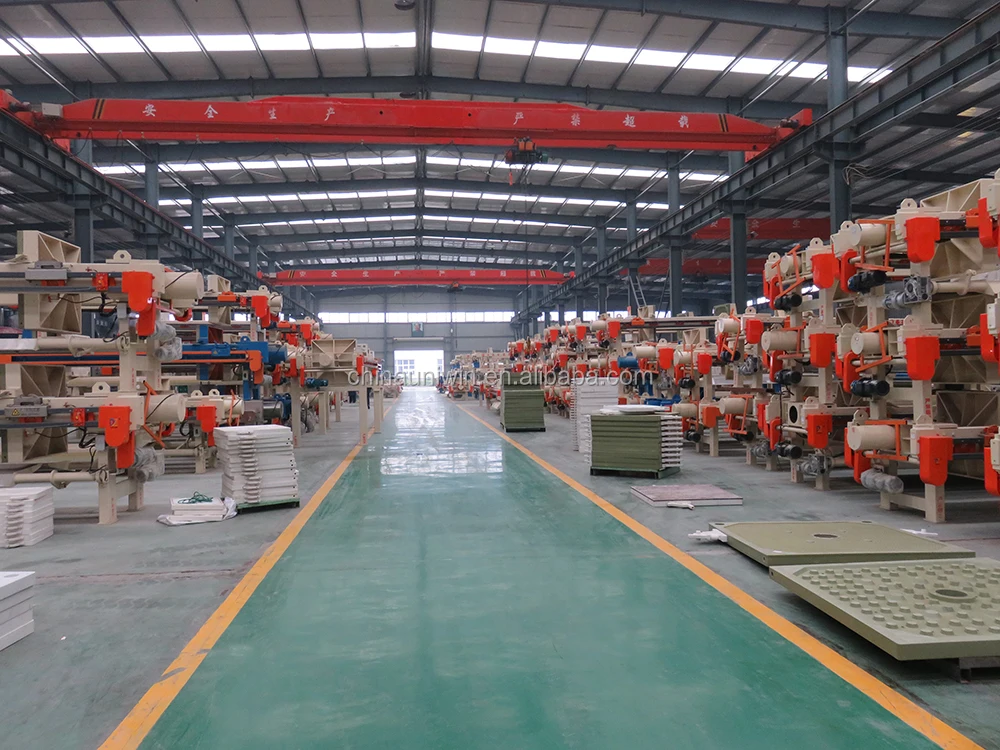

Production and assembling workshop of chamber filter press

All filter press is assembled and tested in workshop to make sure all filter press good quality before delivery.



Customer visiting

Welcome customer s visit our factory to see our filter press and its production process, and also welcome customer bring their material samples for testing in our laboratory and talk with our engineer and then choose suitable filter press.
