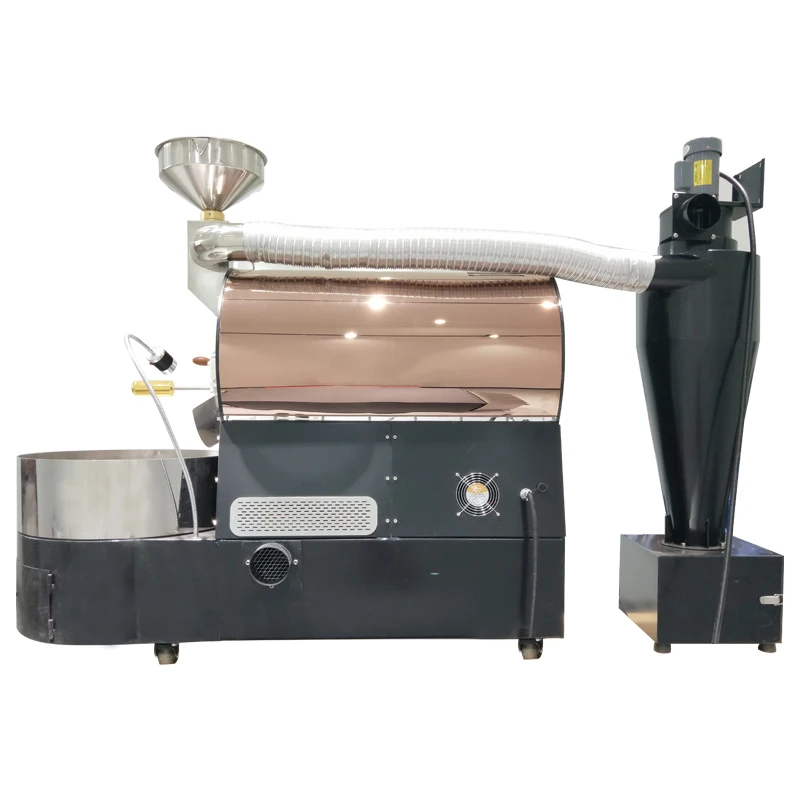

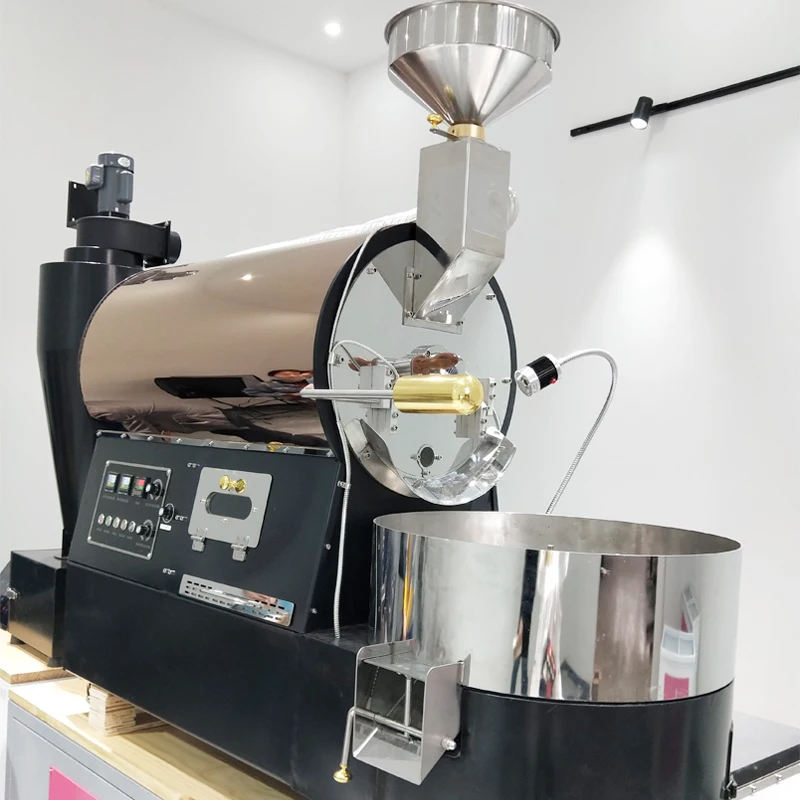

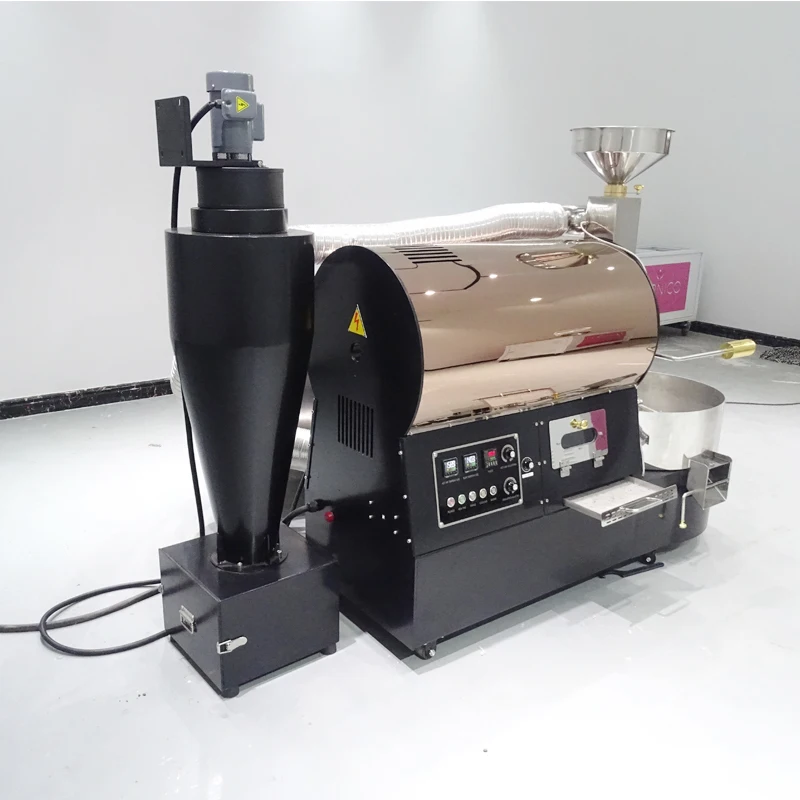

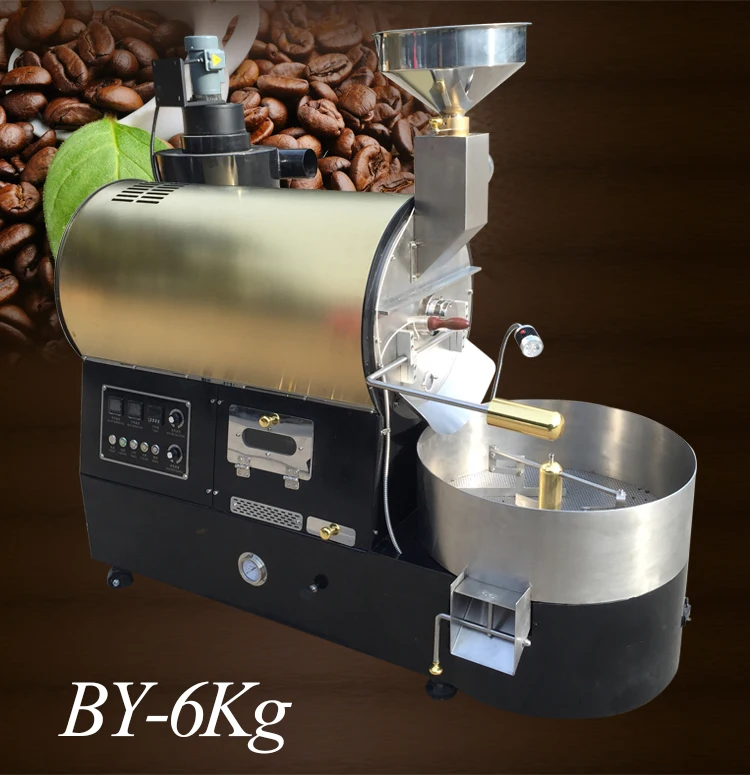

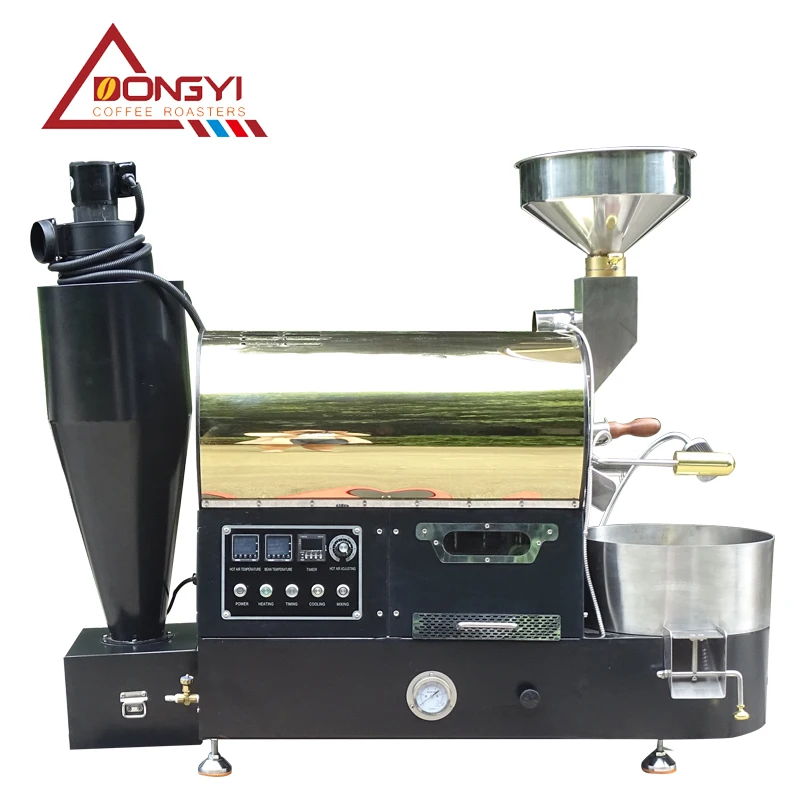

Самая последняя BY 6kg газовая/электрическая кофе машина для жарки Бока зерна кофе жаровня Кофе Жаровня

Product Overview

Description

The latest BY-6kg Gas/Electric coffee roasting machine boca boca coffee bean roaster coffee roaster                                                                  whatsapp :+86 18203884030

                                                                                           skype :dongyicoffeeroaster

Features:

1. Double wall of food grade 304 stainless steel drum for even heating.

2. Double wall of insulation layer to prevent heat consumption and excellent insulation effect.

3. Die casting steel for roasting side panel to prevent heat consumption also. While others use stainless steel material.

4. 360° heating elements to  provide even heated on coffee beans.

5. 4 independent & high power motors which can do roasting and cooling in same time.

6. High quality stainless steel cooling tray with bigger size from 36cm to 48cm for 1kg-3kg roasters to save cooling time, better for fasten coffee beans flavor.
7. Self ignition with adjustable heat controls

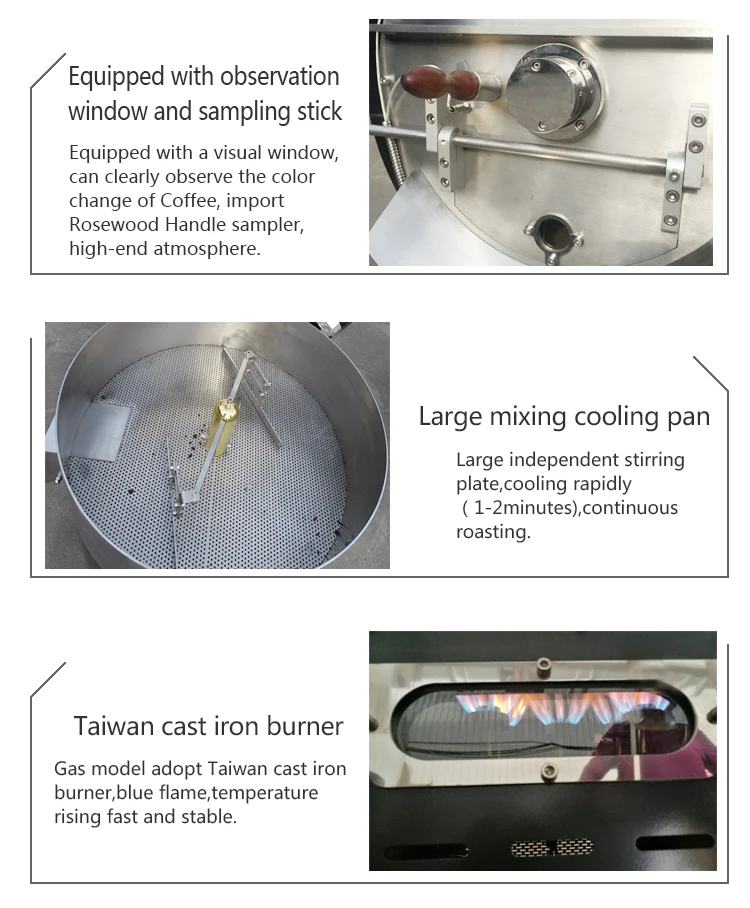

8. Sight glass, burner window glass, sampler spoon and the real-time temperature displays for accurate monitoring during roasting.
9. Manual controls of air flow adjustment to maximize coffee taste
10. Auxiliary LED Lamp attached

Options:
* USB logger data with Artisan software to check roasting profile

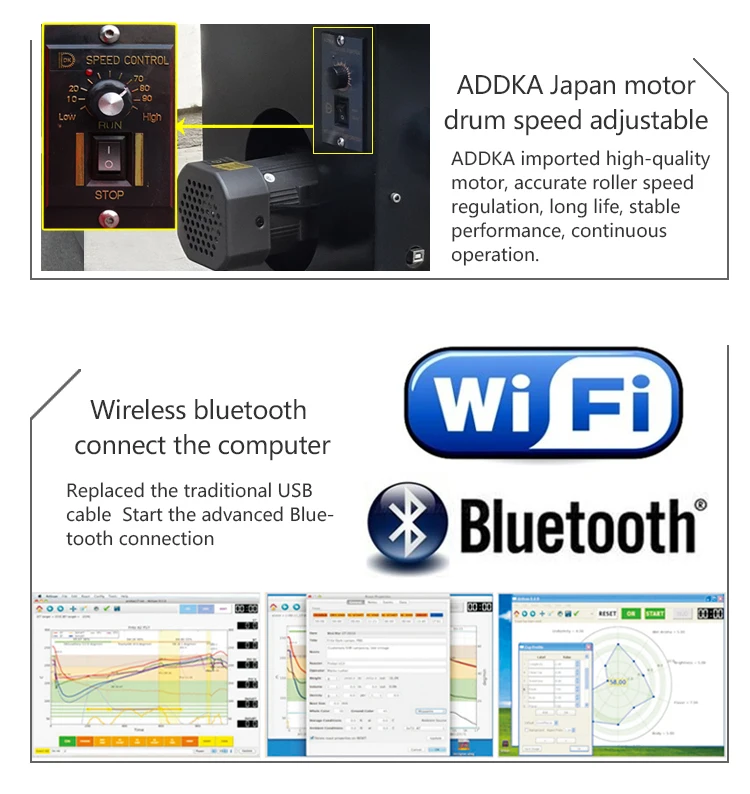

* Speed Control for drum

* Colors available: Black/Red/White to match stainless steel(standard color)/Gold/Rose gold

* Smoke filter





The 6kg coffee roaster technical data for your reference :



Roaster Size	1511x965x1638 mm
Roaster Weight	370kg
Chaff Collector Size	508x1422  mm
Chaff Collector Weight:	42 kg

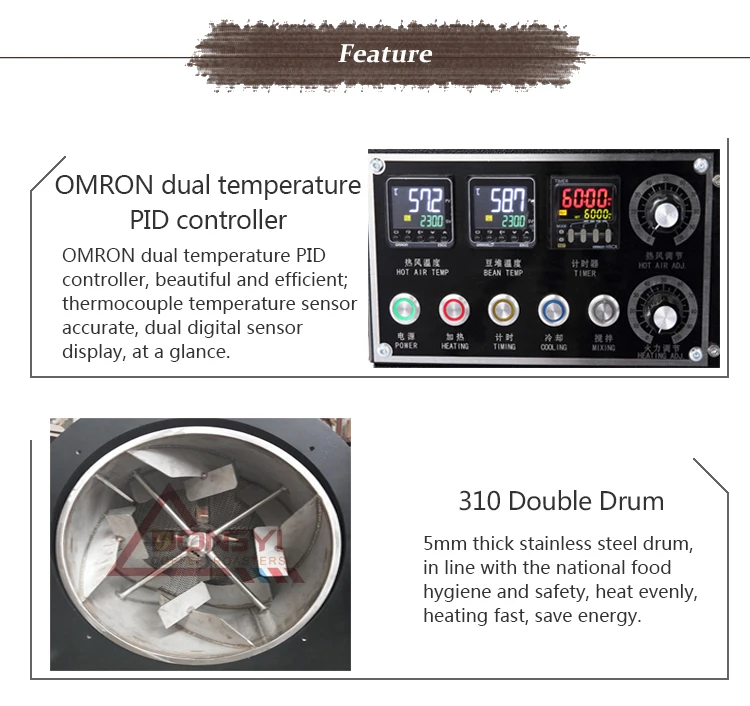

Drum Construction	Double-walled Drum, 310 Stainless Steel, Welded
Batch Size	1.2-7.2kg
Average Roasting Time:	< 15 minute batch
Power	Single Phase, 220V, 15A, 50-60Hz
Step-Up Transformer	120V to 220V, 1000W
Drum Motor	400W
Exhaust Fan Motor	750W
Cooling Fan Motor	400W
Cooling Tray Stirring Motor:	400W
Fuel Type	LP Gas -or- Natural Gas
Max. BTU	75,000
Burner Control	Manual Valve
Gas Connection	1/2" NPT
Gas Pressure Required	LP Gas: 7” of water column  Natural Gas: 11” of water column
Gas Orifices Size	LP Gas: 0.7 mm (installed at factory)  Natural: 0.9 mm (see conversion/instructions)
Max Gas Usage	2.2 lb/hr (1 kg/hr)
Typical Roaster Exhaust High Temp	400°F - 450°F
Chaff Collector Exhaust High Temp	300°F
Cooling Tray Exhaust High Temp	180°F
Max Exhaust	450 CFM
Exhaust Venting Type Required:	Class III, Positive Pressure
