Product Overview

Description


About HGH-CA series

HIWIN HGH-CA series:

HGH series linear guideways are designed with load capacity and rigidity higher than other similar products with
circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral
directions, and self-aligning to absorb installation-error. Thus, HIWIN HG series linear guideways can achieve a long
life with high speed, high accuracy and smooth linear motion.


Bearing Models:

HGH15CA, HGH20CA, HGH25CA, HGH30CA, HGH35CA,

HGH45CA, HGH55CA, HGH65CA;

TAIWAN HIIWN linear slider rails block bearing features:

1.High positional accuracy;

2.Long life with high motion accuracy;

3.High speed motion is possible with a low driving force;

4.Equal loading capacity in all directions;

5.Easy installation;

6.Easy lubrication;

7.Interchangeability;

Bearing description

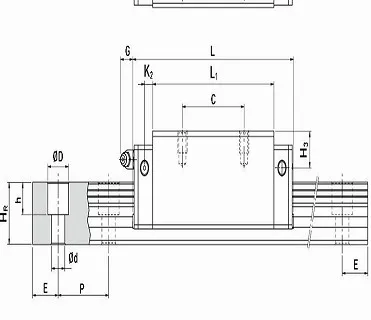

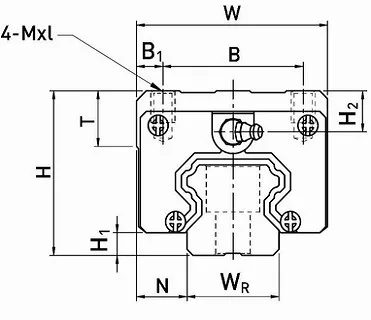

TAIWAN HIWIN HGH20CA linear guide block bearing size:

\t
Model No.
\t
Dimensions of Block
\t
LM rail dimensions
\t
\t
Height
\t
Width
\t
Lenght
\t
\t
\t
\t
Width
\t
Height
\t
Pitch
\t
\t
H
\t
W
\t
L
\t
B
\t
C
\t
L1
\t
Wr
\t
Hr
\t
P
\t
\t
mm
\t
mm
\t
mm
\t
mm
\t
mm
\t
mm
\t
mm
\t
mm
\t
mm
\t
HGH20CA
\t
30
\t
44
\t
77.5
\t
32
\t
36
\t
50.5
\t
20
\t
17.5
\t
60

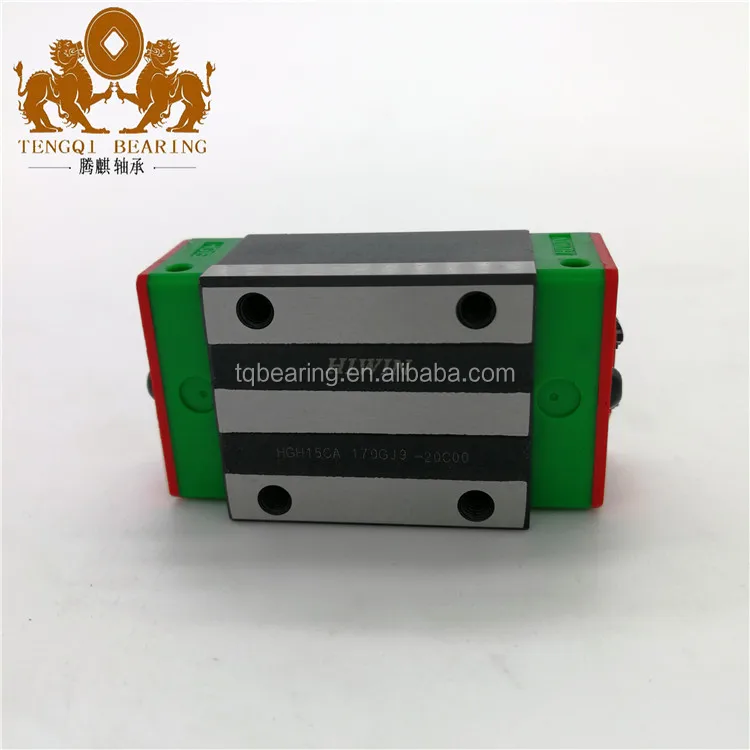

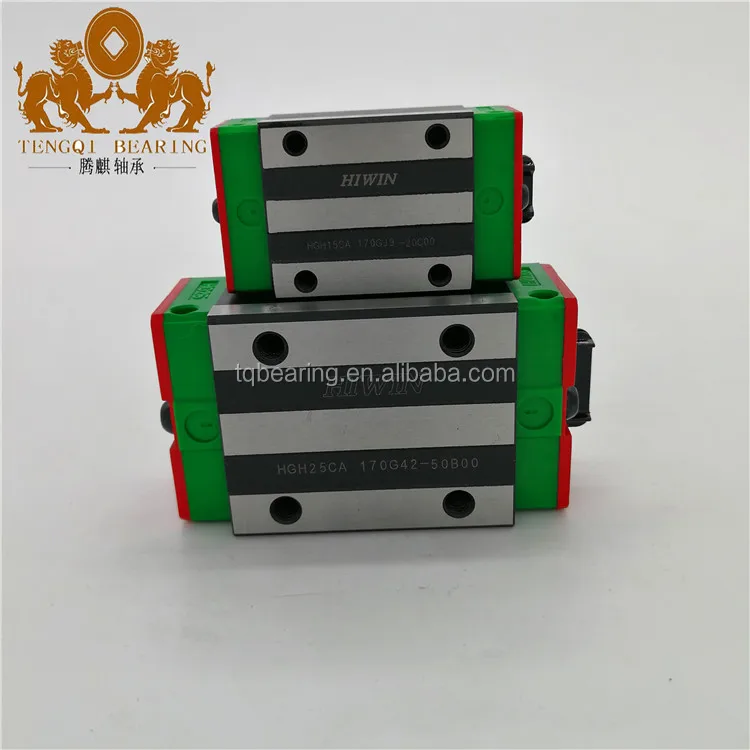

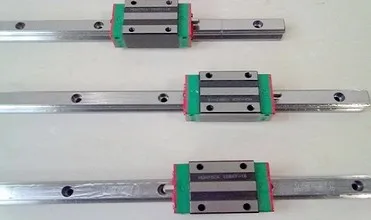

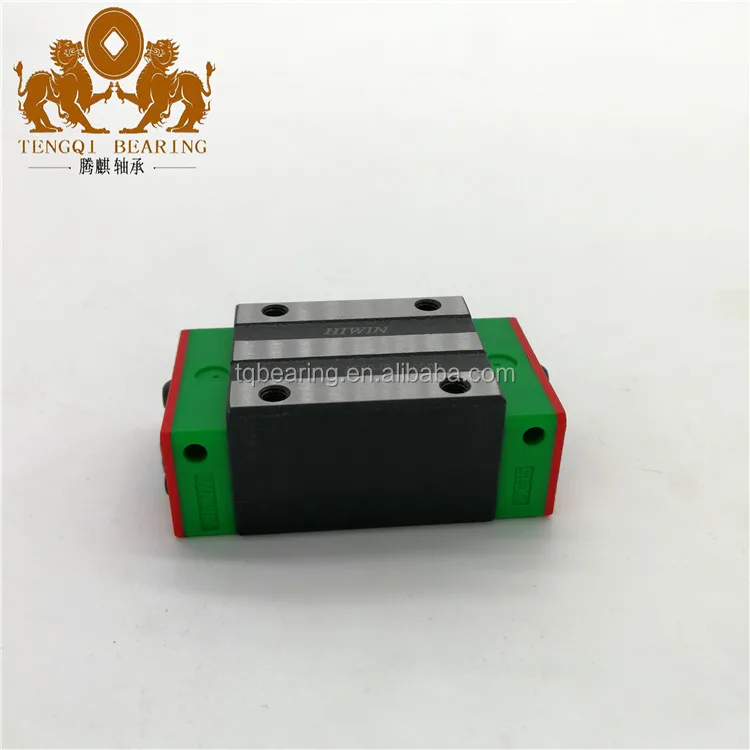

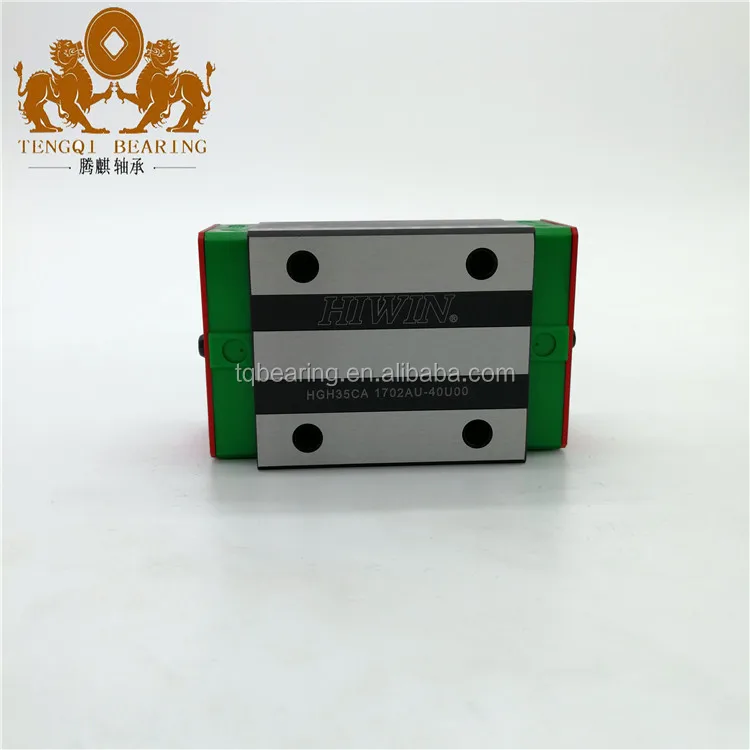

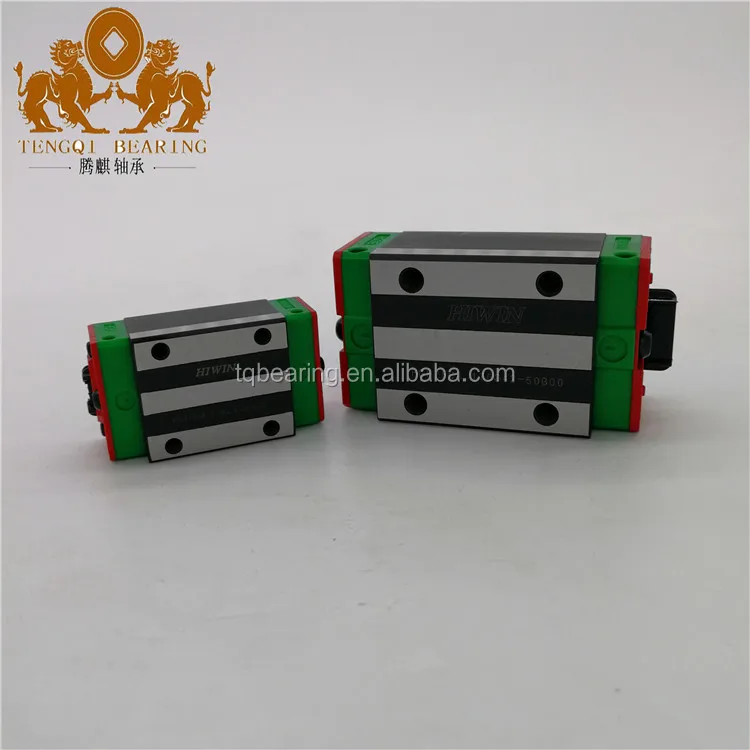

TAIWAN HIWIN HGH20CA linear guide block bearing picture:

Bearing package

TAIWAN HIWIN HGH20CA linear guide block bearing package:

1.THK box package for 1pc block

2. THK carton for bulk THK blocks or rail

3. Wooden case for sea shipment

HG series models
\t
Series
\t
Assembly
Height
\t
Load
\t
Square
Tap hole
\t
Flange
Tap hole
\t
Drilled hole
\t
Combination
\t
HG
\t
High
\t
Heavy Load
\t
HGH-CA
\t
\t
\t
\t
Super Heavy Load
\t
HGH-HA
\t
\t
\t
\t
Low
\t
Heavy Load
\t
HGL-CA
\t
HGW-CA
\t
HGW-CB
\t
HGW-CC
\t
Super Heavy Load
\t
HGL-HA
\t
HGW-HA
\t
HGW-HB
\t
HGW-HC
Other brand supply

THK linear block bearing

PMI linear block bearing

ABBA linear block bearing

Replacement bearing type for each brand:

\t
THK
\t
HIWIN
\t
ABBA
\t
PMI
\t
HSR-R series
\t
HGH-CA series
\t
BRH-B series
\t
MSA-S series
Payment & Delivery

Our payment terms:.

1.100% T/T in advance
2.100% Western Union or paypal in advance ,specially for small amount
3.30% T/T in advance, balance before shipment for large order or long delivery time orders
4.100% irrevocable L/C at sight

Our shipment terms:

1.small quantity (less than 50kg),
can delivery by global express: DHL TNT FedEx ARAMEX EMS UPS. this is door to door.
2.large quantity (more than 50kg),
can delivery by air, by sea, this is port to port.

Our Company

The bearing type we supply:

· Deep groove ball bearing:60,62,63,64,67,68,69,160 series
· Angular contact ball bearing:single row, double row,high precision
· Self-aligning ball bearing:12,13,14,22,23 series
· Thrust ball bearing:511,512,513,514 series
· Spherical roller bearing:213,223,222,223,230,240,231series
· Cylindrical roller bearing: N,NH,NF,NJ,NUH,EG,NN,NNU series
· Taper roller bearing:30,31,32,33,LM,HM series
· Needle roller bearing:K,K-TN,K-ZW series
· Linear guide rail block bearing:LR,SHS,SSR,SHW,SRS,HSR HRW series
· Linear bush bearing:LM,LME,LMF,LMK,LMH,SC,SL,SK series
· Eccentric bearing:15UZ,22UZ,25UZ,60UZ,65UZ,607,610 series
· Adapter sleeve:H,AH series
· Slewing bearing:01,02,11,13 series

Contact with me

If you are interested us , please contact with me directly Or visit our site www.tjtq.net.cn to order online.
