professional factory supplier 600KGS precast concrete shuttering magnets prefabricated construction magnets

Product Overview

Description

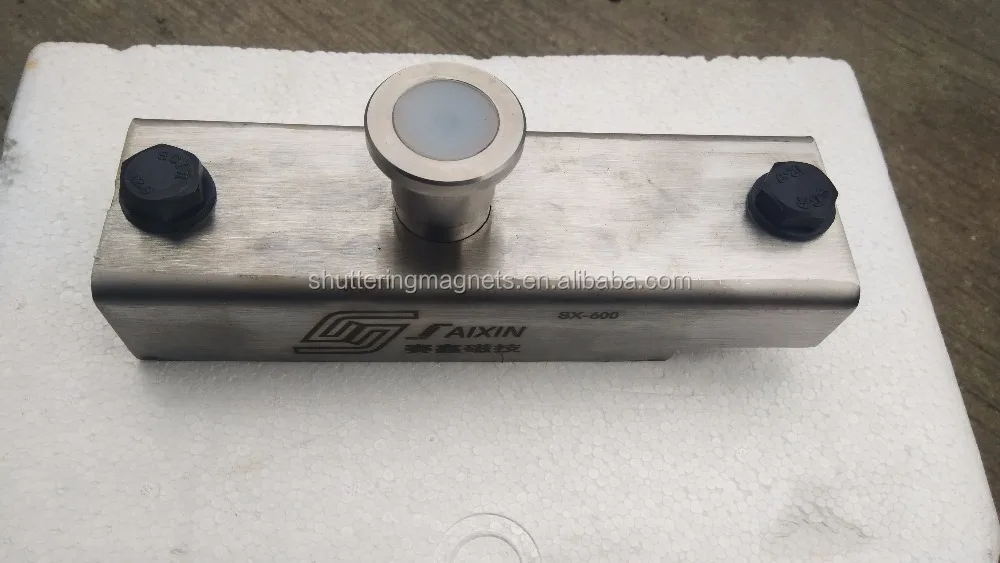

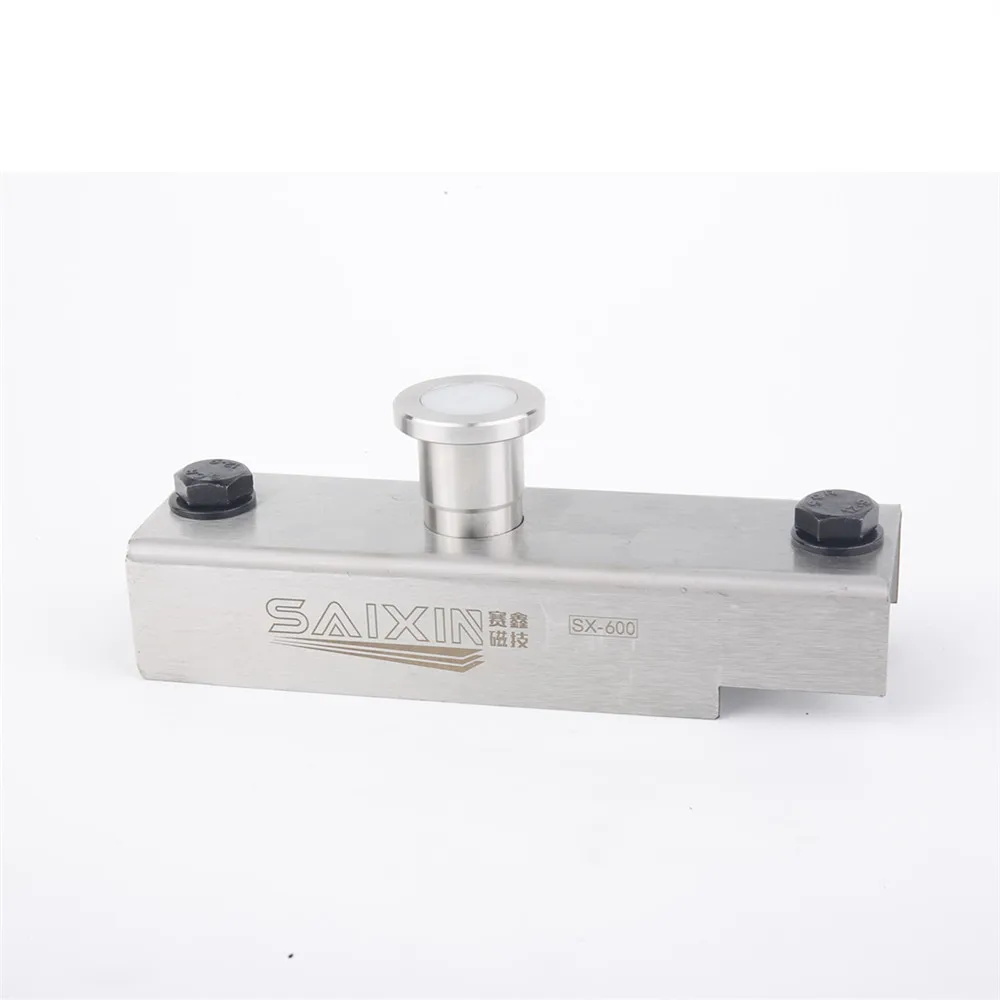

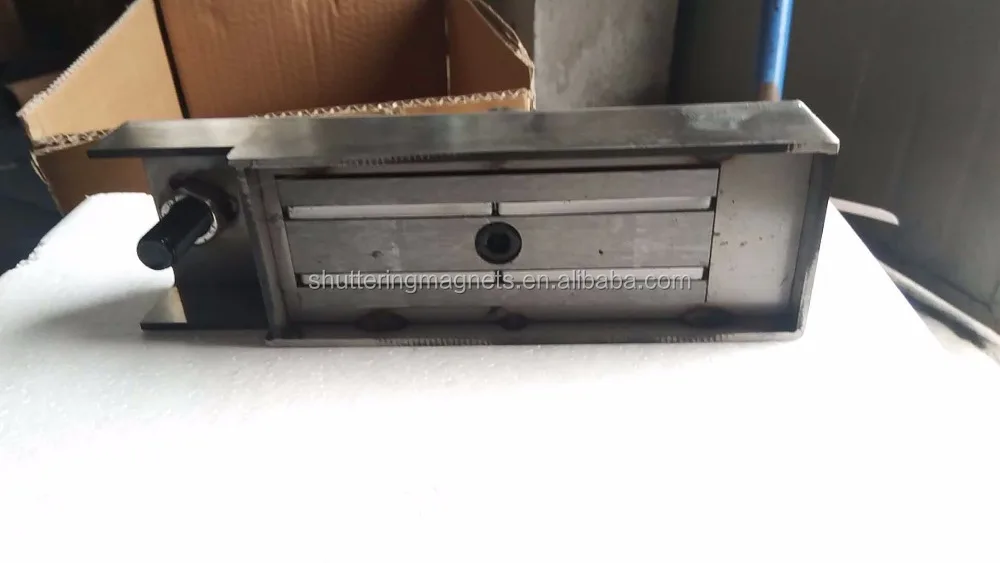

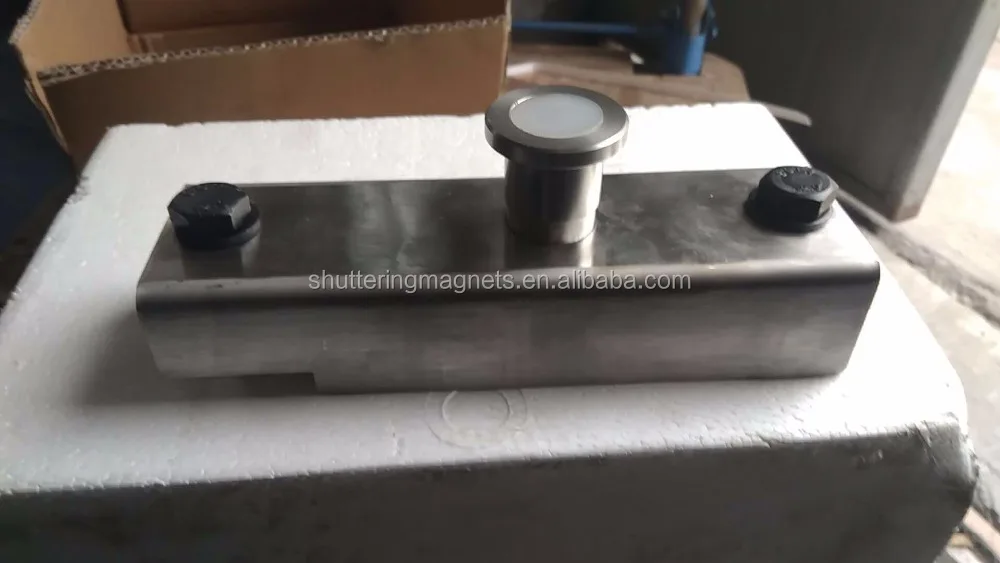

This stainless steel 600kgs magnet box with step is our new design. The box with step can be used to fix the shuttering directly without adatpor.



Precast concrete magnet box is designed for fixing precast concrete shuttering , compared with the traditional way of screwing nut and other mechanical fixing way, we find the following advantages of shuttering magnets.

MAIN ADVANTAGES OF SHUTTERING MAGNETS:

1. Reducing the complexity and time to install formwork (up to 70%).

2. Universal use for mass production of concrete products, and piece products of all forms on the same steel table.

3. Eliminates the need for welding, shuttering magnets does not damage the steel platform.

4. Makes it possible to produce radial products.

5. A small cost of a set of magnets. The average payback of about 3 months.

6. The main advantage of the shuttering magnets is that you do not need to have a lot of different forms for different products, you need to have a set of magnets, adapters for different height boards and steel table.



 SAIXIN®magnet box main technical parameters

name	SX-450B	SX-600B	SX-800B	SX-900B	SX-1000B
Vertical suction(kgf)>=	450	600	800	900	1000
N.W.(kg)	1.7	1.8	2.5	2.9	2.9
size (cm)	17*6*4	17*6*4	19*9.5*4	28*6*4	20*9.5*4
suitable template height  mm	30-60	40-70	50-80	60-100	70-120
name	SX-1350	SX-1800	SX-2100	SX-2300	SX-2600
Vertical suction(kgf)>=	1350	1800	2100	2300	2600
N.W.(kg)	6.3	7.2	7.6	7.8	7.8
size (cm)	32*9*6	29*12*6	31*12*6	32*12*6	32*12*6
suitable template height  mm	80-200	100-250	150-300	180-320	200-350
