Dingyu Automatic Butt Splicer HAU 320 non stop unwinder

What Is DINGYU Automatic Winding   Machine And Technology?

DINGYU Automatic Winding Machine And Technology is aim for achieve precision automatic unwinding and rewinding system! We can ensures nonstop feeding and winding for web materials to printing and converting machinery. This state of the art system provides a fully integrated package that maintains non-stop production with no impact to the printing or converting process.

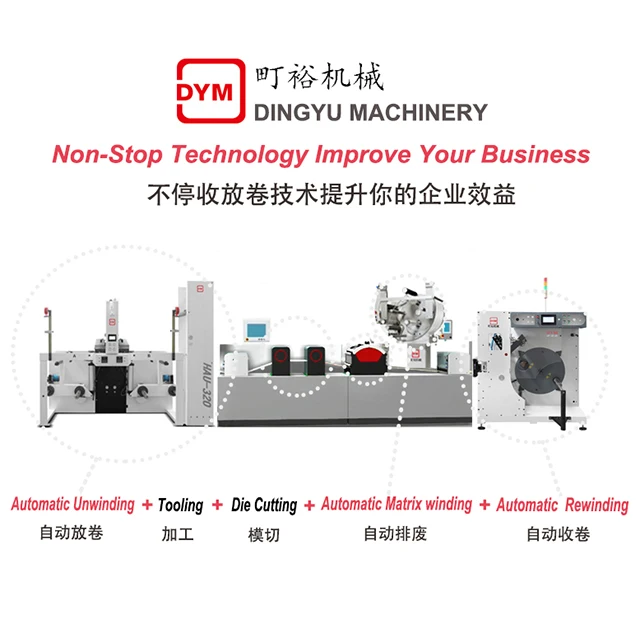

Full Set Automatic Winding System:

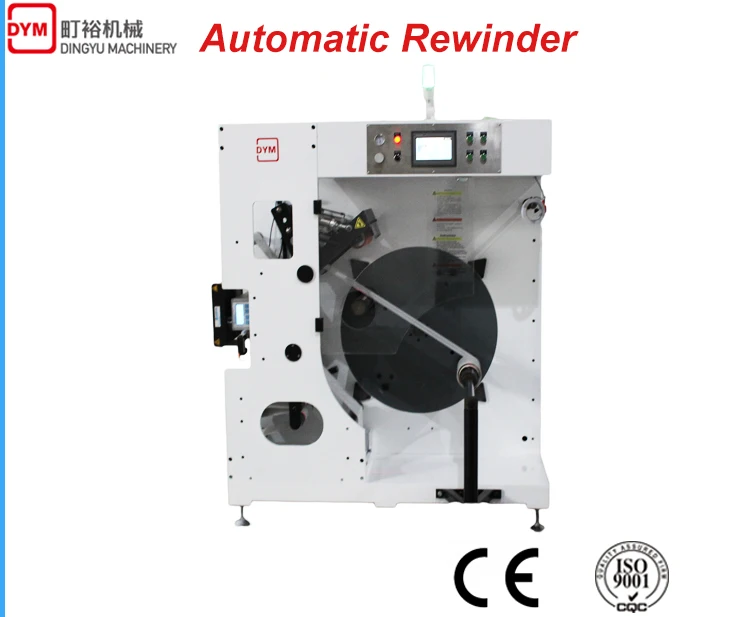

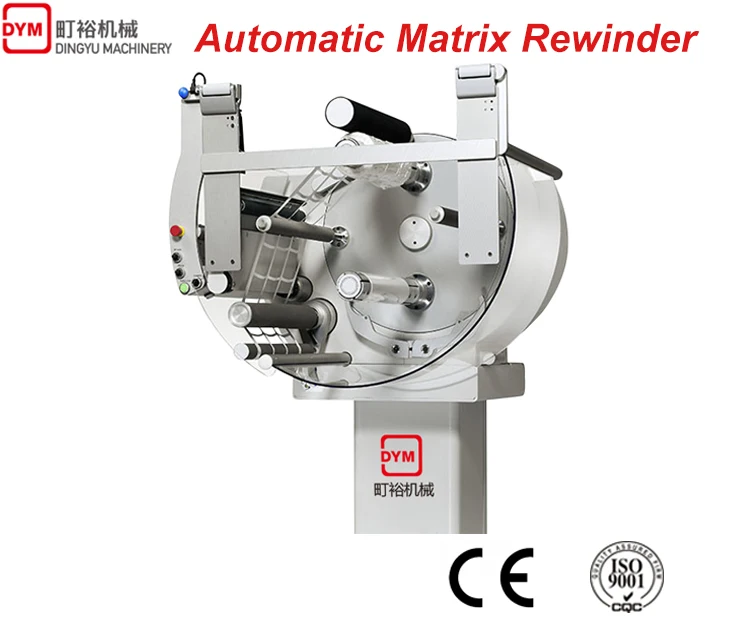

Automatic Unwinding System + Matrix Transfer System + Automatic Rewinding

Why Use DINGYU Automatic Winding Machine And Technology?

1. High work speed ( Our machine adapt to 100m/min to 180m/min work speed )

2. Continuous Production ( Without our machine 24 hours only 13-15 hours in production; with our machine almost 24 hours in production, increase your 20%- 40% production capacity )

3. Reduced material waste ( Without our machine if stop works one time Flexo printing machine need wast 100m material; with our machine only waste 1-2m material and you can produce more label with same 2000m material and you can get more price competition! If you work a day use our machine you can save 1.5 roll material. )

4. Reliable splicing ( Our machine use stable tension control system, with piecewise tension coupling method; Positive and negative sides of the tape; EPC function; Laser positioning paper edge material aligned etc ensure automatic paper splicing 100% success! )

5. Save Energy ( Non-Stop machine save 20% electricity )

6. Protect Environment ( We have only one earth, use our machine save energy, high efficiency, save material machine. You can earn more money and protect our earth together! )

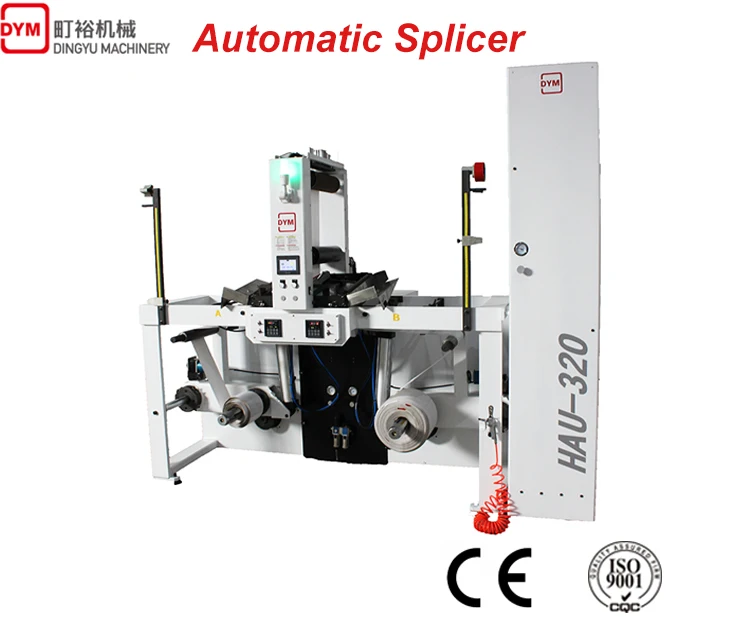

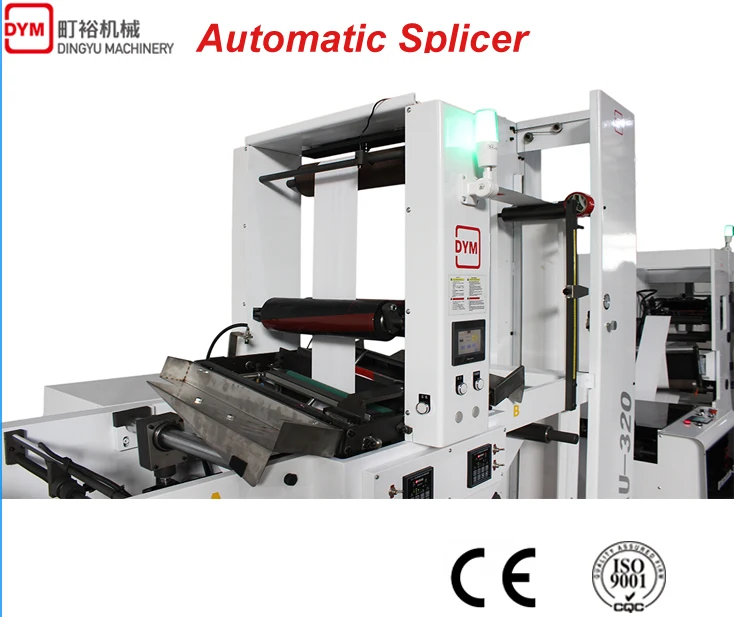

DINGYU Automatic Butt Splicer

DINGYU Automatic Butt Splicer is Non-stop unwinding for label converting and narrow web applications (Also accept wide width web). Is serious automation for many web-fed processes.

1. Basic Work Principle:

DINGYU HAU-320 Automatic unwinding machine joins two webs together--typically, the end of an expiring roll to the beginning of another. The two ends are trimmed straight and brought together so that the ends do not overlap. A thin tape, over the top or bottom of the splice, or both, holds the splice together. This splice method is required in applications where the thickness of overlapping webs is unacceptable. A DINGYU Automatic butt splicer performs this splicing function without slowing or stopping the process.

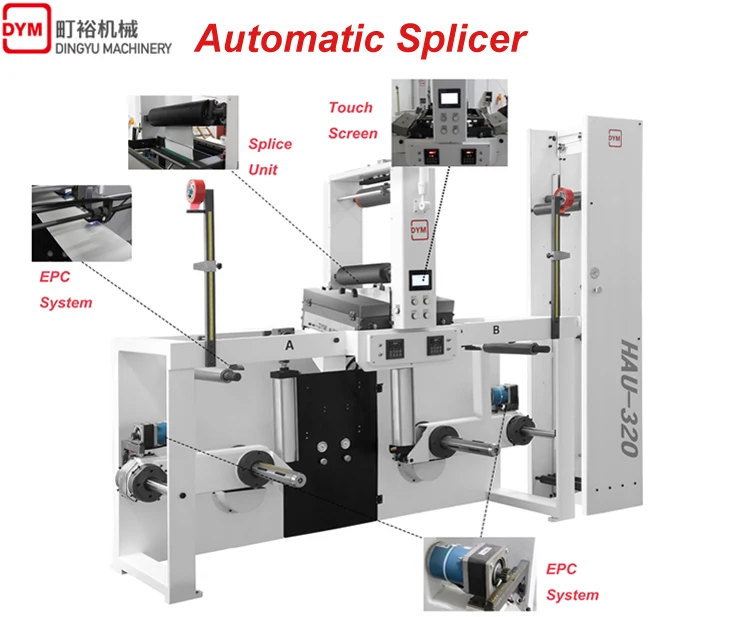

2. HAU-320 Automatic Splicer Machine Detail Information:

(1) Unwind Spindles:

Easy control lift-and-load roll loading. Lift-and-load, built-in roll handling system lifts rolls up to 400 KGS from the aisle, without the need for auxiliary roll loading equipment. Capacity for two full-diameter rolls at any time.

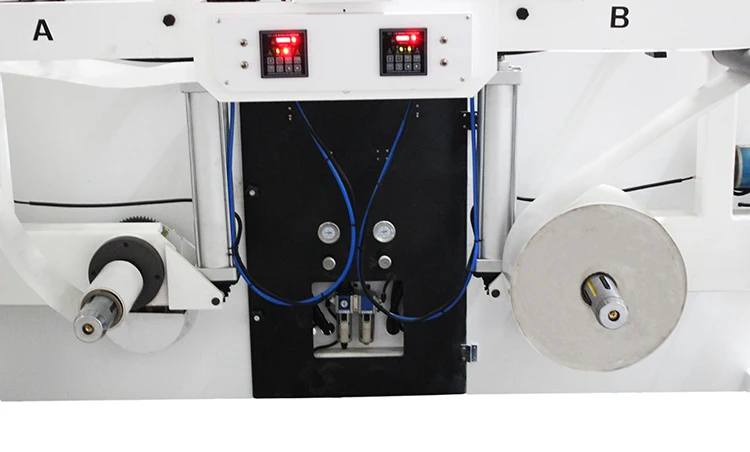

(2) Splice Unit:

Reliable, easy control rolling shear splice unit for clean cut-off and tight splices.

10°Angled butt splice taped both sides (Oblique connect).

100% success connect paper.

(3) Storage Rack With Dancing Roller:

The Storage Rack DINGYU's unique tension coupling method technology for consistent accurate tensioning of the web as it enters.

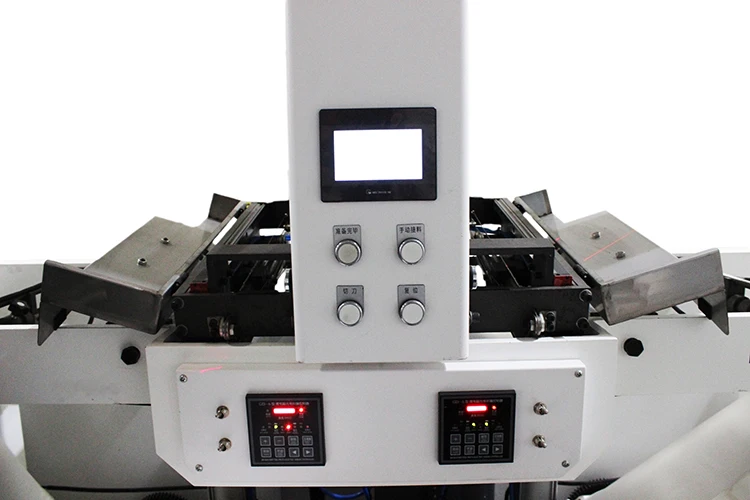

(4) Touch Screen:

Refind process, without specialized training to operate.

(5) Web Guide (EPC):

Automatic unwinding with EPC function (Web guide). This feature maintains the alignment of the running web to the prepared web in the splice unit. A sensor monitors the position of the running web, and the automatic sidelay system compensates to insure that the webs are aligned at the time of a splice.

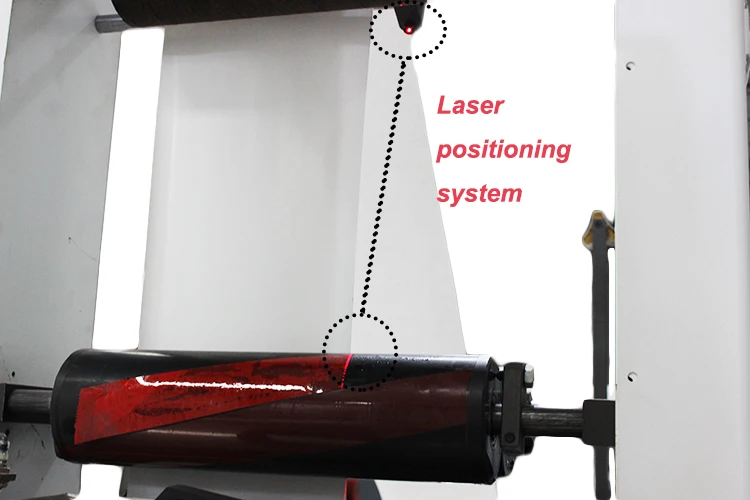

(6) Laser Positioning System:

The laser positioning paper edge material is aligned and help the operator position the second-side tape with greater accuracy.

3. Technical Specification:

Attention

If you need other requests or you work in other industry,

Please contact us when you free,

We also can manufacture Automatic unwinding and rewinding machine adapt to your industry!

 Latest News

 Mexico Country Agent: TTEMSA

TTEMSA Company Website: www.ttemsa.com

The Contact Telephone Number: +52 (55) 54352-0191

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

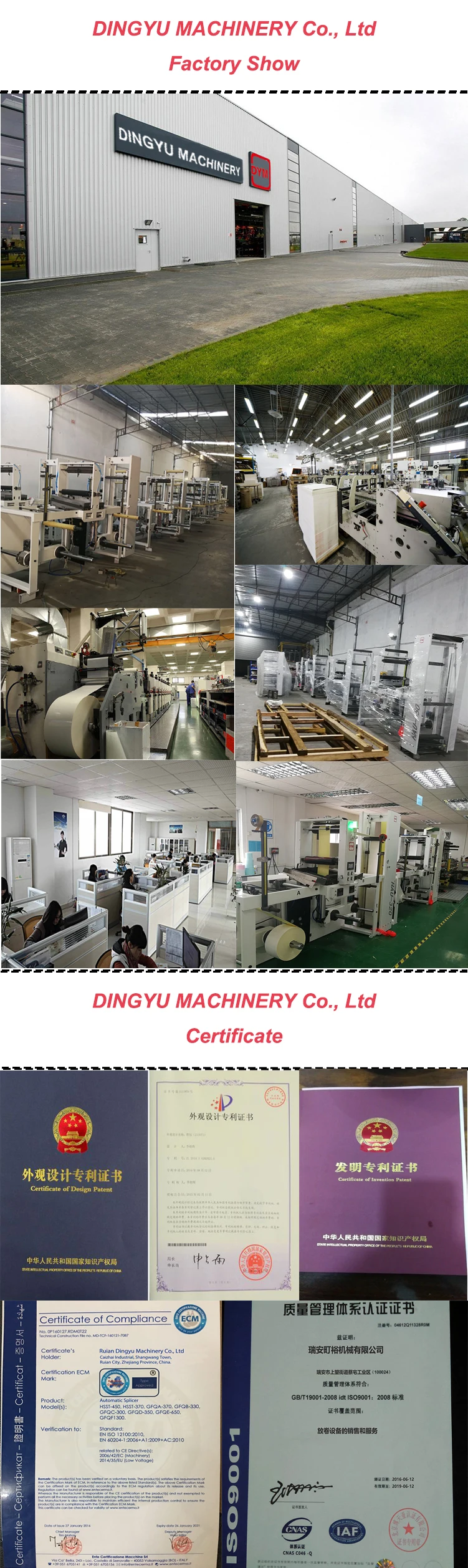

DINGYU Machinery Co., Ltd Introduction

Ruian DINGYU Machinery Co., Ltd insist on " First technology then industry " concept, keep plowing the label printing industry automation. The company during many years of capture, the successful development of sub-coupling couped tension calculation method and matrix tension calculation method, and successfully applied to the market, up to the international counterparts advanced level, in one fell swoop to break the international manufacturers in the industry monopoly!

Our company has a number of paper splitter invention patents. there are rolling method and rolling cutting press the integration of variety method, such as docking paper to adapt different occasions, different tension requirements of suitable printing materials, paper success rate of 100%, can be connected die-cutting, especially DINGYU use unique interchange of public templates, it can be customized for different needs of customers to provide fast delivery and all parts of the general, and greatly reduce the customer of use, maintenance costs, with experienced R&D team and excellent working team, with a full spirit to meet the global businessman and colleagues from all walks of life inspection and cooperation, win-to-win, create brilliant!

 1. Where is your company located?

Our factory is located in Ruian city, Zhejiang Province, China. Ruian is the famous printing machine city. You can take to plane to Wenzhou Longwan International Airport, or take high-speed rail to Ruian station, we will pick you up.

2. What countries have you exported?

We have exported to more than 100 countries in Asia, Europe, Africa, America and so on.

3. Terms of payment?

We accept T/T, 30% in advance and 70% balanced against B/L copy.

We accept L/C at sight.

We accept Cash.

4. DINGYU Machine warranty?

We provide 1 year warranty. In warranty time, without human factors we provide free machine parts and repair service but not including shipping. After 1 year, we provide lifetime service with affordable charge.

5. Can you manufacture also 550mm 650mm wide?

We can manufacture 650mm wide. If you have other request contact us when you free.
