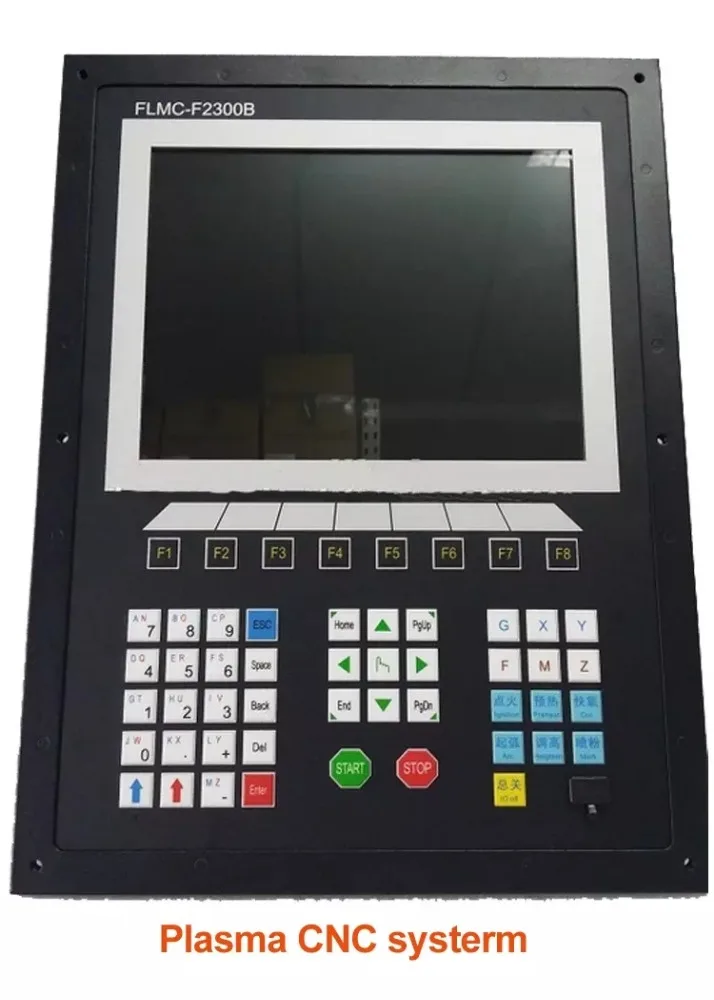

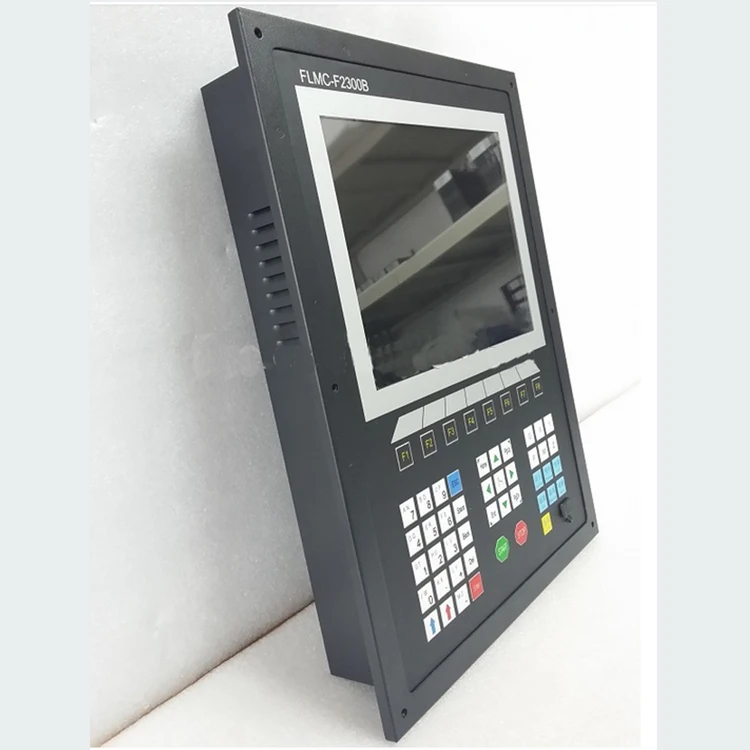

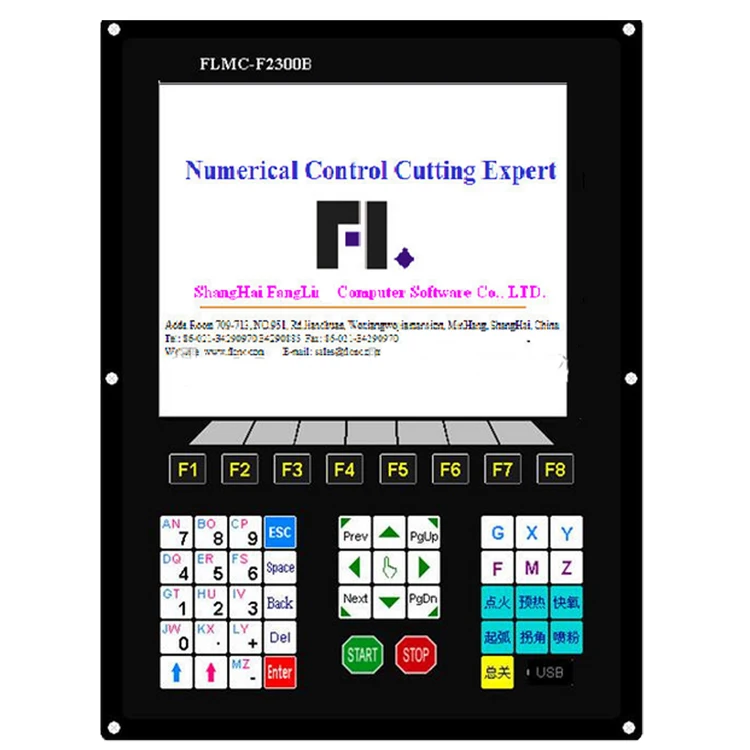

FLMC-F2300B CNC Plasma Control System

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description


FLMC-F2300B CNC Plasma Control Systerm




Model: FLMC-F2300B

Made in china.

Low cost CNC Controller used for cnc plasma cutting machine







Configuration
  1. Monitor: 10.4 inch 800*480, high definition 16 million colors and high brightness LCD
  2. Memory: 64M SDRAM
  3. Program space available for user: 256M electronic hard disk
  4. System master frequency: 400MHz
  5. USBUSB 1.1 front interface, at least 16GB U disk supportable
  6. Keyboard: electronic PCB foil keyboard
  7. Chassis: full-steel structure completely shielded which defends electromagnetic radiation, interference and static electricity
System Information
  • 45 categories different graphics (including grid pattern), chip part and hole part are alternative.
  • Graphics have some operations such as Proportion, Rotate, Mirror.
  • Graphics can be arrayed in matrix, interaction, stacked modes
  • According to plate thickness, the cutting speed is automatically restricted by a speed limit in the corner, effectively preventing over burn.
  • metric system/ imperia system switch
  • Steel plate can be adjusted according to any steel side.
  • Coordinate system can be customized to support the two-dimensional coordinates of all eight kinds.
  • All input and output port type and the number can be customized (normally open or normally closed)
  • system and parameters backup, update system online
  • Chinese / English (including Japanese, Russian, French and other languages )file system and menu can be switched only by one key.
  • select row and column manually.
  • support edge cutting and offset cutting.
  • Automatically memorize the working situation and the last cutting point when power off.
  • Dynamic/static illustration of the process, graphics zoom in / out, dynamically tracking cut-off point under zooming state.
  • support artgrave, TYPEIII, PM2000 cam software
  • set up different administration authority to and the corresponding password to safeguard the interests of managers.
