Product Overview

Description

YOUR PURCHASE INCLUDES

1 x Eagle Eye-30IE 30X zoom camera and thermal camera

1 x Eagle Eye-30IE 360 degree 3-axis high stabilized gimbal system

INTRODUCTION

Eagle Eye-30IE-360 is the new version of Eagle Eye-30IE,there are 2 features for this new 30X EO/IR zoom camera:the first one is its 360 degree rotation,that means the gimbal has unlimited Yaw angle,which is very useful in missions like security and surveillance.Imagine you are tracking a fast moving target,the tracking will possibly be lost if the gimbal reaches its Yaw angle limit.With the 360 rotation gimbal,this problem will no longer exist.The second feature for Eagle Eye-30IE-360 is that it is equipped with an Ethernet video out.In this case,IP video downlink can be used for video transmission.Anyway,if it happens that an HDMIvideo downlink is needed,then no problem,the gimbal comes with an IP over HDMI converter board.

There will be 2 modes for video out and video recored.
Mode 1:1080P 60FPS video out plus 640*480 video recorded.Mode 2:640*480 video out plus 1080P 60FPS video recorded

FEATURES

 1) Weight:1200grams(cameras included)
2) 1/2.8 inch 2.13MP CMOS sensor
3) 30X optical zoom,1080P/60 Ethernet output for video downlink
4) 640*480 H.264 video recorded for on-board TF card
5) Thermal camera:640*480,25HZ,25mm lens,1-4X digital zooming,radiometric(optional)
6) Auto object tracking function
7) Geotagging,gimbal Yaw/Pitch angle info,height,time will be displayed
8) PWM control and serial command control

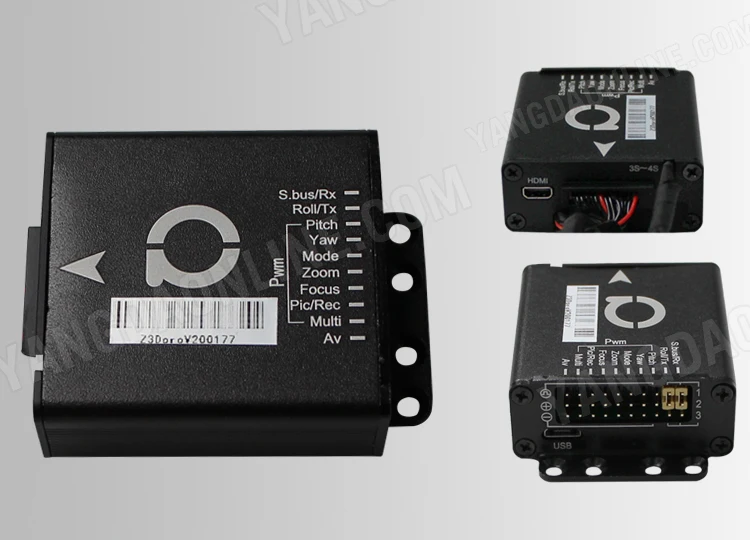

9) Convenient wiring hub for RC receiver and video output
10) 3-aixs high stabilized gimbal system
11) Adjustable control speed: SLOW speed for large zoom range,accurate.FAST speed for small zoom range,sensitive and quick.
12) One key back to home position

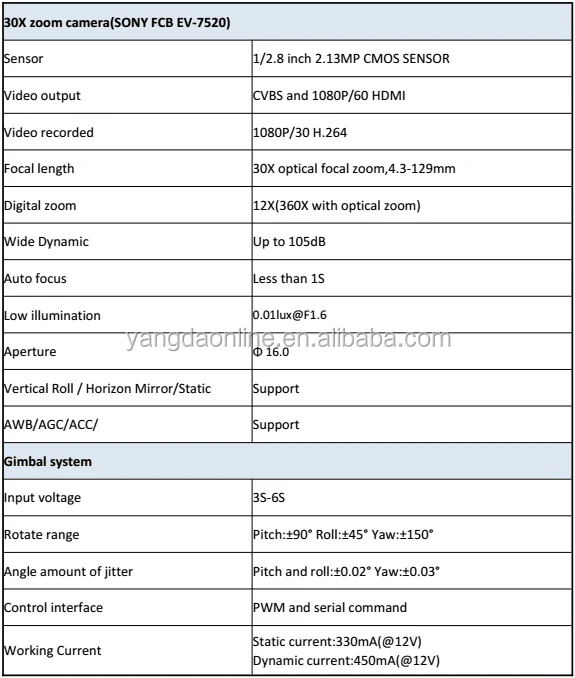

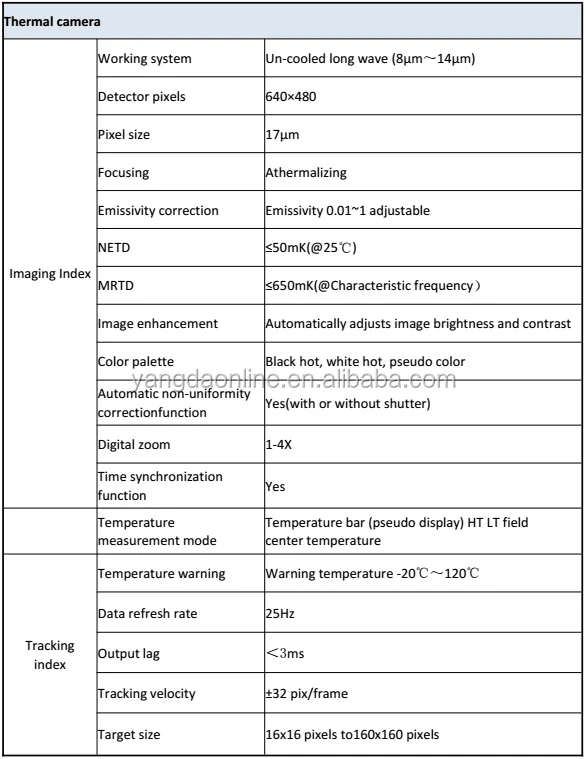

SYSTEM SPECIFICATION

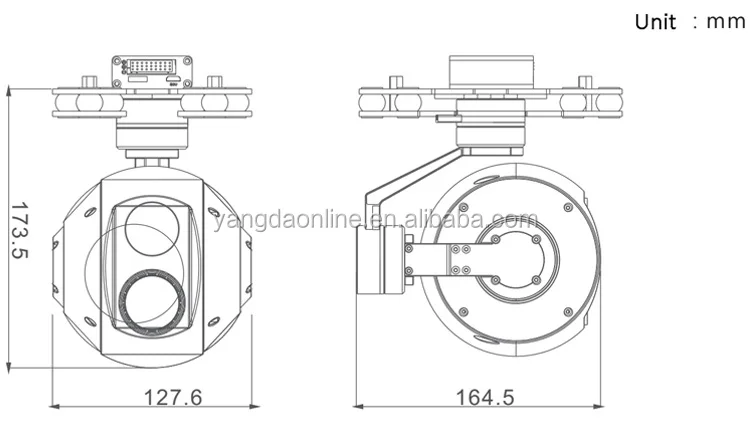

DIMENSION

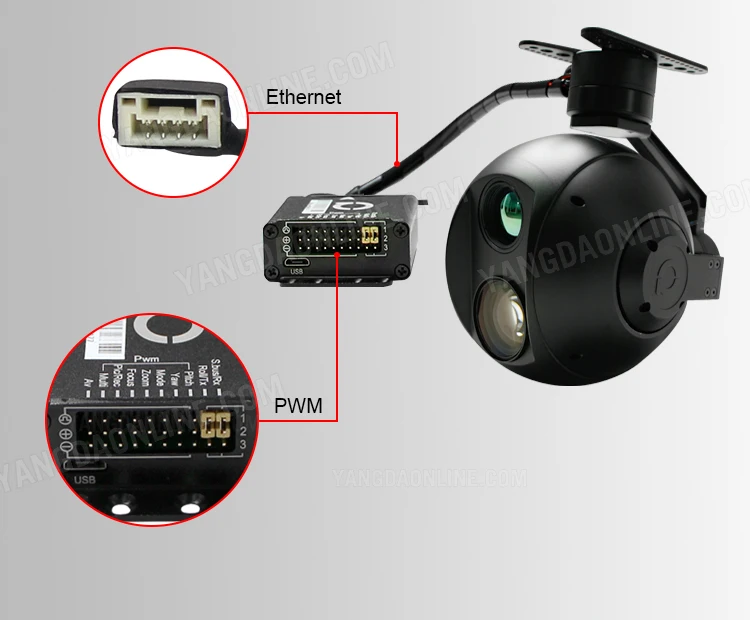

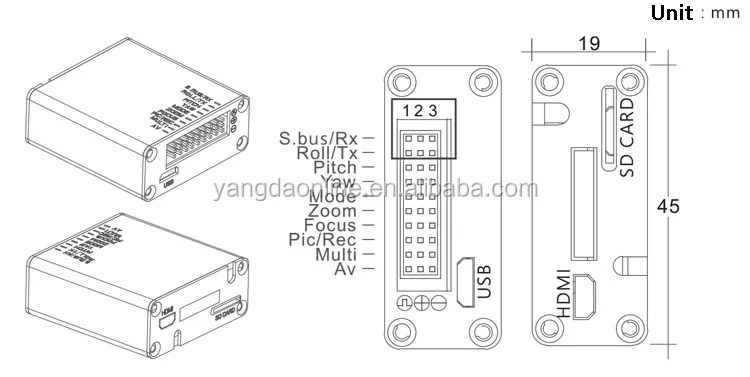

WIRNG HUB DRAWING

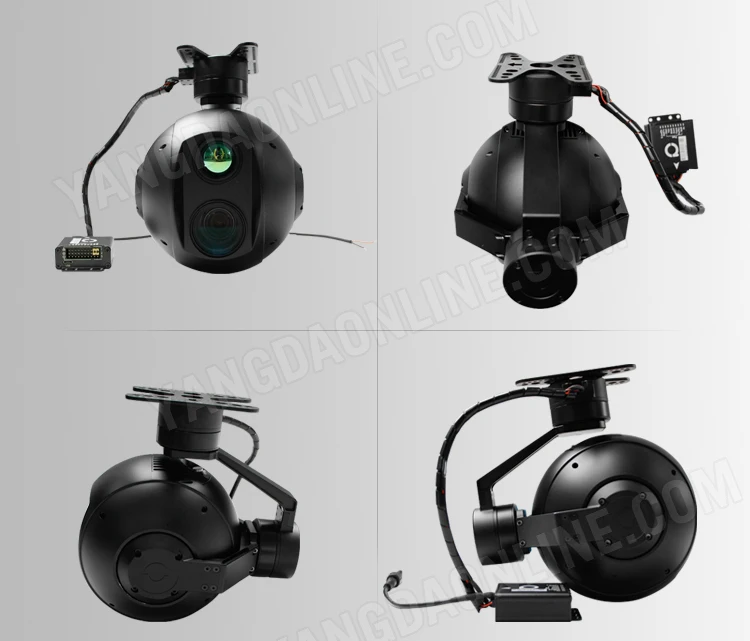

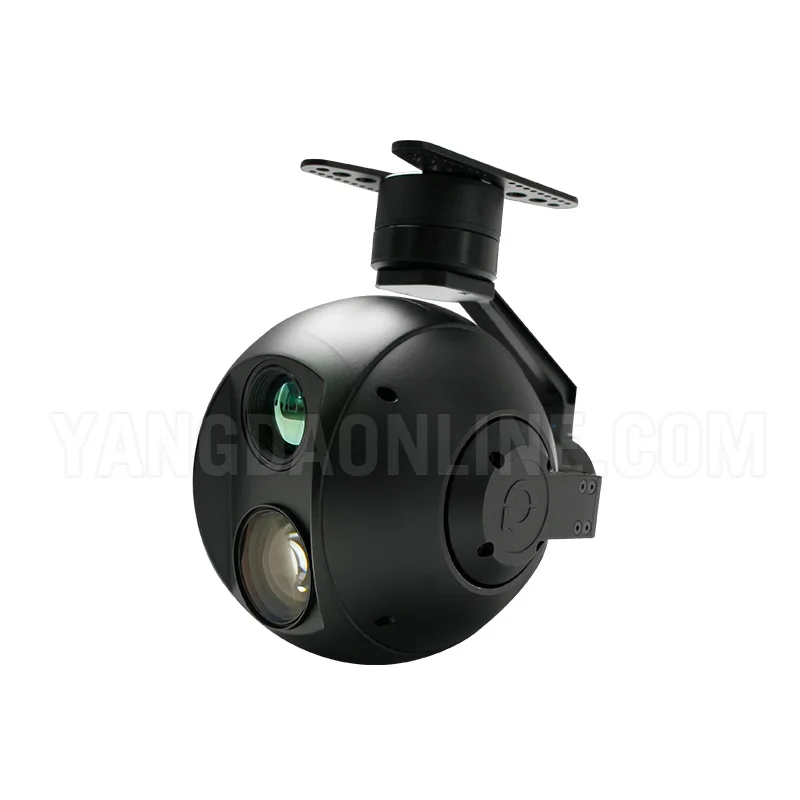

PRODUCT PHOTOS
