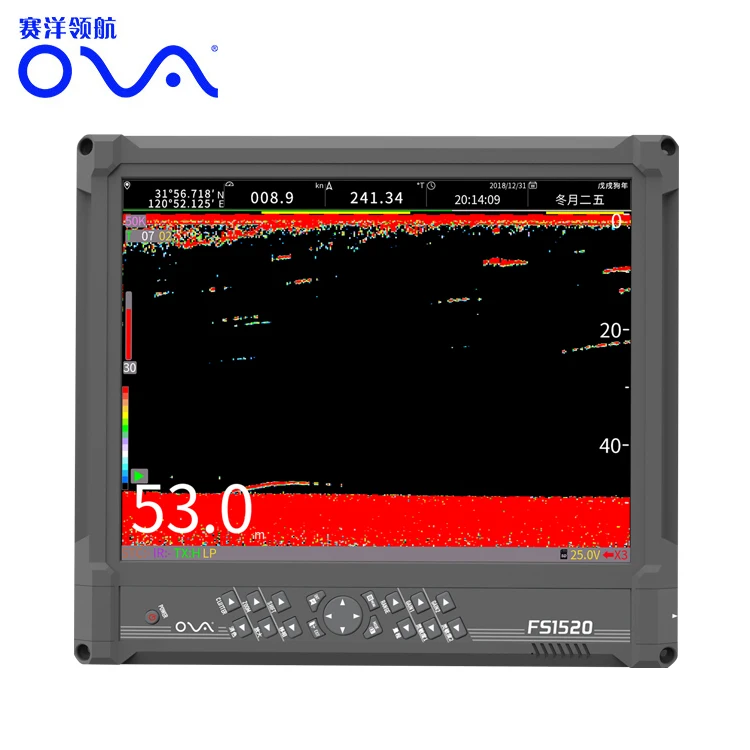

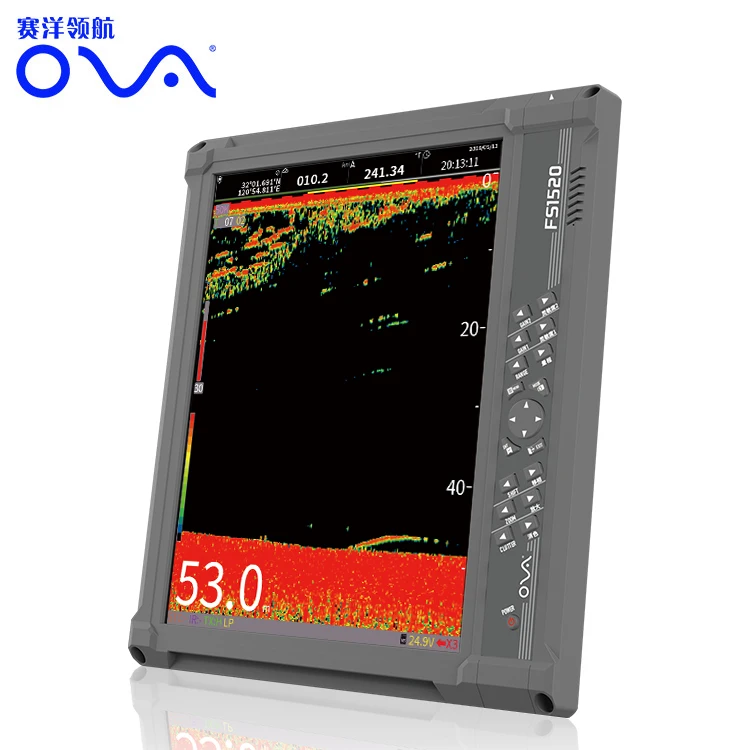

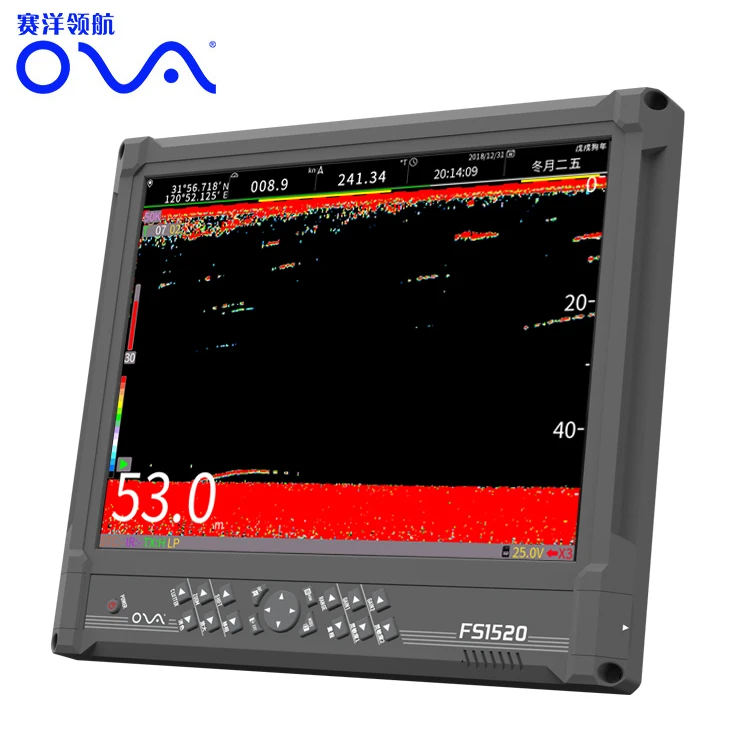

Marine materials 1000 meter fish finder Fishing depth finder and fish finder for Boat

Features:
* High contrast and brightness adjusting effect, suitable for use in bright light and at night.
* Advanced DSP high image supersonic digital processing technology, realizing the low blind spot and the high resolution echo.
* Full quick sampling, let every fish be shown.
* Dual frequency display, and multiple modes of background with human design.
* User-friendly design, beautiful and fashion, delicate and durable, containing multi-language menu display function.
* Storage and replay echo data and rapidly updating software.


Model
FS1520
Display Size
15" Color TFT LCD
Resolution
1024x786px
Processing
Digital Signal Processing(DSP)
Language
Chinese, English, Traditional Chinese(Can be customized)
Voltage Range
24V DC(12~36V DC)
Frequency
50&200KHz dual frequency
Output Transmit Power
1000~5000W
Emission Rate
3600 times/minute on top
Pulse Length
0.12~3.0ms
Measuring Accuracy
0.1m
Sensitivity
-95 dBm
Depth Range
0~2000m
Auto Range
OFF/ON
Auto Gain
OFF/L/M/H
A-Mode
OFF/ON
Fish School Alarm
OFF/Small/Large
Temperature Alarm
OFF/In Range/ Out Range
(Optional with temperature sensing transducer)
Depth Alarm
OFF/In Range/ Out Range
Voltage Alarm
OFF/ON
Expansion Mode
OFF/Auto/Manual/Bottom Lock
Expansion Rate
X2, X4, X8, XR(Actual Resolution)
Amplify Mode/Zoom Mode
OFF/Bottom Lock/Auto/Manual
Picture Advance Speed
7 steps(stop, 1/8, 1/4, 1/2, x1, x2, x3)
Background Color
4 kinds
Color Assortment
7 kinds
Depth Unit
Meter(m), Feet(ft), Fathom(fa)
Scale Line
OFF/ON
Clutter
Yes
TVG
OFF/L/M/H
TX Power
OFF/L/M/H
SD Card
Storage and replay function, software update

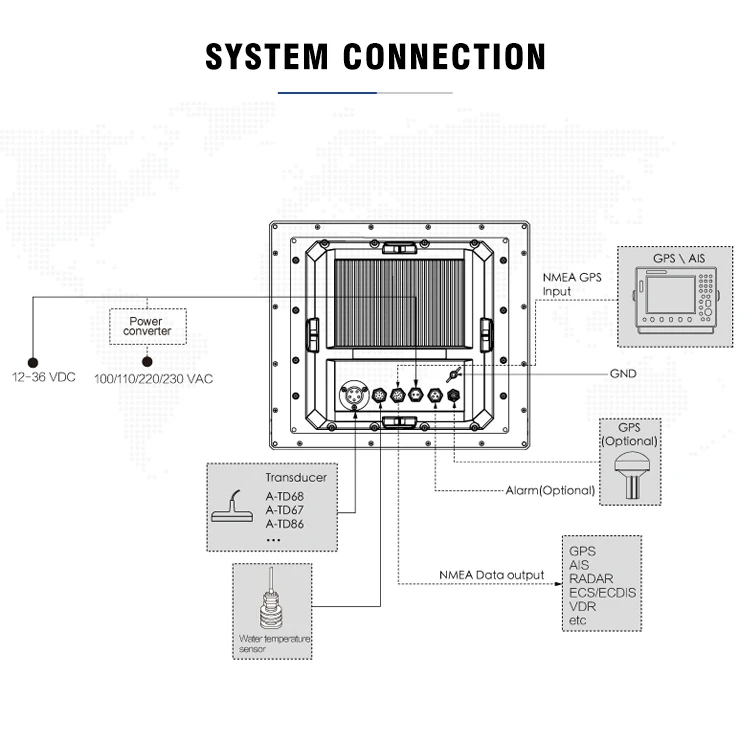

Interface
NMEA0183 Input: GPS Information(GGA, RMC, VTG)
NMEA0183 Output:Depth Data(DPT,DBT)
Water Temperature Interface:x1
Transducer Interface:x3
Power Interface:DC 24V
Environment
Temperature:-10℃~40℃
