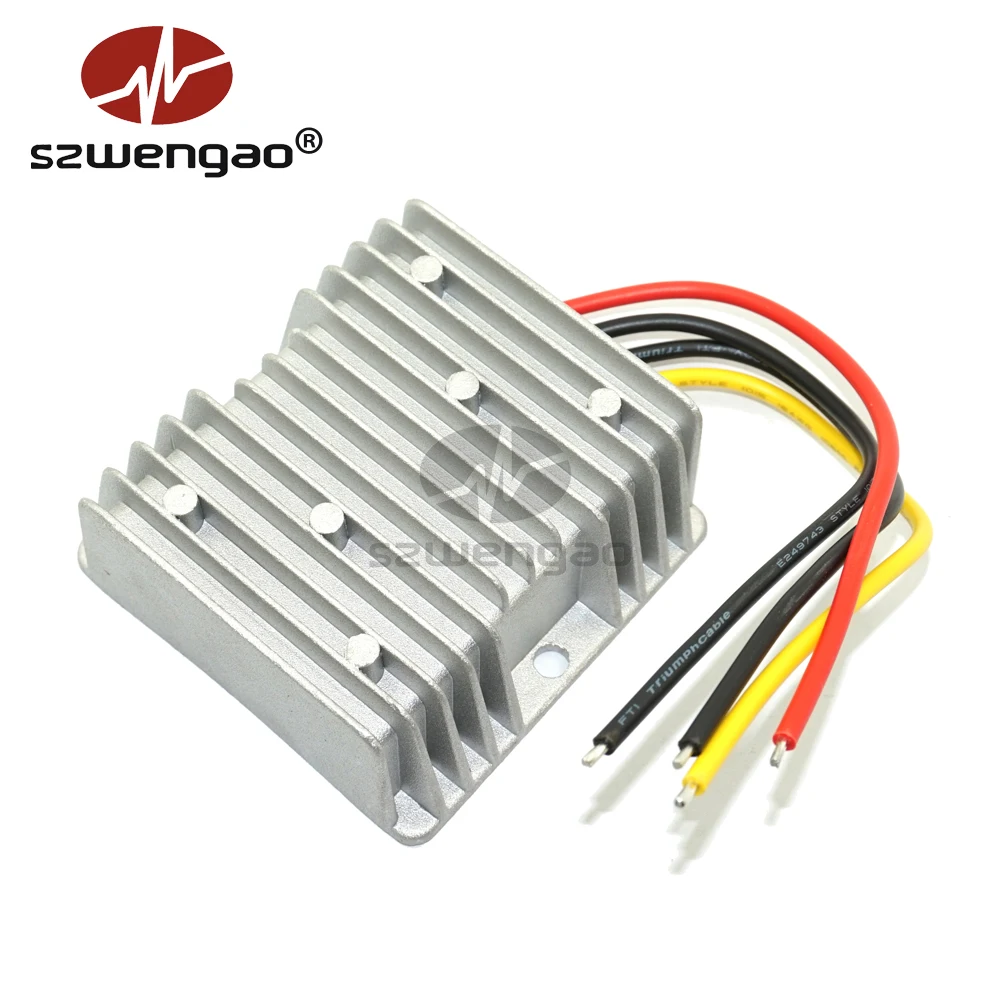

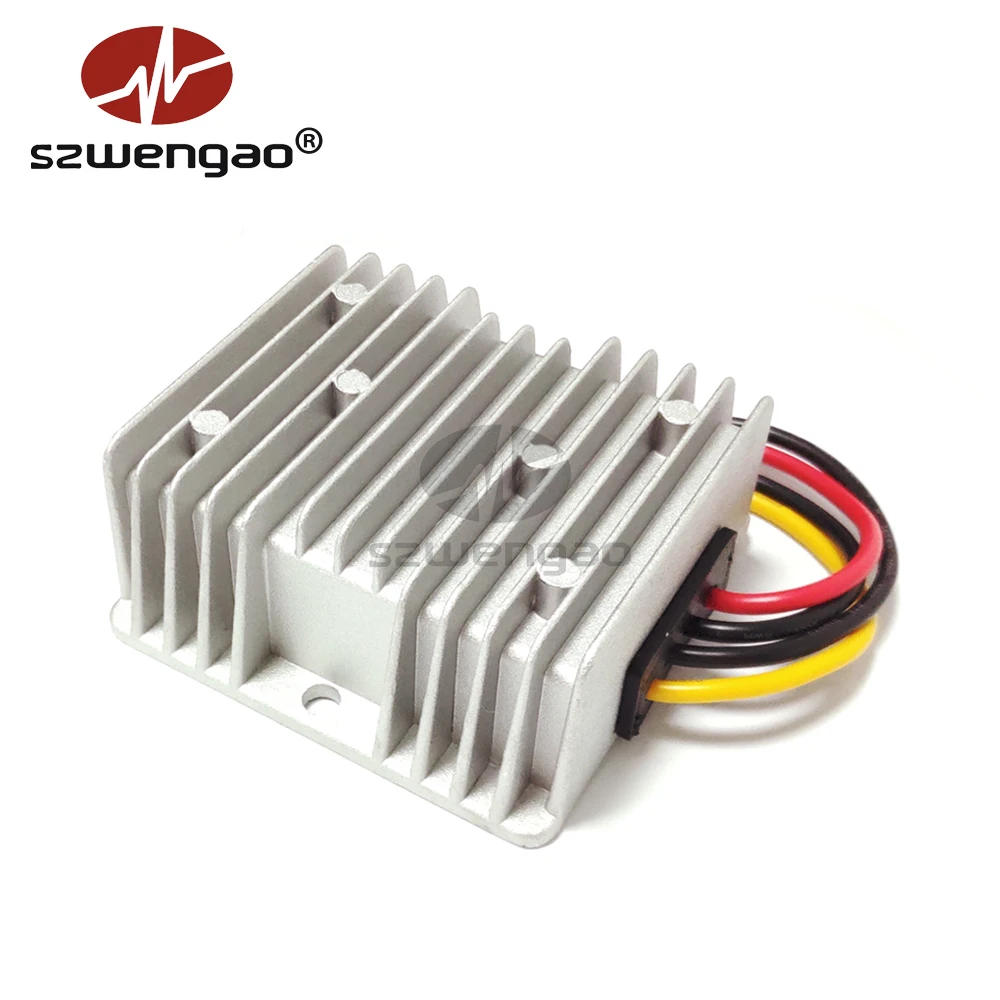

High Performance DC DC Power Converter Step Up 24V to 48V 5A Boost Module for Communication Equipment
- Category: >>>
- Supplier: Shenzhen Wengao Electronic Co. Ltd.
Share on (60747173262):
Product Overview
Description
Product Paramenters
Product Features

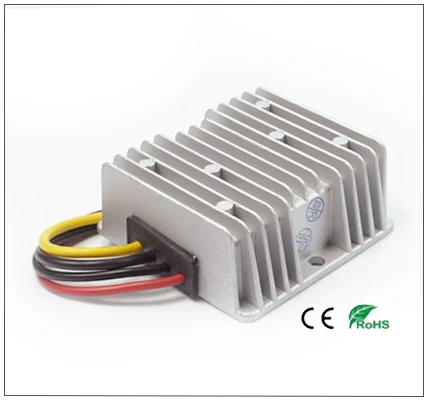

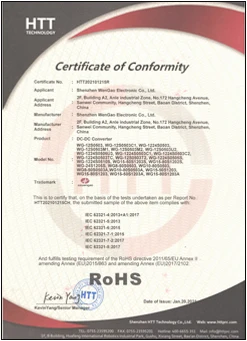

● Design meeting RoHS/CE
● High efficiency: 94% ( @ 24V input )
● Non-isolated between input and output
● Imported capacitors, high reliability
● 100% full load burn-in test
● Advanced switch mode design
● Mount in almost any location
● Over temperature protection
● Over-current protection
● Over-voltage protection
● Epoxy potting, waterproof protection
● Aluminum shell, surface mountable
● Cooling by free air convection
● 1 year limited warranty
Product name | 24V to 48V 5A Boost DC/DC Converter | |
Brand | szwengao | |
Model no. | WG-24S4805 | |
Input rated voltage | 24V DC | |
Input voltage range | 20-32V DC | |
Efficiency | 94% ( @ 24V input ) | |
Output voltage | 48V DC | |
Output max. rated current | 5A | |
Output max. rated power | 240W | |
Voltage regulation | ± 1% | |
Load regulation | < 2% | |
No load loss | 40mA @24Vin | |
Ripple & noise | 240mV (full load) | |
Working temperature | -40 ~ +80°c | |
Working humidity | 10% ~ 90%RH | |
Storage temperature | -40 ~ +100°c | |
Weight | ≤ 300g | |
Dimension | 74*74*32mm ( 2.93*2.93*1.26 inch ) | |
Input connect type | 14AWG ( R+, B- ) cables @ 16-17cm length | |
Output connect type | 16AWG ( Y+, B- ) cables @ 16-17cm length | |
Packing type | Box | |
Cooling | Cooling by free air convection | |
Note: specifications typical @ Ta=25 °C(77°F), Vin =24V, Vout =48V, unless otherwise specified. | ||

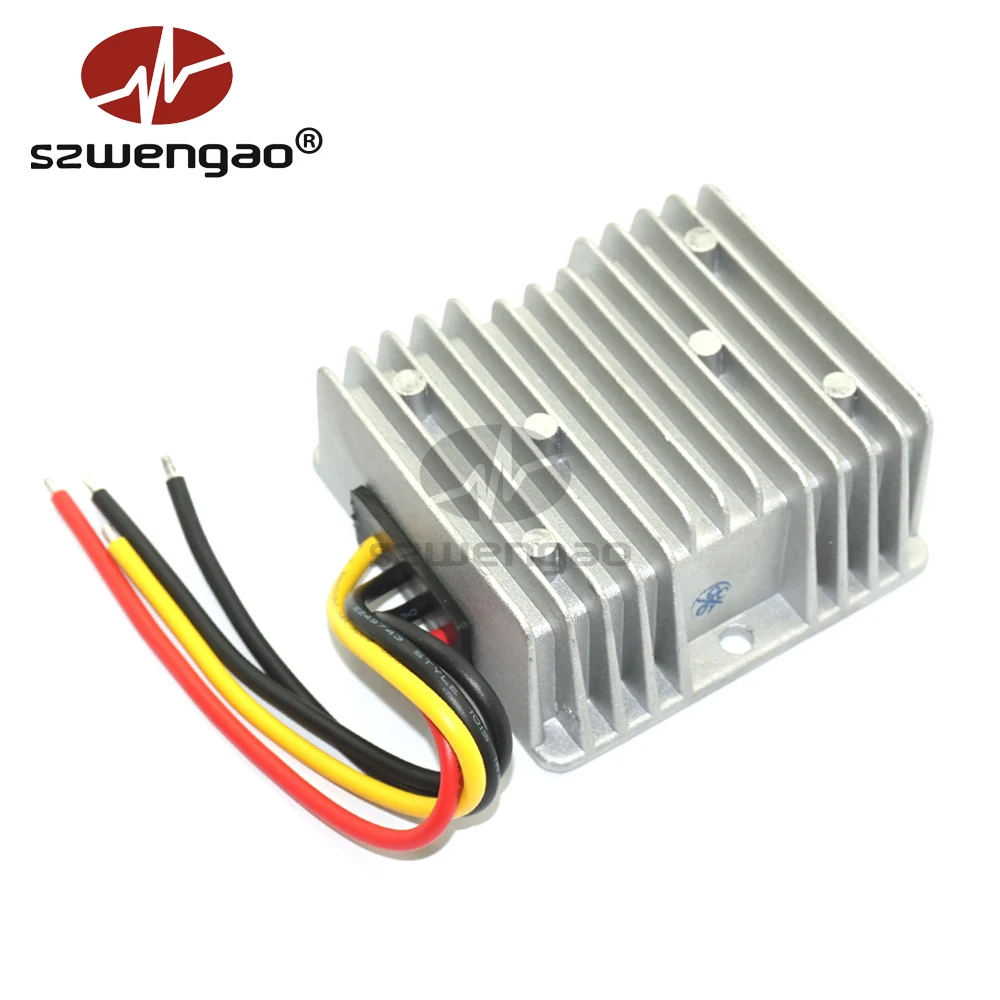

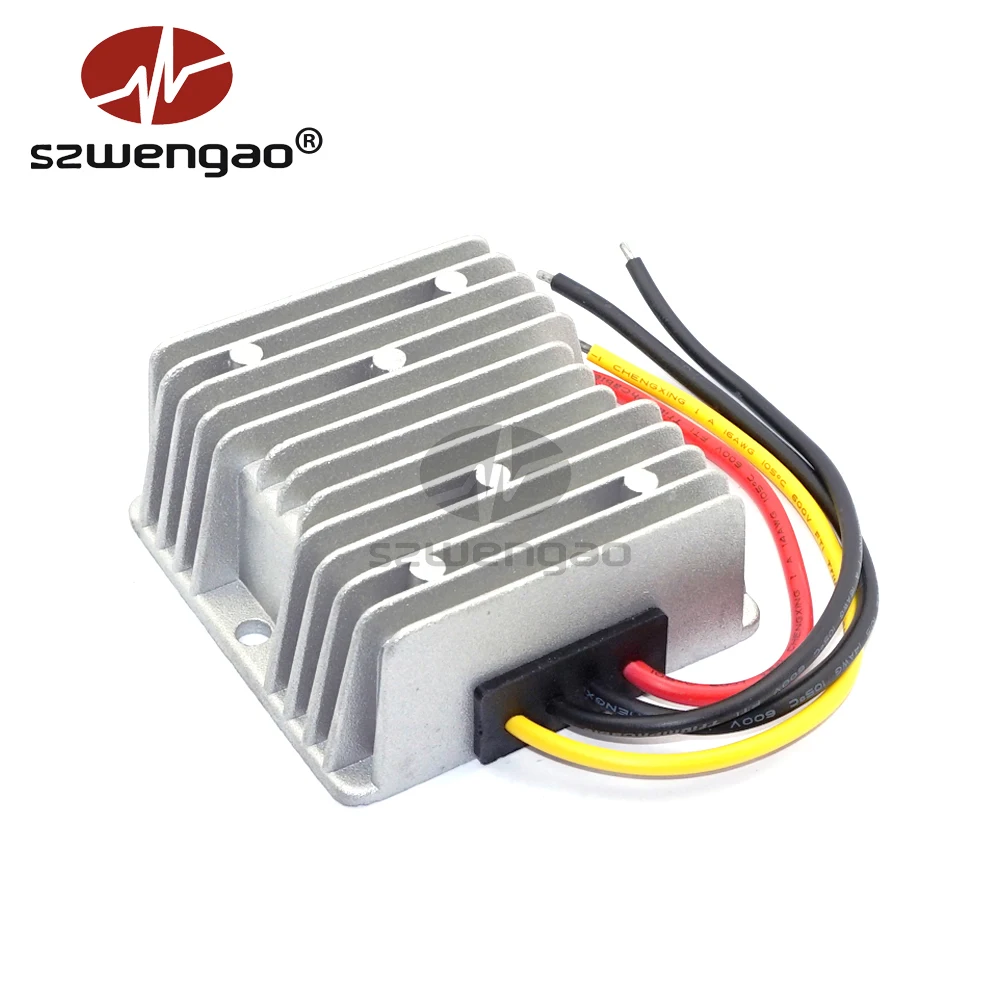

Product Pictures
NOTICE

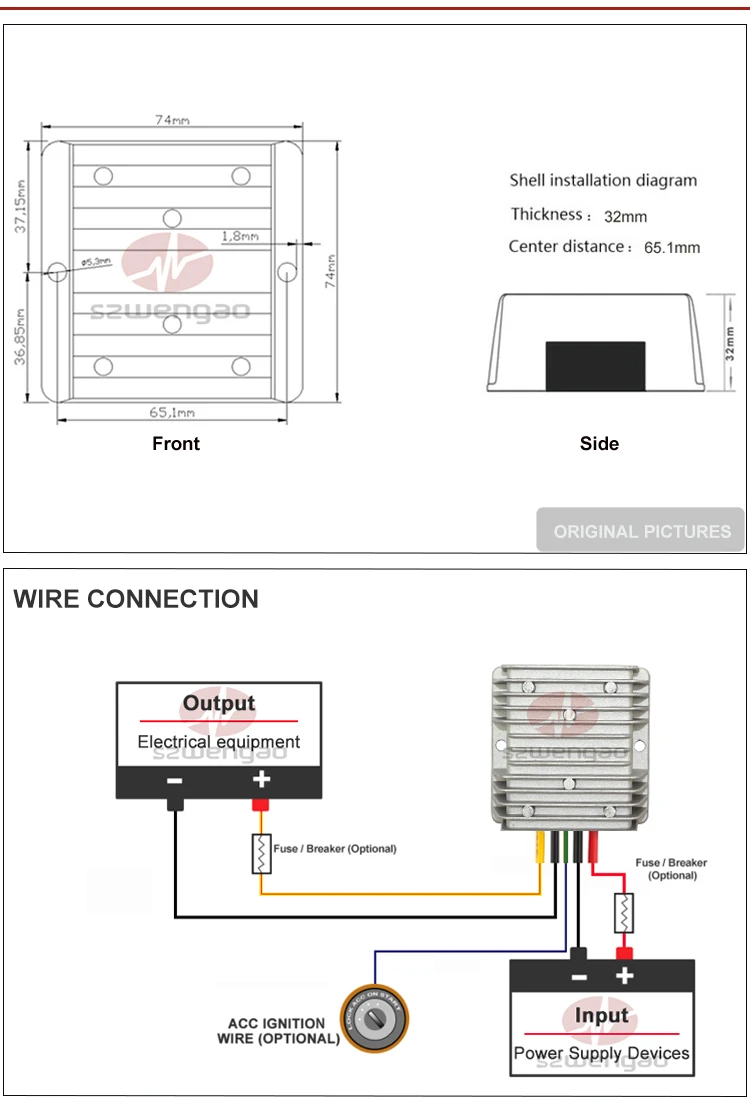

A. Be sure to make the correct connection according to the product nameplate and the wire marking. The wrong connection will cause the damage of the product, and even result in the danger of fire and so on.
B. To ensure safety, a fuse should be connected to the input terminal to prevent the permanent damage caused by wrong connection of positive and negative pole and over-voltage. Some products have been installed the fuse before leaving the factory, and due to the current reason, you’d better match fuse for those products with no fuse.

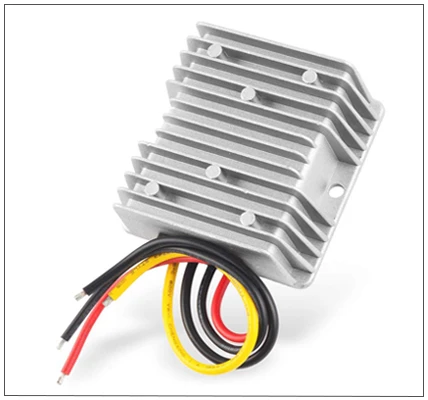

Details Images

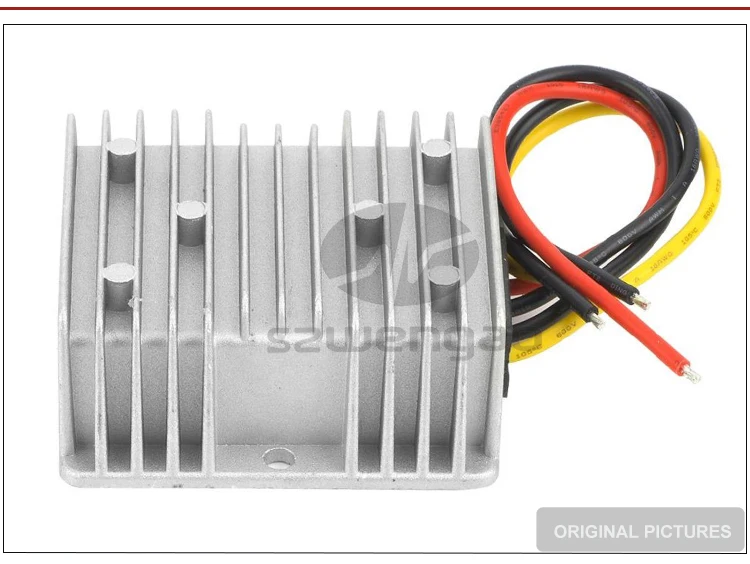

ALUMINUM SHELL
Three-sided heat sinks, better heat conduction effect.

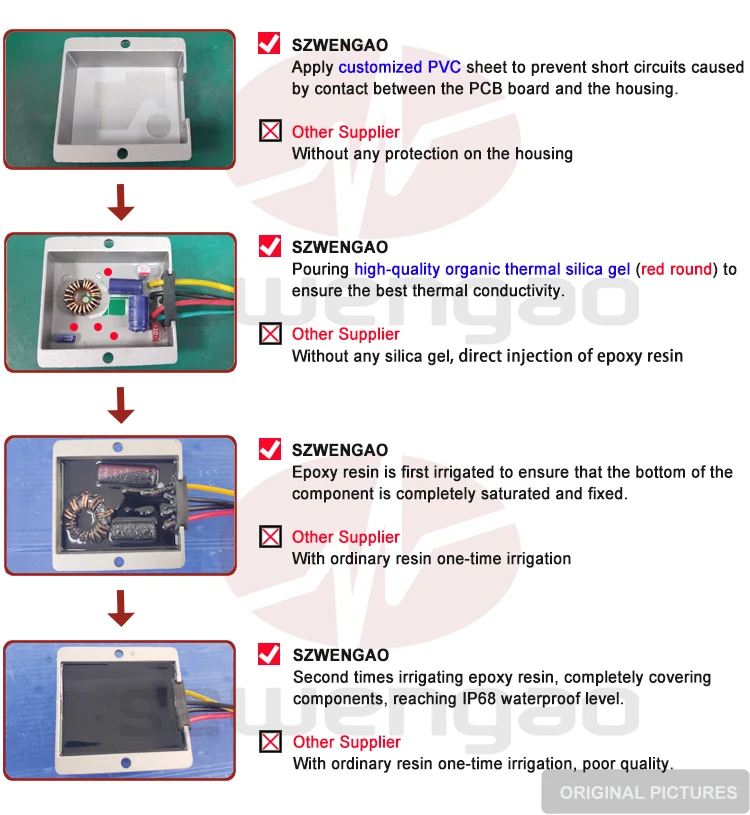

ORGANIC SILICA GEL POTTING
IP68 protection grade, waterproof, dustproof and anti-seismic.
SMT PROCESS
Products is smaller and lighter. High reliability and strong anti-vibration ability. Low solder joint defect rate.
IMPORTED COMPONENTS
Import of original industrial chips & capacitances ( such as TI, NCC, NICHICON and so on).

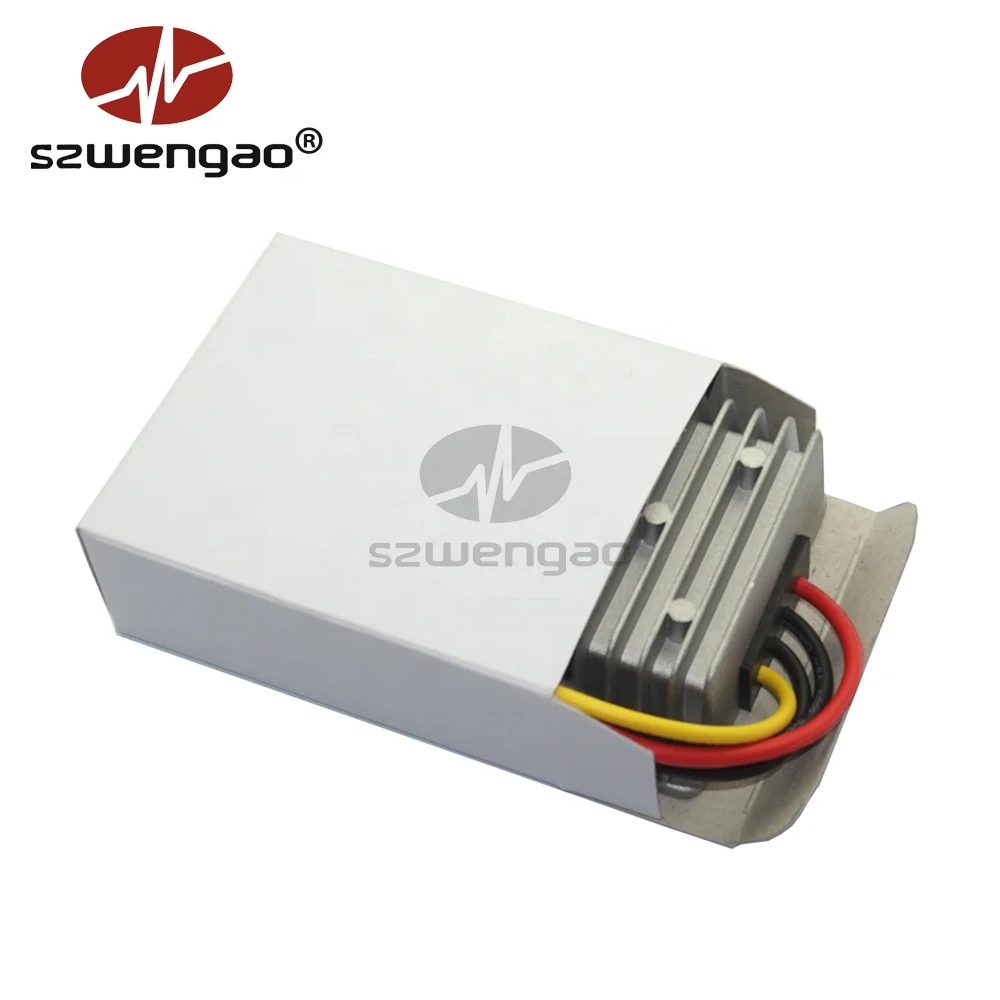

GIFT BOX
30PCS/CTN, Outer carton size 40*25*23CM
Total weight 17KGS/CTN
APPLICATIONS
Rail transit, communications, electrical equipment, ships, renewable energy, LED Marketplaces and so on..
Related Products
Model | Input voltage | Output voltage | Output power | Sample price/pcs |
12V DC | 24V DC | 0 ~ 720W | USD $43.00 | |
12V DC | 24V DC | 0 ~ 1200W | USD $75.00 | |
12V DC | 24V DC | 0 ~ 240W | USD $7.50 | |
12V DC | 24V DC | 0 ~ 120W | USD $6.20 | |
12V DC | 24V DC | 0 ~ 72W | USD $3.90 |
Packing&Shipping

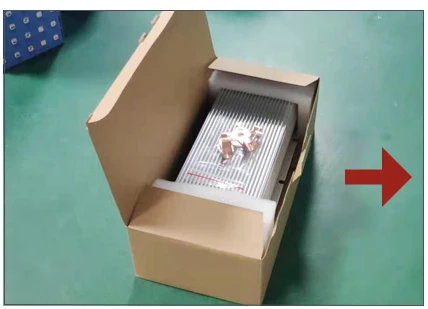

All the items are packaged by a box, then use a large outer cartons. Sample(usually 1-50 pcs) orders we make shipment within 48 business hours by DHL, UPS, EMS, FEDEX and TNT from Shenzhen or Hongkong
All the price not including Tax fees.
If you need assistance setting up or using your SZWENGAO product now or in the future, call SZWENGAO support.
Tel: +86 0755-29418061, Email: info@wengaoelec.com
Why Choose Us
Great Service
“We will always be there when you need power protection solution.” the customer service is available 24/7.
Enough in stock, after receive payment 1-3 working days arrange shipment.
Best Quality
We have our own professional testing equipment, all items will strictly selected and tested by QC department.

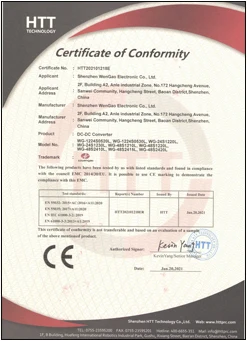

According to: ISO 9001: 2015
According to: ISO 9001: 2015
R&D Team
We have more than 15 years experience in power supply. OEM/ODM is welcome to our company.
Best Price
100% factory price, Cut down the cost you paid to the middle man. “Provide customers with high cost performance and high stability products.”
Process Flow
Experience, High R&D quality. Your partner in reliable power products.
FAQ
What is the DC-DC Converter?
A dc-dc converter is electronic circuit. The main function of this circuit is to modify one potential difference (i.e., voltage)
level to another potential difference level. It is basically a voltage regulator consisting of switches, inductor, and capacitor
for power conversion.
level to another potential difference level. It is basically a voltage regulator consisting of switches, inductor, and capacitor
for power conversion.
Can I get one for sample?
Yes, we accept sample order or trial order for testing first.
Do you have your own factory?
100% Yes, we are professional manufacturer mainly in DC/DC Converters & Battery Chargers for about 10 years. Our factory is located in Shenzhen of China.
What's the price and MOQ?
Please just send me inquiry, your inquiry will be replied within 24 hours, we will let you know the latest price and MOQ.
What's you delivery time?
We have in enough stock for standard products, usually sample order shipment with 48 business hours. 5-7 working days for batch order
How about your warranty?
We provide 1, 3 and 5 years warranty for different products and whole life technical support.
Company Profile

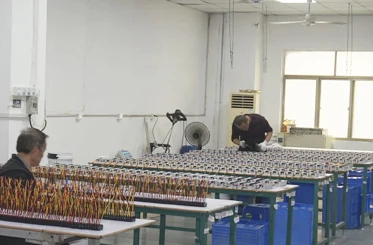

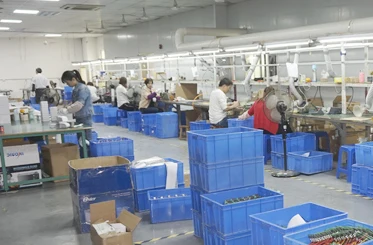

Factory Show
