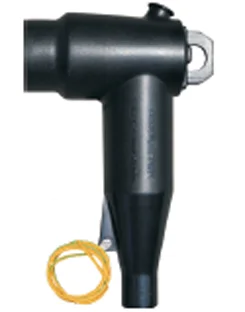

Screened separable front t connectors are made of EPDM rubber in 3 layers: inner conductive layer, insulating layer and outer conductive layer. Supply completed kit with cable lug and screw connections for one or three-core XLPE/EPR cable up to 24kV with Al or Cu conductors. Separable front connectors are used in cable branch box, rain main unit and pad-mounted transformer. It fits for the standard bushings with cone in accordance with EN50180-50181.

\t
Technical data
\t
Rated voltage
\t
kV
\t
8.7/15(17.5)
\t
12/20(24)
\t
Rated current
\t
A
\t
630
\t
630
\t
AC withstand voltage
\t
kV/min
\t
39/5
\t
54/5
\t
Partial discharge at
\t
≤pC(kV)
\t
≤10(15)
\t
≤10(20)
\t
Thermal short-circuit
\t
kA/s
\t
22.8/2
\t
24/2
\t
Dynamic short-circuit current(10ms)
\t
kA
\t
80.8
\t
84
\t
Cable cross section
\t
mm²
\t
35-400
\t
35-400

Main Features

1) Fast, safe and easy installation with standard tools.

2) Fully insulated, fully screened and fully sealed.

3) For Cu or Al conductors.

4) Indoor and outdoor application.

5) 100% unit testing.


12/24kV Cable adapter instruction

\t
Inner diameter of adapter
Φd (mm)
\t
14.5
\t
19
\t
23
\t
28
\t
Cable insulation diameter
\t
Type 01
16-20mm
\t
Type 02
21-25mm
\t
Type 03
26-31mm
\t
Type 04
32-38mm
\t
8.7/15kV   Cable cross section  (mm2)
\t
35-70mm2
\t
95-150mm2
\t
185-300mm2
\t
400mm2
\t
12/20kV  Cable cross section   (mm2)
\t
35-50mm2
\t
70-120mm2
\t
150-240mm2
\t
300-400mm2
Certifications
Detailed Images

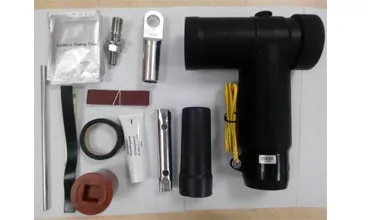

Components:
1.Screened front connector           9. Self-adhesive tape
2. Screen cover                                 10. Abrasive paper
3. Cable lug                                         11. Silicone grease
4. Insulating plug                              12. Dielectric cleaning tissue
5. Cable adapter                                 13. Installation instruction
6. Bolt                                                     14. Packing list
7. Tube spanner                                 15. Certificate of conformity
8. PVC tape                                           16. Out-factory record



1. Suitable for fully-submersible connection of size
     Φ46/ Φ56 /91.5 /M16 bushing

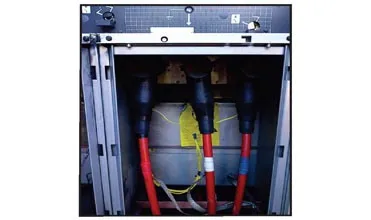

2. Screened front and rear connector are suitable for
     cable branch unit, Ring main unit ,  pad-mound
     transformer and etc..
3. Apply to 12/20kV XLPE cable and cable cross
     section is 35-400mm2


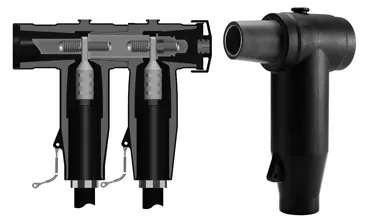

Assembled with front connector ,

Rear connector 24kV 630A

Part No.: AHT3-24/630KD

Cable cross section: 35-400mm²

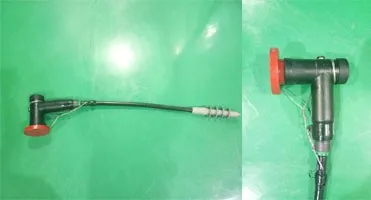

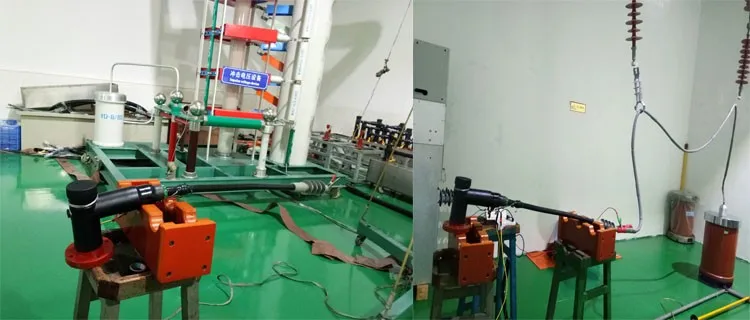

Routine type test according to CENELEC HD629.1

-AC withstand voltage test

-Partial discharge at

-Impulse voltage test

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
\t
Packaging for 3-core product
\t
Inner carton size
\t
400*270*166mm(3-core)
\t
Outer carton size
\t
575*420*375mm(3-core)
\t
Pallet size
\t
1.1(L)  * 1.1(W)  * 1.7(H) m
\t



Packaging Details
\t
For 3-core (1set=3pcs) :
--1 set per inner carton
--4 inner cartons  per outer carton
--16 outer cartons per pallet


\t
Packaging for 1-core product
\t
Inner carton size
\t
\t
Outer carton size
\t
540*370*280mm
\t
Pallet size
\t
1.1(L) * 1.1(W) * 1.6(H) m
\t



Packaging Details
\t
For 1-core (1set=1pc):
--1set per inner carton
--10 inner cartons per outer carton
--30 ourter cartons per pallet
