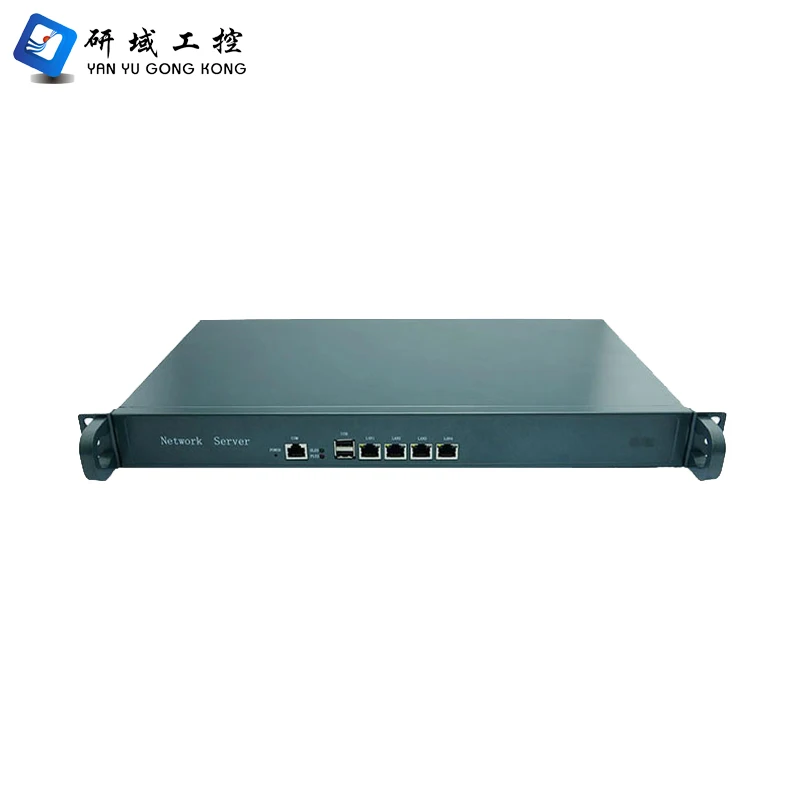

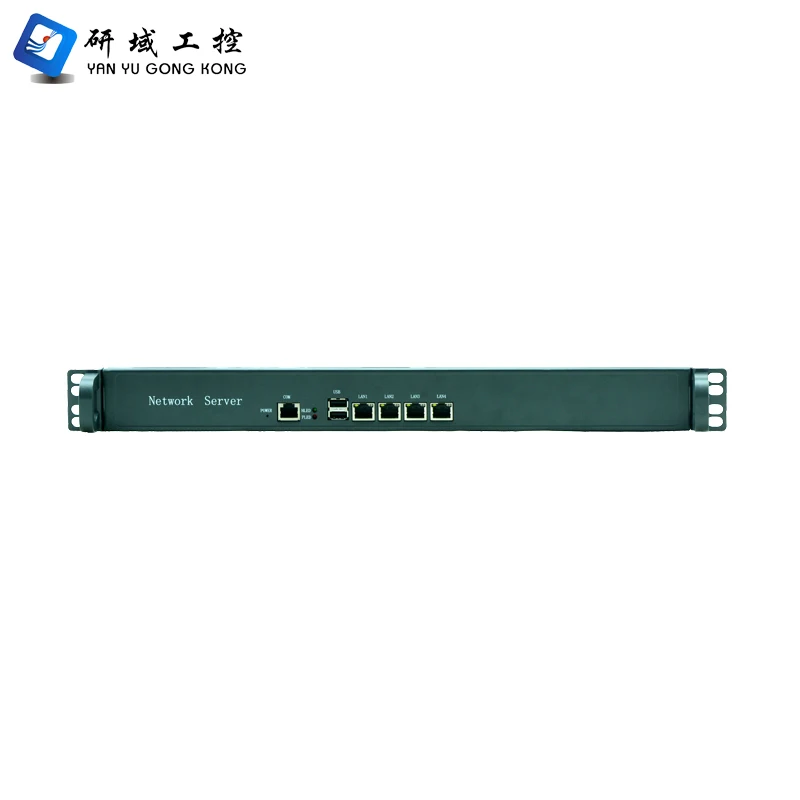

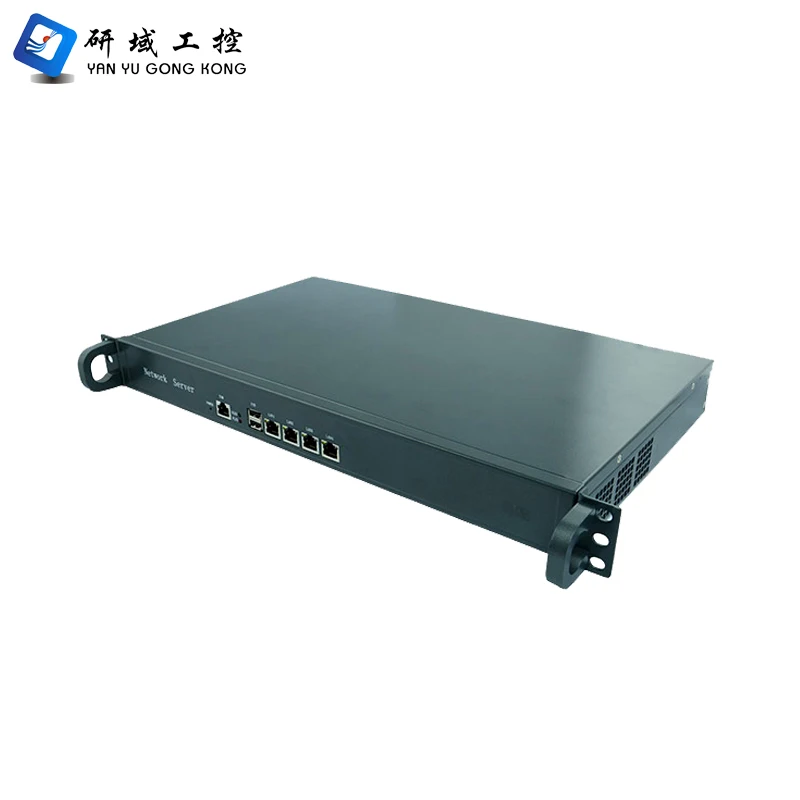

Четырехъядерный сетевой маршрутизатор 1U 4 LAN Celeron J1900, сетевой защитный сетевой маршрутизатор, брандмауэр, устройство для ПК pfsense
- Category: Firewall & VPN >>>
- Supplier: Yentek (shenzhen) Technology Co. Ltd.
Share on (60747239430):
Product Overview
Description
Intel IoT Solution Alliance Affiliate Member
Intel Intelligent System Alliance Member
ISO9001:2015 Quality Management Certified
ISO14001:2004 Environmental Management Certified
National High Tech Enterprise With Professional and Experienced R&D Team
1U250C 1U 4 LAN Celeron J1900 Quad Core Network Security Router
Features
1U standard chassis
High quality galvanized steel plate,compact structure,flexible installation
Integrated Intel® Celeron J1900/2.0GHz quad core processor
1xVGA ,2xUSB2.0,1xCOM
Adopt 82583V chipset,support 4* Gigabit LAN
Size: 430mm*250mm*46mm
Order Information
No. | Model | Processor | Motherboard | Memory | LAN | COM | HD OUTPUT | VGA | USB2.0 | USB3.0 | SIM | power-input |
1 | R9FUZ V1.0(J1900) | J1900/2.0GHz | M9F | 1*SODDR3L | 4* 82583V | 1 | N/A | 1 | 2 | N/A | N/A | 1U |
2 | R9EUZ V1.0(J1900) | J1900/2.0GHz | M9E | 1*SODDR3L | 4*I211 | 1 | N/A | 1 | 2 | N/A | N/A | 1U |
3 | R41EUZ V1.0(J4125) | J4125 /2.0GHz | M41E | 1*DDR4 | 4*I211 | 1 | N/A | 1 | 2 | N/A | N/A | 1U |
4 | R41VUZ V1.0(J4125) | J4125 /2.0GHz | M41V | 1*DDR4 | 4*I225V | 1 | N/A | 1 | 2 | N/A | N/A | 1U |
Specification
| Model No. | R41EUZ | |
| Chassis | Color | Silver black |
| Dimension | 430mm*250mm*46mm(L*W*H) | |
| Structure | 1U Standard chassis | |
| Material | High quality galvanized steel sheet | |
| Installation | 1U standard rack mounting method | |
| Motherboard | Model | ITX-M41E |
| Processor | Integrated Intel® Celeron J4125/4Cores/2.0GHz Processor | |
| Chipset | Based on Intel® Bay trail SOC platform | |
| Graphics | Graphics | Integrated Intel® HD Graphics, support 1* VGA display output |
| Storage | Memory | 1* 1600/1333MHz DDR3L/1.35V memory, max support 8GB |
| HDD | Support 1*2.5 inch HDD expansion | |
| CF | N/A | |
| SSD | Support 1*MSATA SSD expansion,standard configuration 8G | |
| Audio | Sound Card | N/A |
| Network | Ethernet | 4* Intel 82583V 1000/100/10Mbps |
| WiFi | N/A | |
| Front I/O | Serial Port | 1* standard COM port |
| USB | 2* USB2.0 | |
| LAN | 4* RJ45 Gigabit LAN Port | |
| Power Switch | 1* Power switch | |
| LED | 1* HDD LED, 1* Power LED | |
| Rear I/O | Display | 1* VGA |
| Power | 1* ATX Power Input | |
| WiFi | 2* WiFi/3G SMA antenna (optional) | |
| Power | Input | AC 110V~220V |
| Ouput | DC 12V 5A | |
| Type | AC to DC 12V open PSU | |
| Reliability | Operating Temp. | 0℃~45℃ |
| Storage Temp. | -20℃~70℃ | |
| Relative Humidity | 5%-95%, no condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
| Operate System | Support Windows7/8.1/10/Linux OS | |
