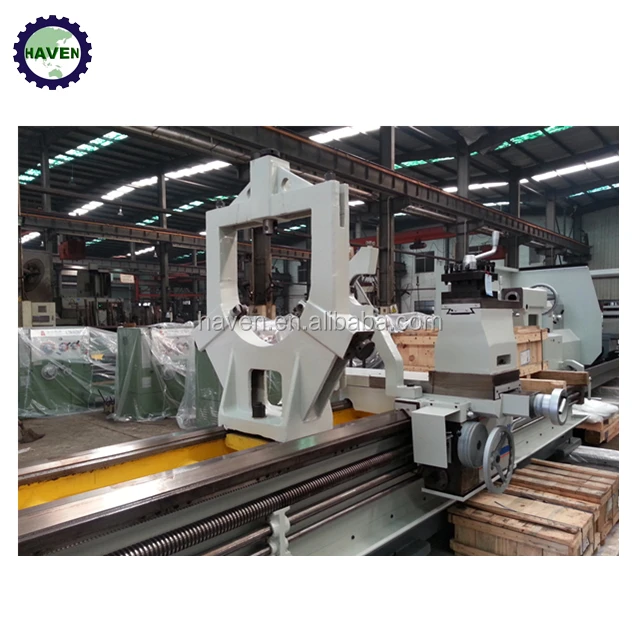

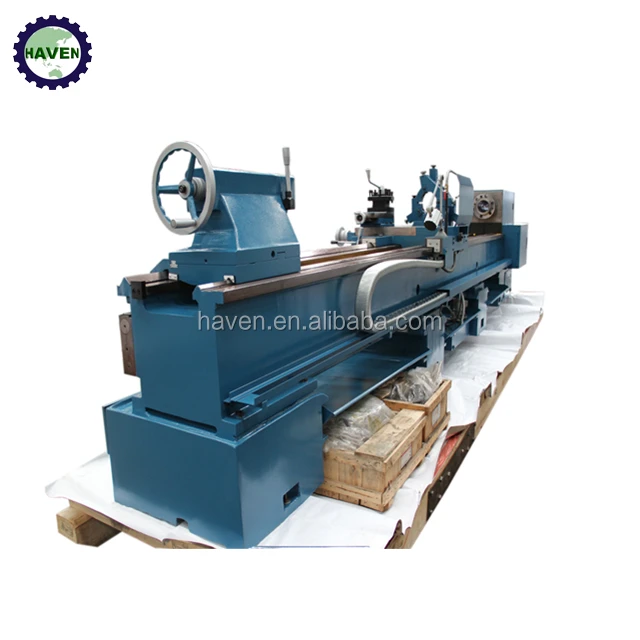

CW6163C/3000 China conventional Horizontal Lathe Machine
Main Functions:
This series horizontal lathe is a new-designed product, which are based on 63C series lathe according to the market’s demand, The lathe is especially suitable for machining light-duty big disc work pieces and big diameter shaft work pieces
It including: CW663C, CW6 73C,CW683C, CW693C, ect. Distance between center are 750mm,1000mm,1500mm,2000mm,
3000mm,4500mm,6000mm.

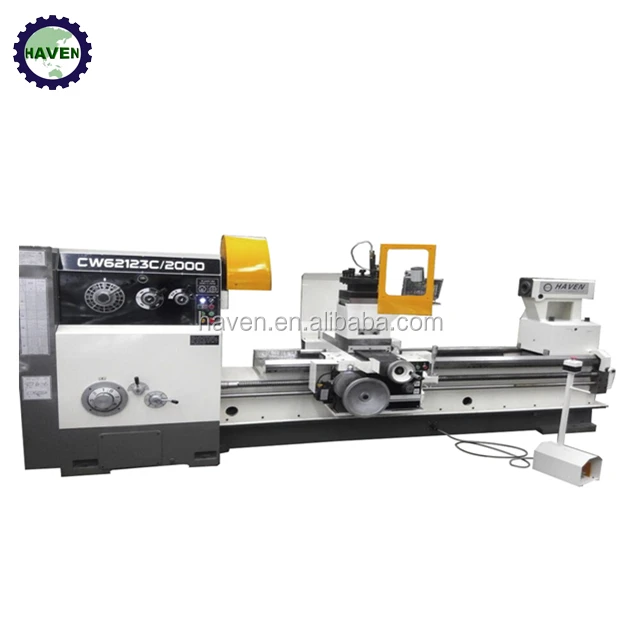

Main Machine:
Main specification:
Model | Unit | CW6163C | CW6173C | CW6183C | CW6193C | |
Swing over bed | mm | 630 | 730 | 830 | 930 | |
Swing in gap | mm | 800 | 900 | 1000 | 1100 | |
Swing over cross slide | mm | 350 | 450 | 550 | 650 | |
Distance between centers | mm | 750,1000,1500,2000,3000,4500,6000 | ||||
Length in gap from face plate | mm | 300 | ||||
Spindle nose |
| Cll or D11 | ||||
Spindle bore | mm | 105,130 | ||||
Spindle speeds | rpm/steps | 10—800/18 | ||||
Cross slidle travel | mm | 480 | ||||
Top rest travel | mm | 225 | ||||
Rapid traverse | mm/min | 3200,1900 | ||||
Quill diameter | mm | 90 | ||||
Quill travel | mm | 260 | ||||
Quill taper |
| MT5 | ||||
Bed width | mm | 550 | ||||
Metric threads | mm/kinds | 1—240/53 | ||||
Inch threads | tpi/kinds | 30—2/31 | ||||
Module threads | mm/kinds | 0.25—60/46 | ||||
Diametral pitch threads | Lpi/kinds | 60—0.5/47 | ||||
Main motor power | kw | 11 | ||||
Packing size | Length | mm | 3460,3390,3795,4330,5310,6810,8310 | |||
Width | mm | 1400 | ||||
Heigth | mm | 2000 | ||||

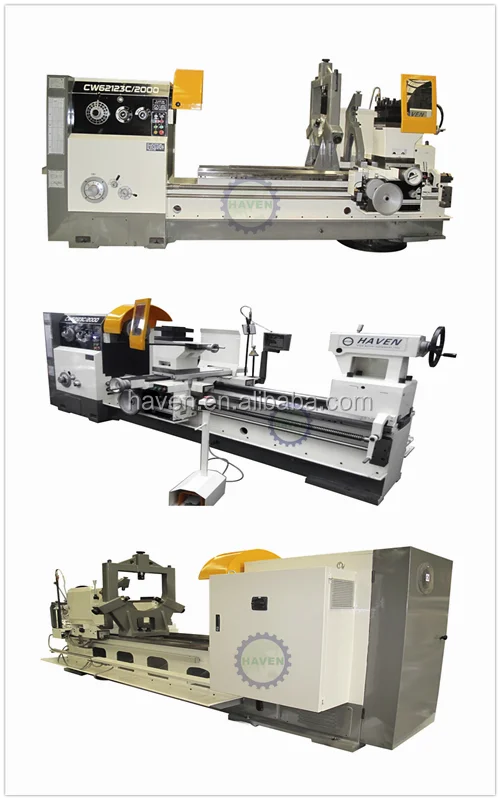

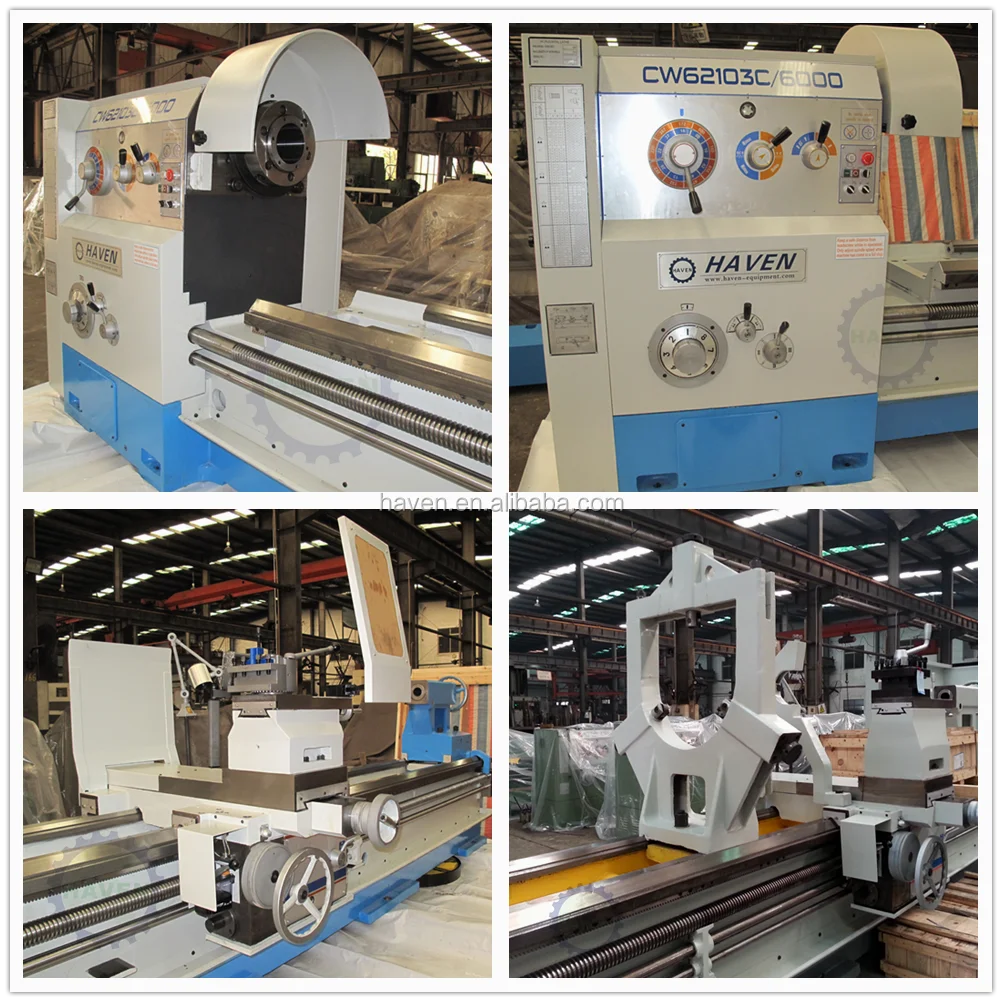

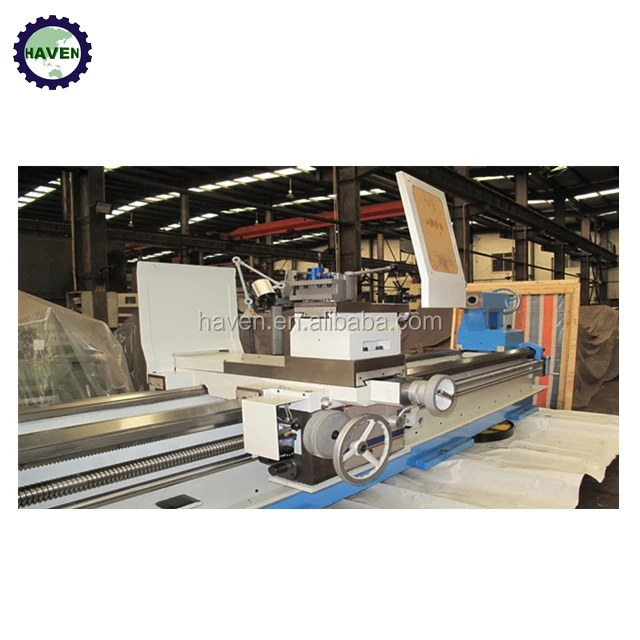

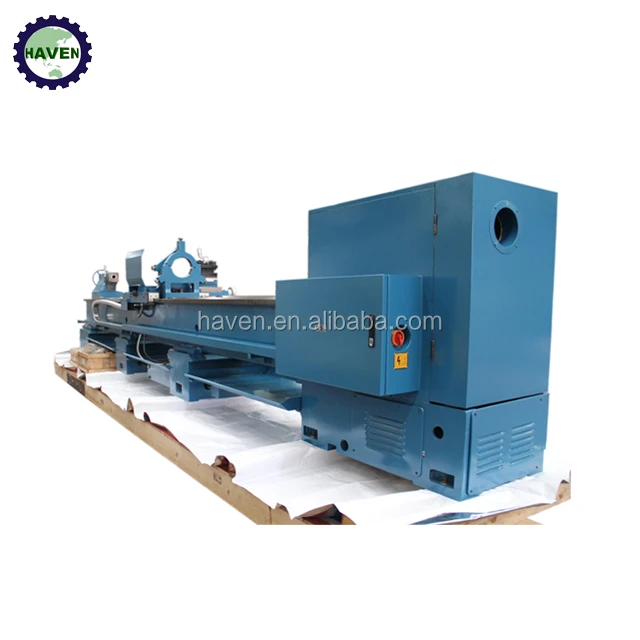

Machine Details:

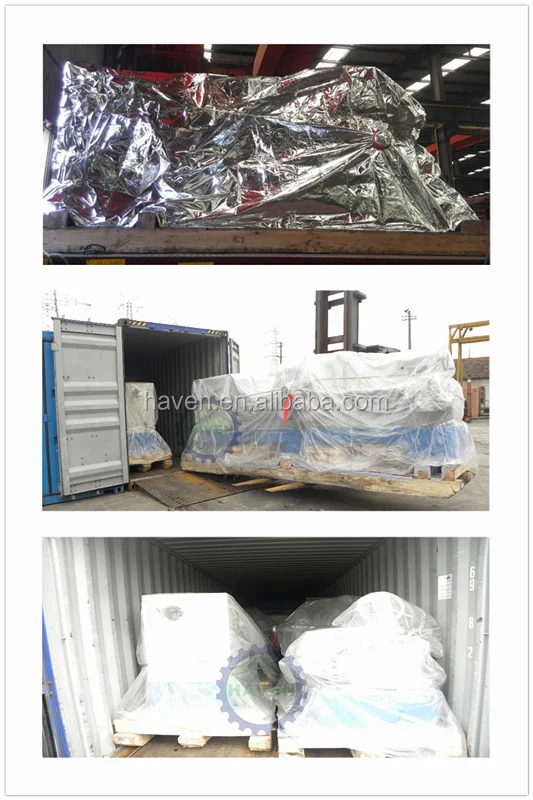

Delivery Machine:
