Product Overview

Description

Product Description

Open end spinning machine

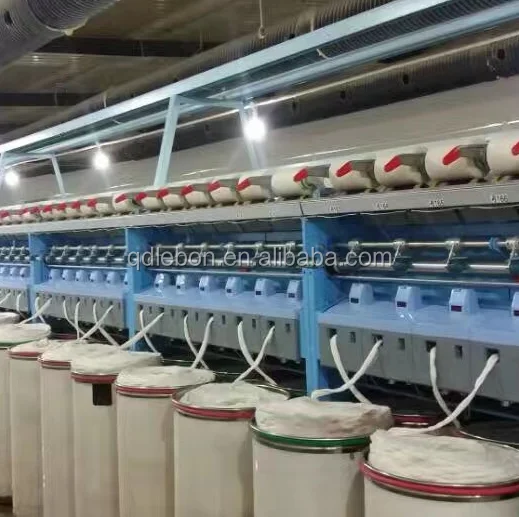

spinning machinery (9)



Application:

PLC control,  Stable running and long service life

Suitable yarn count: Ne 58.3~2.9, High yarn quality

This machine adopt new techniques such as the new type suction spinning unit and the horizontal



automatic piecing device,resulting in the maximum speed of the spinning units at 100000 r/min

One can put shaping or select the toper tube for use for the parallel tube

Furnished with the collection of the device semi-automatically, improve efficiency of connecting

Furnished with and fall one suck yarn device, in full yarns fall one produce and stay tail yarn,make the yarn able to retreat and wind in succession

Good operation interface,  control and display every technology parameter in real time

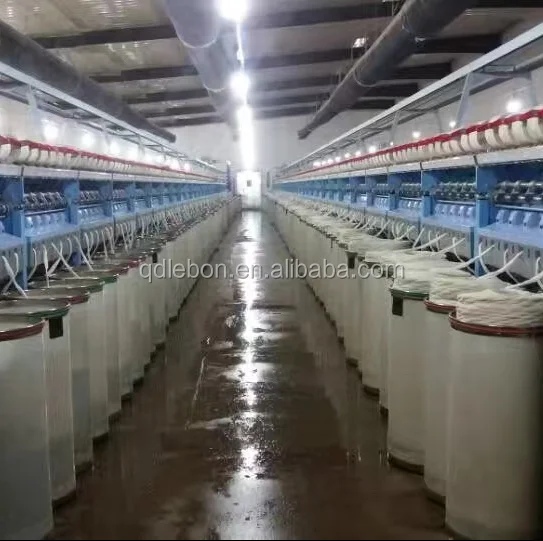

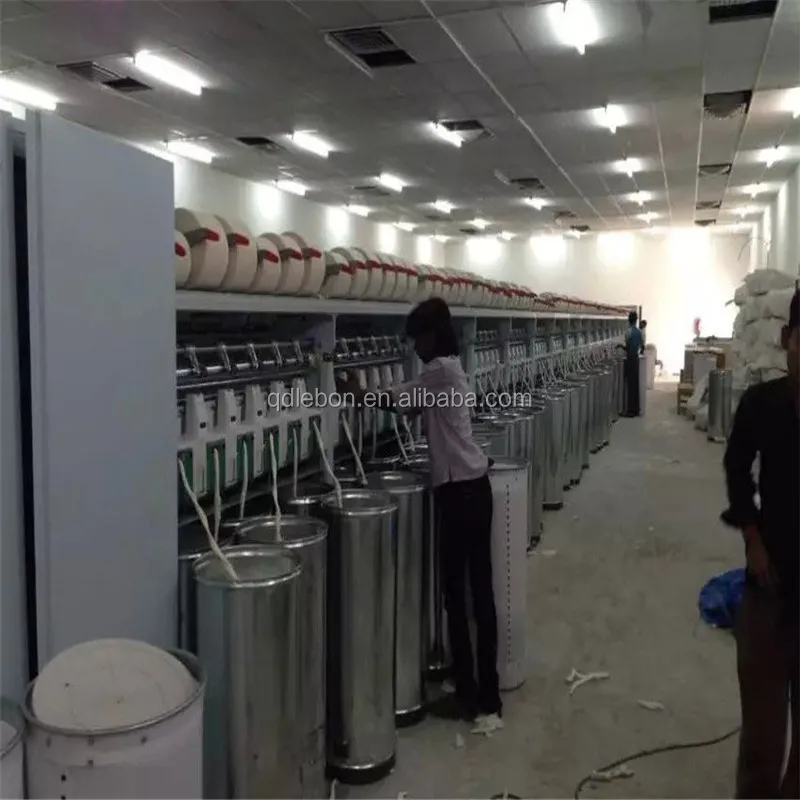

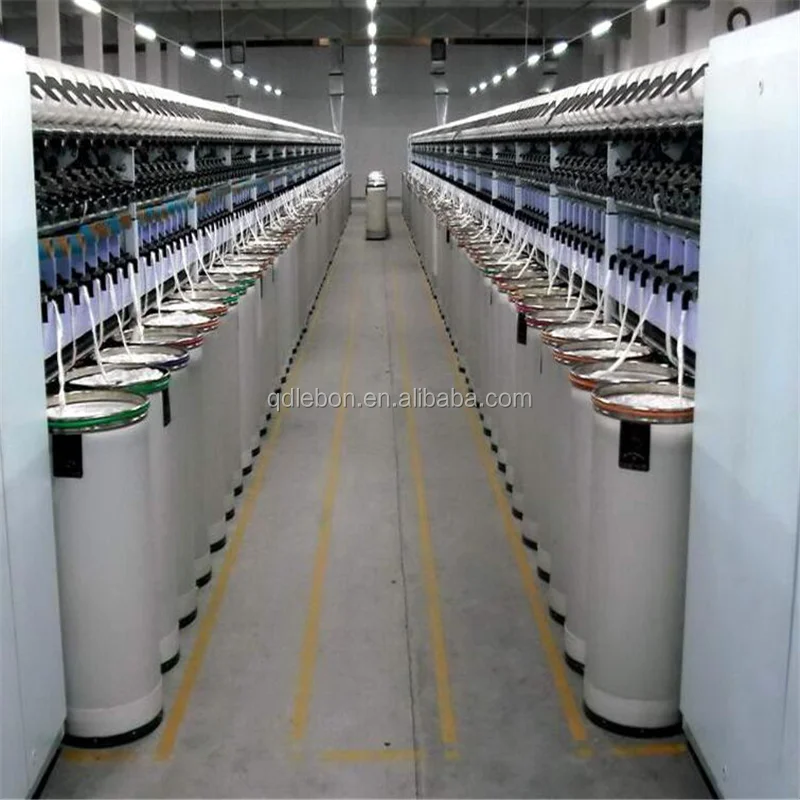

Our open end spinning machine Workshop:

spinning machinery (8)

IMG_0353





Technical Parameter:

Item

Technical parameter

Droping trash type


Trash suction

Exhaust way


Under exhauster or upper exhauster

Spindle no.


Max.480 spindles, 20 spindles per section

Spindle gauge

230MM


Range of fiber length


Less than 60MM


Yarn count

Ne4-Ne40


Twist range


200-2250 TPM


Sliver feed

3Ktex-7Ktex


Can dimension


500MM(max. diameter)*1200MM(max. length)


Rotor diameter

33,36,40,43,46,54


Range of roller speed


40,000-105,000tpm


Opening roller dia.

65MM


Range of opening roller speed


5000-10000tpm


Yarn guide speed


Max.200 Meter per minute


Draft range

20-280


Take up tension


0.95-1.06(stepless adjust)


Angle of guiding yarn


300-420(stepless adjust)


Cylindrical dimension


54MM(inner dia.)*170MM(length)-Smooth


42MM(inner dia.)*170MM(length)-Flanged

Tapered tube dimension


4020 or 20(Tapered)*170MM(length)


Max. take up bobbin


300MM(diameter)*150MM(length)-Cylindrical


270MM(diameter)*150MM(length)-Tapered


Spinning negative pressure

5000Pa-7000Pa


Exhaust


9000M3/H+5000M3/H(480 spindles)
6000M3/H+4000M3/H(320 spindles)


Compressed air

Air pressure

0.6-0.7Mpa


Air consumption

300/
300 litre per minute


Loading power


169KW(480 spindles)
97.5KW(320 spindles)

Weight


Locomotive:3000KG
Tail box:3100KG
Single section:810KG

Optional specification

Optional



Upper exhausted


Used for workshop without underground exhaust passway

Tapered forming


Yarn easy reversing

Waxing device


Suitable for knitting yarn


Keep tail yarn


Doffing and change yarn bobbin under the constant spinning yarn


Overhead blower


Helpful to machine cleaning


Sensor piecing


According to yarn sensor auto. start piecing


Yarn clean


Measure and remove defective yarn


Different diameters of rotor


Based on different yarn count and yarn usage


Different types of combing roller


Based on different yarn materials


Different types of Navel


Based on different yarn materials and yarn usage


Different types of Nozzel


Based on different yarn materials and yarn usage


Undercarriage heighten


Suitable for sliver can above 1100MM height

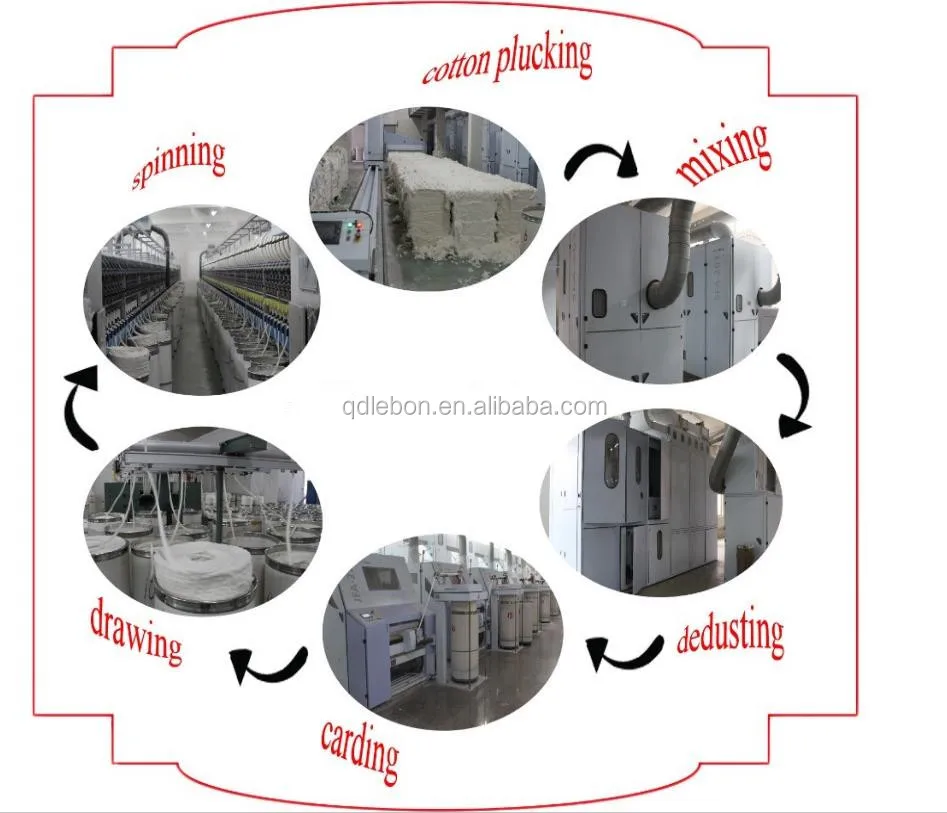

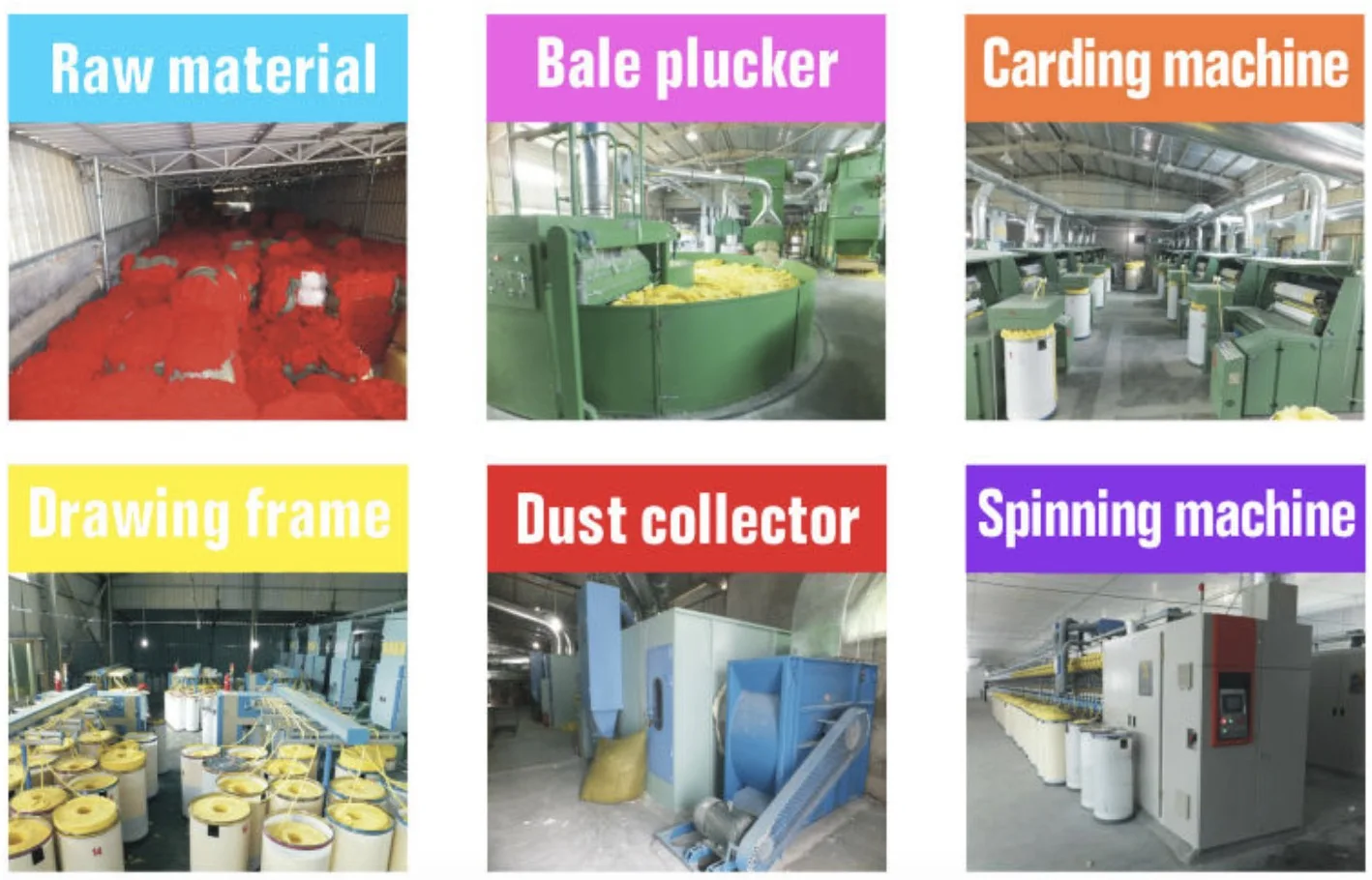

Sketch Of Production line:

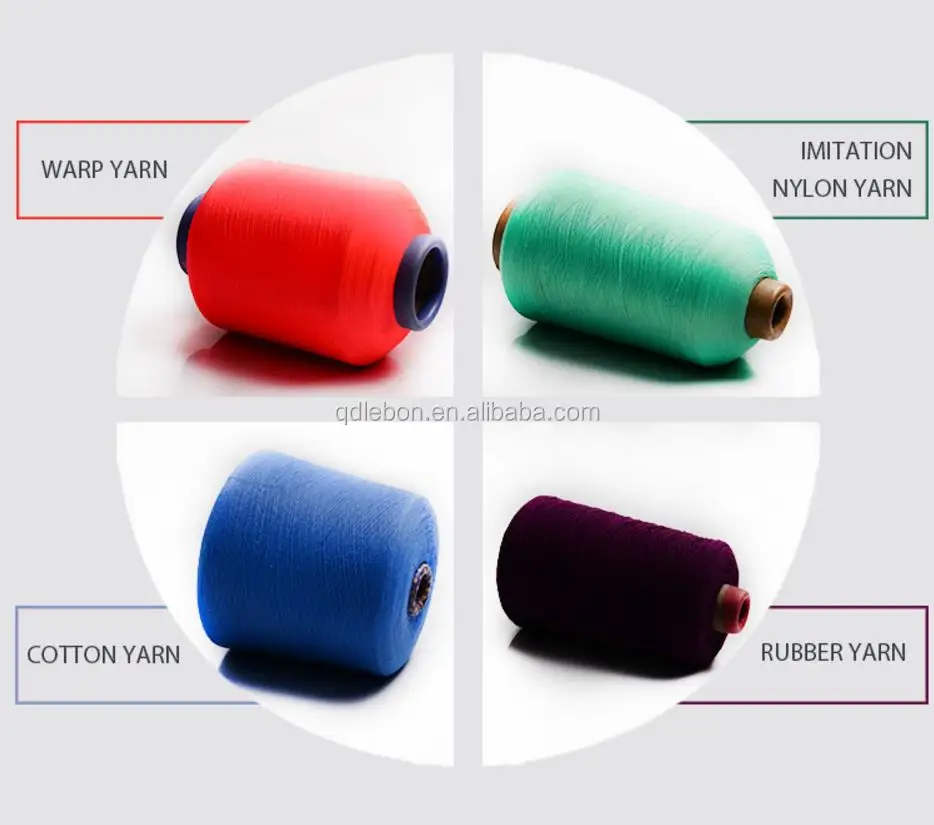

526864371644641916.jpgFinished product:

2

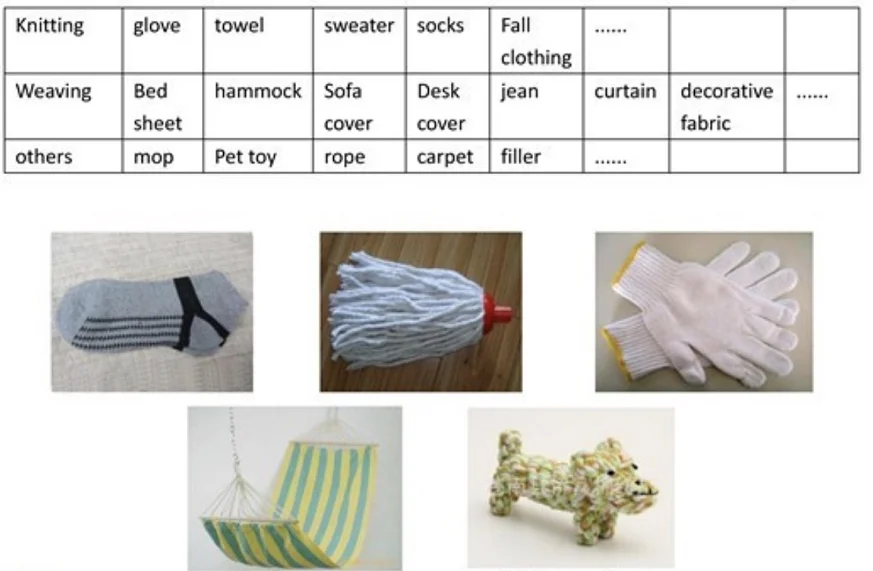

 Usage:


Factory show





Exhibition Show





Teamwork



Certification show





Packaging & Shipping



 1

Our Services



1.One year of guarantee,forever technical and spare parts support.

2.Our factory provide pre-testing when customer come to our factory check goods.

3.We provide detail technical specification, electric diagram, installation book, operating manual, drawings etc.

4.We can send engineers to customer factory to help installation and training workers if customer required.
