KCB series oil transfer lubrication rotary gear pumps

Introduction

KCB series oil transfer lubrication rotary gear pumps
is applies to delivering non-corrosive lubricating oil or equivalent liquid without solid paraticles and fibres at temperature below 200 C, and with the viscosity of 5-1500 cSt.

Reducing the speed, the pump can delivery the liquid that the viscosity can be up to 50000 cSt.

Performance scope

1.Capacity:1.1-570m3/h;

2.Pressure: 0.28-1.45mpa;

3.Motor power: 1.5-185kw;

4.Temperature: -20-200degree;

5.Speed: 720-1800rpm;

Application Scope

1. Medicine industry;

2. Fine chemical industry;

3. Food industry;

4. Cosmetics industry;

5. Printing and dyeing industry;

6. Brewing industry;

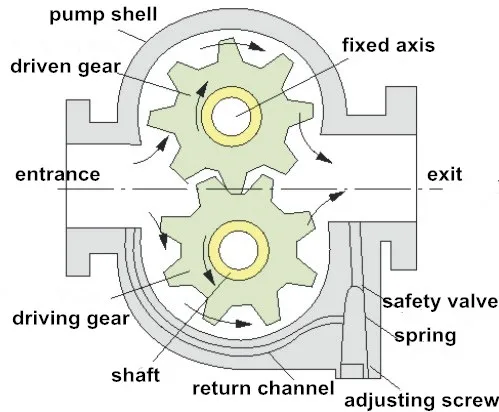

Structural features

KCB series oil transfer lubrication rotary gear pumps is mainly composed of gears, axles, pump body, pump cover, safety valve and axle-end seals etc. The heattreated gears have the advantage of higher hardness and intensity, and rotate with the axles inside the replaceable bearing sleeves. All of pump's parts can be lubricated by delivered medium when working.

The pump is properly designed with leakage and return chute, which lets the gears bear the least torque force and reduces load and wear on bearings in order to raise pump' efficiency.

It is also designed with safty valve for protection against overload. The full return flow pressure of the safety valve is 1.5 times higher than the rated exhaust pressure of the pump. It can be also adjusted within the allowance of exhaust pressure range according to circumstances. But please note the safty valve can't be applied as pressure reducing valve for long time. You may install pressure reducing valve separately on pipe-line if needed.

The direction of rotation is clockwise viewed from coupling end.

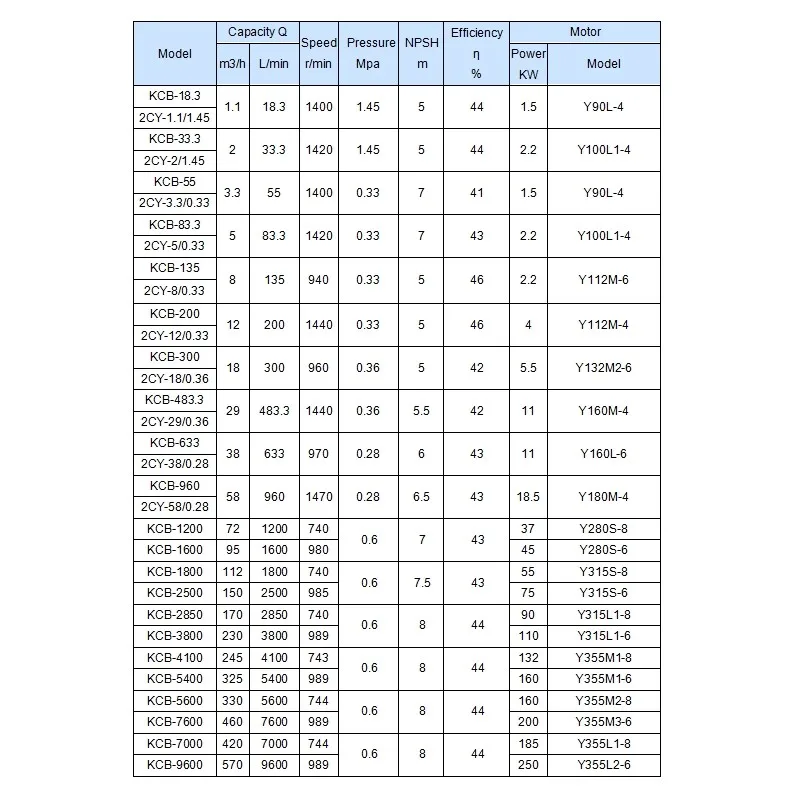

Data sheet

 KCB18.3-KCB83.3 cast iron and stainless steel material gear pump:

KCB135-KCB960 cast iron material gear pump:

KCB1200-KCB900 cast iron material gear pump:

    If you want to know more,please click.

Pre-sale Service
1. We have full stock, and can deliver within short time.Many styles for your choices.
2.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
3.All of our products are produce by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
After-sale  Service
1. We are very glad that customer give us some suggestion for price and products.
2. If any question, please contact with us freely by E-mail or Telephone.

1. How about your price?
Although we are brand name products,but our prices are very favorable and competitive. Customer from all over the world to purchase our products, because our best price.
2. What's your payment?
Our Payment could be
(1) 100% T/T
(2) 30% in advance, others before shipment.
(3)Advance, others letter of credit.
3. What is your payment method?
L/C
D/A
D/P
T/T
Western Union
MoneyGram
4. Could you special design and produce for you?
Sure, we have all kinds of professional engineers,
Could design and produce special product according to customer requested.
Such as: special Size, special control, or OEM, etc.
5. Do you looking for Agent?
Yes, we're looking for the agent all over the world, please contact us for further discussion.
