MTS 2033 6A 6MM 6Pin 3 Position Miniature ON ON ON Toggle Switch 2P3T
- Category: Toggle Switches >>>
- Supplier: Yueqing,Daier,Electron,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Product Name | MTS-2033 6A 6MM 6Pin 3 Position Miniature ON ON ON Toggle Switch 2P3T |
Rating | 6A 125V AC ; 3A 250V AC |
Mounting Size | 6 MM |
Circuitry Trait | ON ON ON DPDT on on on toggle switch 2p3t |
Terminal Type | Solder Terminals |
Handle options | Standard |

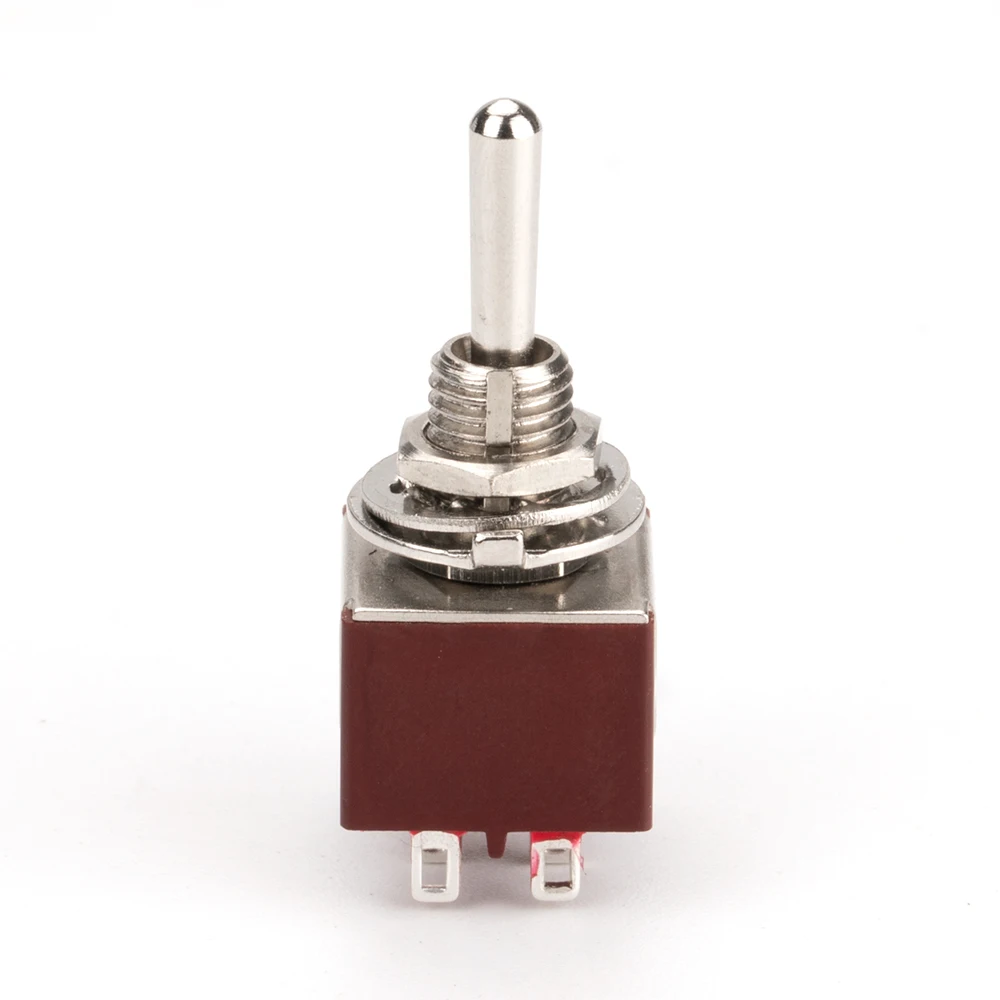

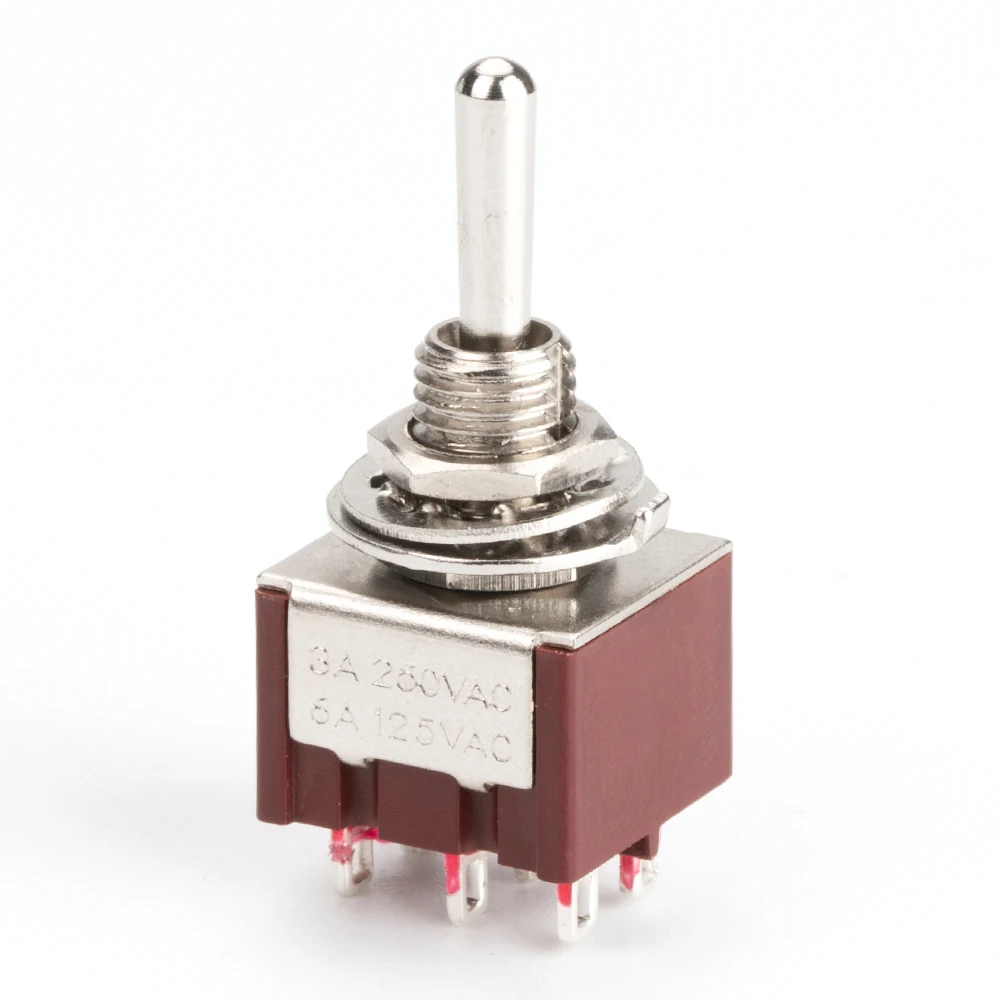

Products Show
MTS-2033-R

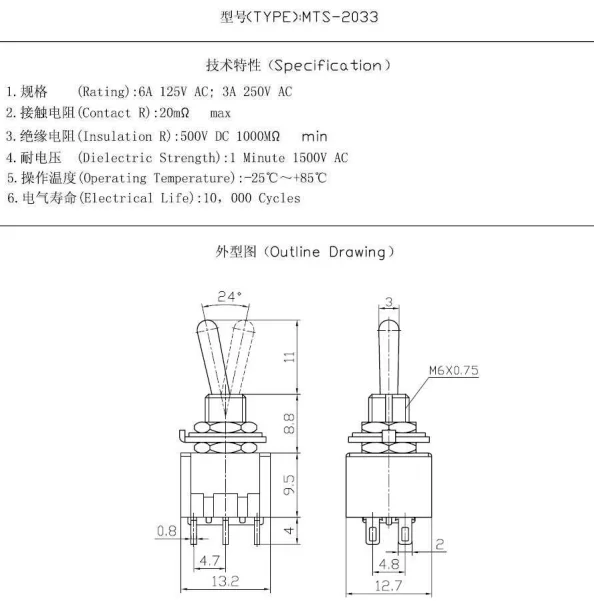

Specifications:
1. Rating: 6A 125V AC ; 3A 250V AC
2. Function: ON-ON-ON
3.Contact Resistance: 20mΩ Max
4. Insulation Resistance:500V DC 1000MΩ min
5. Dielectric Strength: 1 Minute 1500V AC
6. Operating Temperature:-25°C~+85°C
7. Electrical Life: 10,000 Cycles
