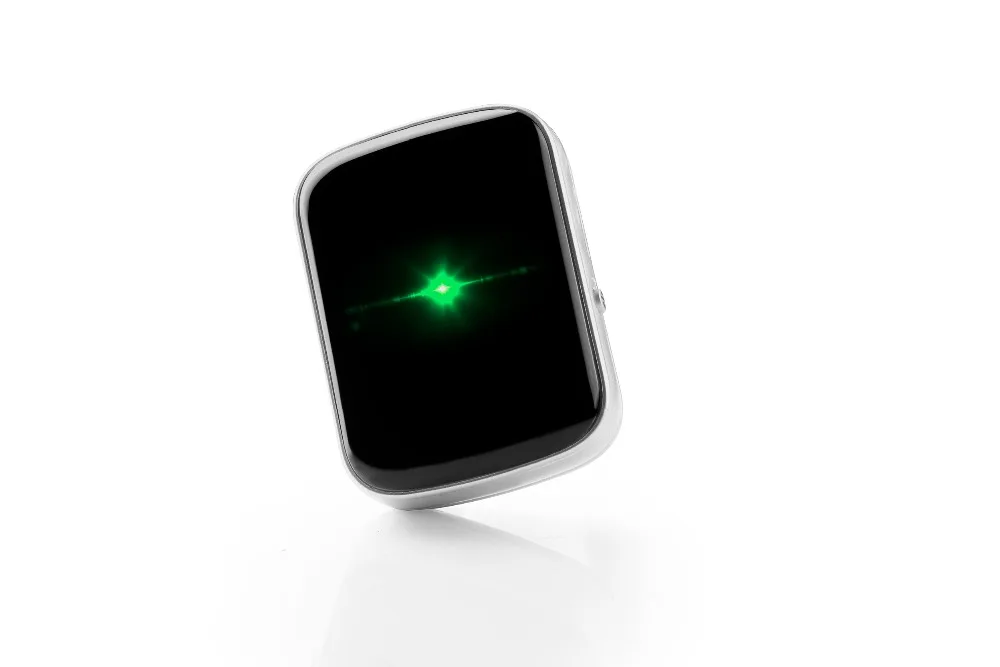

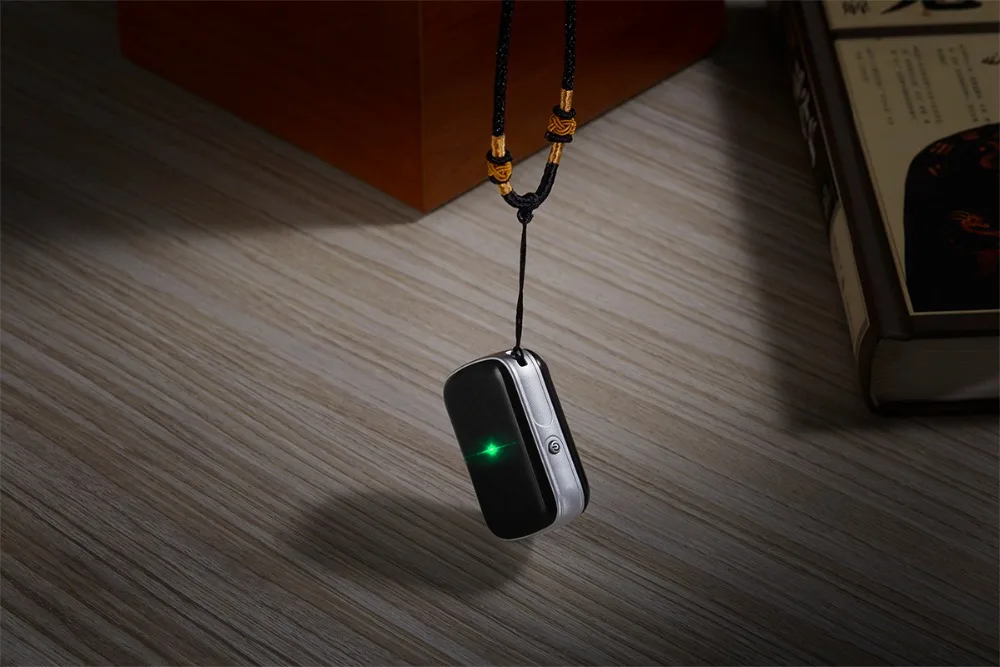

A21P strong waterproof gps pet tracker with long battery life

Product Overview

Description

Products position: Waterproof Mini Pet GPS Super Long-time Standby Tracker



Features:

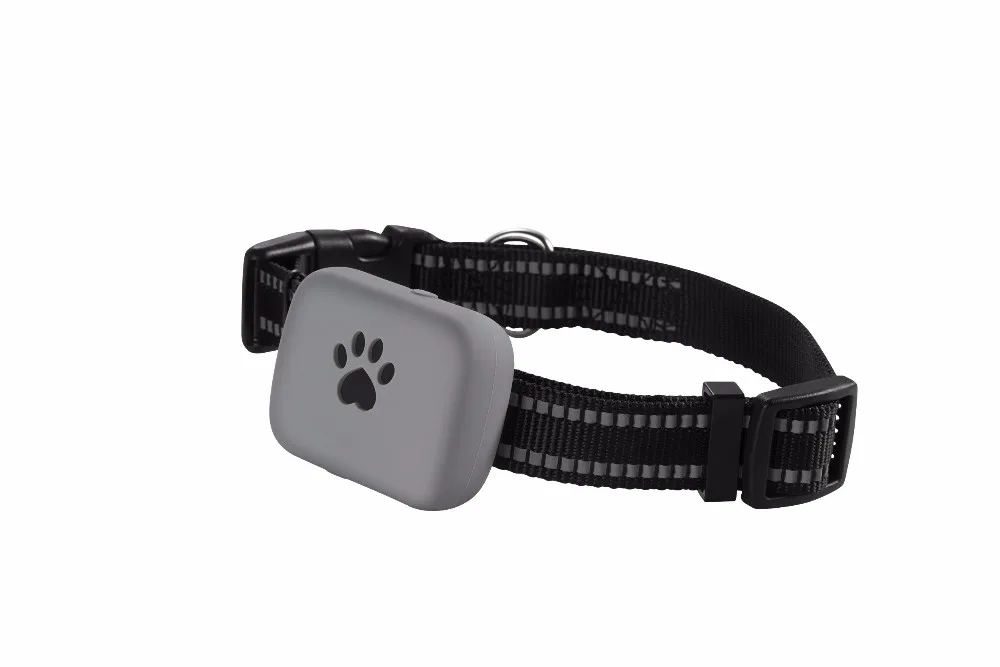

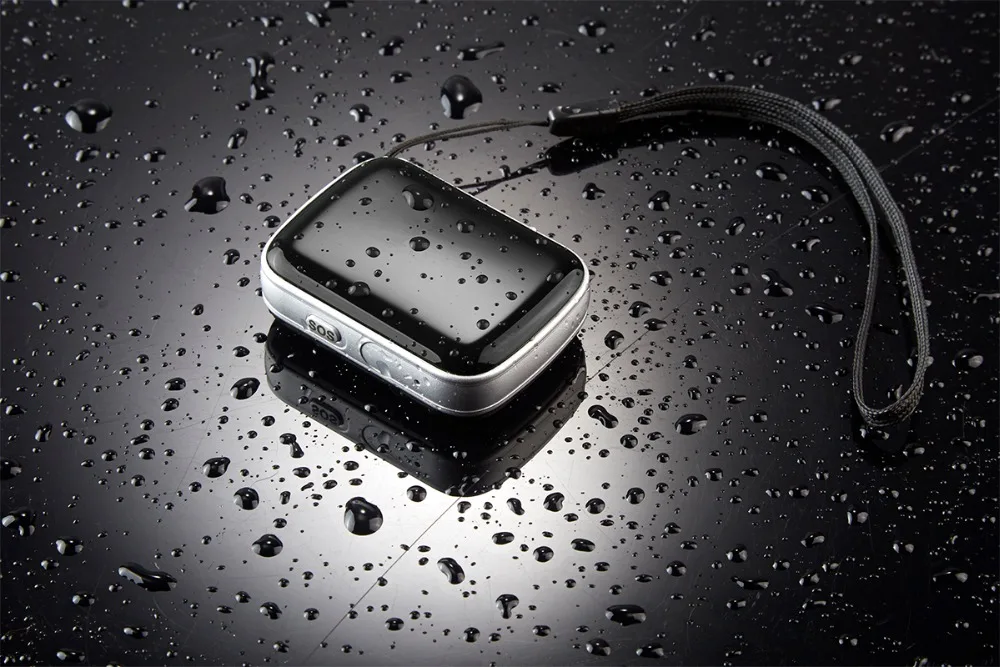

GPS+WIFI+LBS multimode precise positioning, super long-time standby,real-time positioning, intelligent monitoring,IP67 waterproof grade, can be adapted for any necklace



Technical specification

Model	A21P
User	pets
Structure
Color	black
Net weight	36g
Size	52X38X16mm

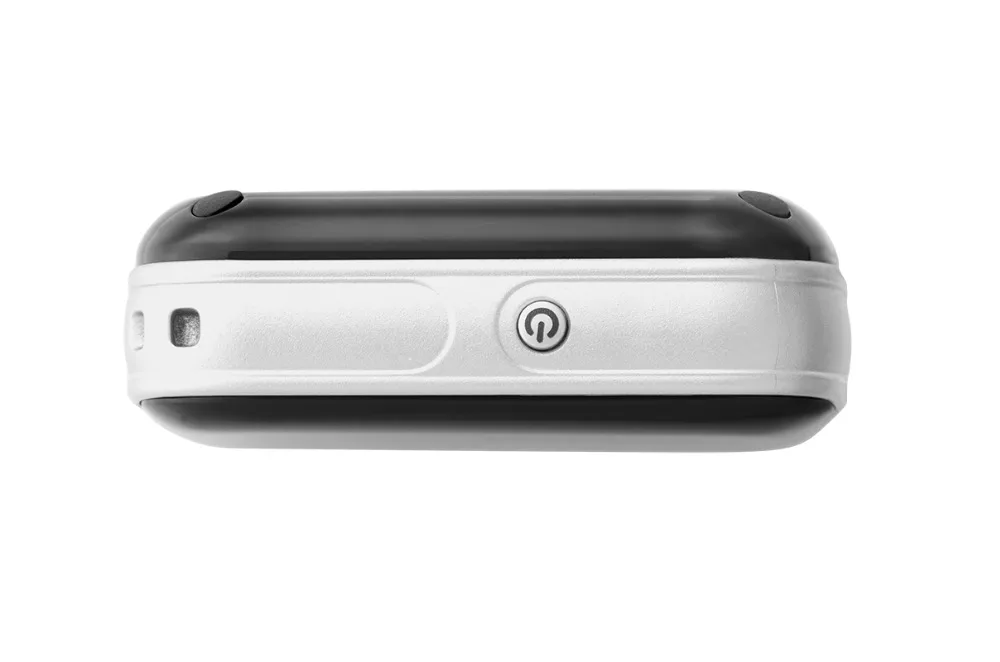

Buttons	Power button(P)and function button(F)
GSM antenna	Four frenquency PIFA antenna
Battery	1000mAh
SIM card slot	one slot

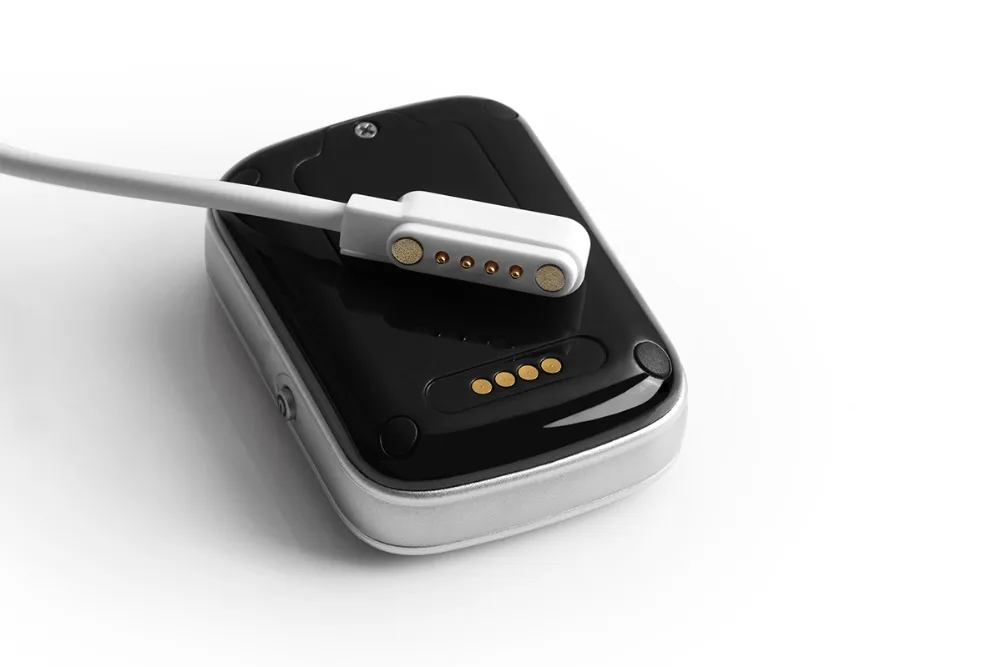

I/O port	Magnetic suction charging
Hardware
Chipset	MTK MT2503A
GPRS	Class 12
GPS singal	L1,1575.42MHz C/A code
GPS channels	22 channels
GPS chip	Tracking Sensitivity:-165dBm, acquisition sensitivity:-148dBm
GPS accuracy	5~15m
LBS accuracy	100-1000m
Minimum standby current	<0.5 mA
Average standby current	<2.5 mA
Average working currency	<55mA
Working temperature	-20~70℃
working humidity	5% to 95%
GPS antenna	Built-in high sensitivity ceramic antenna
GSM antenna	Four frequency PIFA antenna
Bluetooth	bluetooth 3.0(Normal closed)
G-sensor	Support
MIC	Support
Software
Supported OS	Support android 2.3 or above ,IOS5.0 or above
Languages	Chinese/English
GSM+GPRS+GPS	GPS+LBS+Wifi positioning
AGPS	Cool start 26s positioning
Power manage	Ultra-low power consumption of power management, intelligent
	dormancy
Record function	choose the record function on the APP, and then  the device can be record actomate, after record,will send back to APP directly.
	Outside the range setting can be automatic alarm
Historical track	Three monthes's historical track





Company infomation



I365-Tech Specialized in GPS Trackers Shenzhen i365-Tech Co. Limited is mainly dedicated to private moulding GPS Tracker, we are original manufacturer, welcome to contact us to view our design patent.

Owning GPS Platform and GPS App Developed by our technical teams, we have stable GPS platform, which is experienced in many countries, such as Russia, the US, Germany, France and more. Accurate and Faster GPS Positioning By cooperating with MTK, our technical team developed GPS locator which can get GPS signal as soon as 0.1 second, the latest MTK2503 chip can offer faster positioning. High Performance in Network Signal Level Our GPS locators can reach 25dB signal level, while some cheap products in the GPS market can only reach 20dB. This good signal performance could offer customer more powerful voice monitoring support, and better GPS positioning. Excellent Workmanship By spray painting, UV processing and vacuum coating, various customers feel our GPS locator with high end effect.



Why choose I365-Tech?

Holding Product Design Patent
Our products have private and exclusive mold owned by us, we own the product design patents, there is no any other manufacturer that has the exactly the same product as ours. We can control the distribution channel pricings, so if you cooperate with us, you can enjoy higher benefit margin in your country.
Owning GPS Platform and GPS App
Developed by our technical teams, we have stable GPS platform, which is experienced in many countries, such as Russia, the US, Germany, France and more.
Accurate and Faster GPS Positioning
By cooperating with MTK, our technical team developed GPS locator which can get GPS signal as soon as 0.1 second, the latest MTK2503 chip can offer faster positioning.
High Performance in Network Signal Level
Our GPS locators can reach 25dB signal level, while some cheap products in the GPS market can only reach 20dB. This good signal performance could offer customer more powerful voice monitoring support, and better GPS positioning.
Excellent Workmanship
By spray painting, UV processing and vacuum coating, various customers feel our GPS locator with high end effect.20dB.
