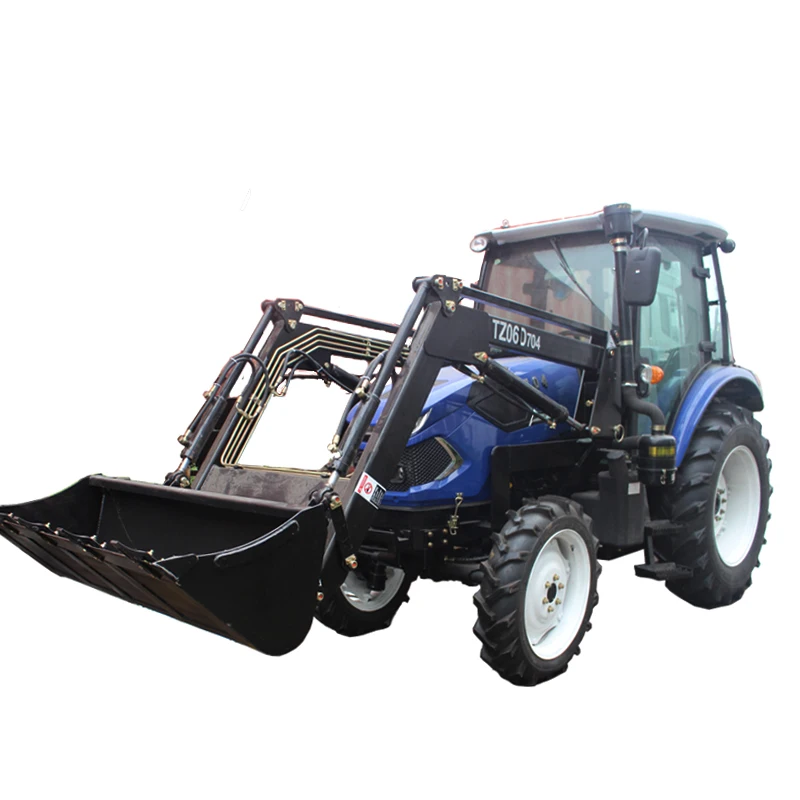

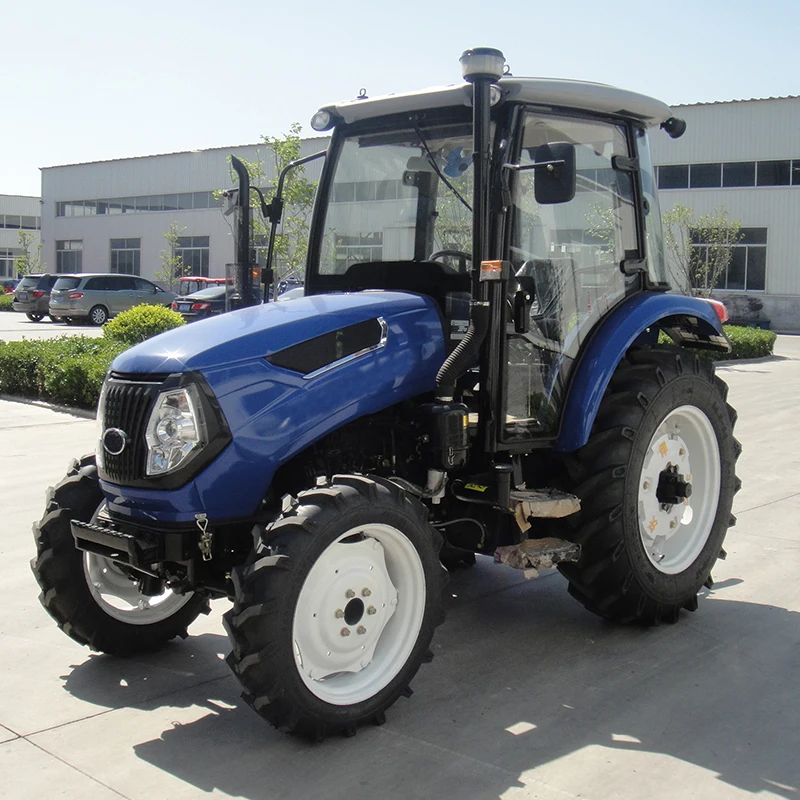

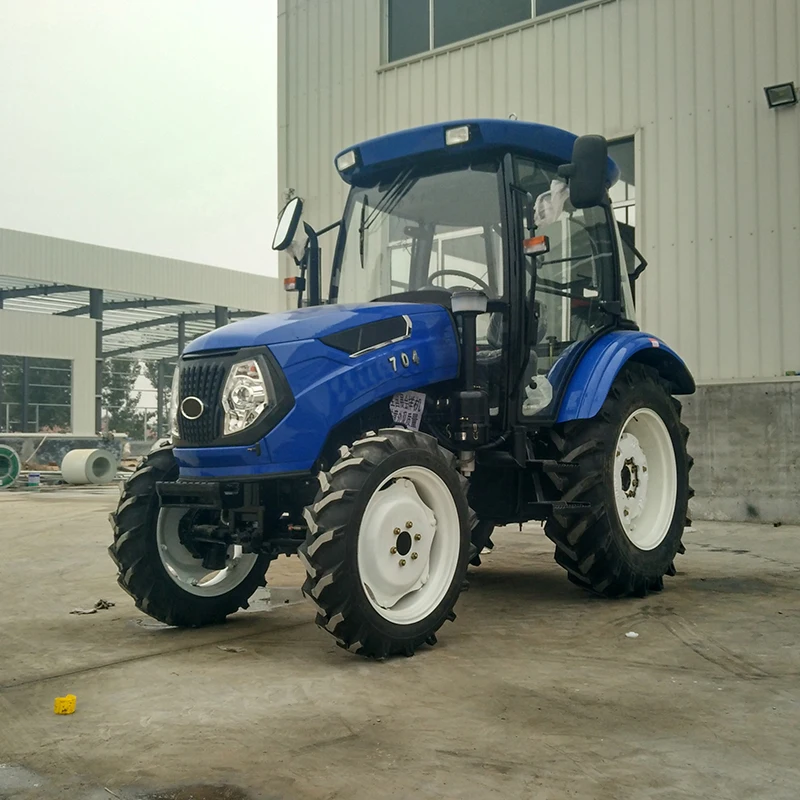

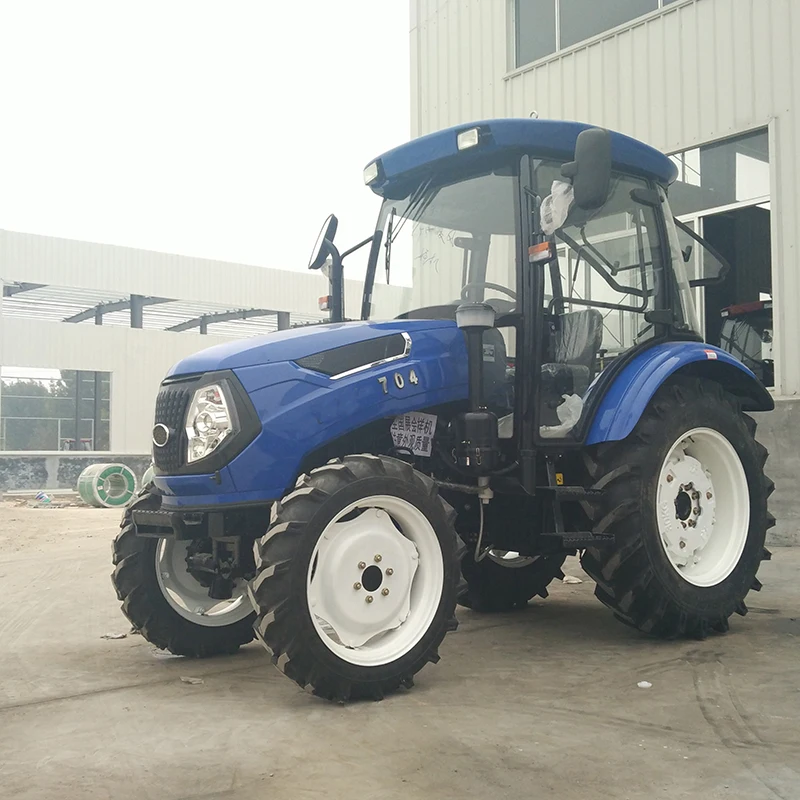

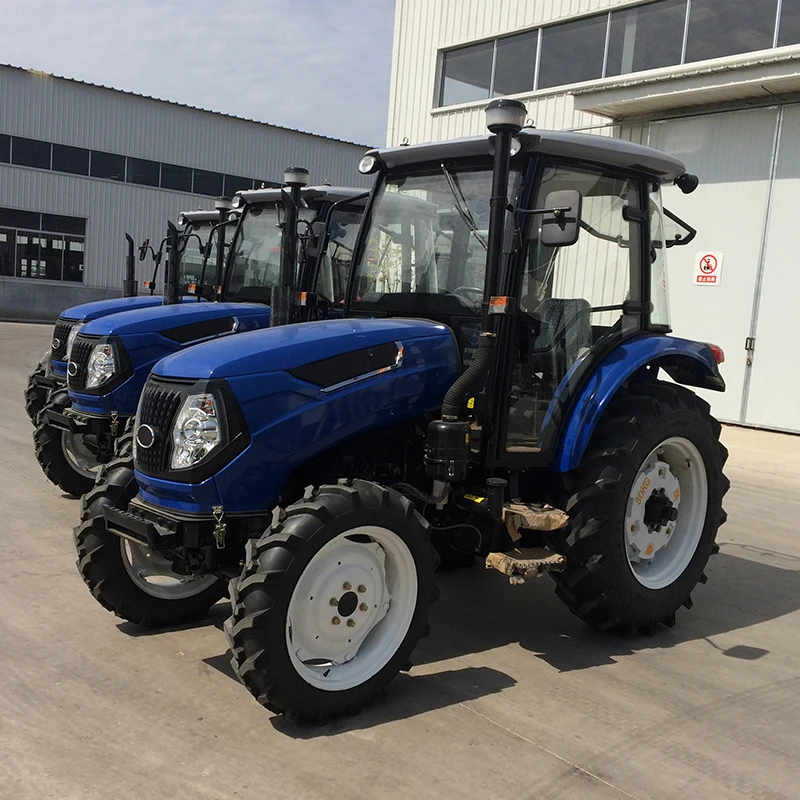

70hp x4 wheel drive agriculture farm tractor with front loader
- Category: Tractors >>>
- Supplier: WEIFANG MAP IMPORT AND EXPORT CO. LTD.
Share on (60747432092):
Product Overview
Description

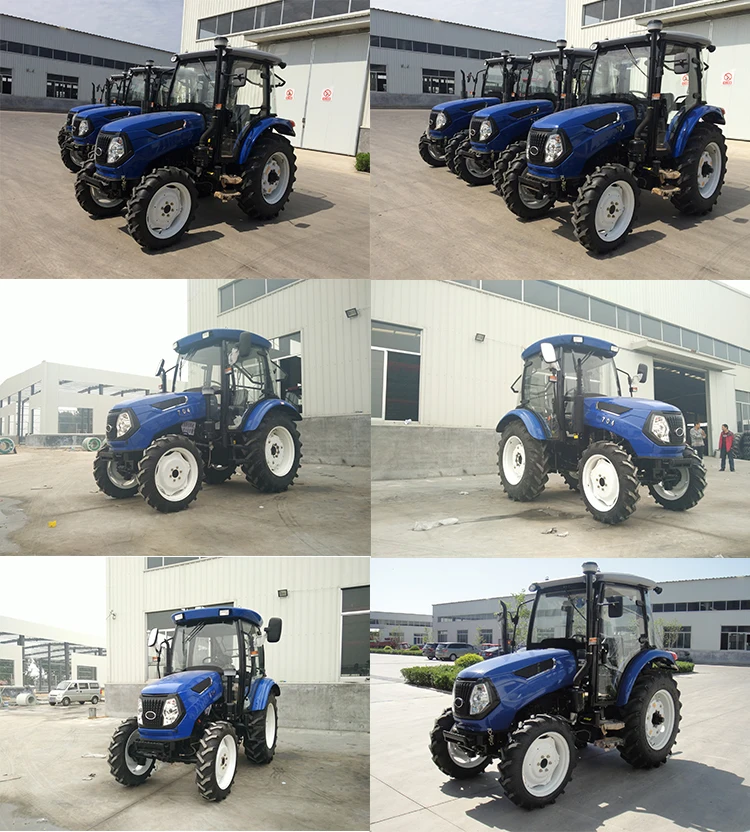

70HP Tractor With Front Loader
Product Description
Product Description
| 70HP Tractor Specification | ||
| Model | MAP704 | |
| Type | 4×4 Wheeled Type | |
| Dimensions of Tractor (mm) | Length | 3700 |
| Width | 1710 | |
| Height | 2360 | |
| Front Wheel | 1300 | |
| Rear Wheel | 1200,1300(usual),1400 | |
| Wheel Base | 2200 | |
| Min. Ground Base | 390(the bottom of steering horizontal pulling rod) | |
| Min. Usage Mass (kg) | 2300 | |
| Engine | Model | quanchai4108 |
| Type | Vertical, water cooled and 4-stroke | |
| Rated Power(kw) | 51.4 | |
| Rated Rev.(r/min) | 2400 | |
| Fuel | Diesel Oil | |
| Tire | Front Wheel | 8.3-24 |
| Rear Wheel | 14.9-30 | |
| Clutch | dry-friction, single disc and two stage | |
| Steering | Hydraulic type | |
| Transmission Box | two shafts, 4×(3+3) composed | |
| Suspension Type | Post Positioned Tri-point Suspension Catalogue Ⅰ | |
| PTO | Type and Rev. | Post-position, half-independent,540/760 or 540/1000(optional) |
| Spline Size | I38 Rectangle Spline with 8 teeth | |
| Tractor Front Loader Specification | |||||||
Model | YS-03D | YS-04D | YS-06D | YS-08D | YS-10 | YS-12 | YS-16 |
Horsepower range | 20-30 | 30-55 | 45-60 | 55-75 | 70-100 | 90-140 | 140-210 |
Max lift height(mm) | 2250 | 2400 | 2700 | 2800 | 3020 | 3100 | 3260 |
Dump height(mm) | 1840 | 2100 | 2370 | 2480 | 2720 | 2900 | 3000 |
Dump distance(mm) | 500 | 600 | 640 | 690 | 740 | 900 | 900 |
Bucket width(mm) | 1250 | 1400 | 1500 | 1600 | 1700 | 2000 | 2200 |
Bucket capacity(cbm) | 0.18 | 0.21 | 0.35 | 0.40 | 0.44 | 0.7 | 1.1 |
Rated load capacity(kgs) | 300 | 400 | 600 | 800 | 1000 | 1200 | 1600 |
