150M laser sensor security ir beam detector 4 beams 250mtr in perimeter protecting alarm systems
- Category: >>>
- Supplier: Shenzhen BTD Technology Co. Ltd. [Guangdong China]Shenzhen
Share on (60747440440):
Product Overview
Description
Product Description

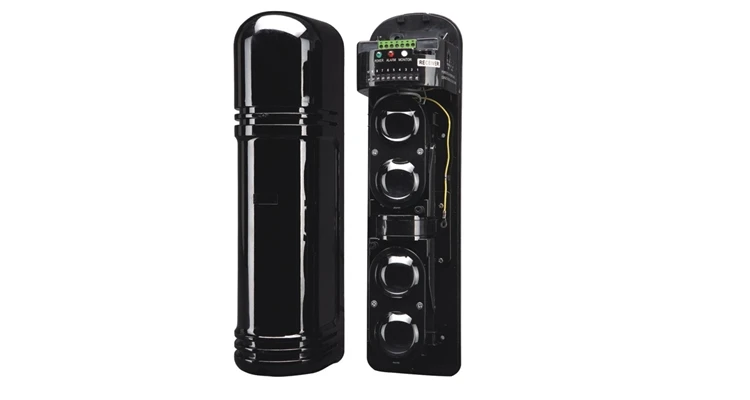

Active Infrared Beam UM-DS4 50M/100M/150M/200M/250M
Characteristic: Anti-RFI/EMI Capability;
ABS Materials;
Authentic Electron Conponents;
High Quality and Stagbility
Description:
1.Ten signal design, horizontal/vertical optical angle adjustment is convenient, easy to calibrate
2.Artificial Intelligence recognition technology,digital conversion and superior signal filtering
3.With high levels of anti-RFI/EMI capability
4.Unique design of the digital filter circuit
5.High-power transmitter,sensitivity surplus degree up to 90%
6.Anti-lightning circuit design
7.Adjustable of beam interdiction period,to make it more flexible and adaptable
8.Professional anti-jamming optical housing
9.High-power infrared receiver tube,low-power process technology
2.Artificial Intelligence recognition technology,digital conversion and superior signal filtering
3.With high levels of anti-RFI/EMI capability
4.Unique design of the digital filter circuit
5.High-power transmitter,sensitivity surplus degree up to 90%
6.Anti-lightning circuit design
7.Adjustable of beam interdiction period,to make it more flexible and adaptable
8.Professional anti-jamming optical housing
9.High-power infrared receiver tube,low-power process technology
Paramter:
| Model | UM-DS4-50 | UM-DS4-100 | UM-DS4-150 | UM-DS4-200 | UM-DS4-250 |
| Outdoor Alert Distance | 50M | 100M | 150M | 200M | 250M |
| Indoor Alert Distance | 150M | 300M | 450M | 600M | 750M |
| Beam No. | 4 | ||||
| Induction Speed | 35-700ms | ||||
| Alarm Output | NC&NO contact rating:AV/DC 30V/0.5mA | ||||
| Ganged Alarm | Yes | ||||
| Working Voltage | DC13.8-24V AC 11-18V | ||||
| Working current | 40mA | 65mA | 65mA | 65mA | 70mA |
| Longlife mode | 32mA | 32mA | 32mA | 32mA | 40mA |
| Humidity | 5%-95%(RH) | ||||
| Tamper output | NC&NO contact rating:AV/DC 24V/0.5mA | ||||
| Horizontal angle adjustment | 180°±90° | ||||
| Vertical angle adjustment | ±10° | ||||
| Dimensions | 37*10*10cm | ||||
| PCS/CTN | 9PCS/CARTON | ||||
| Packing dimensions | 74*43*49cm | ||||
Detailed Images
Company Information
Shenzhen BTD Technology CO., LTD is a professional manufacturer in producing and supplying Electric Fence,Perimter Infrared Beams,Perimeter Infrared Barriers,Smart Alarm System,PIR Detectors,Farm Energizer and Related Accessories. Our products have achieved ISO9001,ISO14001,OHSAS18001, CE, ROHS certificates. Besides, we also provide OEM produce and service and accept customized order as well.
Excellent quality management and guarantee system has enabled every process from manufacturing, purchasing to be strictly inspected to ensure every product
Quality, service, efficiency and credit standing are in the first position, and we are hunting for cooperate and development.
Welcome to establish business relationship with us and we will try our best to satisfy you!
Certifications
Exihibition view
Packaging & Shipping
FAQ
Q1: Are you manufacturers?
A: Yes, we are manufacturers in China for more than 10 years.
Q2: Do you have any MOQ limit for the first order?
A: We are with Low MOQ, 1pc for sample checking is available
Q3: Do you accept OEM/ODM?
A: We accept OEM, as well as a professional team for customer ODM services.
Q4: How long is your delivery time?
A: 3 working days for sample order
5-7 working days for general order
10-15 working days for big order
Q5: Is it OK to print my logo on the product?
A: Yes, We can provide LOGO printed on your products.
Q6: Where is your factory located? How can I visit there?
A: Our factory is located in Shenzhen City, Guangdong Province, China.
