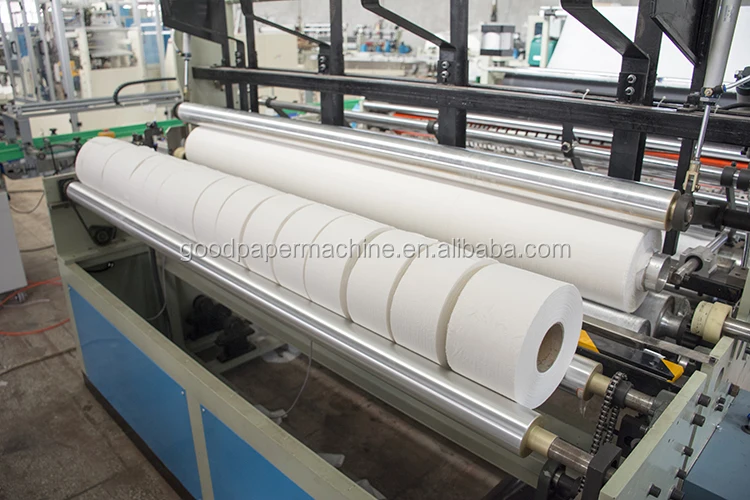

Automatic rewinding toilet paper embossing slitting small bobbin paper products machine

https://youtu.be/bbno-B-pQrQ

https://youtu.be/DnE5em2hm_g

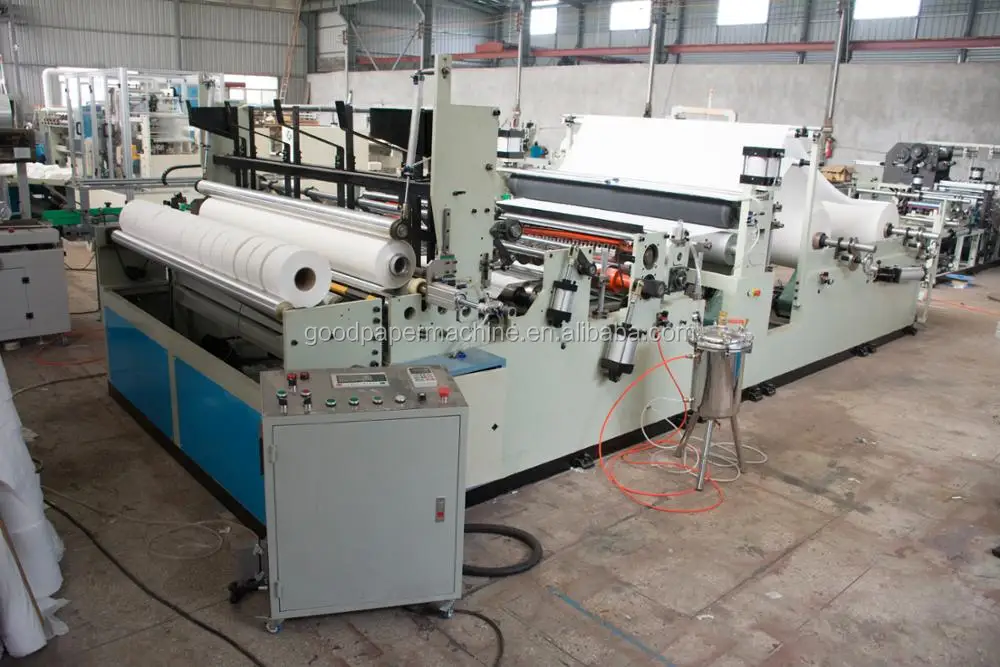

GD-D this equipment is to perforate and cut the raw paper into various sizes according to the requested. The finished product is neat, in good order and with equality tension. It has the feature of compact structure, easy and stable operation, less electricity consumption and covers a small area of 8.4 m². The highest production speed is 150-220m/min. This equipment is adjustable to meet the requested finished product. This model is the ideal equipment for paper making factory and paper processing factory.

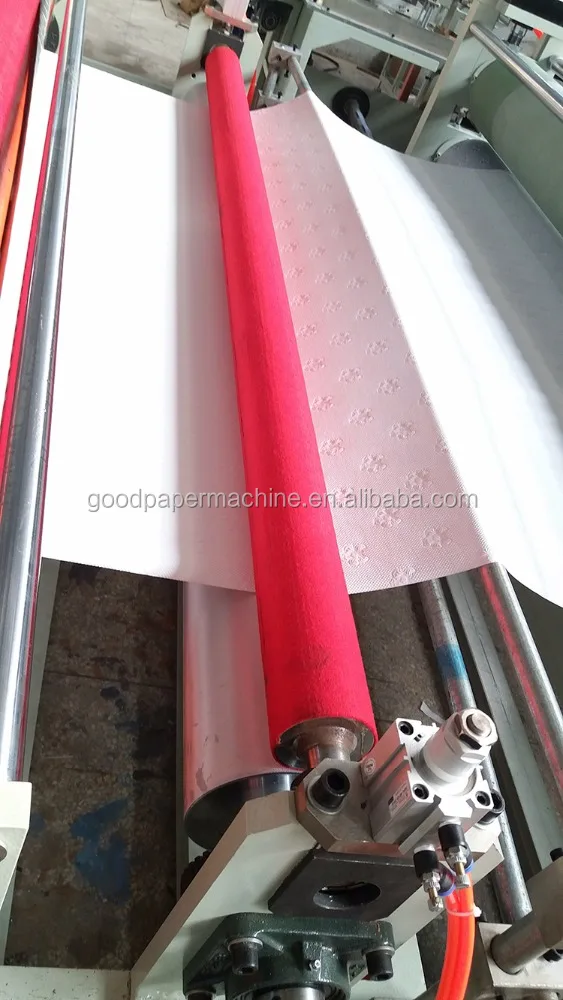

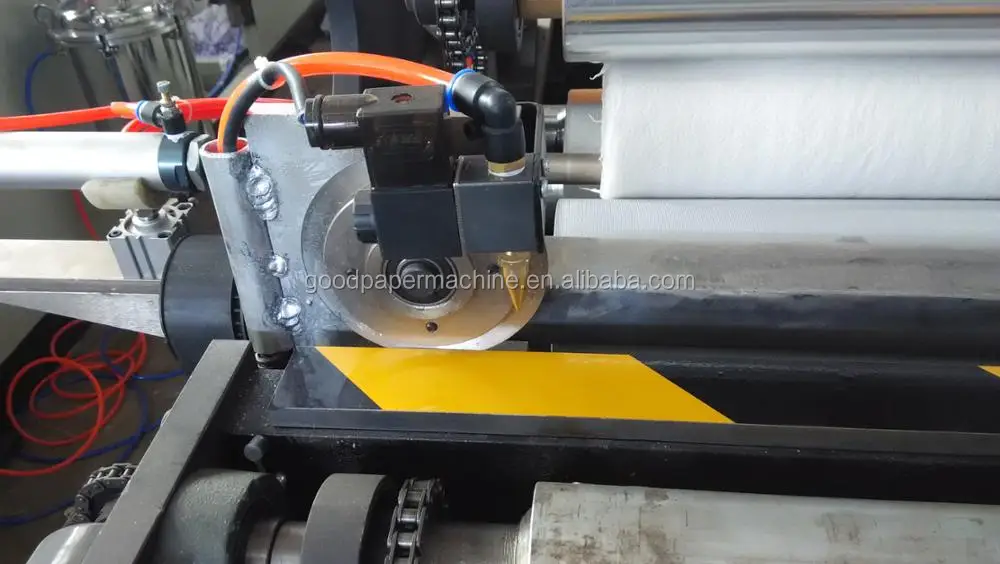

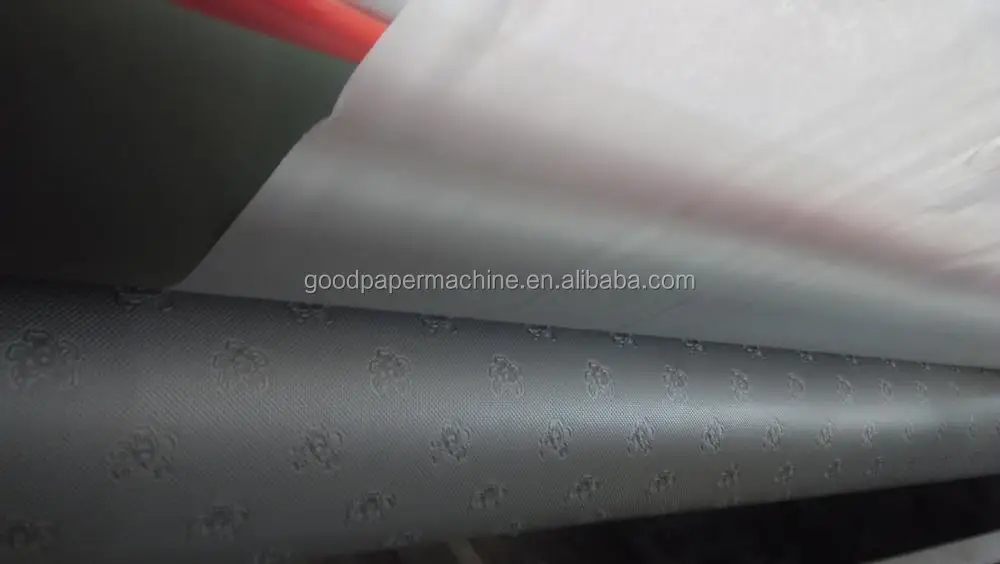

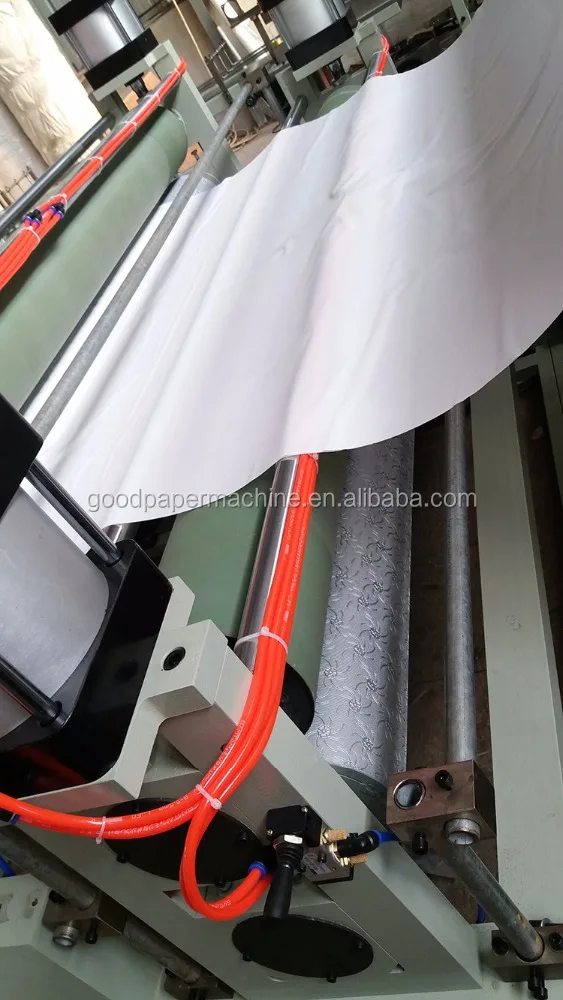

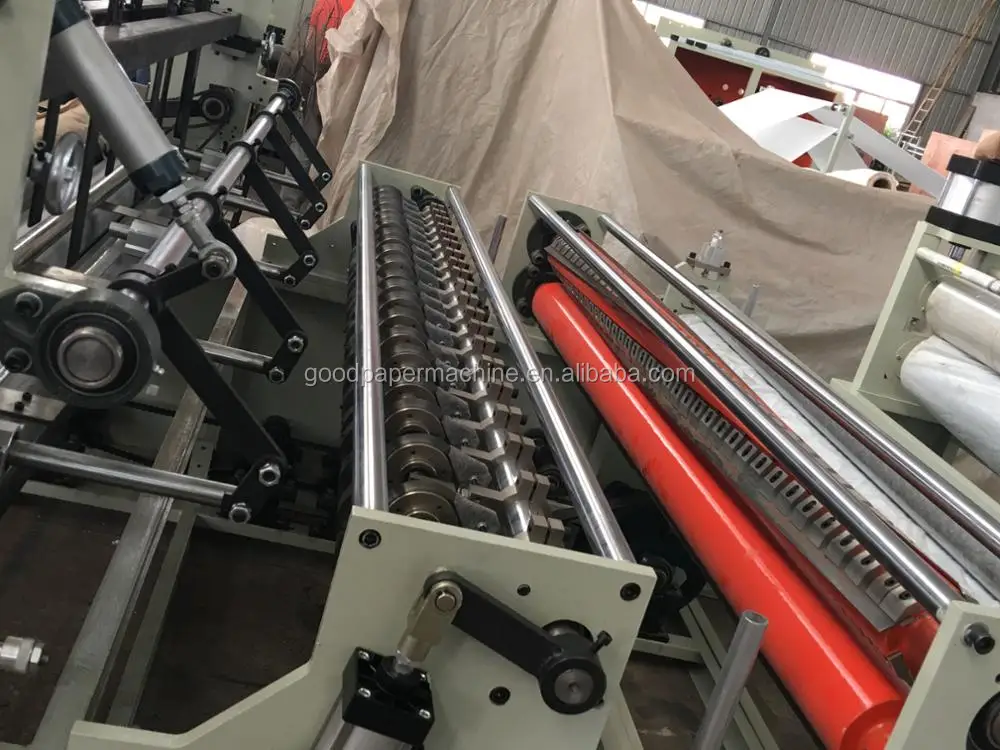

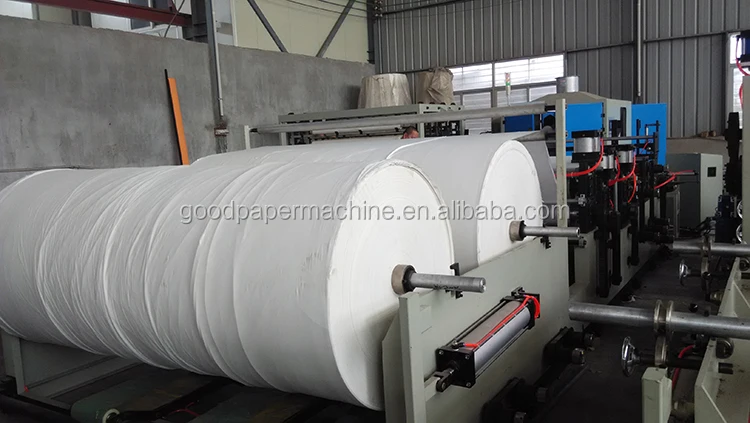

This equipment can process raw paper of 1.2m -2.75m in width. There are two production model, machine with cutting function, can produce both ordinary toilet paper and small bobbin. High production efficiency .This machine is consist of stand of raw material, paper conveying unit, embossing unit, perforating unit, cutting unit,rolling unit, electricity control and trimming spray system. The production process is : unreeling —→ embossing —→perforating—→cutting —→furl—→trimming spray

Features:

PLC (computer) control production, degree of full-automatic of production process is high, the function of machine is complete, and production efficiency is high.

Load and change the core, spray glue, seal can be done without stop the machine. When changing the core, the machine will low the speed and up the speed automatically.

When change the core to rewind, it will be tight first and then loose, to avoid the core loose.

Equipped with automatic alarm to indicate filling up of core pipe. The machine will be automatically stopped when there is no core pipes.

When raw material broken, the machine will stop automatically.

Each raw material unreel separately , equip with tension control.

Easy to adjust in order to suitable different paper core.

There is tail after the finished product sealed with glue , easy to use.

There is pneumatic jack to load the raw material on machine

As required, the machine can equip with single color or double colors printing device, the pattern is vivid.

The machine can equip with two sets of embossing device according to requirements.

Main technical parameter:

After-Sales Service:

1.We also provide the door to door abroad installation, equipment debugging, technical training service;

2.Warranty:1 year quality assurance

3.Building customer files, solving various technical problems for user;

4.Our technical team give you 100% rest assured global presence service even over the warranty period.
