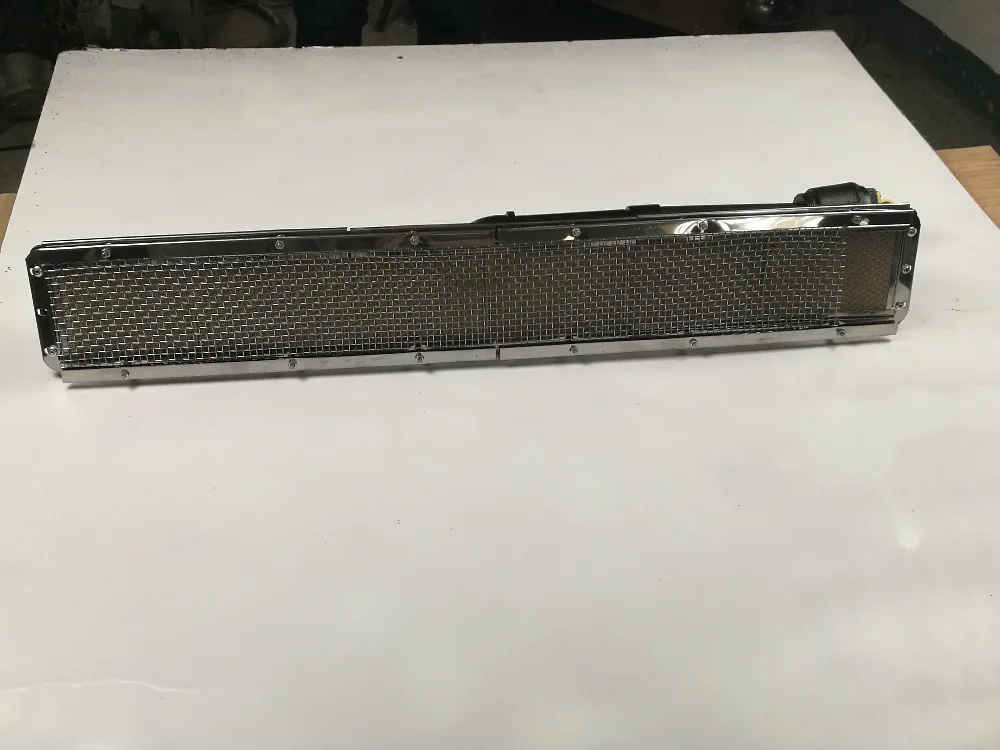

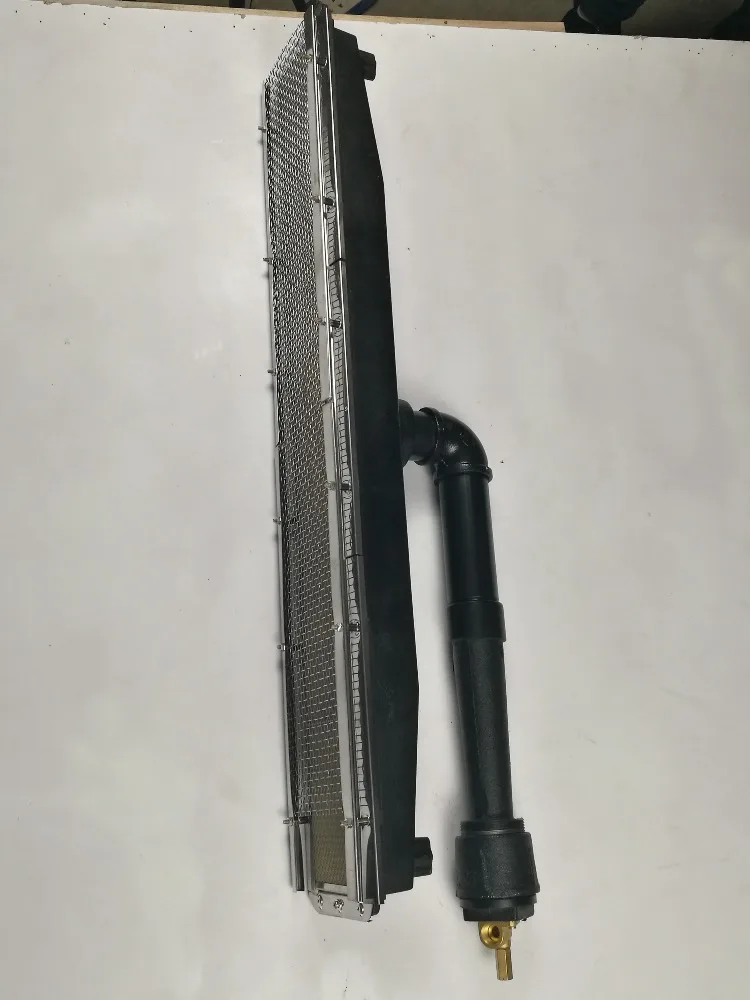

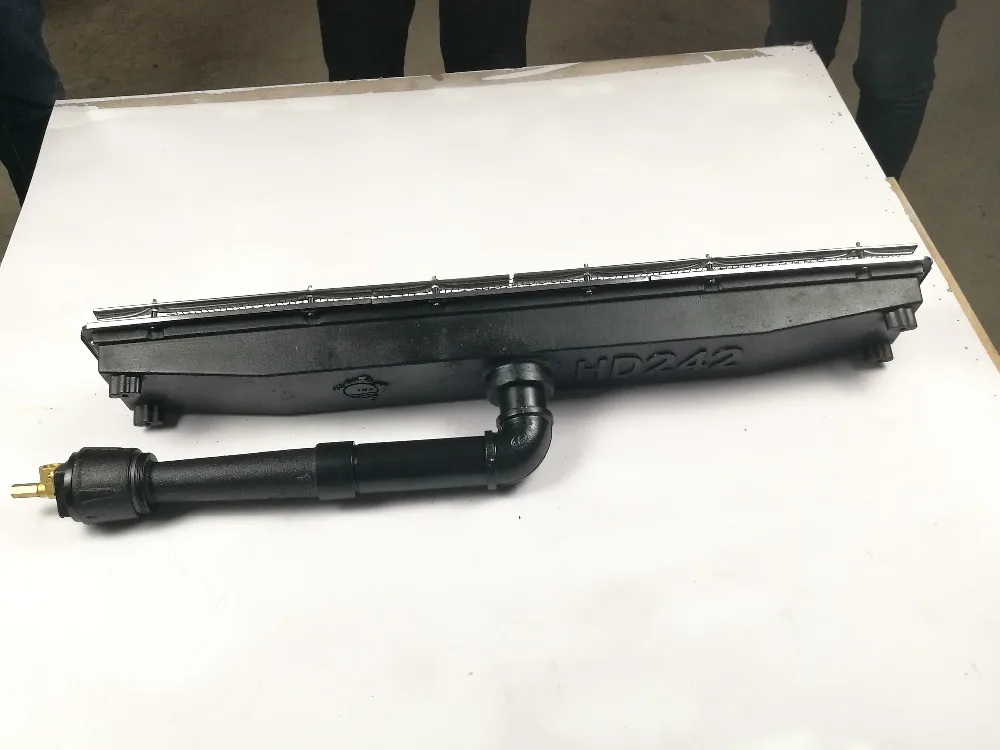

Industrial oven part infra red IR panel heater





 ----Haodong Technology is the first and only manufacture in China who apply rare-earth catalytic combustion technology in infrared burner&heater. It can save 10%-20% energy than non-catalytic type.





What are the advantages of our products?


Advantages:


1.High energy transfer rate:  conversion rate≥95%, other gas burner only 75%-85%.
2.Eco-friendly:   CO≤80ppm;NOx≤10ppm;CHx≤50ppm
3.High efficiency:  it can come to working condition in 8seconds.
4.Long life-span:   ≥11000h


5.Individual operation: Each burner has individual ignition control system,some problem  will not affect other's burner's work.


6.IR Heating directly: Heat direct by Radiant Infrared Ray,no need conbustion chamber,blower……


7.Fameless & Smokeless


8.Easily installed


9.Tempeturature control

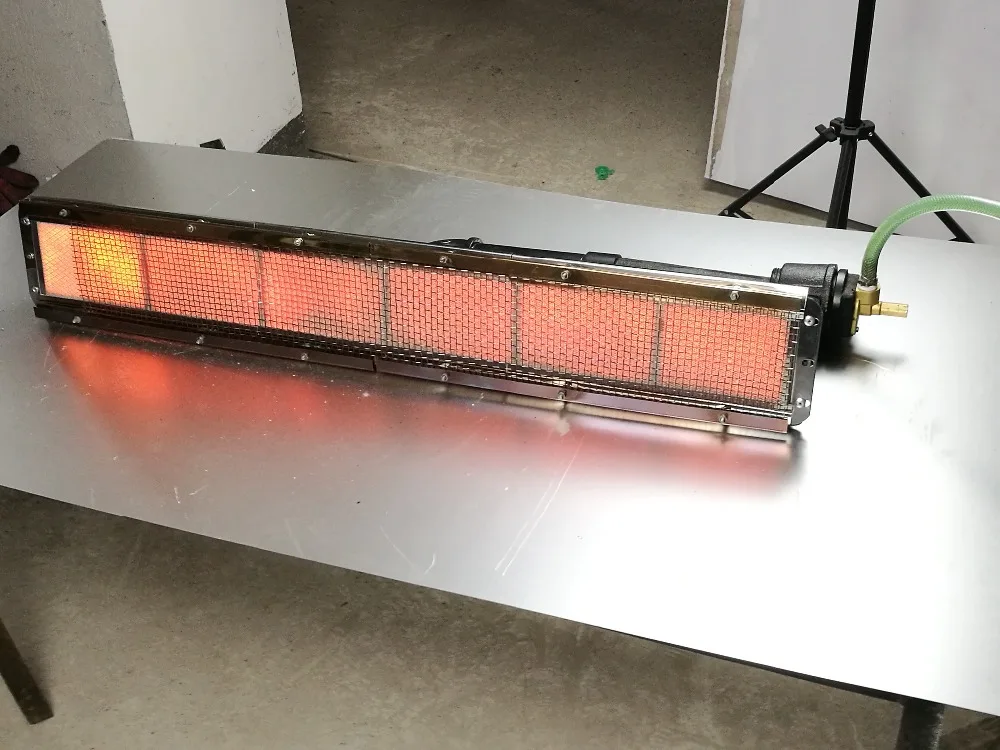

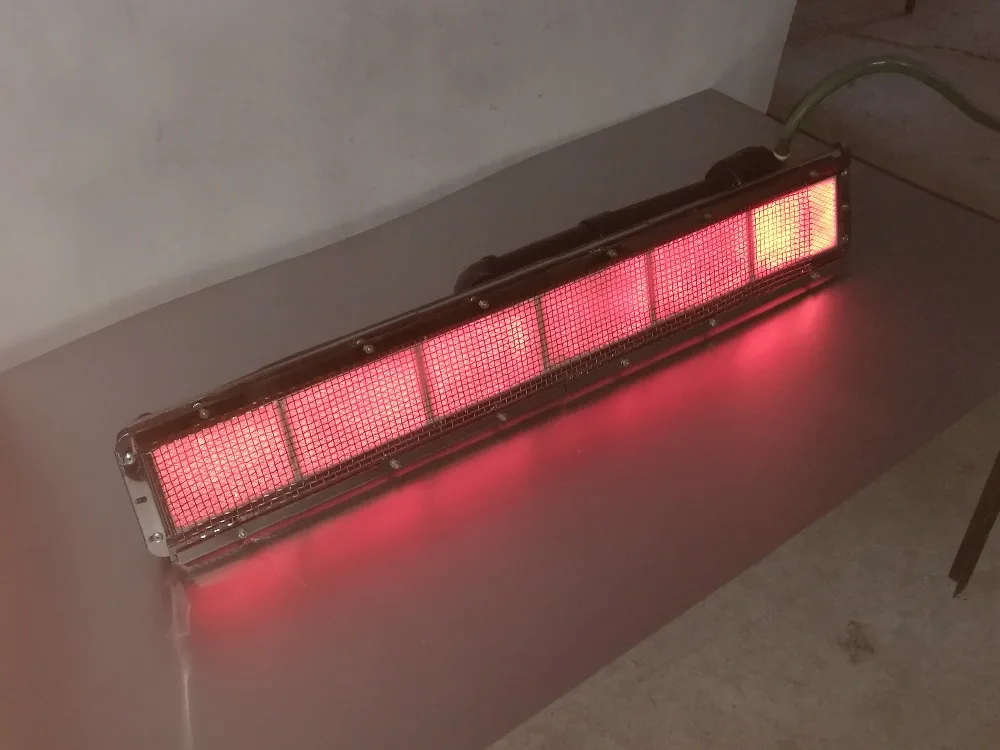

 Industrial oven part infra red IR panel heater

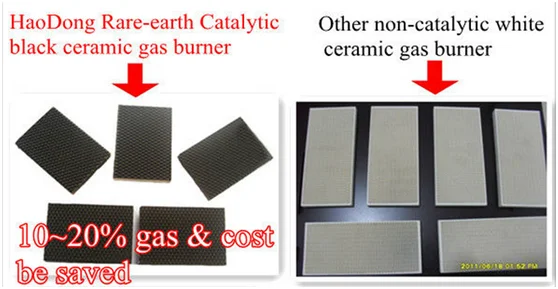

Comparison between catalytic and non-catalytic ceramic plate

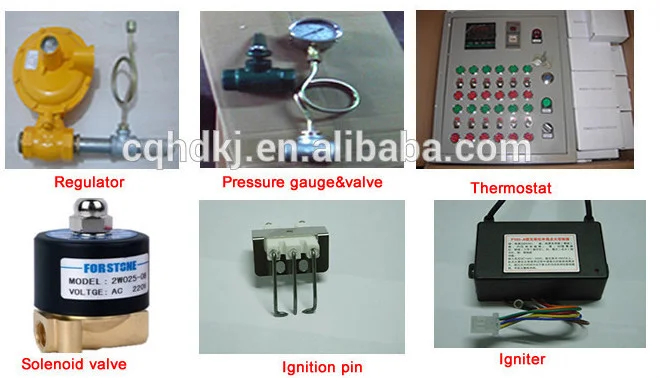

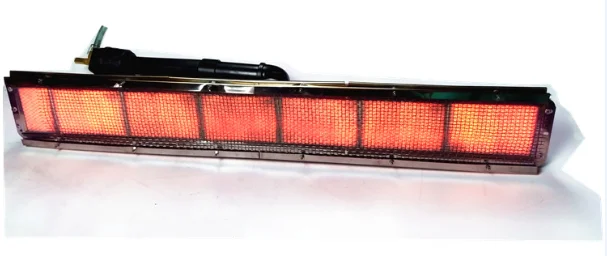

What is the details of our products?





 <brGCA6W%31([~J}8S_%]]T2S" width="638" height="269" ori-width="607" ori-height="256"/>




.png





What is the specification of our products?

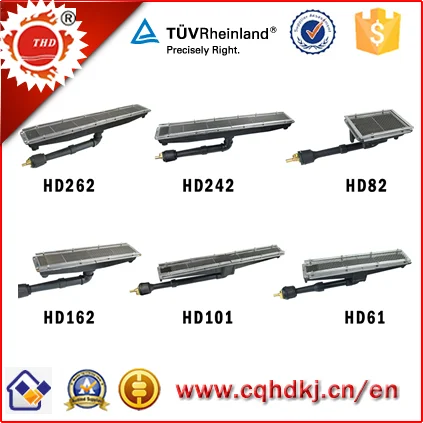

MODELDimensionWeightGas TypeHeat OutputConsumption
 mmkg KW/hKcal/hrNG(m3/h)LPG(kg/h)
FY41280*80*703.1NG/LPG2.118000.170.16
HD61423*80*943.8NG/LPG2.420300.180.18
HD81555*80*1155.8NG/LPG3.127000.240.24
HD82219*164*1084.8NG/LPG3.127000.240.24
HD101690*80*1156.9NG/LPG3.933800.30.29
HD162570*130*1758NG/LPG6.354000.490.47
HD242840*130*17511.7NG/LPG9.481200.750.71
HD262930*130*17513NG/LPG10.993600.80.82
HD410410*175*2208.1NG/LPG6.354000.490.45
HD600600*175*22010.5NG/LPG9.481200.750.68

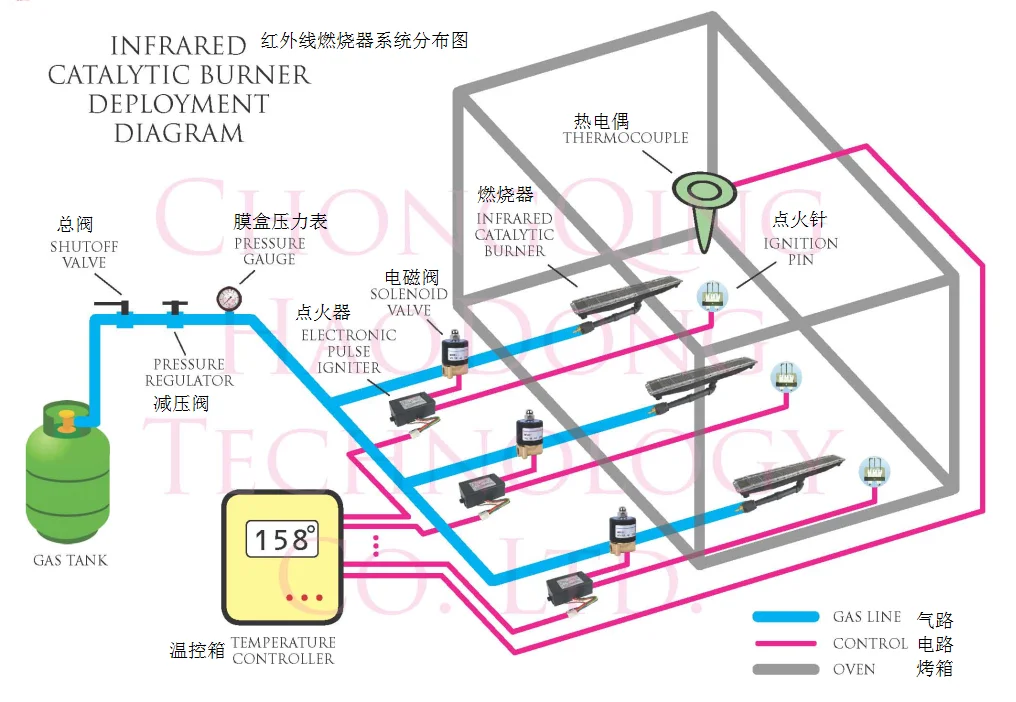

What is the application of our products?











FAQ


 1.which gas the burner use?




      -----Natural gas or liquefied gas.





 2.Can you accept  1 or 2 sample order?





      -----Yes.


 3.How many can you supply in one month?





      -----About 1000pcs.


4.Which payment way can you accept?





      ------Paypal, T/T, Credit card, Westen union,Ali pay...
