Automatic Threading Machine DS63 TA

Pipe

standards

Model

DS3-TA

standard

U-PVC1002.1-2006  (as request)

Diameter

20mm-63mm

Length

3m/4m

Electrical component

PLC and Screen

Siemens

low-voltage apparatus

Schneider, Omron, Autonics, etc.

Inverter

Yes, Bosch Rexroth

Total Power

6KW

Use voltage

380V, 50HZ, 3-phase  (as request)

Wire dimension

5*6 square millimeter

Pneumatic

Compressed air pressure

0.6Mpa

Pneumatic valve

SNS

Pneumatic cylinder

SNS ISO standard

Equipment

appearance

Machine head

2 units

Machine table

1 unit

Chamfering device

yes

Blade

2 sets

Scraps blowing

Yes

Center height

1000mm  (as request)

Height adjustment

Eletrical - via button

Machine color

Light grey RAL7032  (as request)

Machine dimension

6850mm*2150mm*1850mm

Machine weight

3100kg

Operating principle

Machine type

1. Online: Automatic, match with twin extrusion line, make two sides thread cutting per cycle

2. Offline: Automatic, with pipes stock station, produce one by one, make two sides thread cutting per cycle

Machine speed

30s-50s

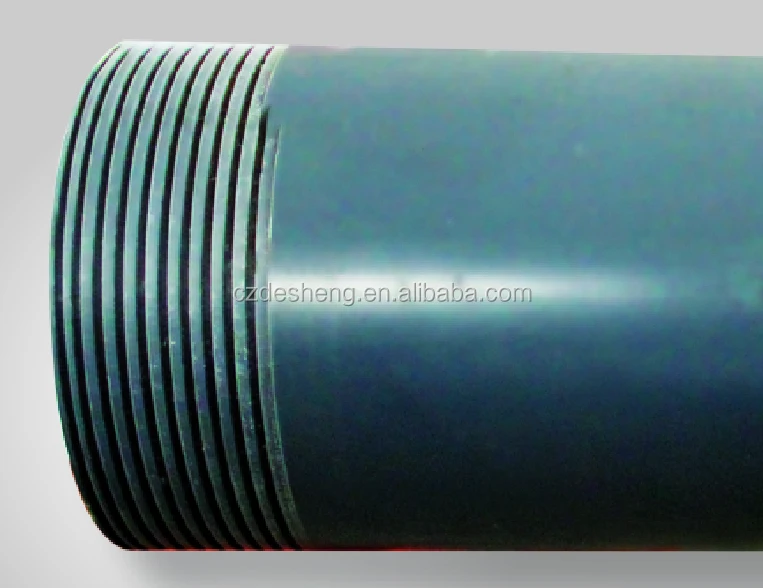

Thread type

V-type outer thread

Blade material

W18Cr4V
