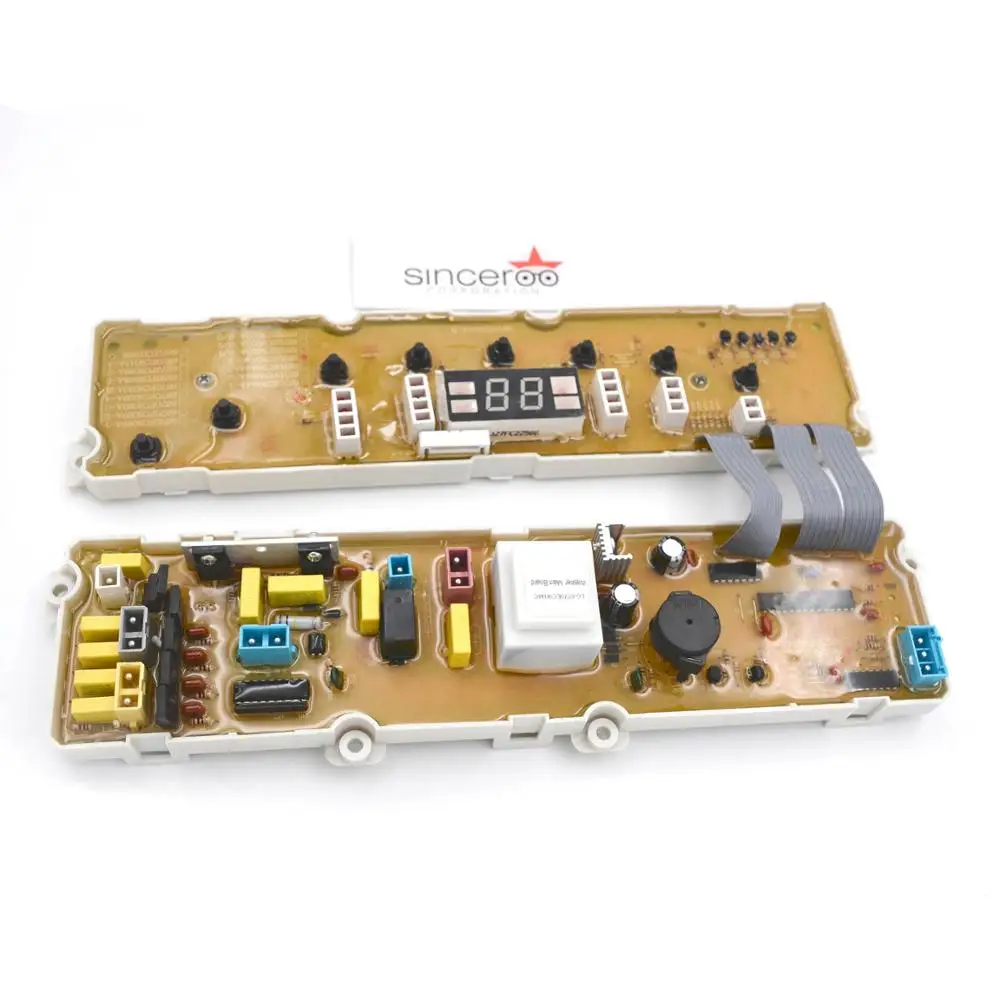

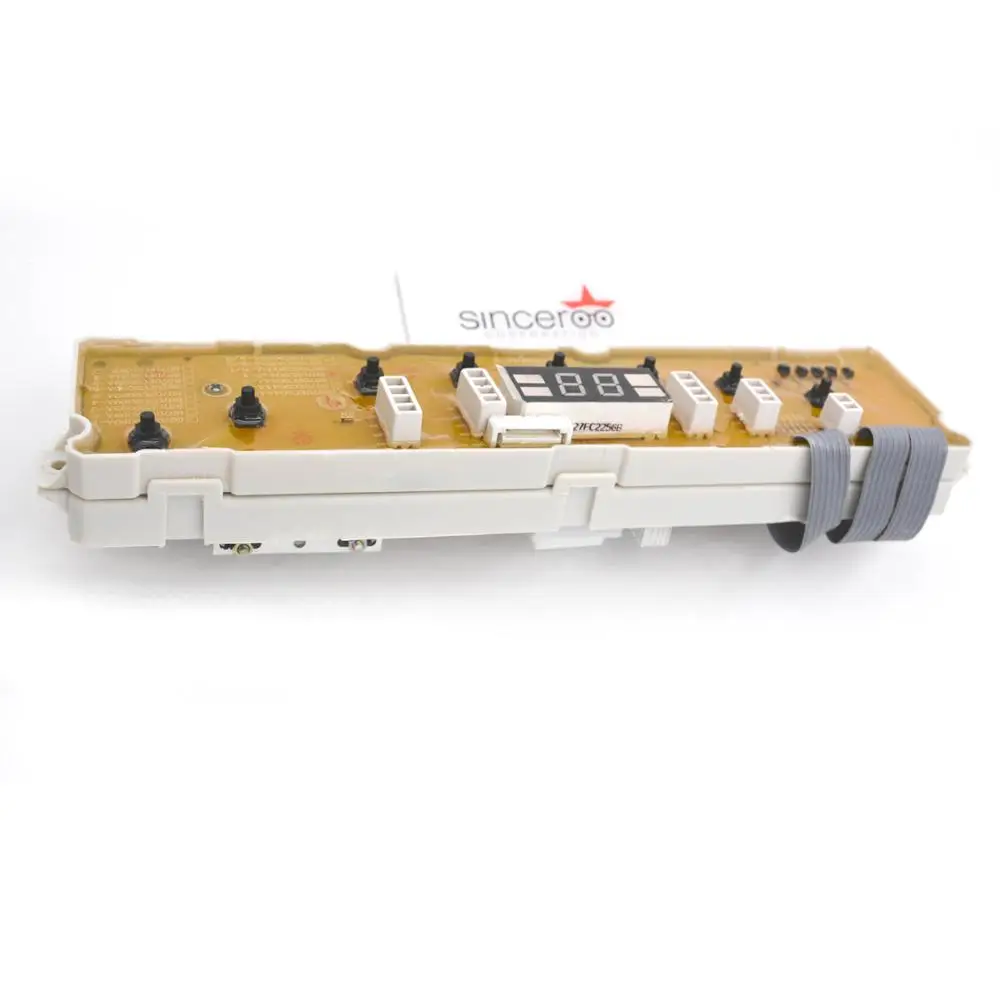

washing machine parts Universal Washing Machine Main / Control / Computer Board
- Category: >>>
- Supplier: Ningbo Sinceroo International Trade Co. Ltd.
Share on (60747611451):
Product Overview
Description
washing machine parts Universal Washing Machine Main / Control / Computer Board
Product Description
1. With digital display and LED indicator light.
2. A variety of programs available.
3. Electronic water level, the optional infinite file level, to achieve water-saving purposes.
4. Memory function. The controller can remember the last program that the user selected.
5. Automatic and manual replenishment function.
6. Imbalance Correction function.
7. Water recycling function.
Specification
1. Voltage: 110VAC/220VAC±15%
2. Frequency: 50Hz/60Hz
3. Consumption: ≤5W
4. Ambient temperature: -20 °C - +50°C, Humidity: under 95% ( at 25 °C)
5. Loading current: For motor control MAX 8A , incoming valve control MAX 4A
6. Program time deviation: ±1% or under 0.1 second
7. Min start voltage: at 170V , at rated loading
Function
1. Can done as “washing”, “rinsing”, “dry”, and spin four multiple program
2. “Standard“, and “memory” way
3. Alarming when unbalance
4. When “washing” program , water adding available
5. Alarming when incoming or out water out of limited
6. When program finished, will power off automatically
7. Cover will be protect when “dry” program
8. Non-water testing function, non-water washing function and using life testing function
Installation Tips
1. Please check the motor, water inlet valve and drain valve of the washing machine are well before installation . Otherwise the computer board will be burned. Inlet valve should be more than 4K and also the drain valve shoud be over 100 Ω, if not it is the defect items and also should be replaced.
2. Un-dry clothers and no spin occurs often. Check the door swith and plugs is well connected .
3. For Electronic water level washing machine. Use the original or same frequency water level device or it will occur unlimited water flow and also the clothers will not be dried.
4. When there is a trouble alarm of computer board, It is usually the problem of peripheral circut. Please refer to the user manual of washing machine for the failure code.
Basic Repair Note
1. The machine is not supplying water, nor washing, nor draining but lights flashing normally in start position. Reconnect the white plug/socket reversely.
2. The machine is not supplying water but keeping spining in start position. Reconnect the red pulg/socket reversely. Bayonets is subject to different batches.
3. Start-up alert. Water level sensor is in pool connect or disfunctions. Code E6 appears. Reconnect the socket or replace a new sensor.
4. Spin alert. Check the door lock. Run a test on ciruit switch to confirm.
5. Any other error/alert apprears. Check other components.
FAQ
Q1: How about the Quality Control?
A1: In order to better control the quality of products, Ningbo Sinceroo has a strict quality control system and professional inspectors to do inspections from raw material-selection, production, packing to shipment, so as to ensure getting high quality final products. Our company has been equipped with related certificates and testing reports for our products.
Q2: How about your prices?
A2: Well, if you take notice of our boasted high quality and excellent services, you will find that the prices of Ningbo Sinceroo are very competitive in China.
Q3: What about your production time?
A3: We are aware that the timely delivery time is key important in trading business. Normally the delivery time is between 20-30 days, which depends on the specific quantity.
Q4: What is the minimum order quantity?
A4: If we have stock, only one piece is available. Otherwise, it is negotiable. Every order is valuable for us.
Q5: We are starting our small business. Can you accept a small order?
A5: Yes, we could accept small orders, no problem. Everyone has his first step. For many items, we could have some stock or we could arrange the production of the same item with other customers? orders by coincidence. Sinceroo hopes to grow up with all of you together.
Q6: Can you supply me with the sample?
A6: Sure, we are glad to send samples for your inspection. The samples can be free if we have in stock, or we will charge you for some high cost products with reasonable prices. What?s more, we suggest you testing the sample or place a trail order before placing big orders to ensure everything goes well even though we would rather have big order and selling fast.
Q7: We had bad experiences with Alibaba before, how can we trust on you?
A7: We are very sorry to hear your bad eiences. Everyone could encounter this kind of thingsin our life. We have joined Alibaba Trade Assurance services, which shows that we are a reliable supplier. We have been Gold supplier in Alibaba and Top 100 Reliable & Honest Company in Ningbo City. What?s more, we have done many transactions with numerous customers froma lot of countries. You can check our customers? testimonials; we could give you our customers? contacts for you to get references after we obtain the permission from our dear customers.
