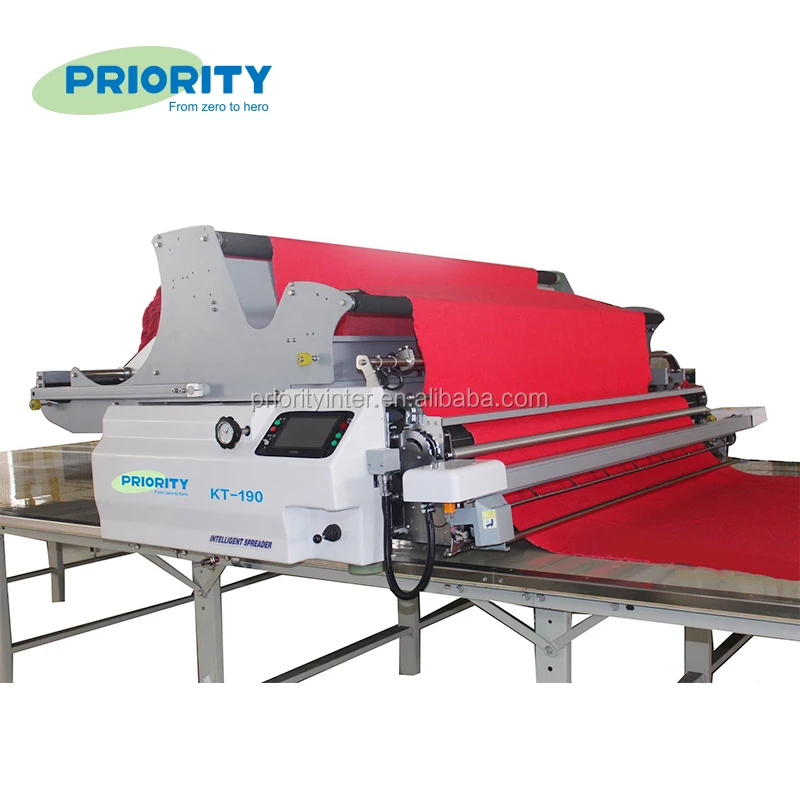

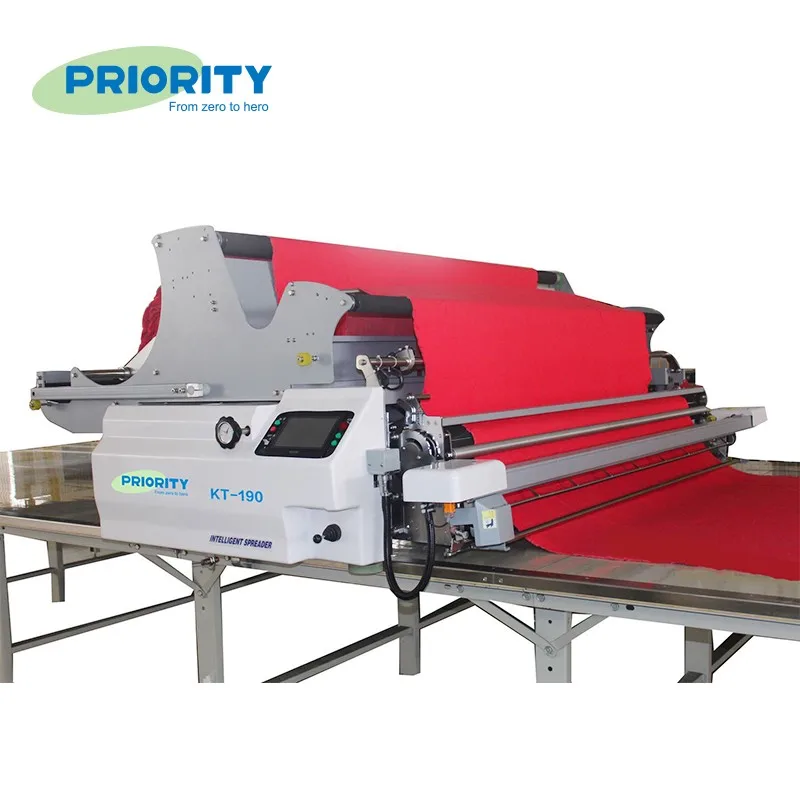

Automatic Spreading Machine

1) Memory for set up of spreading length.

2) Auto acceleration and deceleration by computer.

3) Bucket type unwinding synchronically with relaxing function.

4) Fabric setting bar and fabric expander.

5) Emergency stop.

6) Auto-lifting device.

7)Adjustable cutter travel length.

8)Layer counter.

9)Edge control. Auto-cutter.

10)Rewinding device(Cloth roll).

Main Device:

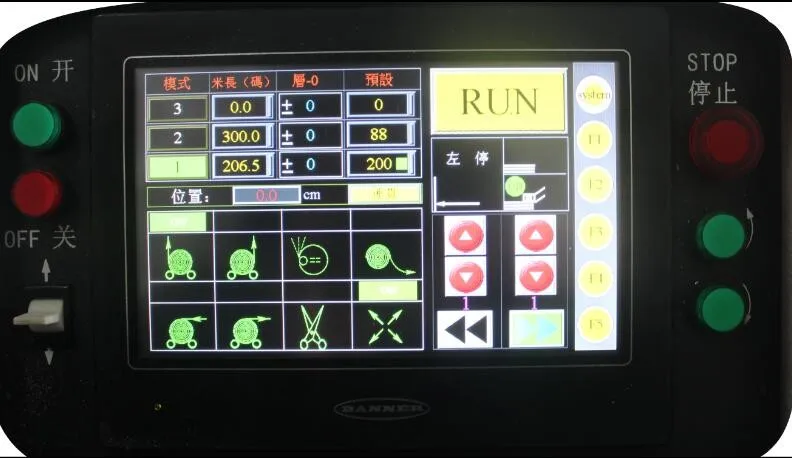

1)Touch panel display:Easy to set up the length,number of layer,speed and steps.

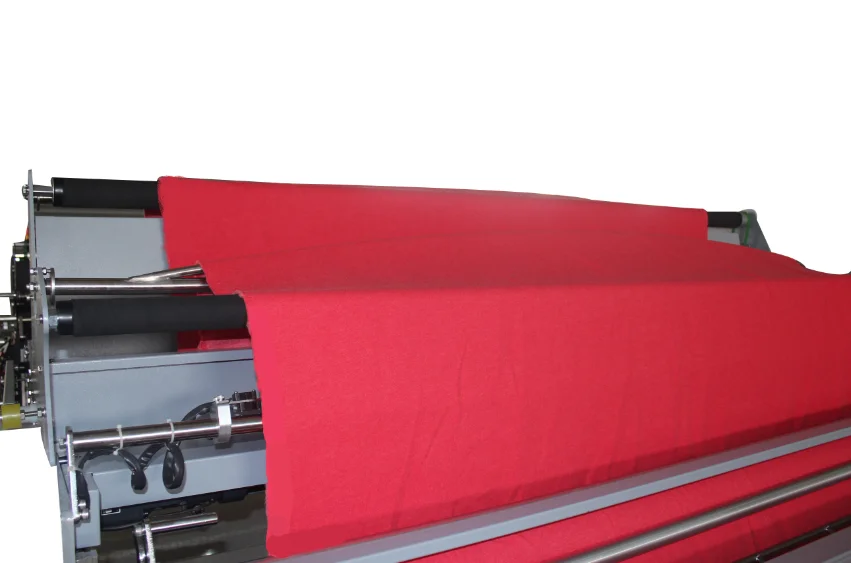

2)Fabric expanding device:It can be adjusted according to the different width and tension of fabrics,making fabric free from tension.

3)Cutting device:The auto-cutter can be easily dismounted.Travel length and speed of cutter are adjustable.

4)Automatic fabric relaxing control:To relax the fabric in advance and release the tension during spreading the fabric.

5)Edge control device:Automatic edge control during spreading fabric.

6)Fabric lading sensor:Machine returns back to original position once fabric runs empty.

7)Emergency stop:The brake lines are under two sides of table,and can be efficiently pulled upon emergency.

Optional Device:

1)Tubular Device.

2)Riding Operator Platform.

3)Safety Sensor Device.

4)Blowing device for edges.


Specification:

Model	KT-190D	KT-210D
Power Supply	1P/220V
Motor	1KW
Maximum Cloth Width	1900mm/75"	2100mm/83"
Table Width	2130mm/84"	2330mm/92"
Machine Weight	350kgs	360kgs
Weight of Cloth Roll	100kgs max
Diameter of Cloth Roll	450mm max
Travel Speed	90m/min max

Detailed Images

Machine Parts

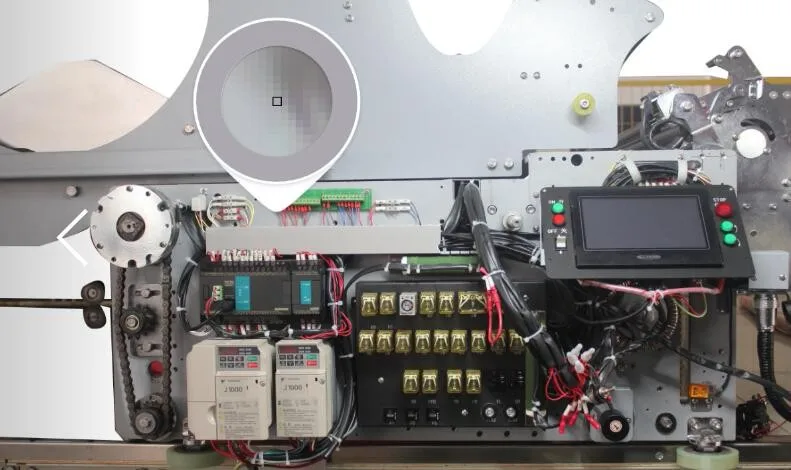

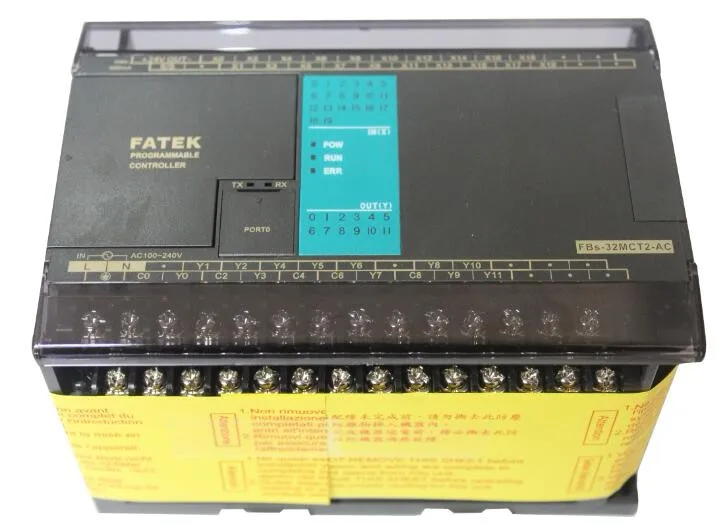

Name: PLC

Brand: FATEK

Original: Taiwan



Machine Parts

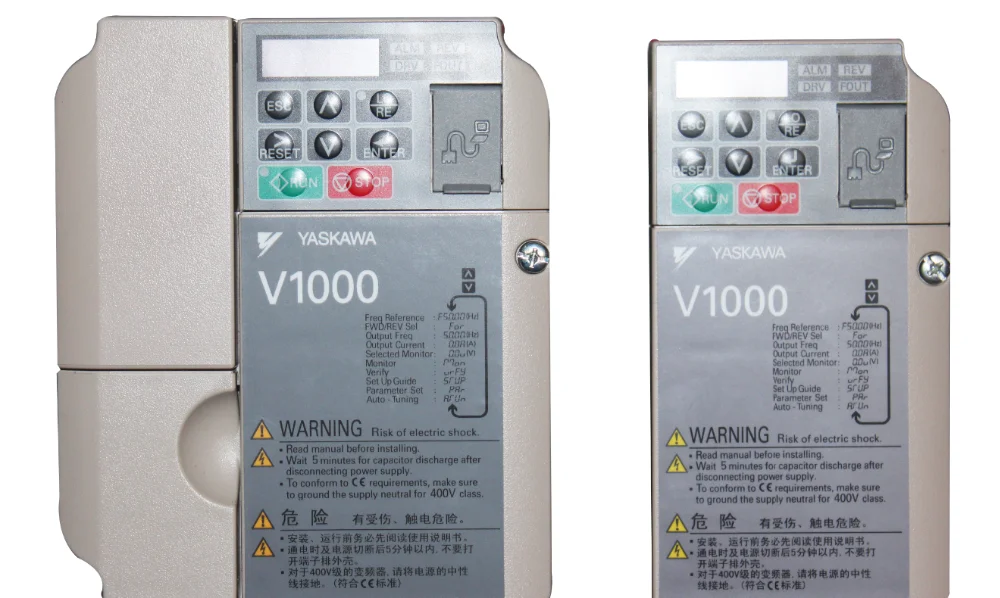

Name: Frequency converter
Brand: YASKAWA
Original: Japan


Machine Parts

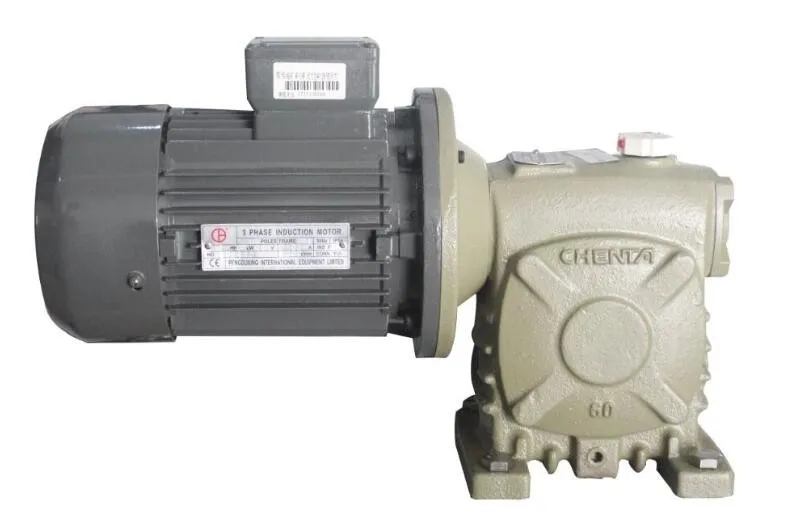

Name: Mainly Running Motor/750W
Brand: CPG
Original: Taiwan


Machine Parts

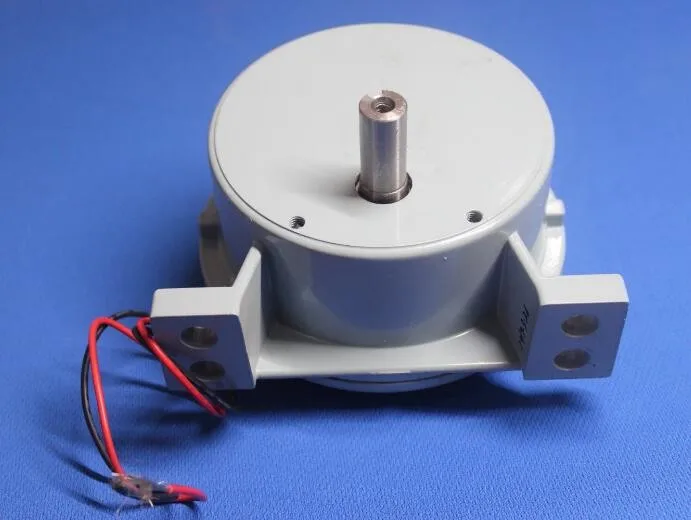

Name: Edge Alignment Motor
Brand: McGinny
Original: China


Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	2750 (L) * 1800 (W) * 1050(H)
Weight	G.W:450KGS         N.W:350KGS
Packaging Details	The normal package is plywood  box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
