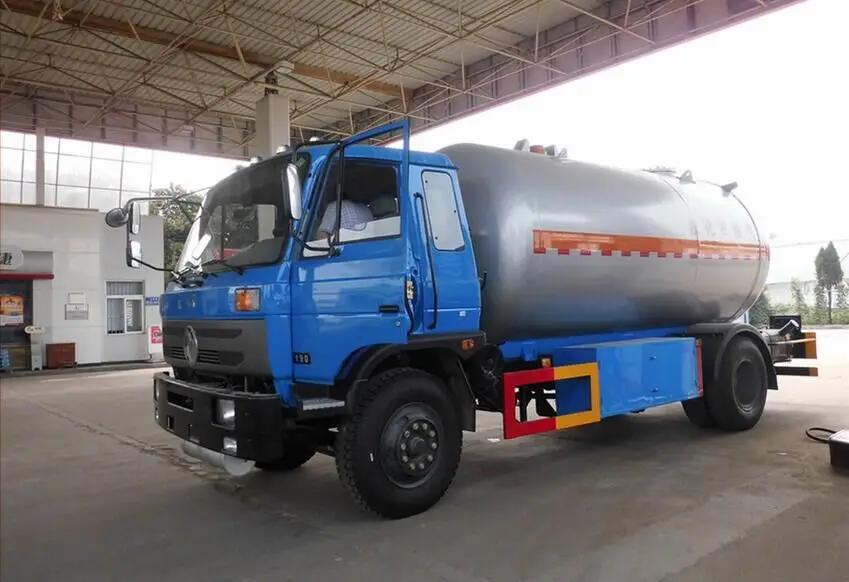

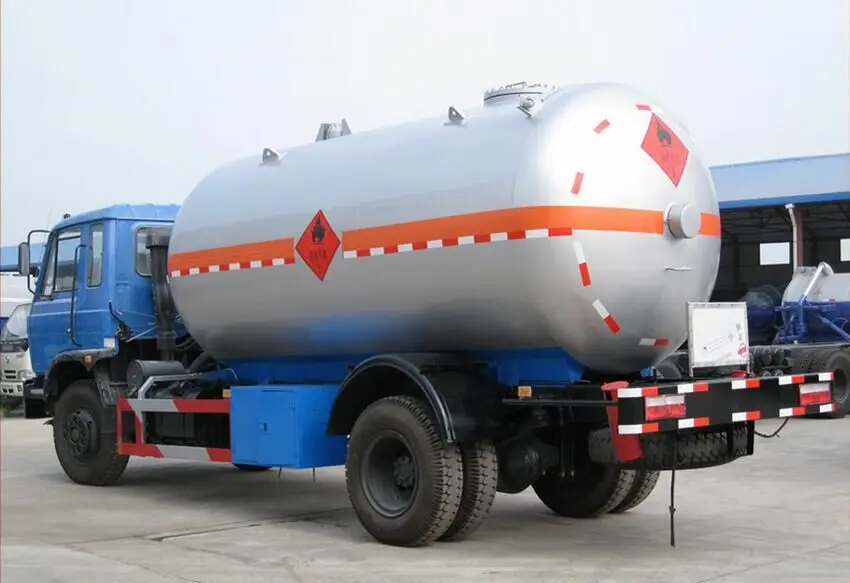

15,000 liters LPG Tank Truck ,transport truck for propane lpg , lpg gas tank truck for sale
- Category: Tanker Trucks >>>
- Supplier: Hubei Veldlion Machinery Co. Ltd.
Share on (60747639639):
Product Overview
Description
Product Description
LPG(propane) pressure vessels/tanks, trailers, trucks
-----------------------------------------------------------------------
* LPG (propane) Tank Truck*
Asme standard available
100% new condition by manufacturer direct sale
100% quality guaranteed
» I.Product Describution
Manufacturer: Hubei Veldlion Machinery Co.,Ltd.
- Domestic or imported high-quality safety accessories is optional for lpg storage tank
- We can provide LPG storage tank volume from 5m3 to 120m3
LPG semi trailer from 23.97m3 to 59.6m3
LPG transporation truck from 5.5m3 to 35.5m - We accept custom design to meet the conditions of many other gas transport, transport medium include liquid ammonia, liquid sulfur dioxide, propylene, propane, liquefied petroleum gas (lpg), dimethyl-ether, normal butane, isobutane, butene, isobutene, butadiene and ethylene oxide
- According to strict manufacturing engineering to guarantee the lowest contractibility rate and highest dimensional stability
- Strict quality testing:A and b class weld joint with 100 percent x-ray radiographic inspection grade ii qualified;C and d class weld joint with 100 percent magnaflux inspection class i qualified
- Corrosion-resistant coating on the tanker surface.Using sand-blasting treatment, spraying, blowing and other advanced technology
- Standard configuration:Safety valve, level gauge, pressure gauge, thermometer, emergency shut-off valve, valve boxes, fire extinguishers, fire star cover, antistatic grounding tape, fencing, tires and fenders.
- Asme certification: We are qualified to provide asme standard pressure vessel products, if customer needs
» II. LPG Tank Truck Specification :
| Item No. | Specification | |||||
| Cabin | Left hand drive, with air conditioner | |||||
| Overall Dimension | 7980x2500x3450 mm | |||||
| Gross Vehicle Weight | 16000kg | |||||
| Curb Weight | 7205 kg | |||||
| Rated Weight(kg) | 8600 Kg | |||||
| Wheel Base | 4700mm | |||||
| Front/rear Overhang | 1205/2195 mm | |||||
| Approach/Departure Angle | 28/22 degree | |||||
| Engine | Dongfeng B170 33 Diesel Engine, Four Stroke, 6 Cylinder in line. | |||||
| Engine horsepower | 125kw/170HP , Euro III | |||||
| Displacement | 5.9 L(Diesel) | |||||
| Max Driving Speed | 90 km/h | |||||
| Gear Box | Dongfeng Brand, 6 Forward Gear, 1 Backward Gear | |||||
| Cabin | Left Hand Driving, 3 Passengers Allowed | |||||
| Tire | 9.00-20 | |||||
| Tank Capacity | 15CBM (15000L) | |||||
| Filling Content | Liquefied Petroleum Gas (Propane) | |||||
| Tank Material | Q345R high tension steel, 12mm Thickness Tank Body. | |||||
| Standard Equipment | Safety Valve, Level Gauge, Pressure Gauge, Thermometer, Emergency Shut-off Valve, Tool Boxes, Anti-static Grounding Tape. | |||||
| Specification | Designed Pressure: 1.66Mpa | |||||
| Filling Ratio: 420-590 kg/m3 | ||||||
| Working Temperature: -20-50 centi-degree | ||||||
| Corrosion Allowance:≥ 1mm | ||||||

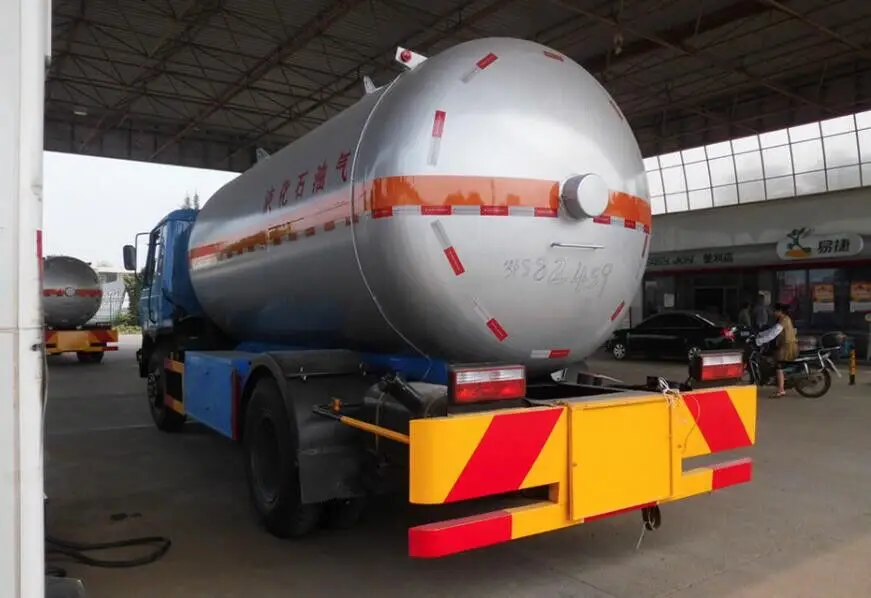

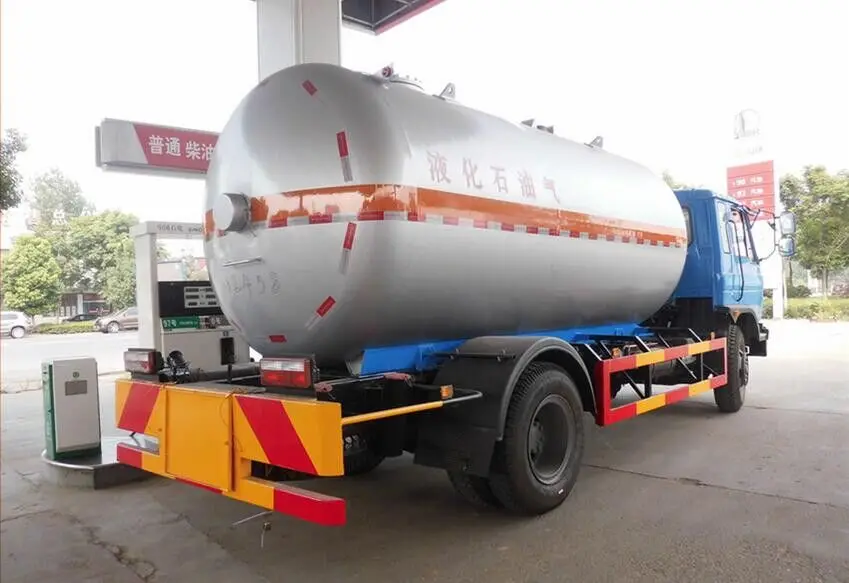

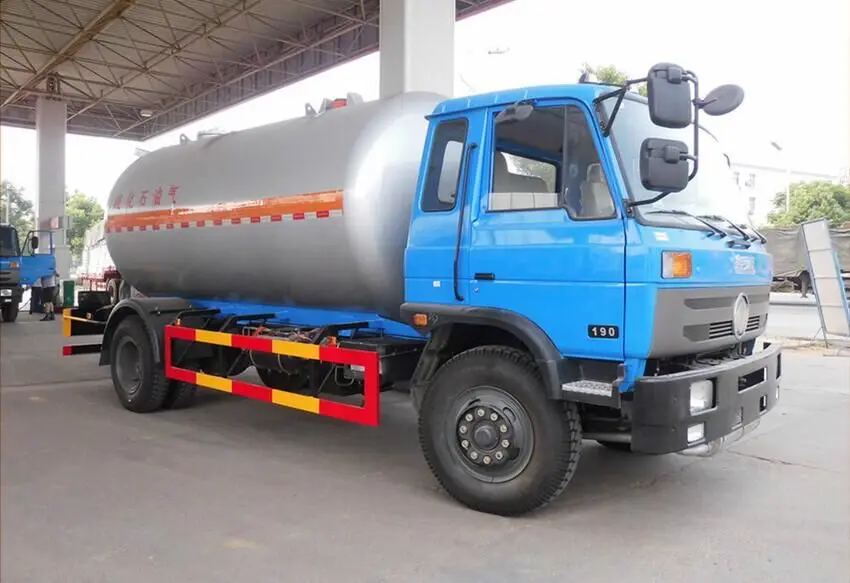

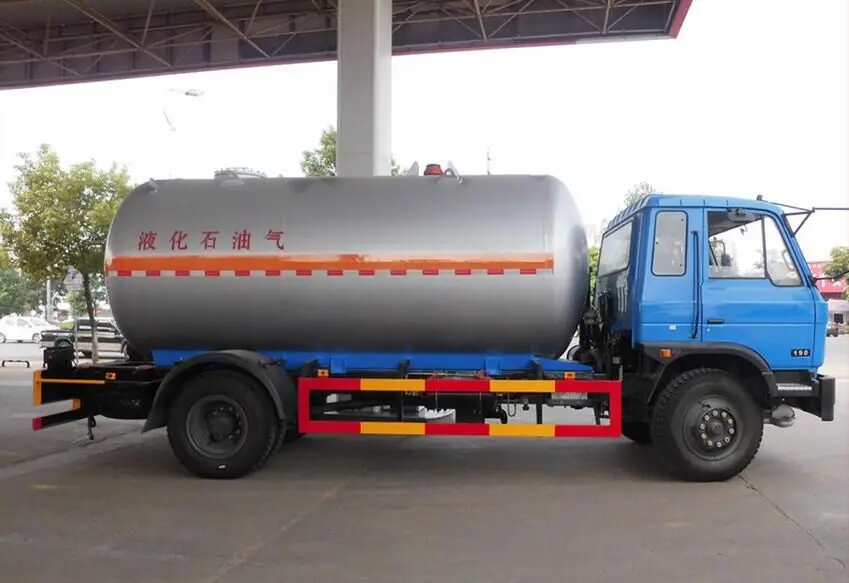

» III. Details Photo LPG Tank Truck :
Company Information
» IV. About us :
Hubei veldlion machinery co., ltd ,which is appointed by the ministry of industry and information technology of china, is a big manufacturer producing all kinds of special trucks.It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation.What's more, it has roundly passed the certificaton of iso 9001-2008 and the 3c certification(china compulsory certification) and other certifications that export needed.
Our company can design and produce many kinds of special trucks accurately as your request.Also own independent export right, wit a mount of clients overseas, such as the u.N., sudan, nigeria, north america, west africa, congo, vietnam ghana, kazakhstan etc.We strives for the survival by the quality and credit standing is the guarantee of our success
.Packaging & Shipping

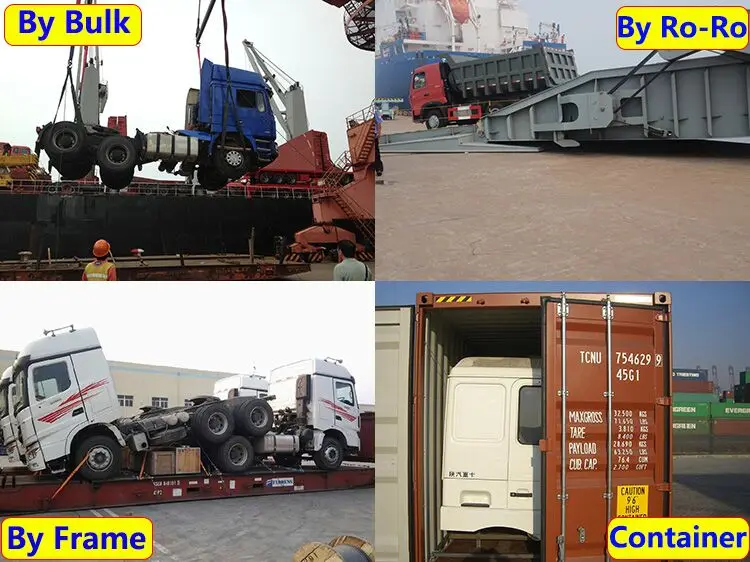

» V. Shipping Method
a.Packaging: Naked
b.Heavy trucks cound be shipped by RO-RO /Bulk vessel /Frame
c.Light trucks could be shipped 20ft /40ft container
Our Services
» VI. Our Service
Create value for our customers:
1. more than 200 professional worker to supply high quality products;
2. Own engineer to design according to your request;
3. QC team to control the all production line;
4. Sales team to follow on all details for you;
5. CNCA+CCC+after sales service+quanlity warranty
FAQ
FAQ
1.Q:How about the warranty?
A:One year
2.Q:Do you have ISO certificate ?
A:Yes , we have,pls contact us to get our certifications.
3.Q:How about the delivery time?
A: It depends on the style of truck ,normally around 30 working days
4. Q:How about shipping ?
A:Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container,small type can shipping by container ,Pls contact us to get a shipping quotation .
5. Q: How do you control the quality of product?
A:our workers are well trained. Our very product under goes a scrutinizing inspection process.
6. Q: How about your product After-sales service system?
A:Our main export country have accepted after-sales service,some of country used the third department service.
7.Q: Do you accept Custom orders? What’s is your MOQ order?
A:Yes, we do, our MOQ is 1 set.
8.Q: What’s the payment terms?
A:By T/T or L/C at sight ,Western Union
Contact us
» VII. Contact us
HUBEI VELDLION MACHINERY CO., Ltd
ATTN: Lotus Wong
Mobile phone(whatsapp): 008613554360907
Skype/Email: sales06(at)veldlion (dot) com
Website: www.veldlion.com
VELDLION SALES TEAM
