ZKS 6 Electric Vacuum Feeder & Vacuum Conveyor

Product Overview

Description

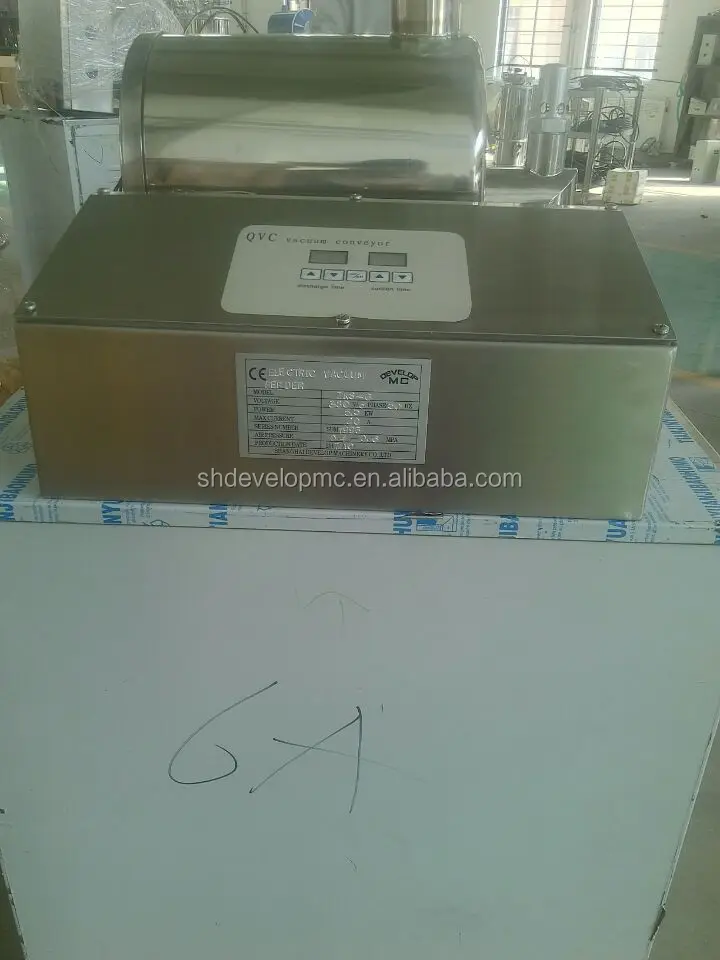

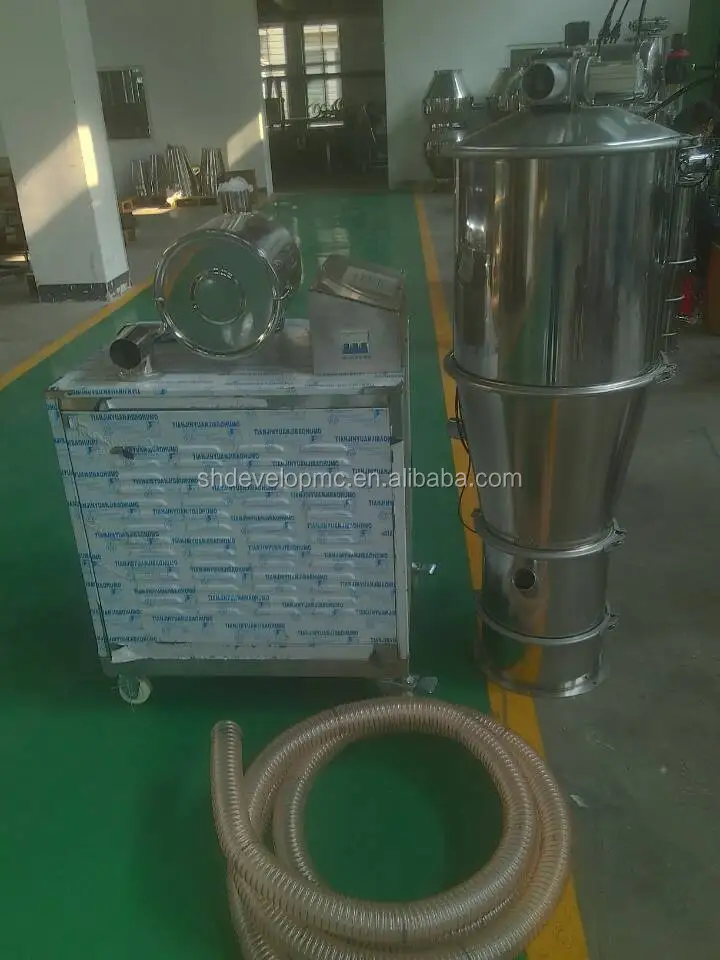

ZKS-6 Electric Vacuum Feeder & Vacuum Conveyor



Descriptions:



My company productionof vacuum feederis a new productdeveloped on the basis of extensive foreign similar products, it is currently the most advanced country, the ideal perfect powdery materials, granularmaterials, granular powder mixes vacuum conveying equipment  Afunction of thevacuum feeding automatically transported to the various materials to the hopper of the packagingmachines, injection molding machines, shredders, and other equipment, can also directly conveying the mixed materialto the mixer (such as a V-type mixer, two-dimensional mixer, three dimensional mixing etc.) to reduce labor intensity, to solve the problemwhen feeding dust spills, pharmaceutical plants, food plants by GMP certification, promote clean, civilized production device of choice.

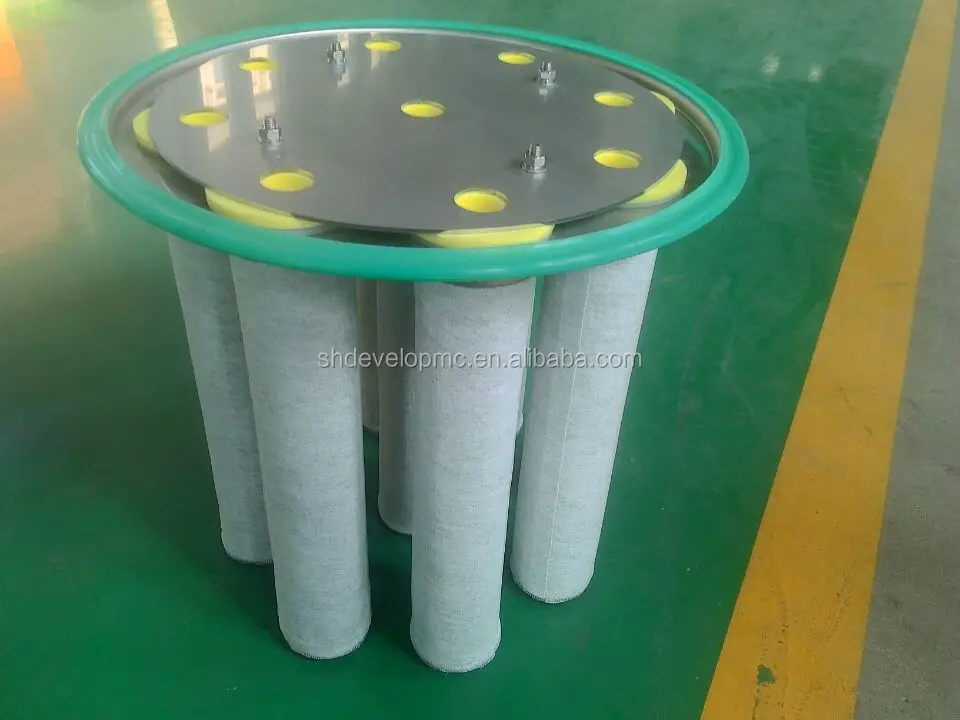

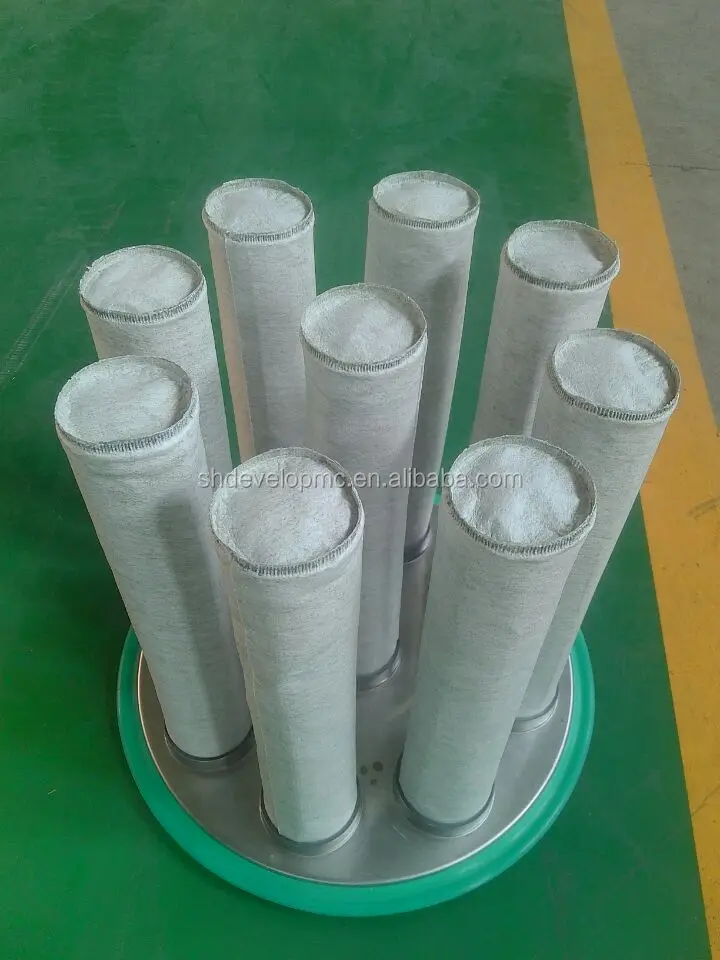

Vacuum feeding machine by a vacuum pump (oil, water), stainless steel suction nozzle, delivery hose, PEfilter (or 316Lstainless steel filter), compressed air cleaning device, pneumatic discharge gate device, vacuum hopperand materials bitsautomatic control devices, the design of the entire system isreasonable, exquisite manufacturing.
Vacuum feeder nesting and nesting two consecutive sub-gap thegap discharge help to reduce the investment cost of the equipment, to facilitatethe control ofthe material level, in most cases, we recommend that users gap dischargetype. Continuous dischargetends to be used in long-distance, large productionvacuum conveying of materials.



Technical parameters:



Type	Product capacity kg/h	Power	Voltage	Weight	Overall size
ZKS-1	400	1.5kw	380v/3, 50hz	80kg	Dia140-560
ZKS -2	600	2.2kw	380v/3, 50hz	100kg	Dia213-720
ZKS -3	1200	3kw	380v/3, 50hz	120kg	Dia290-880
ZKS -4	2000	4kw	380v/3, 50hz	150kg	Dia420-850
ZKS -5	3000	5.5kw	380v/3, 50hz	180kg	Dia420-1000
ZKS -6	4000	5.5kw	380v/3, 50hz	220kg	Dia420-1250
ZKS-7	6000	7kw	380v/3, 50hz	260kg	Dia520-1300
ZKS-10-6	8000	7.5kw	380v/3, 50hz	300kg	Dia520-1300
